Scan code: LN117752 Manufacturer code: Z590 D

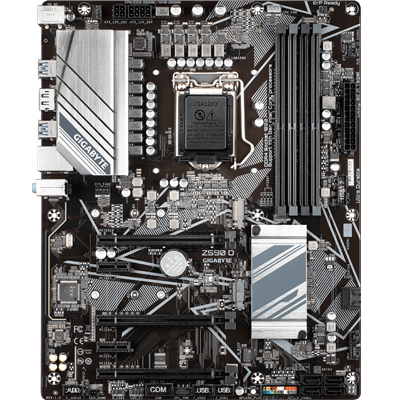

Gigabyte Intel Z590 D ATX Motherboard

Gigabyte Z590 D, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, GbE, USB 3.2 Gen1, ATX

Thumbnail 1 : Gigabyte Intel Z590 D ATX Motherboard Thumbnail 2 : Gigabyte Intel Z590 D ATX Motherboard Thumbnail 3 : Gigabyte Intel Z590 D ATX Motherboard Thumbnail 4 : Gigabyte Intel Z590 D ATX Motherboard
Scan code: LN117752 Manufacturer code: Z590 D
£139.98Item currently awaiting an ETA
Pre order
From £12.57 / month (APR 14.9%)
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £139.98
Total inc. interest: £150.79
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Gigabyte Z590 D 11th Generation Intel ATX Motherboard

Gigabyte D

A Solid Foundation for Your System Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte Z590 D Motherboard, in order to squeeze every ounce of performance from the new 11th Generation Intel CPUs this ultra-durable motherboard boasts an updated digital power design, access to PCIe 4.0 technology, a comprehensive cooling solution with enlarged VRM heatsinks to enhance heat dissipation, Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2, a super-fast GbE Gaming LAN, and support for Gigabytes RGB Fusion 2.0 Software to control and synchronise lighting across compatible products. The Gigabyte Z590 D is perfect for daily users and mainstream enthusiasts that are looking to push the modern boundaries of performance. Start with a strong foundation, now is your chance.

Intel Z590Chipset

LGA1200CPU Socket

10th & 11th GenIntel Processors

ATXForm Factor

Deliver Maximum Power To Power Hungry Components

Digital PWM Controller

12+1 Phase Smart Power Stages

4K Recording

All-Solid Capacitors

8+4 Solid Pin Connectors

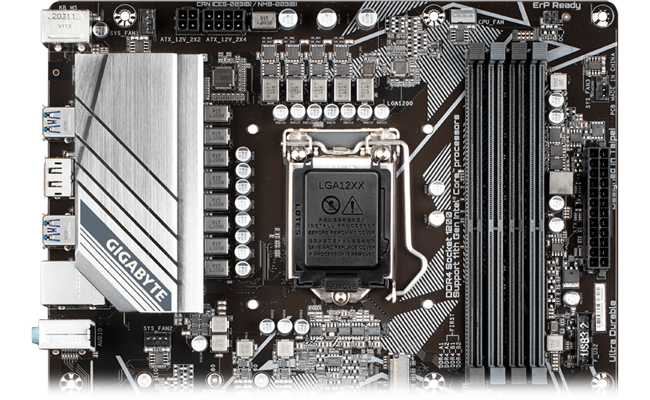

Pure Digital Power DesignThe Z590 D motherboard uses an 12+1 phase digital CPU power design which includes both a digital PWM Controller. These 100% digital controllers and additional 8+4 Solid-pin CPU Power Connectors offer cleaner and more efficient power delivery to the CPU with greater thermal performance ensuring stability under high frequencies and heavy loads

Maximum Performance with PCIe 4.0

XMP

SUPPORT FOR DDR4 XMP UP TO 4800MHZ AND BEYONDGigabyte is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

PCIe 4.0

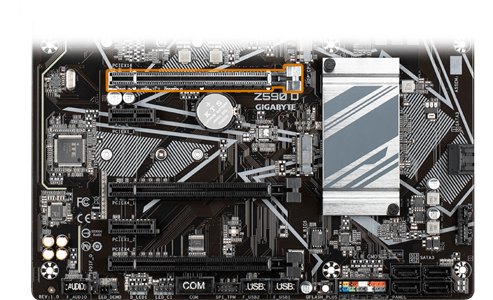

PCIe 4.0 Hardware ReadyThe Z590 D is fitted with a single PCIe 4.0 X16 slot giving you access to the latest generation of transfer speeds.

m2

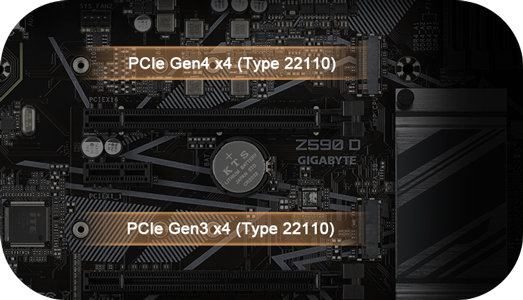

Dual PCIe 4.0/3.0 x4 M.2 ConnectorsGigabyte Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems' potential. The Z590 D boasts 1x PCIe 4.0 x4 m.2 slot giving you up 64 GBs theoretical bandwidth and with an additional PCIe 3.0 x4 slot you have enough storage expansion to cover all of your needs.

A Fully Comprehensive Thermal Solution

down

4x PWM/DC Fan Headers

up

6x Internal Temperature Sensors

4K Recording

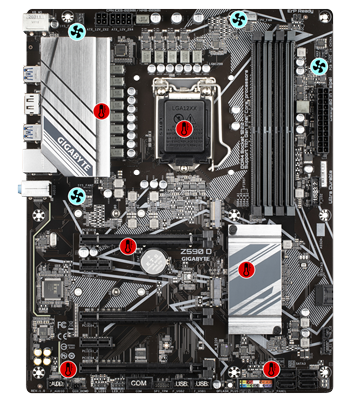

In order to get the highest possible performance from the latest high-core Intel processors, a comprehensive cooling solution is needed. The Z590 D uses an Advanced Thermal Design with an enlarged mosfet heatsink incorporates grooves to increase the total contact surface whilst still managing to maintain a beautiful aesthetic this also includes Smart Fan 6 technology which includes several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Illuminate your PC with RGB Fusion 2.0

rgb

RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come

pins

Solid Pin Power ConnectorsZ590 motherboards feature solid plated ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The Z590 UD AC has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition Z590 D
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4933(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort 1.2
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x LED strip connector
  • 2 x M.2 Connector
  • 1 x Q-Flash Plus Button
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 6 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN117752
Model Number Z590 D
GTIN 4719331815448
