Scan code: LN117754 Manufacturer code: Z590 AORUS XTREME

Gigabyte Intel Z590 XTREME E-ATX Motherboard

Gigabyte Z590 AORUS XTREME, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, 10GbE, USB 3.2 Gen2, E-ATX

Thumbnail 1 : Gigabyte Intel Z590 XTREME E-ATX Motherboard Thumbnail 2 : Gigabyte Intel Z590 XTREME E-ATX Motherboard Thumbnail 3 : Gigabyte Intel Z590 XTREME E-ATX Motherboard Thumbnail 4 : Gigabyte Intel Z590 XTREME E-ATX Motherboard
Scan code: LN117754 Manufacturer code: Z590 AORUS XTREME
£679.99Item currently awaiting an ETA
Pre order
From £23.23 / month (APR 14.9%)
Monthly Payment: £61.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £679.99
Total inc. interest: £732.54
Monthly Payment: £32.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £679.99
Total inc. interest: £783.33
Monthly Payment: £23.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £679.99
Total inc. interest: £836.31
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £16.98 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

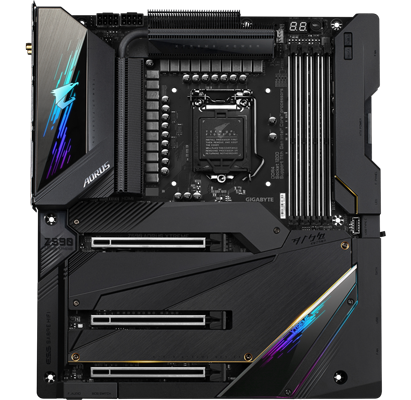

AORUS XTREME Z590 11th Generation Intel E-ATX Motherboard from Gigabyte

Aorus xtreme z590

The Best For The PRO Showcasing a state-of-the-art design, the flagship Z590 AORUS XTREME motherboard dominates the competition. This beast is filled with the top-shelf components required to deliver top-rate performance and high-end reliability for mainstream daily users and gaming enthusiasts. Boasting an upgraded digital VRM power solution, an advanced cooling solution with fins-array II technology and a nanocarbon base plate, Wi-Fi 6E support, Intel Thunderbolt 4, Triple ultra-fast NVMe storage, PCIe 4.0 technology RGB Fusion 2.0 support, Aquantia 10 GbE Base-T LAN, high quality audio and a comprehensive rear I/O and you have everything you need to ensure you remain at the top of your game. The Z590 AORUS XTREME, the best for the PRO.

Intel Z590Chipset

LGA1200CPU Socket

10th & 11th GenIntel Processors

E-ATXForm Factor

Deliver Maximum Power To Power Hungry Components

Digital PWM Controller

20+1 Phase Smart Power Stages

4K Recording

Tantalum Capacitor

8+8 Solid Pin Connectors

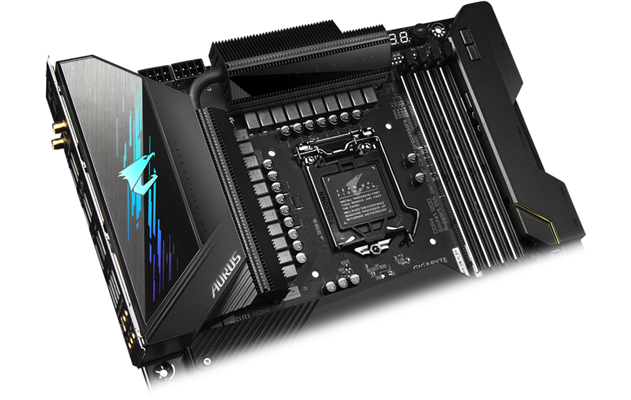

Pure Digital Power DesignZ590 AORUS XTREME uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 100A of power from each phase. This 100% digital controller, new Tantalum Polymer Capacitors Array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 8-core 11th Gen. Intel® Core™ processors.

Maximum Performance with PCIe 4.0

XMP

SUPPORT FOR DDR4 XMP UP TO 5000MHZ AND BEYONDAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5100MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

PCIe 4.0

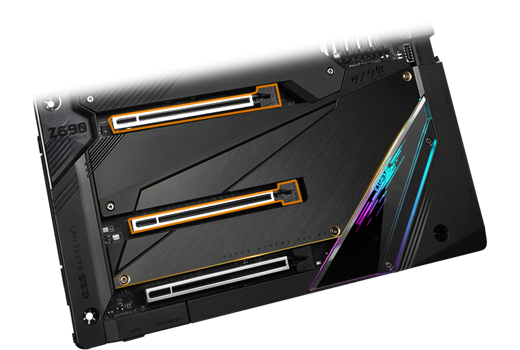

PCIe 4.0 Hardware ReadyThe AORUS Z590 XTREME is fitted with 2x PCIe 4.0 slots along with active switch technology to switch PCIe 4.0 x16 into PCIe 4.0 8x8 giving you access to the latest generation of transfer speeds.

m.2

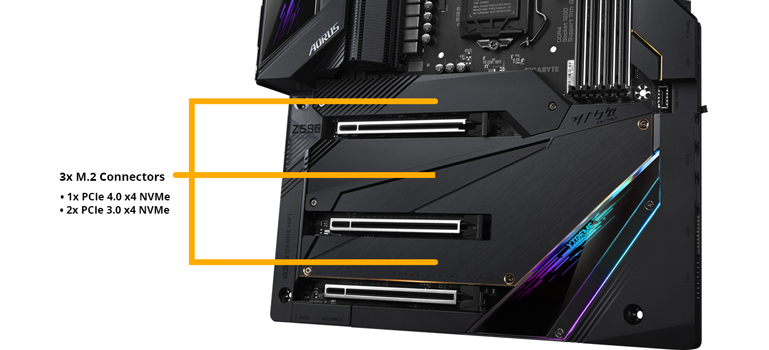

PCIe 4.0 M.2 Connectors with Thermal GuardsAORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems' potential. The AORUS XTRME boasts 1x PCIe 4.0 x4 m.2 slot giving you up 64 GBs theoretical bandwidth and with an additional 2x 3.0 x4 slots you have enough storage expansion to cover all of your needs. PLUS this mighty motherboard includes the exclusive AORUS PRO Gen4 AIC adaptor giving you access to 2x additional PCIe 4.0/3.0 m.2 slots in a handy add in card with double sided heat sinks and passive thermal design.

A Fully Comprehensive Thermal Solution

down

10x PWM/DC Fan Headers

up

2x Temperature Sensor Cables

4K Recording

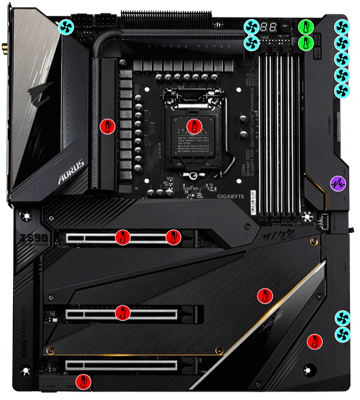

The Z590 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. Un-throttled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and M.2 Thermal Guards II plus thermal reactive armour and a nanocarbon baseplate. The comprehensive solution delivers excellent heat dissipation. Plus with Smart Fan 6 technology containing several unique cooling features that ensure gaming PCs maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface.

up

8x Internal Temperature Sensors

down

1x Noise Detection Cable

Future-Proof Connectivity

4K Recording

Intel 802.11ax WIFI 6EIntel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Next Generation Intel Thunderbolt™ 4

back

Powered by IntelPowered by Intel's own Thunderbolt controller the new Thunderbolt™ 4 protocol, which is available over two USB Type-C® connectors on the back I/O of the GIGABYTE Z590 AORUS XTREME, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than USB3.2 Gen2x2! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.4a* and compliant with USB4 standard, which is backwards compatible with USB 3.2 Gen1 and USB 2.0, opening up a world of new possibilities.

Illuminate your PC with RGB Fusion 2.0

rgb

RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Immerse yourself into any Environment

ess

ESS SABRE reference & Hi-Res Audio This impressive motherboard is Hi-Res Audio certified, meaning that it is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

true High-Fidelity

True High-Fidelity Music (Realtek ALC1220-VB)Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

capacitors

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system.

txc osicllator

Precision Audio Stream (TXC OSCILLATOR)Provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.

Durability for Years to Come

pcie armor

Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

pins

Solid Pin Power ConnectorsZ590 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

anti bending

Ultra Durable™ Memory ArmourAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The Z590 AORUS XTREME has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition AORUS XTREME
Form Factor E-ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4933(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
  • DDR4 - 5400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 1.4
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via Support Software RAID 0, 1, 5, 10
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x BIOS switches
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x OC IGNITION button
  • 1 x Power button
  • 1 x Reset Button
  • 6 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Voltage Measurement Points
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel®Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 4
  • 8 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 270 mm
Note
Additional Information
Scan Code LN117754
Model Number Z590 AORUS XTREME
GTIN 4719331814861
