Gigabyte Intel Z390 GAMING X 9th Gen ATX Motherboard
Gigabyte Z390 GAMING X, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen2 A, ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£135.98|
|Total inc. interest:||£141.58|
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£135.98|
|Total inc. interest:||£146.49|
Purchase Rate: 17.9% p.a. (variable)
Representative: 17.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 22nd Oct 2018
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Gigabyte Z390 GAMING X - Intel 9th Gen ATX Motherboard
Impress the Competition with GIGABYTEExperience the extreme GIGABYTE Z390 GAMING X motherboard from the exclusive Z390 series. Bursting with exciting and patented GIGABYTE technology, ranging from audio to performance and even multi-way graphics for gaming enthusiasts who demand the highest frame rates without compromising on resolution. The Z390 GAMING X motherboard is reinforced with ultra-durable components on the memory and PCIe slot armour, and components such as high-quality capacitors. Make the Z390 your own, with customisation capabilities by changing colour modes with vibrant RGB lighting.
Please note: Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.
Digital VRM Design with Low RDS(on) MOSFET GIGABYTE GAMING series motherboards use a 10*+2 phase PWM+ Lower RDS(on) MOSFETs design to support the latest 8-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
superior heat dissipation Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintains stylish aesthetic. With the improved thickness of the thermal pad to 1.5mm, this gives superior heat dissipation of MOSFETs. The Z390 Gaming X also features an M.2 Thermal Guard to help maintain maximum performance.

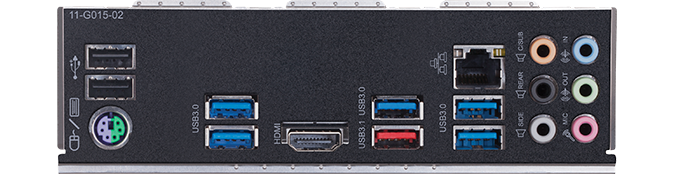

GIGABYTE Ultra-durable With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.
Up to 4000MHz and Beyond GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their motherboard.
Immersive VR Gaming with SLI
Delve into a new universe Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. Immerse yourself into a virtual world with VR technology as this requires more performance than Full HD graphics for a steady 90FPS or greater. With newer technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards, it's obvious that GIGABYTE GAMING has the tools you need to start your journey in VR.
Premium Audio Capacitors
featuring audio sound guard GIGABYTE motherboards use high-end audio capacitors, help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

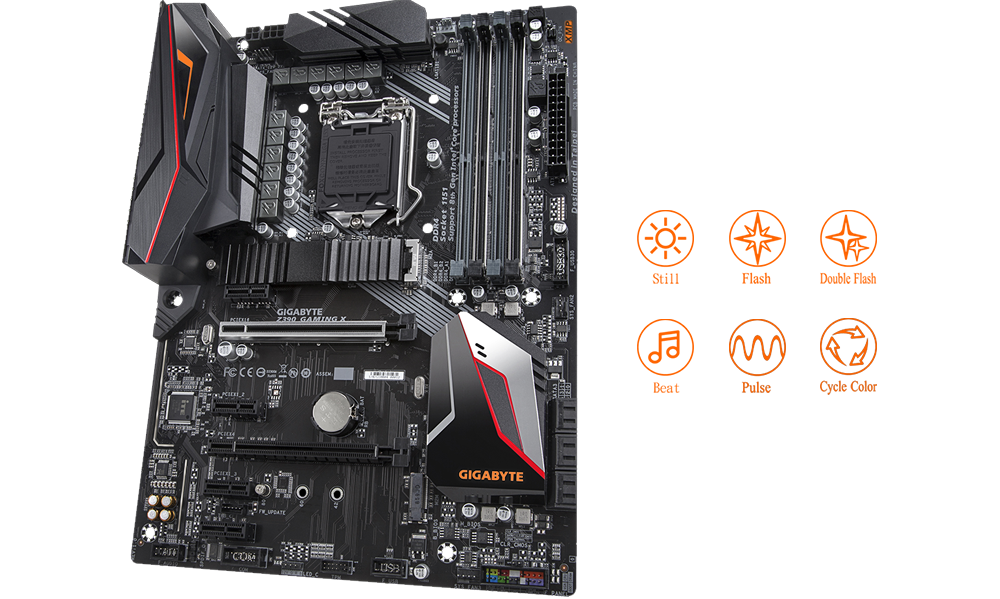

Illuminate Your System with RGB LED Lighting
personalise your setup with vibrant colour Enjoy gaming with immersive RGB illumination, choose from extensive colour modes with RGB lighting and light strip support on Z390 series motherboards. Users can truly adapt their PC setup to represent their lifestyles.
Intel GbE Lan with cFosSpeed
INTERNET ACCELERATOR SOFTWAREIntel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Gigabyte motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

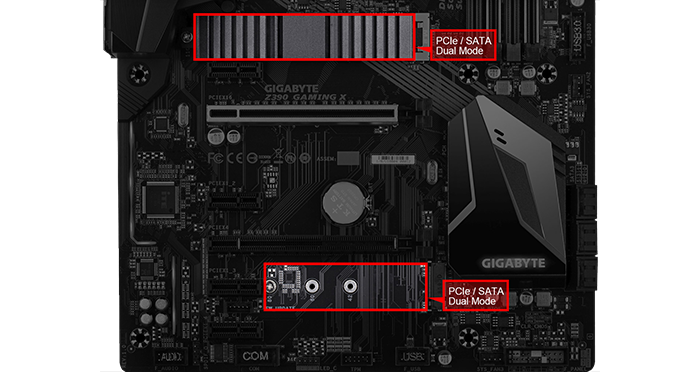

Dual-Mode M.2 Slot Design
Support for PCIe NVMe + SATA SSDs GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.
Intel® Optane™ Memory
Advanced performance with the Optane Cache Memory The Z390 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Native Intel USB 3.1 Gen 2 Controller
faster speeds up to 10Gbps Intel's native USB 3.1 host controller provides USB 3.1 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB 3.1 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and 3.0.
Smart Fan 5 Software
Choose from different modes With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds. Map any fan to stop completely when temperatures drop below a specified threshold with Fan Stop.
Gigabyte Ultra-Durable Features
PCIe Metal Armor Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.
Guaranteed Stable Power Supply Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading.
GIGABYTE Patented Design The PCI-E slots utilise Gigabyte’s patented double locking bracket with a soldered back section which creates a strong bond.
LAN Static-Electricity & Surge Protection Gigabyte use ICs with up to 3 times the ESD resistance levels compared to traditional ICs to protect the motherboard and its components against potential damage caused by static electricity. Gigabyte motherboards also feature special anti-surge ICs that protect your motherboard and PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
GIGABYTE memory armorGIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Dual BIOS™ DesignGIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
Durable and built to last Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives ultra-durable motherboards a whole new meaning.
GIGABYTE BIOS and Applications
Refreshed BIOS GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.
GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Each Gigabyte motherboard includes TriDef SmartCam software, remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background. Optimise and improve your connection with WTFast the Gamers Private Network (GPN). Cast your game anywhere and experience the greatest gaming moments with XSplit Gamecaster + Broadcaster. Host your game like a pro and with just one click stream your gameplay to Twitch, chat to fellow gamers and interact with social media integration.
Save power with one simple click with CEC Energy Saving technology. GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 power consumption requirement.
TRIDEF® SMARTCAMUsing SmartCam you can now apply live filters, remove backgrounds, not only whilst streaming but also through other video applications.
WTFAST (GPN)Enhance your online game performance with WTFast, the Gamers Private Network (GPN); which optimises your connection.
XSPLIT GAMECASTER + BROADCASTERCast your game anytime, anywhere with only one click. The fully optimised social media integration allows you to instantly connect for real-time chats.
|Edition||Z390 GAMING X|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC892 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||HDMI 1.4|
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel (Gigabit LAN)|
|Rear I/O Connectors||
|Other Motherboard Specifications|
|Board Dimensions||305 x 225 mm|
