AORUS Intel Z390 PRO AC WIFI ATX Motherboard
Gigabyte Z390 AORUS PRO WIFI, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, WiFi, USB 3.1, ATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£194.99|
|Total inc. interest:||£203.00|
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£194.99|
|Total inc. interest:||£210.04|
Purchase Rate: 17.9% p.a. (variable)
Representative: 17.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 18th Dec 2018
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Gigabyte Z390 AORUS Pro Wi-Fi - Intel 9th Gen ATX Gaming Motherboard
DOMINATE THE FUTURE WITH AORUSThe ultimate gaming Z390 motherboard, GIGABYTES AORUS Pro Wi-Fi is packed full of interesting and useful technology, ranging from audio, through performance and even customization. The AORUS Pro Wi-Fi motherboard is reinforced with ultra-durable components on the memory and PCIe slot armour, and components such as top-end capacitors. The Z390 board’s customisation and its intuitive UI through the RGB Fusion app allows you to make your AORUS board your own.
Please note: Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.
Incredible AORUS Performance
Incredible precision when delivering powerZ390 AORUS PRO motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.

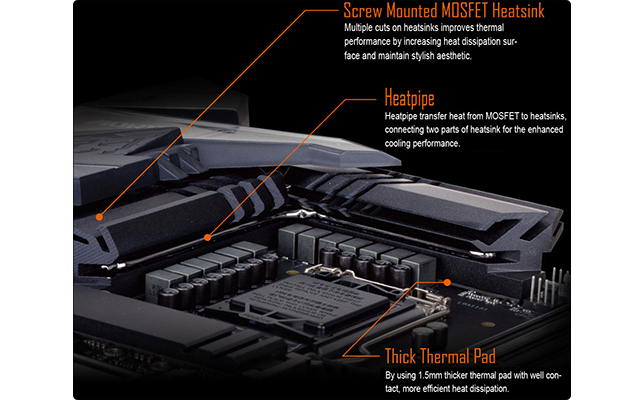

Advanced Thermal Design
faster and undistorted current deliveryZ390 AORUS PRO WIFI uses very high performance thermal design by combining 2 heatsinks with Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

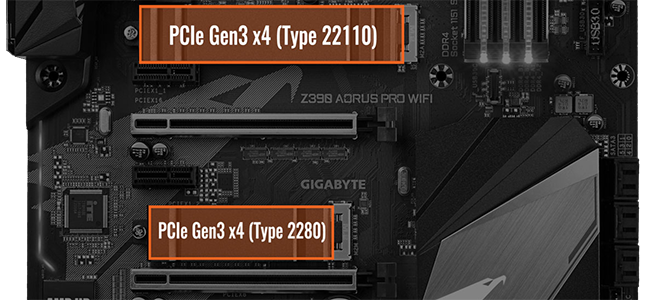

Dual M.2 for Ultimate Storage
AORUS M.2 Thermal Guard AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. Z390 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Support for DDR4 XMP Up to 4133MHz!
Broad DDR4 Compatibility AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
Immersive AORUS Audio
All New Realtek High-End HD Audio Codec ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB. The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems.
Intel® GbE LAN with Integrated Intel CNVi Wi-Fi
INTEL® WI-FI AC & BLUETOOTH Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.
Intel® Optane™ Memory
Advanced performance with the Optane Cache Memory The Z390 AORUS Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Connecting the Future with USB Type-C™
The World's Next Universal Connector Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 Gen2 drive or charging your new mobile device. Intel's native USB 3.1 host controller provides USB 3.1 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

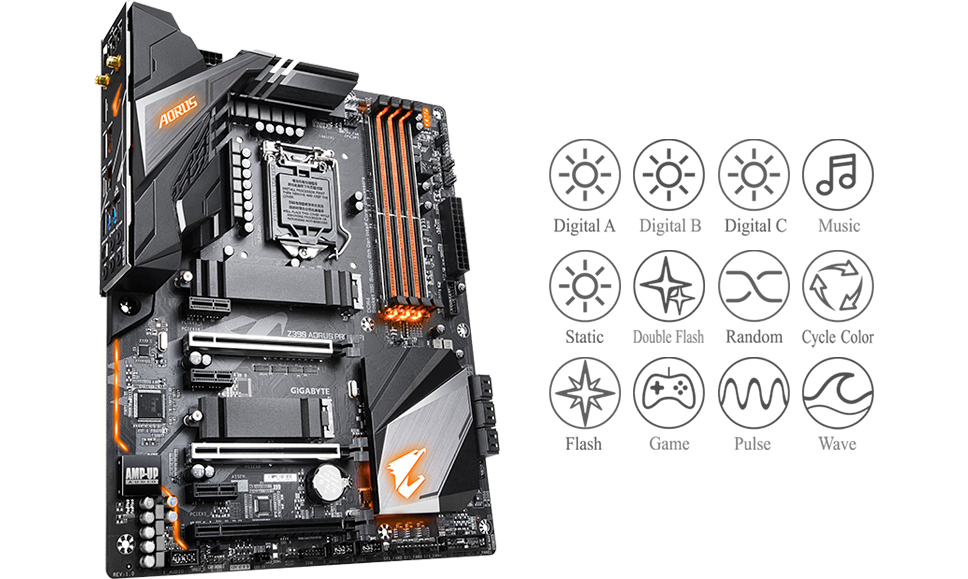

Aorus RGB Fusion LED Lighting
Multi-Zone Light Show Design RGB Fusion offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard. AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion with Addressable LEDs comes with new patterns and various speed settings with more to come.
RGB Fusion SoftwareSet LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature.
RGB Fusion APPThe GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC
AORUS Smart Fan 5
Choose from different modes With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds. Map any fan to stop completely when temperatures drop below a specified threshold with Fan Stop.
Ultra Durable Features
Durable Aorus PCI-e Slots Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

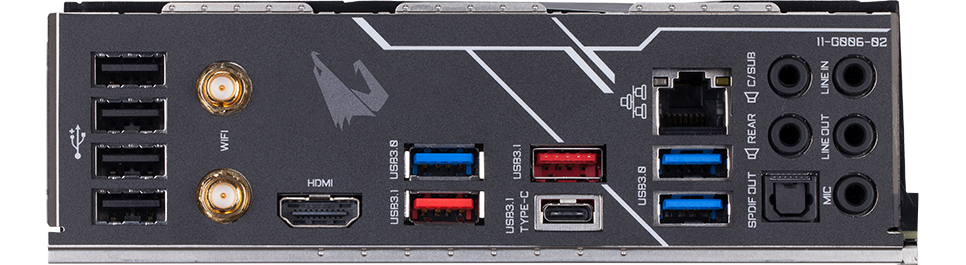

Integrated I/O Shield Armor With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.
GIGABYTE Patented Double Locking Bracket The PCI-E slots utilise Gigabyte’s patented double locking bracket with a soldered back section which creates a strong bond.
More metal quantity to sustain higher power and generated heat Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. Having a Solid Pin means there is a larger contact are for electricity whilst stil being ultra durable for a longer lifespan.
DIAGNOSTIC LEDSOn-board LEDs controlled by the system BIOS specify if a malfunction is occurring, allowing users to promptly take action by quickly diagnosing which major component (CPU/DDR/VGA/HDD) is faulty.
DUALBIOS DESIGNGIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
G CONNECTOR DESIGNWith the G Connector, you can connect all the FP cables at once, streamlining the process of building your next PC and saving you some frustrations, as the tiny cables in the front panel connector can be hard to manipulate as space is restricted.
GIGABYTE BIOS and Applications
New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.
GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Each AORUS motherboard includes TriDef SmartCam software, remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background. Optimise and improve your connection with WTFast the Gamers Private Network (GPN). Cast your game anywhere and experience the greatest gaming moments with XSplit Gamecaster + Broadcaster. Host your game like a pro and with just one click stream your gameplay to Twitch, chat to fellow gamers and interact with social media integration.
Save power with one simple click with CEC Energy Saving technology. GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 power consumption requirement.
TRIDEF® SMARTCAMUsing SmartCam you can now apply live filters, remove backgrounds, not only whilst streaming but also through other video applications.
WTFAST (GPN)Enhance your online game performance with WTFast, the Gamers Private Network (GPN); which optimises your connection.
XSPLIT GAMECASTER + BROADCASTERCast your game anytime, anywhere with only one click. The fully optimised social media integration allows you to instantly connect for real-time chats.
|Edition||Z390 AORUS PRO WIFI|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||64GB (4x16GB)|
|Audio||Realtek ALC1220-VB 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||2-Way SLi|
|AMD CrossFire Support||3-Way CrossFire|
|On-Board Graphics Connectors||HDMI 1.4|
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Other Motherboard Specifications|
|Board Dimensions||305 x 244 mm|
