Scan code: LN92831 Manufacturer code: Z390 AORUS ELITE

AORUS Intel Z390 ELITE 9th Gen ATX Motherboard

Gigabyte Z390 AORUS ELITE, Intel Z390, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen2 A, ATX

Thumbnail 1 : AORUS Intel Z390 ELITE 9th Gen ATX Motherboard Thumbnail 2 : AORUS Intel Z390 ELITE 9th Gen ATX Motherboard Thumbnail 3 : AORUS Intel Z390 ELITE 9th Gen ATX Motherboard Thumbnail 4 : AORUS Intel Z390 ELITE 9th Gen ATX Motherboard
Scan code: LN92831 Manufacturer code: Z390 AORUS ELITE
£181.99
From £16.34 / month (APR 14.9%)
Monthly Payment: £31.58
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £181.99
Total inc. interest: £189.48
Monthly Payment: £16.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £181.99
Total inc. interest: £196.06
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The AORUS Core is inspired by the falcon’s aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.

AORUS Performance:

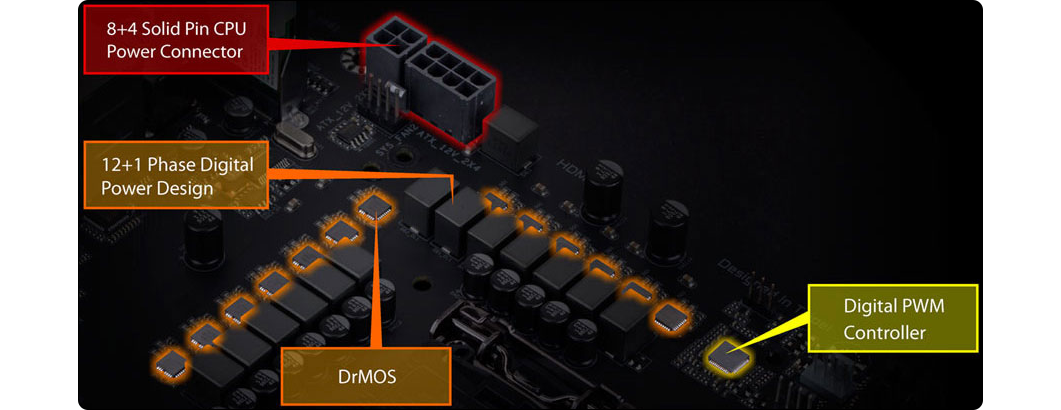

12+1 Phases Digital Power Design
Z390 AORUS ELITE motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

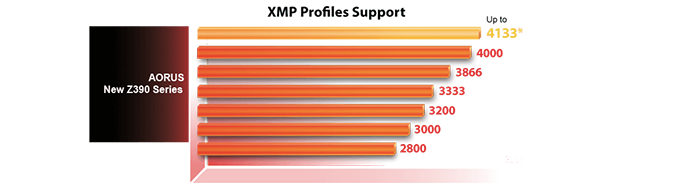

Support for DDR4 XMP Up to 4133MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboards.

What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

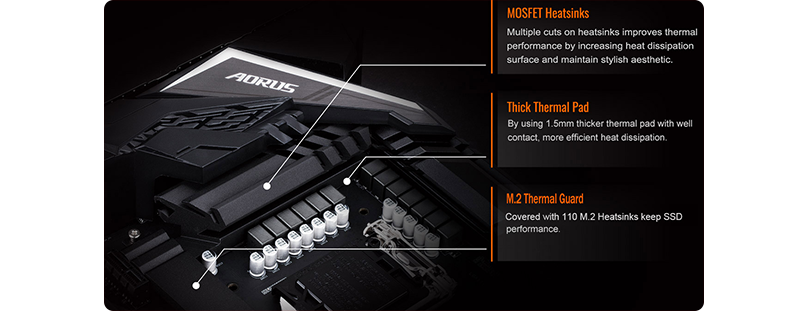

Advanced Thermal Design
Z390 AORUS ELITE uses high performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

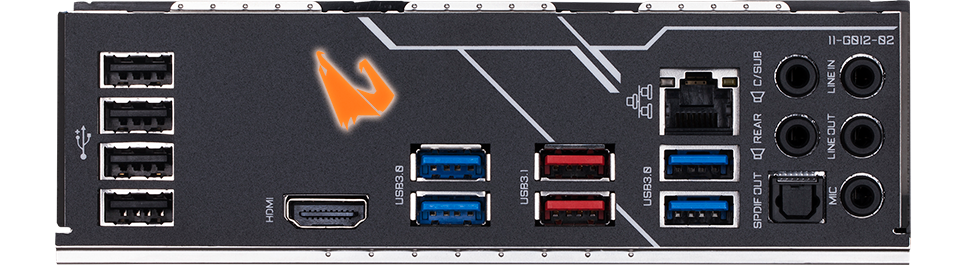

Pre-installed I/O Shield
With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.

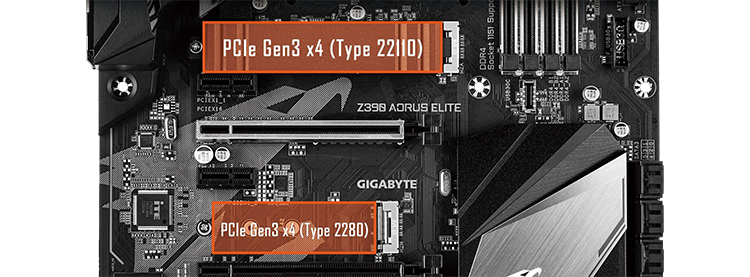

Dual PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

AORUS Audio:

ALC1220-VB Immersive Gaming ViBes
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

AORUS Connectivity:

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

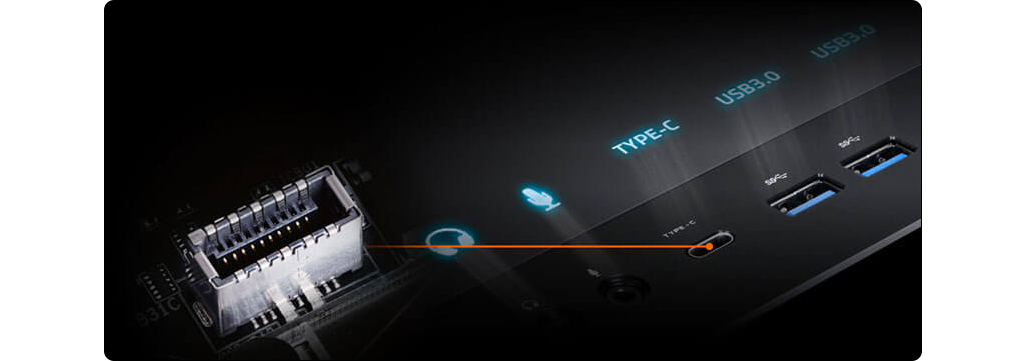

USB Type-C™ Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

AORUS Style:

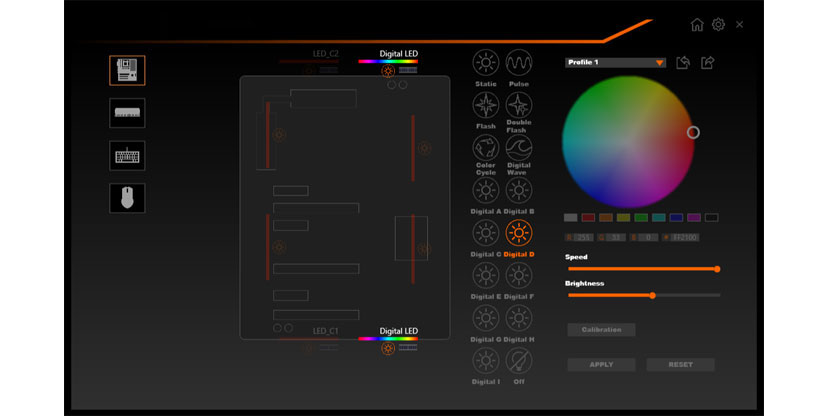

RGB Fusion
With AORUS Motherboards, RGB Fusion is even better with Addressable LEDs. RGB Fusion offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z390 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion with Addressable LEDs comes with new patterns and various speed settings with more to come.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

AORUS Cooling:

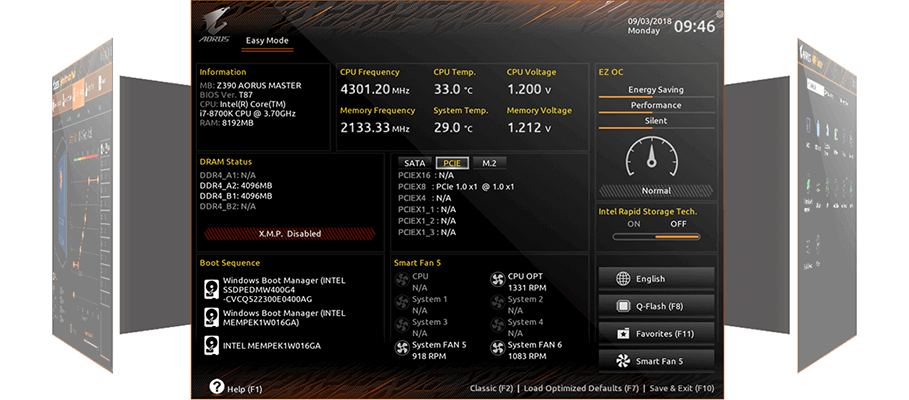

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

AORUS ULTRA Durable:

Solid Pin Power Connectors
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.

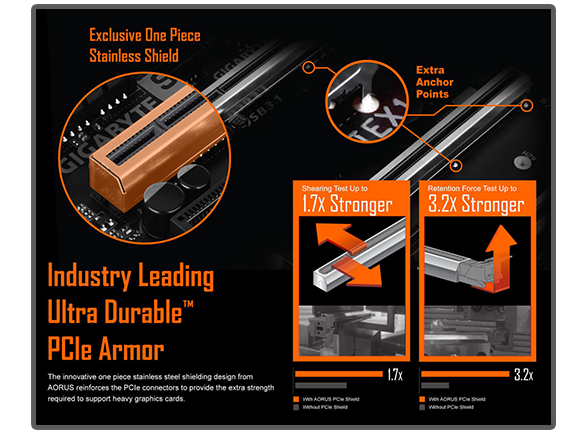

Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.
Features • Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

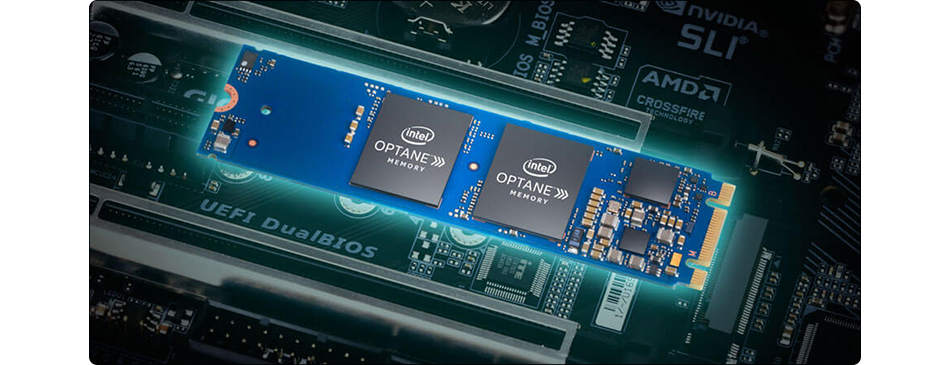

• Intel® Optane™ Memory Ready
• 12+1 Phases Digital VRM Solution with DrMOS
• Advanced Thermal Design with Screw Mounted Heatsinks
• ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
• Intel® Gigabit LAN with cFosSpeed
• RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Front USB 3.1 Gen 1 Type-C™ Header
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
• CEC 2019 Ready, Save Power With a Simple Click
Specifications
Core Specifications
Edition Z390 AORUS ELITE
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
