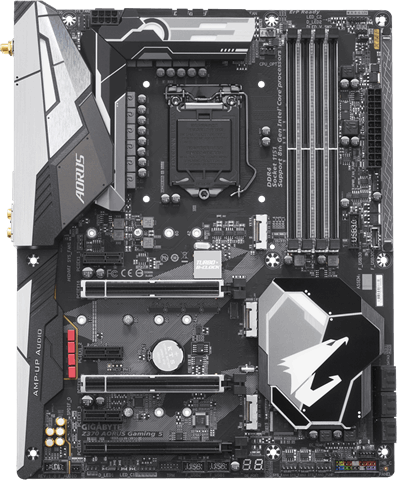

AORUS Intel Z370 Gaming 5 Coffee Lake ATX Motherboard

Gigabyte Z370 AORUS Gaming 5, Intel Z370, S 1151, DDR4, SATA3, Triple M.2, 2-Way SLi/3-Way CrossFire, GbE/WiFi, ATX

Gigabyte
Scan code: LN84632 Manufacturer code: Z370 Aorus Gaming 5 Request call
£238.99
Pay on Scan Finance with a 10% deposit from just £5.97 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 20th Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Gigabyte AORUS Gaming Motherboard - Z370 Gaming 5 - Intel 8th Gen

ATX Gaming Motherboard - 300 Series

The Gaming-5 motherboard from AORUS is part of their 300 Series range that boast the most advanced LED system on the market today. The Z370 board’s customisation and its intuitive UI through the RGB Fusion app allows you to make your AORUS board your own. Filled with countless technologies to help enhance gaming, audio, style and more this Z370 motherboard is equipped to handle the performance requirements of the majority of components. Plus, its durable and reinforced components from PCIe lanes to capacitors, this motherboard is sure to advance your PC in many different ways.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

ATX
Form Factor

Supercharged Z370 Performance

Supports 8th Gen Intel Core Processors

The AORUS Z370 enthusiast motherboards are faster and more powerful than any other motherboards the world has seen. With aggressively redesigned armor and thermal heatsinks, its performance capabilities and durability are second to none. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance, AORUS motherboards will exceed expectations.

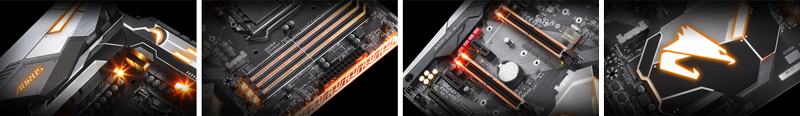

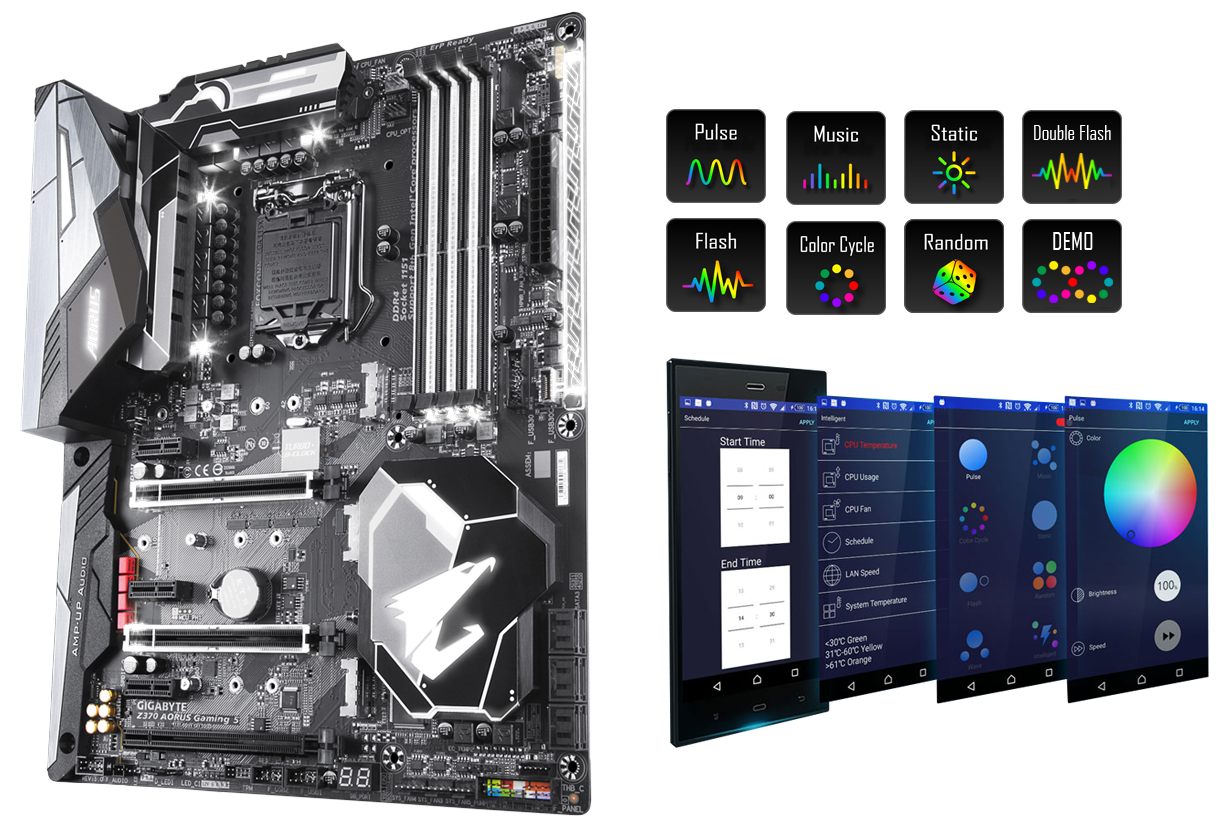

Aorus RGB Fusion LED Lighting

Multi-Zone Light Show Design

AORUS 300 series motherboards offer more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard. Multi-light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Swappable Overlay for Accent LED. When it’s all set and done, your system will shine like never before.

AORUS AMP-UP Audio

Smart Headphone AMP

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC. Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

Aorus Cooling

Smart Fan 5 & Fan Stop

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

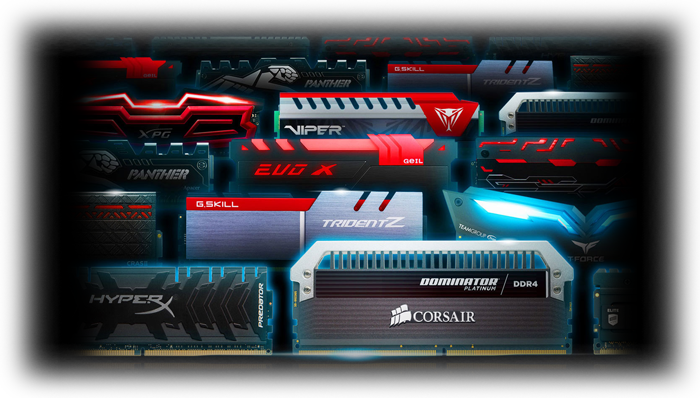

DDR4 XMP Support

DDR4 support for up to 4133MHz and Beyond

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

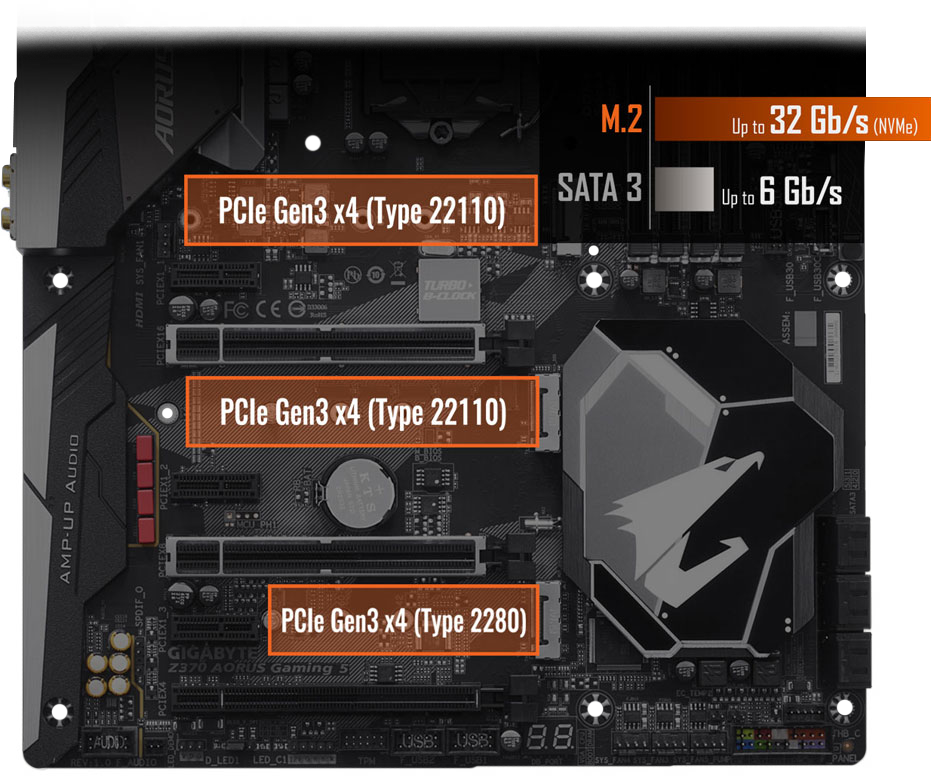

PCIe Gen3 & NVMe M.2 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. AORUS' Z370 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design which can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

Intel® Optane™ Memory

Advanced performance with the Optane Cache Memory

The AORUS Z370 Platform is the first enthusiast platform that supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel® GbE LAN

Internet Accelerator

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Pure Speed Aorus Extreme USB 3.1

USB Type-C & Type-A Ports

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

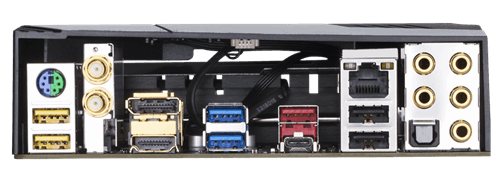

Back Panel Connectors

1x PS/2 keyboard/mouse port | 2x SMA antenna connectors (2T2R) | 1x DisplayPort | 1x HDMI port | 1x USB Type-C™ port, with USB 3.1 Gen 2 support | 1x USB 3.1 Gen 2 Type-A port (red) | 4x USB 3.1 Gen 1 ports | 2x USB 2.0/1.1 ports | 1x RJ-45 port | 1x optical | S/PDIF Out connector | 5x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

AORUS Ultra Durable

Dutable Aorus PCI-e Slots

Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

Anti-sulfur Resistor

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. The alloy protective layer that is shown it the image above, shows that the resistor is protected.

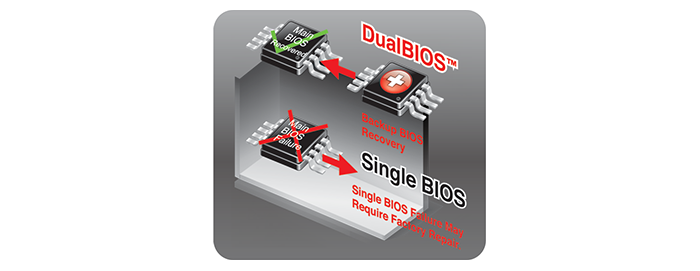

GIGABYTE Patented DualBIOS Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

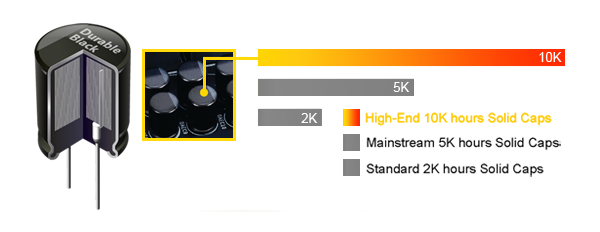

Long Lifespan Durable Black Solid Caps

AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

GIGABYTE APP Center

Easy Motherboard Modifying Software

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Features:
EasyTune | System Information Viewer | @BIOS | 3D OSD

TriDef SmartCam

Custom Software for Game Streaming

To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

*Free 1 month TriDef SmartCam License.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio with SBX 720°
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 2 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin 3 Amp Fan Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x RGB (RGBW) LED Strip Header
  • 6 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 2 x Thermal sensor connector
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Dual Band 802.11ac WiFi + BT4.2 Module (433Mbps)
  • 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
