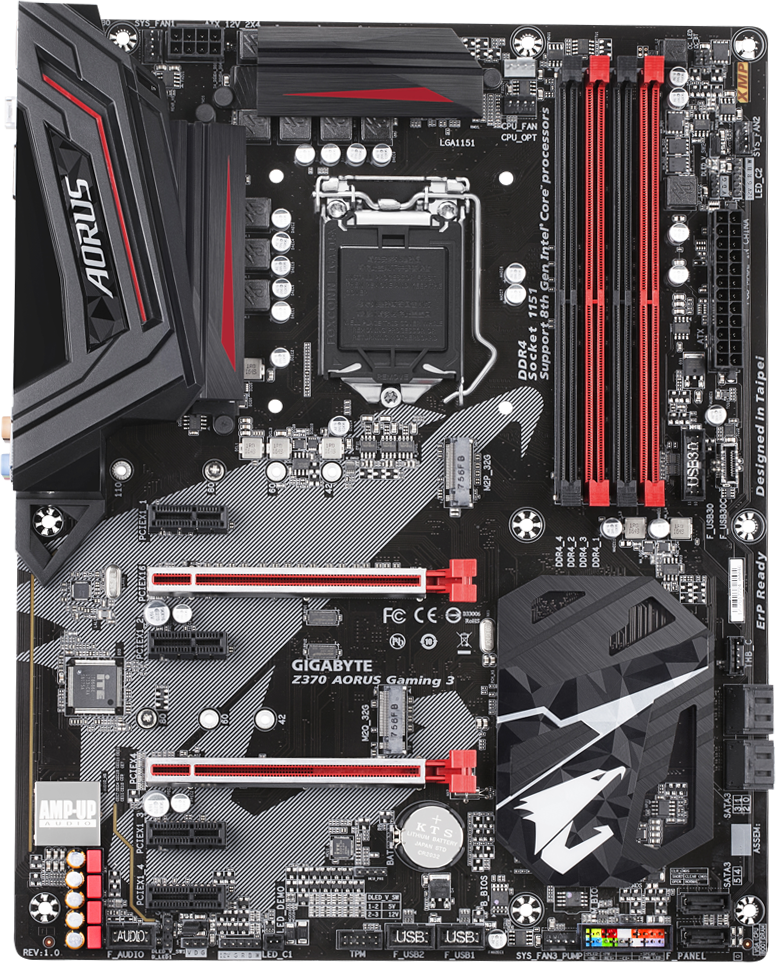

AORUS Intel Z370 Gaming 3 Coffee Lake ATX Motherboard

Gigabyte Z370 AORUS Gaming 3, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Killer GbE, USB3.1 G2 A+C, ATX

Gigabyte
Scan code: LN84631 Manufacturer code: Z370 Aorus Gaming 3 Request call
£133.49
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £11.99 / month (APR 14.9%)
Monthly Payment: £23.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £133.49
Total inc. interest: £138.98
Monthly Payment: £11.99
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £133.49
Total inc. interest: £143.79
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £5.48 By DPD On 22nd Feb 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Intel Z370 Gaming motherboard with RGB Fusion, Dual M.2, 120dB SNR ALC1220, Killer Gaming LAN, Front USB 3.1 Gen 1 Type-C & Rear USB 3.1 Gen 2 Type-C, Smart Fan 5, Anti-Sulfur Resistors Features • Supports 8th Gen Intel® Core™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Intel® Optane™ Memory Ready.
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A.
• Front USB 3.1 Gen 1 Type-C™ Header.
• Multi-Way Graphics Support with PCIe Armour and Ultra Durable™ Design.
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors.
• Killer™ E2500 Gaming Network.

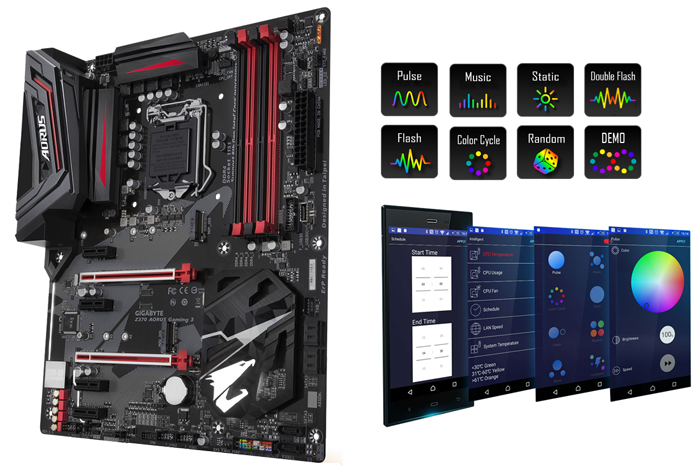

• RGB Fusion with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.

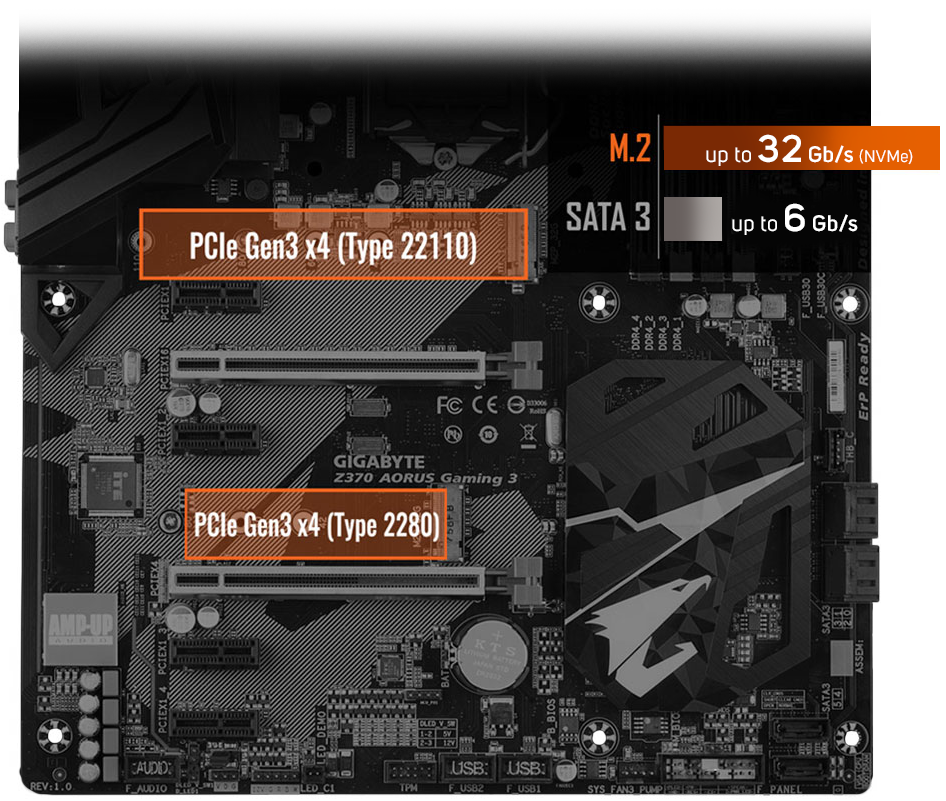

• Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface.

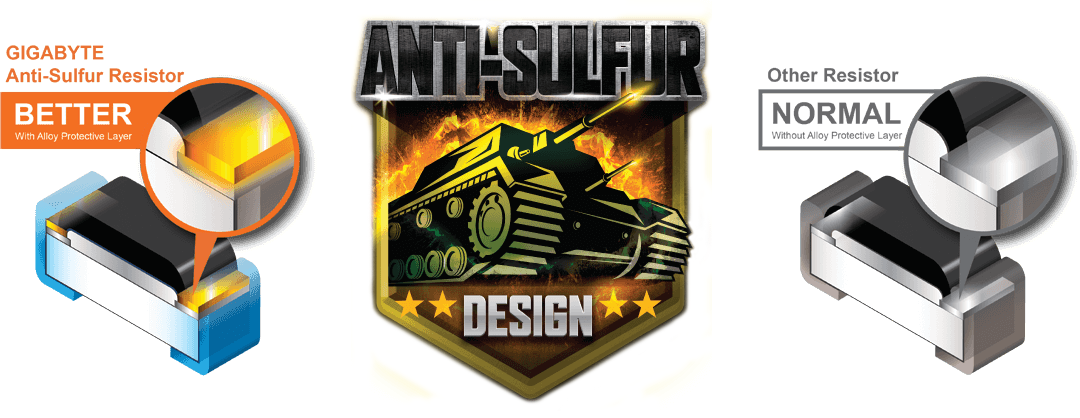

• Anti-Sulfur Resistors Design.
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection.
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support.
• APP Centre Including EasyTune™ and Cloud Station™ Utilities.

Please Note: Intel Z370 Motherboards are ONLY compatible with Intel 8th. Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen. Intel CPUs.
Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)

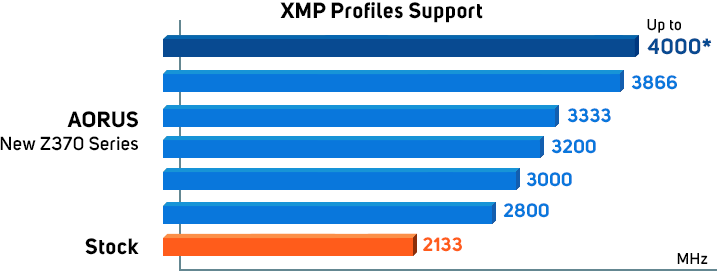

Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis OC Button Header
  • 1 x Chassis OC LED Header
  • 1 x Clear CMOS jumper
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x RGB (RGBW) LED Strip Header
  • 6 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Killer E2500 (Gigabit LAN)

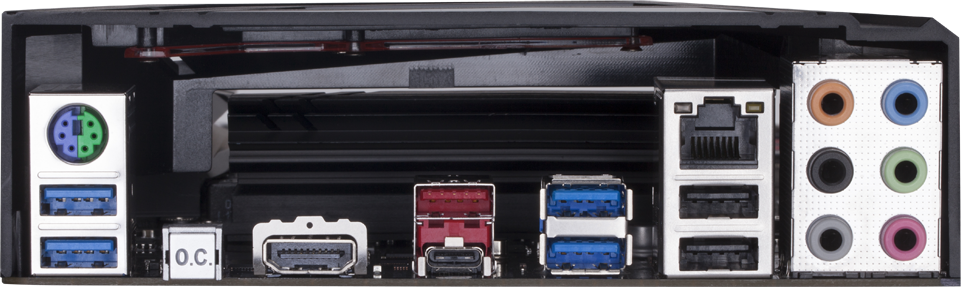

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x OCSW Button
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Customers also bought
Reviews
Gigabyte Z370 AORUS Gaming 3, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Killer GbE, USB3.1 G2 A+C, ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from It's a great Motherboard if you don't want the RGB features When building my new PC I was tempted to go with Gigabyte as they were my previous motherboard beforehand, so I decided to buy the AORUS Z370 Motherboard. On arrival the motherboard was packed nicely and it was simple to move the board about when building my PC if I needed to. While using the board it booted first time for me and there wasn’t any faults with the product, being that the board was new though there was a bug which caused my fans to go to a high speed after I restarted my PC, I contacted Gigabyte support and they resolved my issue after helping me with a BIOS update. After this my PC has been running smoothly and I’ve been having no problems ever since, I am pleased with this product and my favourite feature is the red LED lighting on the board which adds a bit of character to my computer. I would defiantly recommend.
Date published: 2018-01-09
