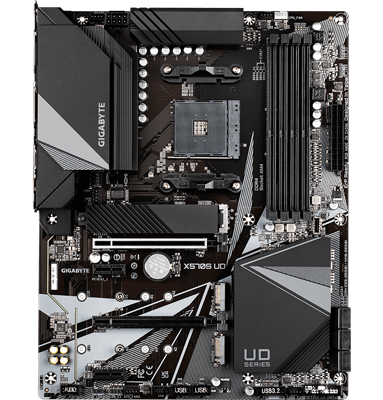

X570S UD Ultra-Durable AMD AM4 ATX Motherboard from Gigabyte

Gigabyte X570S Ultra-Durable

True Performance with The X570S Meet the X570S UD ATX motherboard, built to squeeze every ounce of performance from your latest 2nd & 3rd generation Ryzen CPUs. Boasting an upgraded twin power solution, passive and silent thermal design, PCIe 4.0 components, Triple ultra-fast NVMe PCIe 4.0/3.0 M.2, super speedy 2.5GbE LAN, an incredible fully specced I/O panel with USB 3.2 Type-C connectivity and with RGB Fusion 2.0 support offering more LED customisations than ever, you can truly adapt your motherboard to represent you. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over any additional light strips. This is the next generation of performance, immersion and super-fast experiences. Can you handle it?

AMD X570SChipset

AM4CPU Socket

2nd & 3rd Gen RyzenAMD Processors

ATXForm Factor

A True Beast Among Motherboards

down

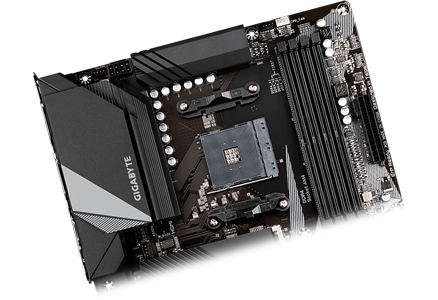

Direct Power Design GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.

down

Twin & Digital power for Vcore

up

Digital Power for CPU SOC

Maximum Performance with PCIe 4.0

XMP

SUPPORT FOR DDR4 XMP UP TO 5100MHZ AND BEYONDAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5100MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

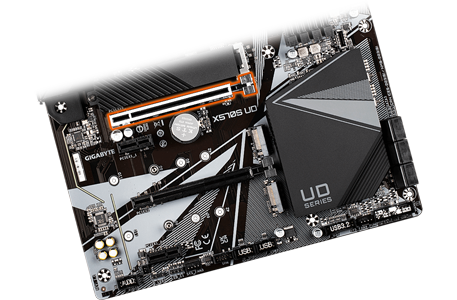

PCIe 4.0

PCIe 4.0 Hardware ReadyThe X570S Gaming is fitted with 1x PCIe 4.0 slots giving you access to the latest generation of transfer speeds.

m.2

Triple NVMe PCIe 4.0/3.0 M.2 with Thermal GuardGIGABYTE Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems' potential.

A Fully Comprehensive Thermal Solution

down

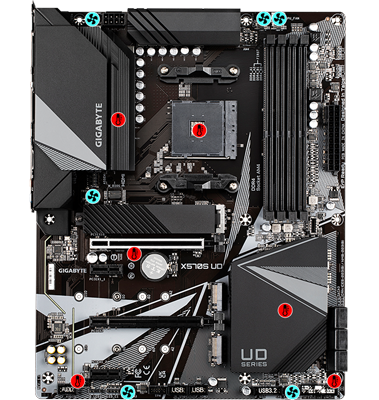

6x PWM/DC Fan Headers

up

6x Internal Temperature Sensors

4K Recording

Unprecedented Thermal PerformanceThe X570 UD uses an innovative cooling solution to ensure impeccable performance and stability incorporating a large full coverage MOSFET heatsink, 5W/mk thermal pads, 1x M.2 Thermal Guard. All of these incredible features combined ensures your new motherboard will run as long as you. The comprehensive solution delivers excellent heat dissipation. Plus with Smart Fan 6 technology containing several unique cooling features that ensure gaming PCs maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface.

Illuminate your PC with RGB Fusion 2.0

rgb

RGB FUSION 2.0 X570S UD features RGB FUSION 2.0 to offer lighting effected options and customised settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come

pcie armor

Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

pins

Solid Pin Power ConnectorsX570 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The X570 AORUS MASTER has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570S UD (Ultra Durable)
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4100(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4866(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5100(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 3 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Realtek (2.5GbE LAN)
  • 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN119050
Model Number X570S UD
GTIN 4719331823702
