Scan code: LN101061 Manufacturer code: X570 UD

Gigabyte AMD Ryzen X570 Ultra Durable AM4 PCIe 4.0 ATX Motherboard

Gigabyte X570 Ultra Durable, AMD X570, AM4, DDR4, PCIe 4.0, M.2, 2-Way CrossFire, GbE, USB 3.2 Gen1, ATX

Thumbnail 1 : Gigabyte AMD Ryzen X570 Ultra Durable AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 Ultra Durable AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 Ultra Durable AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 Ultra Durable AM4 PCIe 4.0 ATX Motherboard
Scan code: LN101061 Manufacturer code: X570 UD
£179.99
From £15.00 / month (APR 0%)
Monthly Payment: £30.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £179.99
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £179.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

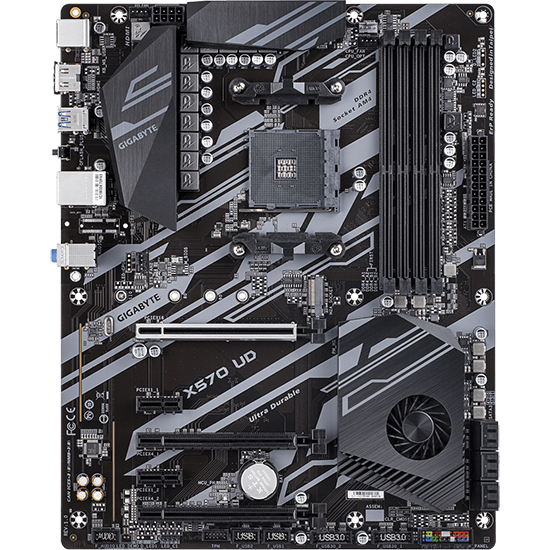

GIGABYTE X570 Ultra Durable Motherboard with PCIe 4.0

Gigabyte X570 UD motherboard

Get Next Gen Performance with your Ryzen 2nd & 3rd Gen CPUsThe Gigabyte X570 UD motherboard is a whole new chipset that utilises the best of the new 3rd Gen Ryzen CPUs with the best quality components. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. The X570 UD allows support for up to four DDR4 memory slots with an ultra-fast NVMe PCIe 4.0 M.2 connector. This GIGABYTE X570 Ultra Durable motherboard offers a rich list of features such as support for PCIe 4.0 interfaces, high speed of Ethernet to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Greater Power Load with the GIGABYTE X570 UD

Gigabyte gaming UD motherboard

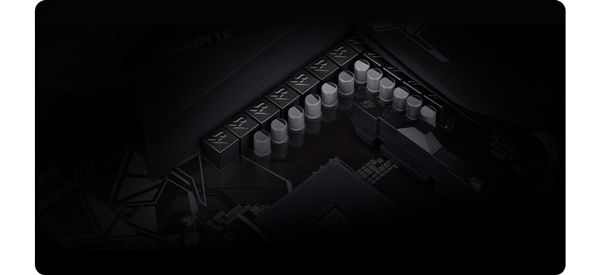

10 + 2 Direct Digital Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, GIGABYTE X570 UD is a true beast among motherboards specifically designed for the new Ryzen series CPUs. GIGABYTE X570 motherboards use a 10+2 phase PWM + Lower RDS MOSFETs design to support the latest AMD Ryzen 3000-series CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components

Support RGB Lighting Effect in Full Color

Gigabyte UD RGB

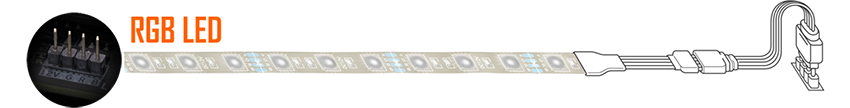

Bring life to your Devices Personalize your PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. The X570 UD supports RGB LED strips whic can also be linked together to illuminate your PC.

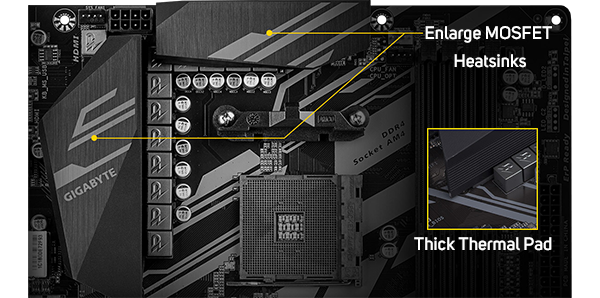

Thermal Design to Ensure Maximum Performance

Gigabyte UD Thermal Fin-Array Heatsink

Protect your components from overheating Enlarge heatsink surface area improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic. The thick thermal pad has an improved thickness of 1.5mm and gives superior heat dissipation of MOSFETs.

Gigabyte Gaming UD smartfan 5

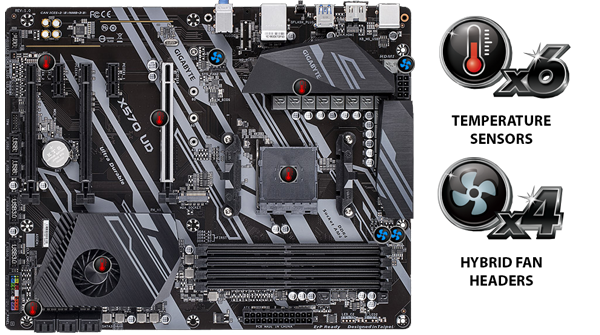

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

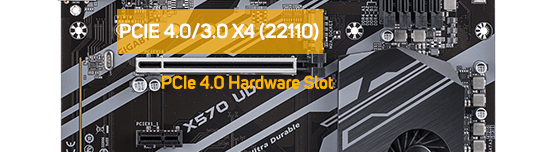

Gigabyte PCIe 4.0 x4 Slot and M.2 Connector

m.2 pcie 4.0

Faster Speeds over previous PCIe 3.0 GIGABYTE X570 Motherboards feature built-in PCIe 4.0 slots that deliver superior bandwidth compared to that from previous generation technology. Performance of Graphics cards and PCIe devices will not be limited by insufficient bandwidth. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’ potential.

High Resolution Audio Quality

Gigabyte Gaming X motherboard

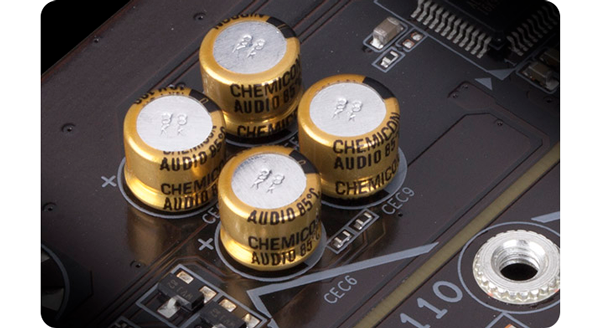

Features an Audio Noise Guard GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Gigabyte UD Durable Components

Gigabyte Gaming Xmotherboard

More metal quantity to sustain higher power and generated heat Gigabyte motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being Pro durable for a longer lifespan.

pcie armour

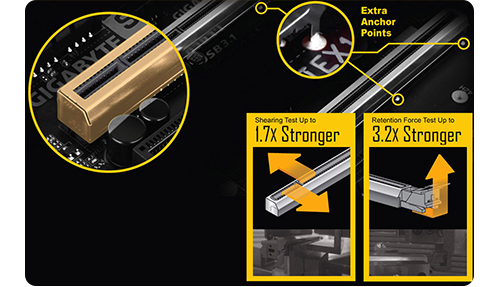

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from Gigabyte reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

Gigabyte UD Features

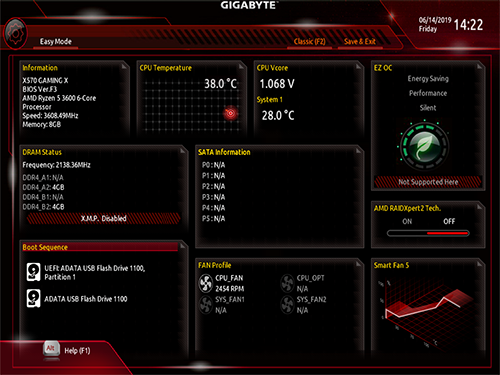

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

Gigabyte UD Features

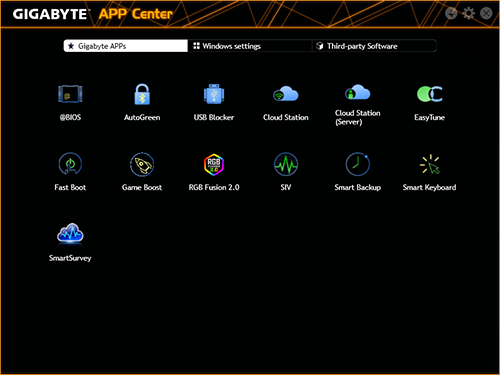

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Gigabyte UD Features

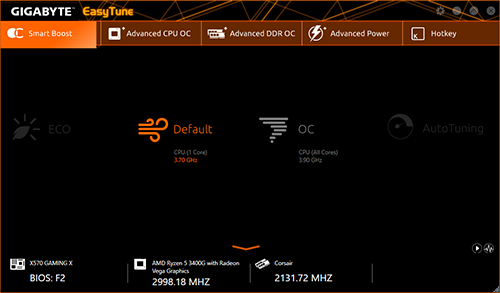

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Gigabyte UD Features

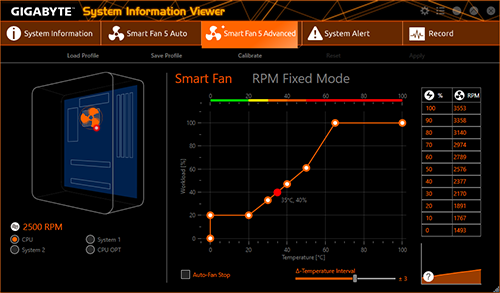

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition Ultra Durable
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC887 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 2 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN101061
Model Number X570 UD
GTIN 4719331806743
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
