GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard

Gigabyte X399 DESIGNARE EX, AMD X399, S TR4, DDR4, SATA3, Triple M.2, 4-Way SLi/CrossFire, 2x GbE, WiFi, USB3.1 A+C, ATX

Thumbnail 1 : GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard Thumbnail 2 : GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard Thumbnail 3 : GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard Thumbnail 4 : GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard GIGABYTE AMD Threadripper X399 Designare EX TR4 ATX Motherboard : video thumbnail 1
Scan code: LN84980 Manufacturer code: X399DESIGNAREX
£364.99
From £17.52 / month (APR 14.9%)
Monthly Payment: £63.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £380.01
Monthly Payment: £32.77
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £393.20
Monthly Payment: £22.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £406.68
Monthly Payment: £17.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £364.99
Total inc. interest: £420.42
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.12 / month (APR 15.9%)
Delivery Options
  • By DPD On 24th Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

X399 DESIGNARE EX GIGABYTE ATX Threadripper Motherboard

X399 Designare Aorus Board

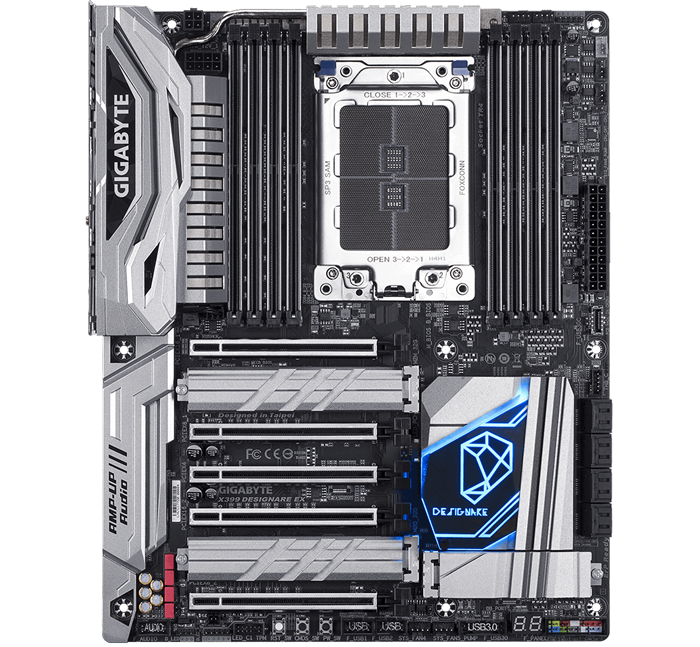

A Motherboard for AMD Ryzen Threadripper enthusiastsBased and built for the popular AMD Ryzen Threadripper series the X399 DESIGNARE EX motherboard can be the back bone of the build you wish to have. An elegantly designed white and silver board with blue accents, make this board the core design of your build and let it elevate the aesthetic appeal of your rig. The GIGABYTE X399 DESIGNARE EX motherboard has the power to overwhelm your biggest of workloads. Maximize your systems potential with Triple PCIe Gen3 x4 M.2 slots which includes a slot with a M.2 thermal guard which dissipates heat away from the SSD. Control your RGB with RGB Fusion, filter through different colours patterns and effects to gain the look most suited for you.

AMD X399Chipset

TR4CPU SOCKET

ATXForm Factor

DDR4Memory Type

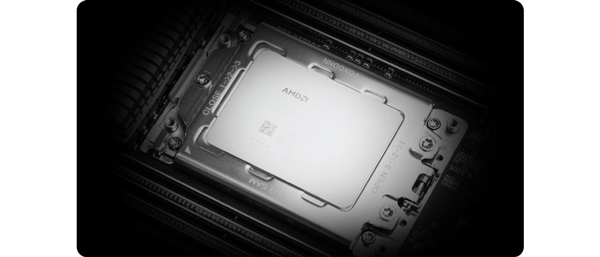

Built For Ryzen Threadripper CPUs

AMD Ryzen Threadripper Motherboard

A CPU for High-End Gaming And ProductionThe GIGABYTE X399 enthusiast motherboard with AMD Ryzen Threadripper Processor. Stream and record content easily with no lag or freezing and process videos super fast. The AMD Threadripper CPU's are built to be the ultimate workhorse and with the X399 enthusiast motherboard this combination of CPU and Motherboard will give you the power to create content without any holdups to your work pipeline.

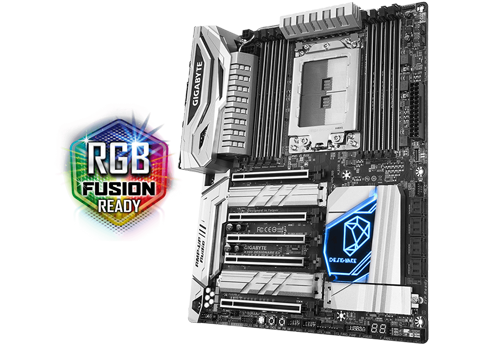

RGB Colours, Patterns and Various Effects

rgb fusion

LIGHTING AND EFFECTS TO SUIT YOUR STYLE With the X399 DESIGNARE EX Motherboard, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard and external LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on X399 Series GIGABYTE Motherboards are now upgraded with Digital LED support. With onboard options and external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

Install External RGB and Control using RGB Fusion Software

rgb lighting

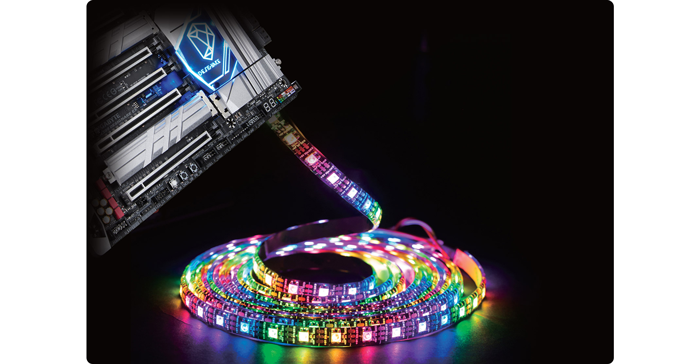

Onboard Pin Header for RGB and UV LED Strips Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colours.

Overheating Sensors and Protection

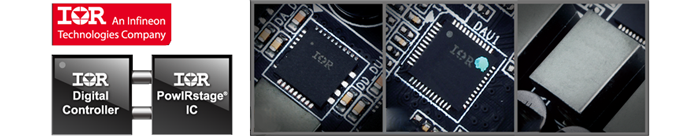

IR Digital PWM & IR PowIRstage ICs

Distributes Thermal LoadingThis new generation of IR digital power controllers and PowIRstage ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage ICs, preventing the overheating of each individual PowIRstage, resulting in longer lifespan and better reliability.

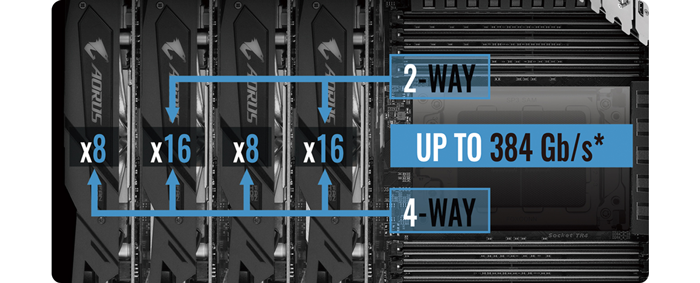

Enjoy a 4-Way Graphics Configuration

4-Way Graphics

Providing the best graphics bandwidth possibleThe X399 DESIGNARE EX motherboard feature a unique PCI Express design that utilizes 100% of all 48 lanes when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.

Maximize your System's Potential

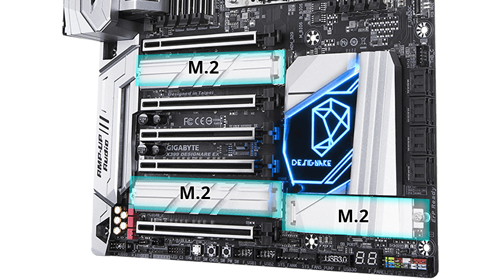

Triple PCIe Gen3 x4 M.2 Direct from CPU

Space for Triple PCIe Gen3 x4 M.2 SSD's The X399 DESIGNARE EX Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Take your system’s capability to the next level and enjoy working or playing with a high performance motherboard and SSD combo.

Prevent Throttling and Bottlenecks

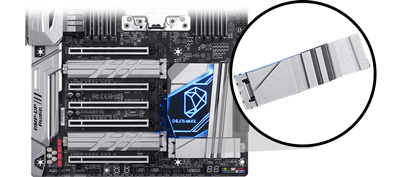

GIGABYTE M.2 Thermal Guard

GIGABYTE M.2 Thermal Guard A M.2 Thermal Guard prevent throttling and bottlenecks on M.2 SSDs especially on high-end NVMe PCIe M.2 SSDs. Reduces and dissipates heat from M.2 SSDs to maintain high SSD performance.

Improve Network Latency and Maintain Low Ping Times

Intel GbE LAN

Handle your Network Traffic with Intel GbE LANIntel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Convenient USB Access and Connectivity

USB Type-C Front Panel

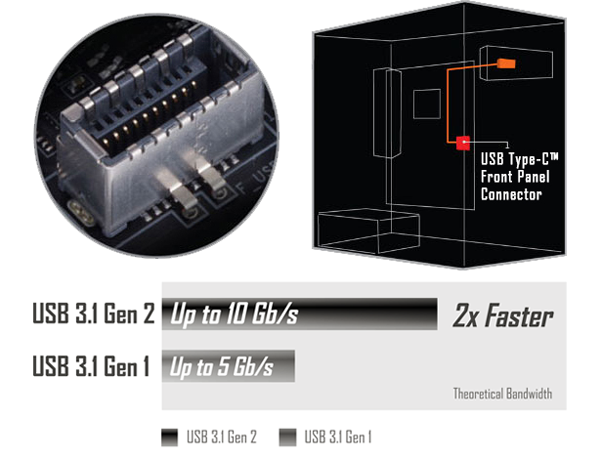

USB Type-C Front Panel ConnectorEquipped with next generation connectivity onboard GIGABYTE X399 Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 drive or charging your new mobile device.

Prevent Distorted Audio with Smart Headphone Amp

USB Type-C Front Panel

crystal clear High Definition AudioAutomatically detects your head-worn audio device and adjusts accordingly, whether earbuds or high-end headphones the Smart Headphone Amp provides optimal audio dynamics, preventing issues such as low volume and distortion.

Ensure your PC Stays Cool with Smart Fan 5

USB Type-C Front Panel

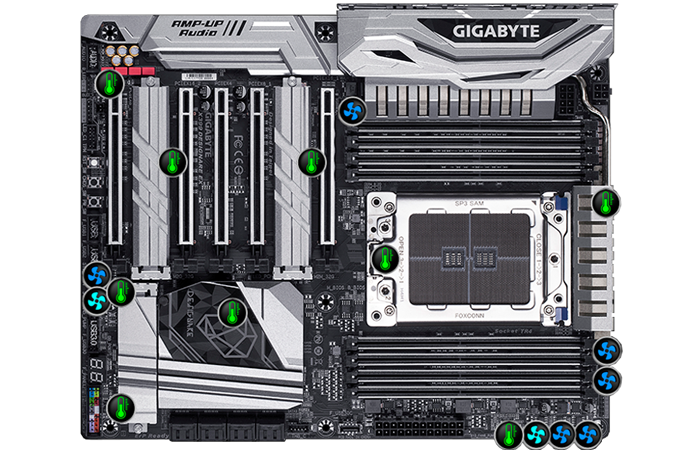

Improved to be liquid cooling friendlyWith Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Protect Against Sulfur Degradation

sulfur protection

GIGABYTE ANTI-SULFUR RESISTOR TECHNOLOGYSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE BIOS and Software

sulfur protection

EASIER TO NAVIGATE AND BETTER EXPERIENCE The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

sulfur protection

Get the most from your motherboard with GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

sulfur protection

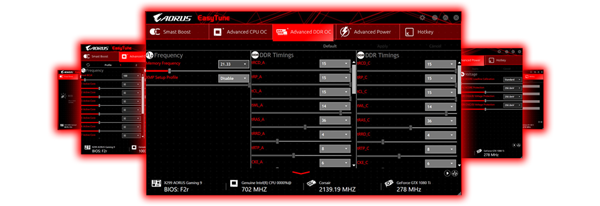

Fine tune your system with EasyTune GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

sulfur protection

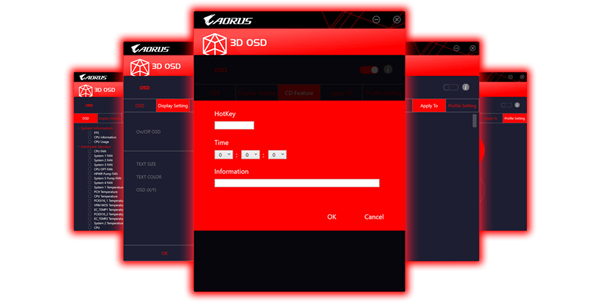

3D OSD Display While In Game 3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Ultra-Durable Components

gold plated connectors

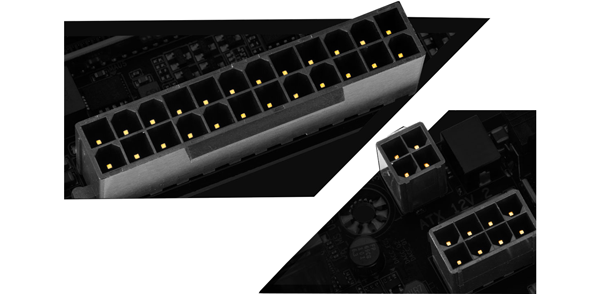

Gold Plated Solid Power Connectors GIGABYTE X399 motherboards feature gold plated ATX 24pin & ATX 12V 8pin+4pin power connectors for offering stable and affordable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, also providing far better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.

memory armour

Ultra Durable Memory Armor GIGABYTE's exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

pcie armour

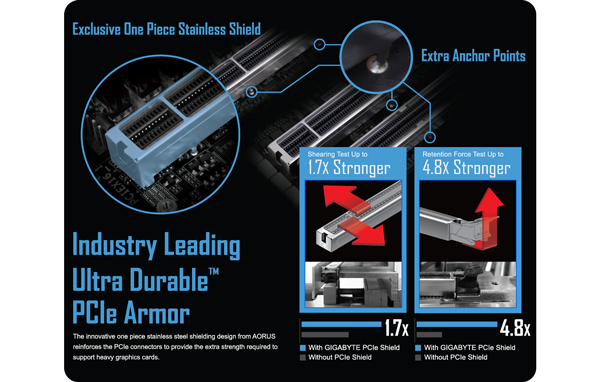

Super Stong PCIe Armour The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

double lock

GIGABYTE Patented Double Locking Bracket The PCI-E slots utilise GIGABYTE’s patented double locking bracket with a soldered back section which creates a strong bracket that will stop any movement and protect whatever is coneected to the PCIe slots.

Software to Enhance Your Games and Streams

Providing a Unique Hassle-Free Experience Optimise and improve your connection with WTFast, the Gamers Private Network (GPN). Cast your game anywhere and experience the greatest gaming moments with XSplit Gamecaster + Broadcaster. Host your game like a pro and with just one click stream your gameplay to Twitch, chat to fellow gamers and interact with social media integration.

Save power with one simple click with CEC Energy Saving technology. GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 power consumption requirement.

up

WTFAST (GPN)Enhance your online game performance with WTFast, the Gamers Private Network (GPN); which optimises your connection.

up

XSPLIT GAMECASTER + BROADCASTERCast your game anytime, anywhere with only one click. The fully optimised social media integration allows you to instantly connect for real-time chats.

Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket TR4
Chipset AMD X399
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600+(OC)
Max. Memory Capacity 128GB (8x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio with SBX 720°
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe/SATA
  • 2 x M.2, 22-60/80/110, PCIe/SATA
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~7 ONLY)
  • RAID 1 (SATA 0~7 ONLY)
  • RAID 10 (SATA 0~7 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x Digital LED strip header
  • 1 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 8 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel (Gigabit LAN)
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (867Mbps)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 8 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN84980
Model Number X399DESIGNAREX
GTIN 4719331802387
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
GIGABYTE
Telephone:
08442449999
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

64 or 48 lanes, and their division

Gigabyte X399 DESIGNARE EX LN84980 The TR4 cpu I am looking at has 64 PCIe lanes (Ryzen 1920X or Ryzen 1950X) The Product Overview for the motherboard says : "64 lanes of incredible PCIe® 3.0 connectivity," under the Performance section it says: "4-Way Graphics with Premium 48 PCIe Lanes Bandwidth GIGABYTE X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration" This leaves me a little confused and in need of asking a couple of questions please. 1) Does this motherboard utilise all 64 PCIe lanes of the Ryzen 19n0X cpu's? 2) How are those lanes divided between the various PCIe sockets and the M.2 drives? I will be using 2-Way graphics configuration. Many thanks.
Asked by: Optician
Thanks Luke, but having now found the PDF manual, it looks like it uses all 64, as follows : Slots PCIEX16_1 and PCIEX16_2 run at 16 lanes each Slots PCIEX8_1 and PCIEX8_2 run at 8 lanes each Slot PCIEX4 runs at 4 lanes that makes 32 + 16 + 4 = 52 the remaining 12 lanes supply the three M.2 slots, M2M_32G M2Q_32G and M2P_32G at 2 to 4 lanes each depending on the particular nvme. That makes a total of 52 + (6 to 12) = 58 to 64 lanes. What would be smart, and I thought it had when it said something about intelligent use of PCIe lanes, would be if it could automatically allocate the last 32 lanes of the 64. Ie, first two sockets runs at x16. If it detects an SLI third card, then give it another x16, rtaher than x8 for the third card and x8 for an empty socket. I'm not sure if they can do that or not, I think it's a bit more hardwired than that. Optician
Answered by: Optician
