Scan code: LN94419 Manufacturer code: X399 Aorus Pro

AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard

Gigabyte X399 AORUS PRO, AMD X399, S TR4, DDR4, SATA3, Triple M.2, 4-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard Thumbnail 2 : AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard Thumbnail 3 : AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard Thumbnail 4 : AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard
Scan code: LN94419 Manufacturer code: X399 Aorus Pro
£282.98
From £13.59 / month (APR 14.9%)
Monthly Payment: £49.11
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £282.98
Total inc. interest: £294.61
Monthly Payment: £25.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £282.98
Total inc. interest: £304.85
Monthly Payment: £17.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £282.98
Total inc. interest: £315.27
Monthly Payment: £13.59
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £282.98
Total inc. interest: £325.94
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.07 / month (APR 15.9%)
Delivery Options
  • By DPD On 20th Dec 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

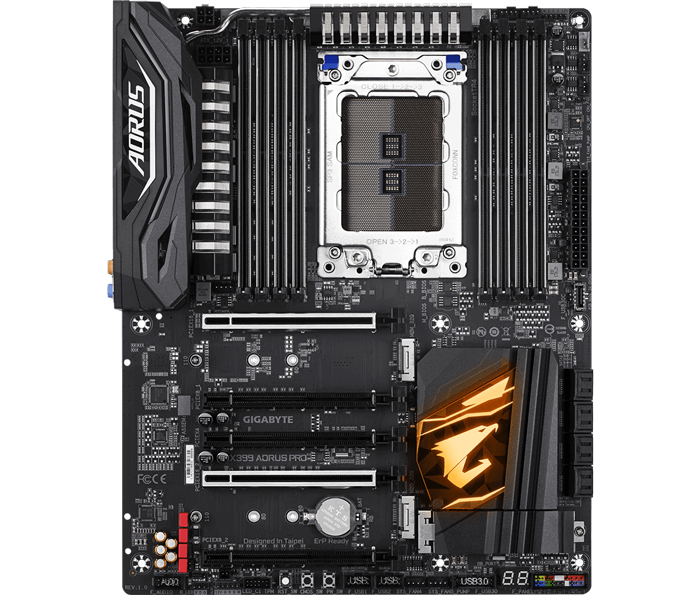

Product Overview X399 AORUS PRO
AMD X399 Gaming Motherboard with RGB Fusion, Addressable LED Strip Support, Triple M.2 Direct from CPU, 120dB SNR ALC1220, Intel GbE LAN with cFosSpeed, Front & Rear USB 3.1 Type-C Interface.

AORUS X399: Shred All Limitations
Rip through the limits with AORUS X399 motherboards and the most advanced technologies to date. Offering up to 16 cores and 32 threads across the entire T$ platform, shedding the limits has never been so instinctive.

Overwhelming Power, Indisputable Supremacy, Unrestrained Potential
The AORUS X399 enthusiast motherboard with AMD Ryzen™ Threadripper™ Processor. Do everything, do it all at the same time, and do it without sacrificing responsiveness. Render. Stream. Compile. Encode. Work or Play. Real-World Productivity or Virtual Reality Entertainment. The AORUS X399 enthusiast motherboard has the power to overwhelm your most daunting workloads.

Supports 2nd Gen Ryzen™ Threadripper™ CPUs
With up to 32 cores, the 2nd Generation of AMD Ryzen™ Threadripper™ processor can command 64 threads, the most multi-processing power that has ever been unleashed on a consumer desktop. Overwhelm your workloads with 64MB of L3 cache, without sacrificing.

Quad-Channel DDR4 for devastating memory bandwidth, 64 lanes of incredible PCIe Gen3 connectivity, and native USB 3.1 Gen2 10Gb/s support on a chipset. With every processor multiplier-unlocked to be configured as you see fit, AORUS X399 motherboard is perfectly designed to support the 2nd Generation Ryzen™ Threadripper™ 250W processor to offer you the latest advancements in motherboard technology.

Free NVMe RAID Support
NVMe RAID for AMD Ryzen™ Threadripper™ platform is now supported for free. By combining multiple NVMe SSDs together into a RAID 0, 1, or 10 array, it is possible to greatly enhance disk performance or data integrity. With a single GPU in the system, up to 8 NVMe SSDs array can be supported by AORUS X399 motherboards.


AORUS Performance

Server-Class Digital Power Design
AORUS X399 series motherboards use an all-digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new AMD Ryzen™ Threadripper CPUs.

IR Digital PWM & IR PowIRstage® ICs
This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage® ICs, preventing the overheating of each individual PowIRstage®, resulting in longer lifespan and better reliability.

Server Level Chokes
AORUS X399 series motherboards feature Server Level Chokes:

• Server level reliability.
• High current capacity.
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

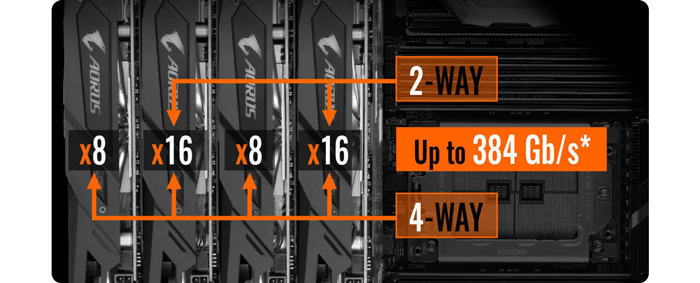

4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
AORUS X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.

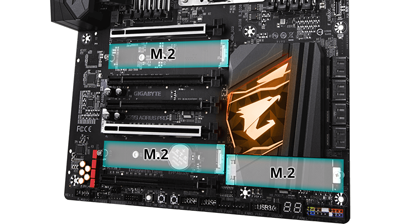

Triple PCIe Gen3 x4 M.2 Direct from CPU
AORUS X399 Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

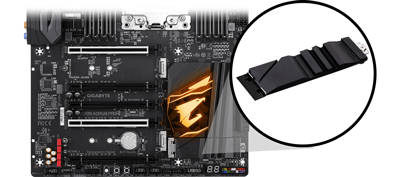

AORUS M.2 Thermal Guard
M.2 Thermal Guards prevent throttling and bottlenecks on M.2 SSDs especially on high-end NVMe PCIe M.2 SSDs. Reduces and dissipates heat from M.2 SSDs to maintain high SSD performance.

Immersive VR Gaming Experience
To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.


AORUS Connectivity

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

USB Type-C™ Front Panel Connector
Equipped with next generation connectivity on-board GIGABYTE X399 Motherboards already support the chassis of the future. The on-board USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 drive or charging your new mobile device.

Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Connecting the Future: USB Type-C™
• The World's Next Universal Connector.
• Reversible USB Type-C™ with USB 3.1 Gen 2.

USB with Precision Digital Fuse
Utilizing a digital fuse, motherboards are able to avert against over-current damage by reacting faster, with greater precision, and avoid unexpected voltage from external devices.

Digital Fuse Design
Activates when the current reaches its trigger point, this design is much more precise than traditional fuses.


AORUS Audio

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp

ALC 1220 120dB SNR HD Audio
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Smart Headphone AMP
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

High-End WIMA & Nichicon Audio Capacitors
The AORUS X399 motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal on-board sound solution for the most demanding audiophiles.

USB DAC-UP 2: Adjustable Voltage USB Port with Dedicated Power Design
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Accessories That Benefit from USB DAC-UP 2:
• VR Headsets.
• Mice.
• Keyboards.
• Gamepads.
• External SSDs/HDDs.
• Audio Devices.


AORUS Style

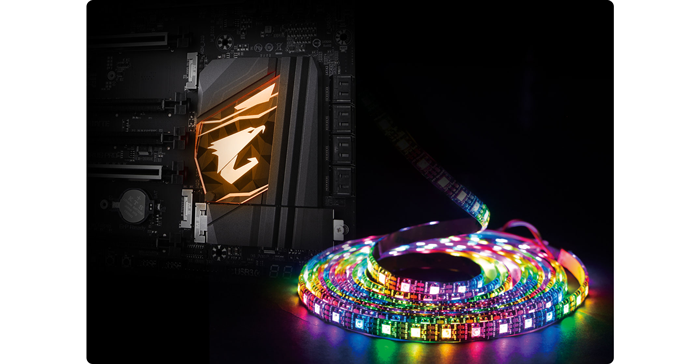

RGB Fusion with Digital LEDs
With AORUS X399 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control on-board and external LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion on X399 Series AORUS Motherboards are now upgraded with Digital LED support. With on-board options and external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED strips. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
*Digital LEDs are available only on select Motherboards, external LED Strips, Digital LED Strips are not included with Motherboard purchase.

RGB Fusion
Multi-light zones are equipped with high brightness RGB LEDs, namely the Accent LED PCH Overlay, Digital LED strips and RGBW LED strips. When it’s all set and done, your system will shine like never before.

Lighting Effects:
• Pulse.
• Music.
• Static.
• Flash.
• Double Flash.
• Colour Cycle.
• Random.
• DEMO Mode.

Supports RGBW & - UV Light Strips: Independently Programmable On-Board Pin Header for RGBW/-UV LED Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colours.

When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

RGBW Pin Header Support True White and RGB/UV LED Strips

RGB/UV Colour
RGB/UV light strips can illuminate your PC with a fluorescent glow. With UV reactive cables, paint or liquid your PC can radiate with a luminous glow.

True White Colour
RGBW light strips can produce a pure white colour instead of mixing R/G/B to produce an inaccurate white.

Richer Colour
With dedicated white LEDs, light strips can produce a richer and brighter colour on the colour scale.

RGB Calibration
Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.

Swappable Overlay for Accent LED
AORUS brings even more colour and life to your system with an Accent LED PCH Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.
*LED strips and customized overlays are not included.

RGB Fusion (Advanced Mode)
With the all-new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and colour transitions, along with specific duration and transition times.

• Independent Control: Customized different colour for different section of board.
• Synchronize with AORUS Graphics Cards: Synchronize colours with select AORUS video cards to complete the feel of your system.
• Fully Customizable: Adjust lighting animation with colour stops, colour duration, transition period, and colour effects.
• Lighting Profile: Save, export and import profiles to quickly change effects based on your preference and to share with others.
• Synchronize with RGB FUSION READY Peripherals: With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat.

GIGABYTE RGB Fusion App
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Why RGB Fusion?
With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress.


AORUS Cooling

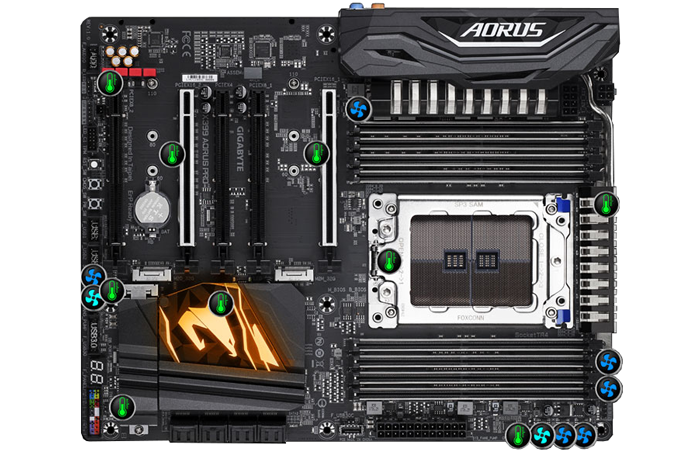

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 9 Temperature Sensors.
• 8 Fan/Water Pump Connectors.
• All Fan Pin Headers Upgraded to Hybrid Fan Headers.
• Interoperable Fans and Sensors.
• Intuitive UI for Fan Control.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Hybrid Fan Headers Support:
• Closed Loop Watercooling.
• CPU Fans.
• System Fans.
• Watercooling Pumps.
• Water Flow Sensors.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds

• Interoperable Sensors and Fans: Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
• Fan Curve: Customize fan curves based on specific temperatures with the intuitive graphical UI.


AORUS Ultra Durable

Gold Plated Solid Power Connectors: Make Good Connection and Significantly Lower the Wires Capacity
AORUS X399 motherboards feature gold plated ATX 24pin & ATX 12V 8pin+4pin power connectors for offering stable and affordable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, also providing far better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.

Ultra Durable™ Memory Armour
AORUS' exclusive one-piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

Ultra Durable™ PCIe Armour: Industry Leading Ultra Durable™ PCIe Armour
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE Patented Double Locking Bracket
• First Lock: Inserted from the top for better retention.
• Second Lock: Soldered for a stronger bond.

Start Sulfurization Protection
Sulfur compounds in the air can penetrate tiny on-board resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Long Lifespan Durable Black™ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.


AORUS Excellence

GIGABYTE BIOS & Applications

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

TriDef ® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each AORUS motherboard includes TriDef ® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
*Free 1 month TriDef ® SmartCam License.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 1 year XSplit Gamecaster + Broadcaster Premium License. Features • Supports AMD 2nd Generation Ryzen™ Threadripper™/ 1st Generation Ryzen™ Threadripper™ Processors.

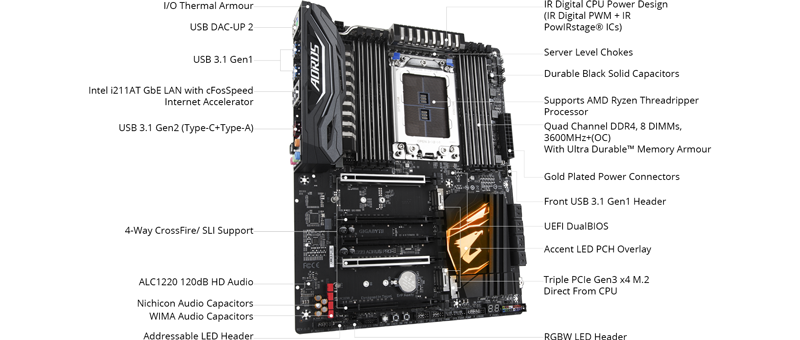

• Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz+(OC).
• Fast Front and Rear USB 3.1 Type-C™ Interface.
• 4-Way Graphics Support with Dual Armour and Ultra Durable™ Design.
• Server-Class Digital Power Design & Gold Plated Solid Power Connectors.
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor.
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software.
• RGB FUSION with Multi-Zone LED Light Show design, support Addressable LED & RGB LED strips.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers.
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface Direct from CPU.
• USB DAC-UP 2 with Adjustable Voltage.
• Precise Digital USB Fuse Design for Stronger Protection.
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection.
• GIGABYTE UEFI DualBIOS™.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
Specifications
Core Specifications
Edition X399 AORUS PRO
Form Factor ATX
CPU Socket TR4
Chipset AMD X399
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600+(OC)
Max. Memory Capacity 128GB (8x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x M.2, 2260/2280/22110, PCIe/SATA
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Addressable Digital RGB Strip Power Select Jumper
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 8 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 8 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Loading Please Wait

Please wait . . .

Reviews
Questions & Answers
AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard
AORUS AMD X399 PRO Threadripper ATX Gaming Motherboard
