Sale
Scan code: LN113363 Manufacturer code: W480M VISION W

Gigabyte Intel W480M VISION W mATX Motherboard

Gigabyte W480M VISION W, Intel W480, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE + GbE, ATX

Thumbnail 1 : Gigabyte Intel W480M VISION W mATX Motherboard Thumbnail 2 : Gigabyte Intel W480M VISION W mATX Motherboard Thumbnail 3 : Gigabyte Intel W480M VISION W mATX Motherboard Thumbnail 4 : Gigabyte Intel W480M VISION W mATX Motherboard
Scan code: LN113363 Manufacturer code: W480M VISION W
Was: £184.99
£174.98
Order in the next 10 mins and get it tomorrow
From £15.71 / month (APR 14.9%)
Monthly Payment: £15.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £174.98
Total inc. interest: £188.50
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

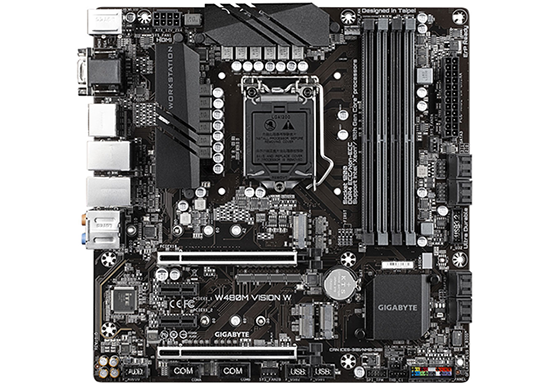

Intel W480M VISION W Micro-ATX Motherboard from Gigabyte

gigabyte vision w

THE ULTIMATE GEAR FOR CREATORS The VISION W Series are the perfect addition to any creative-fueled PC build. Offering reliable performance, impressive connectivity, and expandable graphics. Utilise ultra-fast storage making any heavy design load a breeze, and make easy work of video editing, 3D rendering and more. The VISION W is the perfect fit for any creator to build their dream machine.

Intel W480Chipset

1200CPU Socket

Intel® Xeon® W SeriesCompatible CPUs

Micro-ATXForm Factor

Enhanced Performance, Reduced Crashes

back

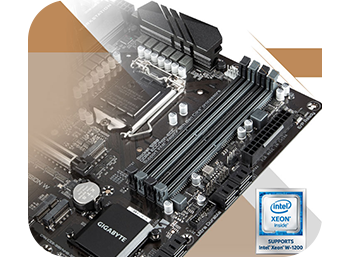

Intel® Xeon® PROCESSOR & ECC MEMORYIntel® Xeon® processors allow you to create, test, and deliver solutions faster than ever. Error Correction Code (ECC) which is powered by the Intel® Xeon® processor tests for and corrects errors in your data as it passes in and out of the memory to ensure reliability for crucial applications.

Make your Expandability Flexible

back

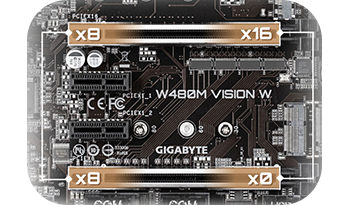

MULTI-CARD SUPPORTMulti-graphics configurations offer better graphics performance for applications that demand the highest frame rates without compromising on resolution.

Add True Power to your Build

4K Recording

NVIDIA® QUADRO® PROFESSIONAL GRAPHICS SUPPORTNVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

High Bandwidth and Low Latency

4K Recording

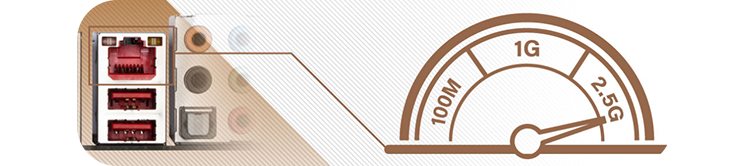

DUAL INTEL SERVER-GRADE LANWith both LAN ports designed, you'll benefit from increased bandwidth for speed, automated load balancing for smoother data flow, and instant failover if anything goes wrong. Adoption of one 2.5G LAN provides up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It is also backward compatible with Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet.

Effective Cooling for Every Task

4K Recording

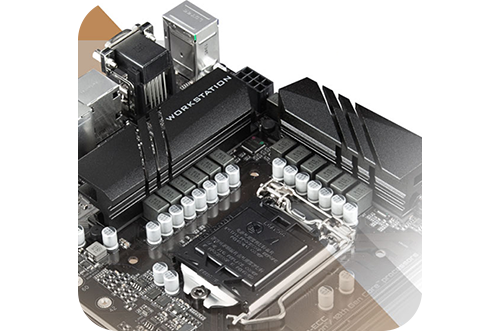

VISION W COOLING TECHNOLOGYAn effective cooling solution is essential for heavy workloads to get away with latency, crashes, and unexpected shutdown. W480M VISION W is equipped with Fin-Array heatsink and heat-pipe for better thermal efficiency. The advanced thermal solution ensures unthrottled performance during design work.

Customise Cooling with Smart Fan 5

4K Recording

HYBRID FAN HEADERSFour hybrid fan headers and numerous temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 5. Creators are allowed to set the trigger point to activate the fan and its corresponding speed.

Future-Proof Storage Solutions

4K Recording

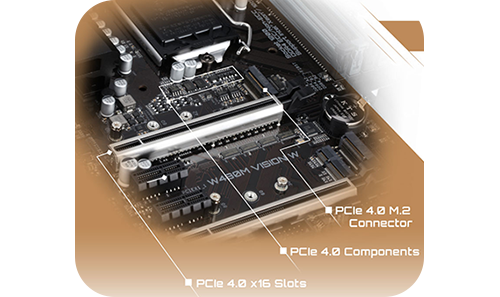

PCI EXPRESS 4.0 HARDWARE DESIGNFor most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 hardware design. From PCB, several new IC to device connectors, everything that the PCIe 4.0 signal goes is a completely new generation, to make sure your content creation PC is future proof.


back

PCIE BANDWIDTHUp to 31.58GB/s from new PCIe 4.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, and the video capture card.


back

SSD READ SPEEDContent creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.

Ultra Fast Storage

back

PCIE M.2M.2 Drives keep the load times away. Breaking the barriers of SATA limitations. M.2 PCIe SSD gives you X7 faster data transferring experience compared to 2.5" SATA solid state drives


back

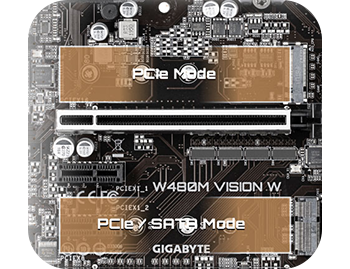

DUAL NVME PCIE X4 M.2M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably faster storage performance and provides an ideal storage with RAID modes.

Expand your Storage Capabilities

4K Recording

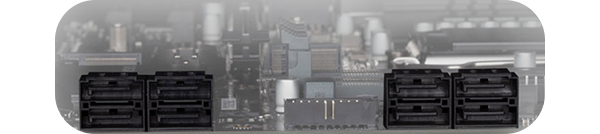

SATA III PORTSSATA III delivers up to 6.0Gb/s data transfer rates for your SSDs and HDDs, offers the maximum performance of all drives. Sufficient SATA ports also satisfied the mass storage requirement. It provides a 53% increase in SATA ports compared to the general configuration.

Specifications
Core Specifications
Edition W480M VISION W (rev. 1.0)
Form Factor MicroATX
CPU Socket 1200
Chipset Intel W480
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Socket 1 for Intel CNVi Wireless Module ONLY
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 8 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x SATA Detection Header
  • 8 x SATA III - 6Gb/s
  • 2 x Serial (COM) Header
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 2 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN113363
Model Number W480M VISION W
GTIN 4719331809645
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
