Sale
Scan code: LN107186 Manufacturer code: Z490 VISION D

Gigabyte Intel Z490 VISION D ATX Motherboard

Gigabyte VISION D, Intel Z490, S 1200, DDR4, SATA3, 3x M.2, SLi/CrossFire, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte Intel Z490 VISION D ATX Motherboard Thumbnail 2 : Gigabyte Intel Z490 VISION D ATX Motherboard Thumbnail 3 : Gigabyte Intel Z490 VISION D ATX Motherboard Thumbnail 4 : Gigabyte Intel Z490 VISION D ATX Motherboard
Scan code: LN107186 Manufacturer code: Z490 VISION D
Was: £304.99
£284.99
Order now and get it tomorrow, Wed 30th Sep
From £11.88 / month (APR 0%)
Monthly Payment: £23.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £284.99
Total inc. interest: £284.99
Monthly Payment: £11.88
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £284.99
Total inc. interest: £284.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 30th Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

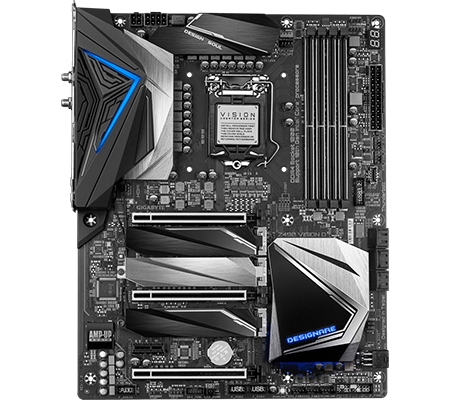

VISION D Z490 ATX Motherboard from Gigabyte

VISION D Z490 ATX Motherboard Gigabyte

DISCOVER ENDLESS CREATIVITY Unleash your creativity with the GIGABYTE Z490 VISION D motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with Intel's latest 10th Generation CPUs (with an LGA 1200 socket). It provides support for 10th Gen Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors and Intel® Celeron® processors. This motherboard is perfect for PC enthusiasts who desire high-end performance but also care about aesthetics. This powerful design delivers impeccable performance with multi-way graphics support and a comprehensive cooling solution to stay cool under heavy workloads. Performance is never compromised, and aesthetics are greater than ever with the ability to address on-board RGB lighting along with LED light strip support that is compatible with GIGABYTE's RGB FUSION 2.0 software.

Intel® Z490Chipset

10th Generation Intel®Compatible CPUs

LGA 1200CPU Socket

ATXForm Factor

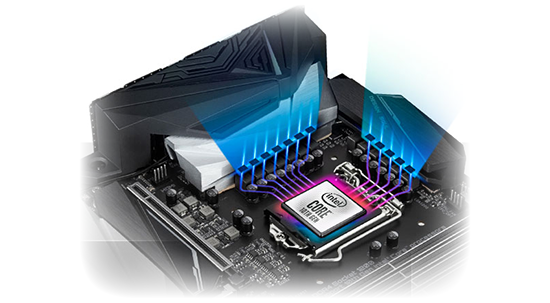

The Most Efficient Power Delivery

12 phase with drMos

direct 12 phase digital vrm solution with drmosEnjoy cleaner and more efficient power delivery to your CPU with better thermal performance that ensures stability under high CPU frequencies and heavy loading. The Digital PWM Controller helps to deliver appropriate voltage to the CPU. 12 Direct DrMOS without PWM Doublers, each power phase connects directly to the CPU, with the capability to handle 600 Amps current in total. The 8+4 Solid Pin CPU Power Connectors secure power delivery and greater heat dissipation.

Handle Greater Power Loads with Ease

2x copper pcb

2X COPPER PCBGIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between your components to handle greater power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle increased power loading that is necessary when overclocking.

PCIe 4.0* Hardware Design

pcie 4

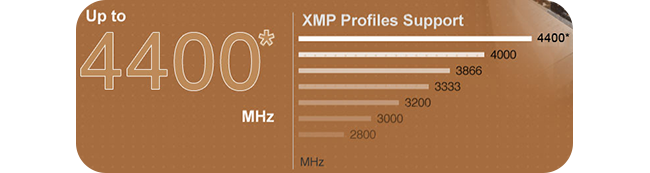

Gain Better XMP Speeds

xmp

UP TO 4400MHZ AND BEYOND*GIGABYTE R&Ds chose a high quality and low impedance server level PCB, modified the trace layout, optimized the routing by adopting daisy chain, and implemented different layers to avoid signal interference. With the GIGABYTE XTREME Memory technology, noise is minimized. With this approach Z490 motherboard memory overclocking performance is never compromised. With the optimized daisy-chain routing, this motherboard provides a proven speed up to DDR4-4800+ MHz with a high density DESIGNARE Memory 32GB module*. The optimized daisy-chain routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies providing professional gamers a denser and faster system memory experience.

Please Note: Memory speeds are limited to 2666/2400/2133 MHz for Intel® Core™ i5/i3/Pentium®/Celeron® processors.

More Memory for Smoother Performance

SINGLE 32GB SUPPORTThe maximum memory capacity on Z490 motherboards is 128GB. After Intel updated the memory reference code, single slot support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, the total comes to 128GB, which was only available on High End Desktop (HEDT) platforms. If running out of memory is an issue, there is now more bandwidth, this makes it easier and smoother for those memory intensive apps such as 3D rendering and video editing.

32gb support

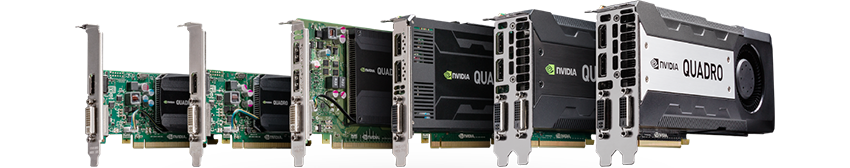

NVIDIA® QUADRO® Professional Graphics Support

MADE FOR CREATIVE MINDSNVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

quadro

Stay Cool under Demanding Loads

ADVANCED THERMAL SOLUTIONThe Z490 VISION D uses a high performance thermal design by combining a massive heatsink, Direct Touch Heatpipe and a LAIRD® 7.5W/mk thermal pad, providing ultimate MOSFET cooling performance for creators, enthusiasts and overclockers.

heatsink

MULTI-CUT HEATSINKThe multiple-angled design on the heatsink improves thermal performance by increasing heat dissipation.

heatpipe

DIRECT TOUCH HEATPIPEHelps transfer heat from MOSFET to heatsink, and also connects two parts of the MOSFET heatsink for greater cooling.

thermal pad

THICK THERMAL PADBy using a LAIRD® 7.5/mK thermal pad, enjoy better thermal conductivity and faster heat transfer.

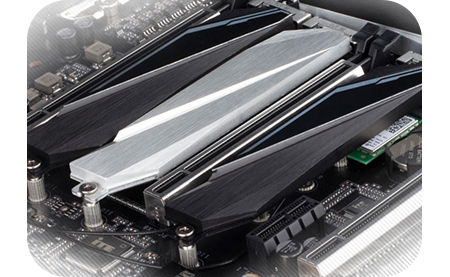

Protect Important Components from Heat

TRIPLE M.2 THERMAL GUARDWith durability in mind, GIGABYTE provides a thermal solution for your M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes a problem.

thermal guard

Fast and Simple Connectivity for your Motherboard

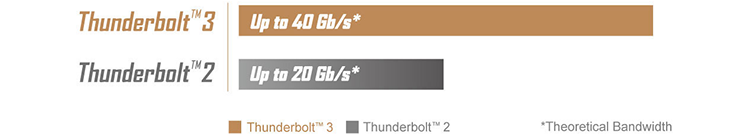

thunderbolt 3

NEXT GENERATION THUNDERBOLT™ 3Powered by Intel's own Thunderbolt controller, the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O, brings an unprecedented single-wire bandwidth of up to 40 Gb/s. This is twice as fast as the previous generation of Thunderbolt. This impressive increase in bandwidth is also accompanied by support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a versatile world of connectivity.

Create a Multi-Display System

DAISY CHAIN MULTIPLE DEVICESSupport for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. This Z490 board is able to support two displays at 4K resolution and 60 FPS, or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices with dual USB Type-C™ ports.

daisy chain devices

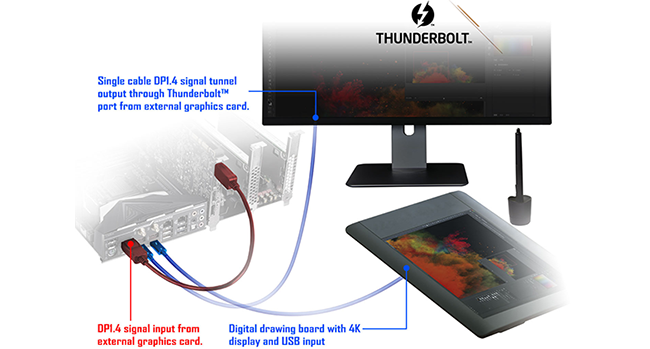

Take Visuals and Design to New Heights

DISPLAYPORT INPUTThis revolutionary motherboard offers the first ever DisplayPort input for an external graphics card. This makes it possible to take on the latest GeForce® RTX DP1.4 8K resolution via the onboard Thunderbolt™ port. This provides the most natural experience and visuals perfect for professional artists and designers.

displayport

Faster Connectivity for Greater Creativity

intel wifi 6

INTEL® WIFI 6 802.11AX + BT 5 MODULEThe Intel Wireless solution supports 802.11ax, enables gigabit wireless and provides smooth video streaming and a better gaming experience. Enjoy speeds up to 2.4Gbps*. Also, Bluetooth 5 provides 4X range over BT 4.2 and faster transmission.


wifi 6

BENEFIT OF WIFI 61. Better throughput than 802.11ac 1x1*.
2. 4X better network capacity in dense areas with lots of devices.
3. Network efficiency increase for a better user experience.


dual band

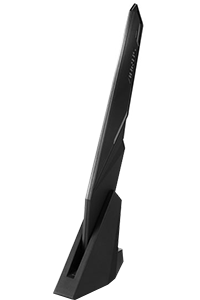

DUAL BAND SUPPORT WITH AORUS ANTENNAThe AORUS antenna supports dual band 802.11ax/ac 2.4GHz and 5GHz, with better signal strength than the traditional antenna design. It offers a smart antenna function for the best WIFI signal transmission. Use the multiple angle tilt and magnetic base for the best signal strength direction and location.

Faster Networking for Superior Gaming

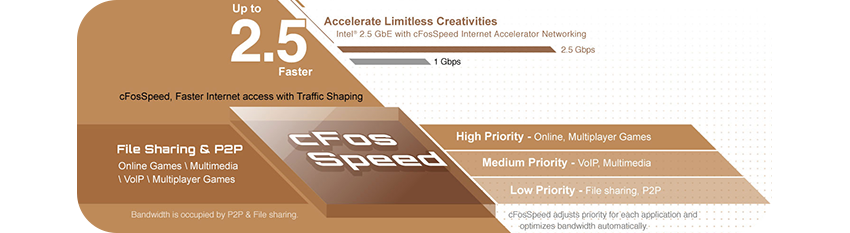

INTEL 2.5GBE LAN WITH CFOSSPEED INTERNET ACCELERATOR NETWORKINGThe use of 2.5G LAN offers up to 2.5 GbE network connectivity, which is at least two times faster compared to general 1GbE networking. It's perfectly suited for gamers and streamers who desire a smooth online experience. It's also backwards compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

intel LAN

Ultimate Support for PCIe NVMe & SATA SSDs

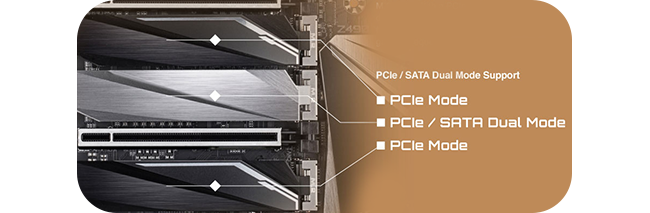

dual m.2

DUAL-MODE M.2 SLOT DESIGNGIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on the M.2 slots. This configuration is designed for flexibility and adaptation to fit all your PC needs.

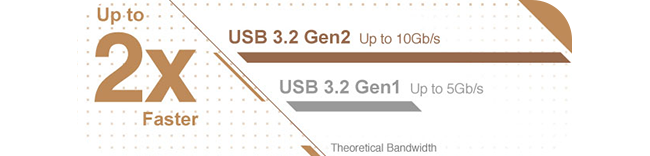

Speed up your Connections

intel usb 3.2 gen2

NATIVE INTEL USB 3.2 GEN2 CONTROLLERIntel's native USB 3.2 Gen2 host controller provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1. The much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Versatile Connectivity Options

PRE-INSTALLED I/O SHIELDWith an integrated I/O shield, building a GIGABYTE Ultra Durable PC has never been easier.

io shield

Immerse yourself in Incredible Gaming Sound

hi res audio

HI-RES AUDIOHi-Res Audio certified, which means that the motherboard can reproduce frequencies up to 40kHz or above which guarantees the finest audio at all times.

realtek codec

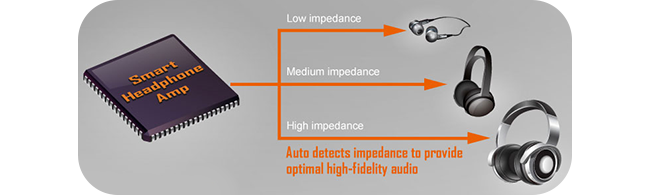

REALTEK CODEC & ALC1220-VBALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp, it automatically detects impedance of your headphones, preventing issues such as low volume and distortion. The new VB series audio controller streams your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB (A).

Adjustable Voltage USB Ports with Dedicated Power Design

usb dac up

USB DAC-UP 2GIGABYTE improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 provides clean, isolated and low-noise power while adding the ability to compensate for voltage drops. Virtual reality pioneers and gamers alike are ensured that their accessories and peripherals will not encounter connectivity or power deficiency issues with USB DAC-UP 2. With gaming gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Get Up and Running in Seconds

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

plug in

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

bios file

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

q flash

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Utilise a Stable Power Supply

solid pin connectors

SOLID PIN POWER CONNECTORSZ490 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for stable power supply while CPU overloading.
Solid Pin Power connector advantages:
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

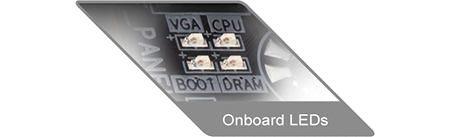

Hardware Troubleshooting at a Glance

onboard leds

DIAGNOSTIC LEDSOnboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing you to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so you can take action to resolve the problem promptly.

Keep your Motherboard Protected

START SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occur the motherboard will fail to function. By equipping resistors with an Anti-Sulfur design GIGABYTE gives Ultra Durable motherboards a whole new meaning.

anti sulfur design

Save Power with a Simple Click

cec 2019

CEC 2019 READYCEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, or standby mode. With high power efficiency hardware components and fine-tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirements.

Illuminate your Build with Stunning Lighting

rgb fusion 2.0

RGB FUSION 2.0Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

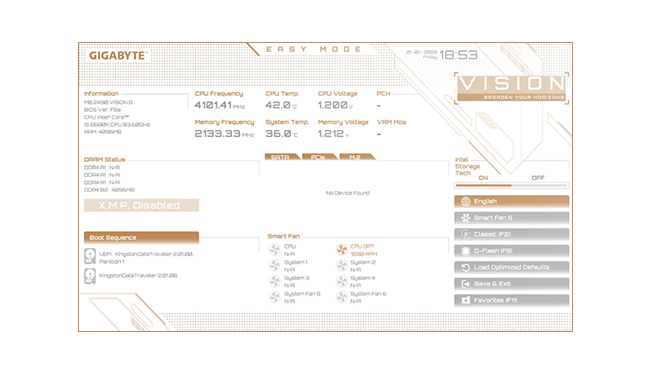

Software for Every Setting you Need

bios

refreshed biosThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
*Style illustration for reference only.

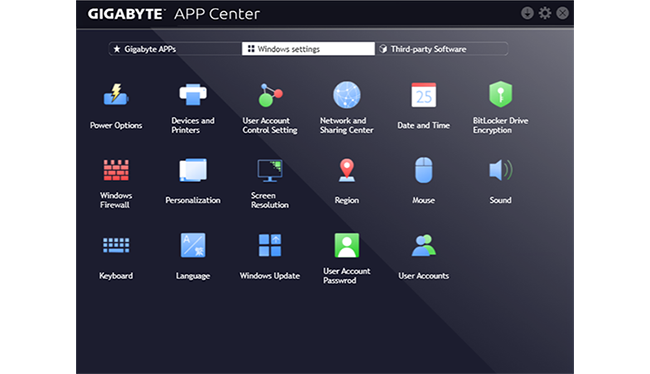

app

APP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

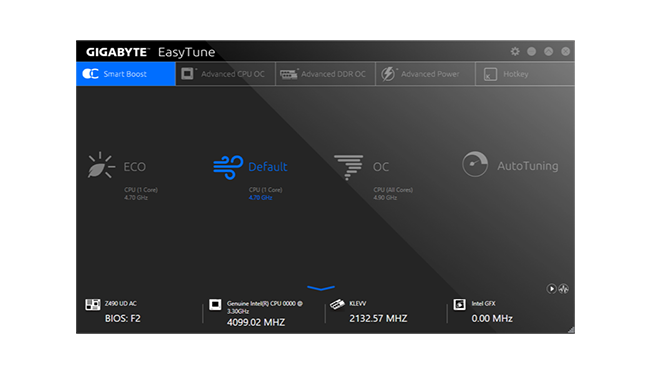

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

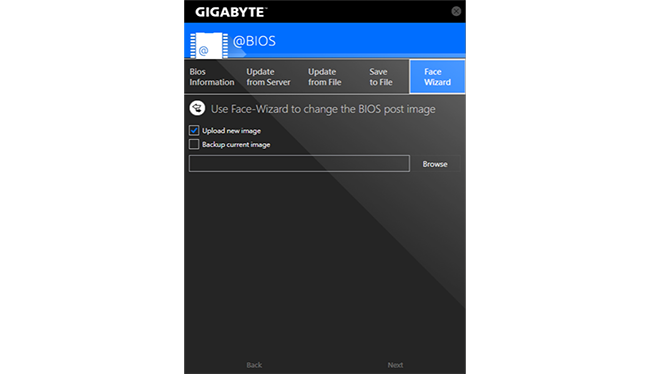

@bios

@BIOS The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

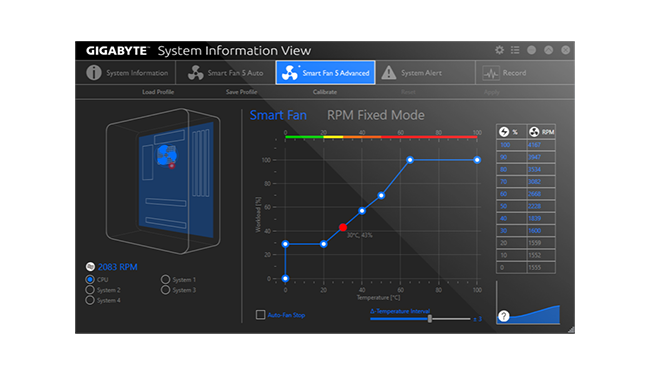

system info

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition Z490 VISION D
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • HDMI 1.4
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 1 x M.2 Wi-Fi Module Slot
  • 1 x M.2, 22-60/80/110, PCIe
  • 2 x M.2, 22-80/110, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x M.2 Connector
  • 1 x OC PEG Power Connector
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)

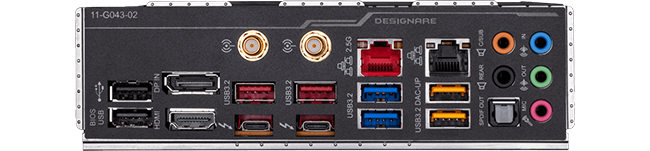

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107186
Model Number Z490 VISION D
GTIN 4719331808570
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
