Gigabyte R282-Z91 Dual 2nd Gen EPYC Rome CPU 2U 24 Bay Barebone Server
Gigabyte R282-Z91 AMD EPYC™ 7002 Dual Processor Server System, 2U Rackmount, 24x 2.5" SATA/SAS Hot-Swap Front Bays

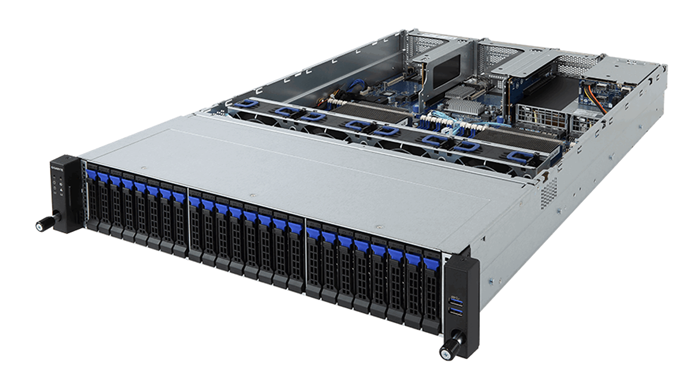

Gigabyte R282-Z91 EPYC Server
Welcoming the Next Generation of AMD EPYC ProcessorsThe next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing. Built on 7nm advanced process technology – the best the industry has to offer, allowing for denser compute capabilities with lower power consumption. Capable of Support for the world’s first 64 core data center CPU and its family of processors, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture. The world’s first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0. Embedded security protection to help defend your CPU, applications, and data.
AMD EPYC 7002Series Processor Family
26 x 2.5" (24 Front + 2 Rear)Hot-Swappable HDD/SSD Bays
32 x DIMM slotsUp to 3200 MHz DDR4 Memory

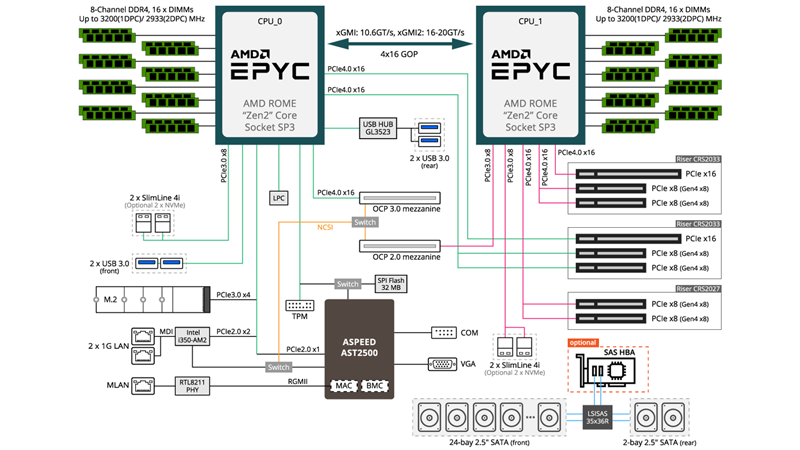

R282-Z91 System Block Diagram
Full Support for PCIe 4.0 Technology
Double the bandwidth for faster connections AMD EPYC Rome is the world’s first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices.
Featuring Higher Memory Speed
Supports speeds up to 3200Mhz AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel).
Utilise Ultra-Fast NVMe and Obtain More Storage
Now featuring higher capacity storage optionsGIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.
OCP 3.0 Add-On Card Ready
MANY NEW ADVANTAGES COMPARED TO OCP 2.0 CARDS
GIGABYTE’s AMD EPYC Rome Server Platforms feature an onboard OCP 3.0 mezzanine slot for the next generation of PCI Gen 4.0 add on cards.<>
Compared to previous OCP 2.0 type cards, advantages of this new type include:
•Easier Serviceability: simply slot in / pull out the card without needing to open the server chassis; tool less design
•Larger Thermal Envelope: more space for heat sink provides an increased power budget for new & emerging capabilities
Max TDP Support for Server Platforms
support the full list of AMD EPYC Rome GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP)
Data Security TPM 2.0 Module
designed to support Trusted Platform Modules GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Design Features for Easy Maintenance
Tool-less Rail KitsRail kits attach to the side of the server chassis via clipping mechanism.
Tool-less 2.5” & 3.5” Drive BaysClipping mechanism secures the drive in place. Install or replace a new drive in seconds.
GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again.
GIGABYTE Server Management
easy to use browser-based GUI GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
global remote monitoring and management GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
retrieves additional node information GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI. *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
remote server management mobile APP GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
manage and monitor GIGABYTE server nodes GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.
Efficient, Reliable Power Supply
guarantee high conversion efficiency GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
GIGABYTE BMC Interface
allows users to update the BIOS of motherboards
GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:
•No need to install core components such as CPUs, memory, drives and OS.
•No need to power on the system (NB. PSU must be connected).
•Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line).
Intelligent Power Management Features
Cold Redundancy To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.
Smart Crises Management / Protection SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.
Gigabyte R282-Z91 Principle Features
- Dual AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- Onboard 12Gb/s SAS expander
- 24 x 2.5" NVMe hot-swappable SSD bays in front side
- 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 8 x PCIe Gen4 x16 and x8 expansion slots
- 1 x OCP 3.0 Gen4 x16 mezzanine slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- Aspeed® AST2500 remote management controller
- 1600W 80 PLUS Platinum redundant power supply
