Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server
Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server
Scan code: LN138506 Manufacturer code: 6NR272Z30MR-00-AT
£1,799.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server
  • Thumbnail 2 : Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server
  • Thumbnail 3 : Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server
  • Thumbnail 4 : Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server

Gigabyte R272-Z30-AT 2nd Gen EPYC Rome CPU 2U 12 Bay Barebone Server

Gigabyte R272-Z30-AT AMD EPYC™ 7002 Server, 2U Rackmount, 12x 3.5"/2.5" + 2x 2.5" SATA Hot-Swap Bays, Titanium PSU
MORE INFO
MORE INFO

Scan code: LN138506 Manufacturer code: 6NR272Z30MR-00-AT
£1,799.99
Item currently awaiting an ETA
Pre Order
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £50.76 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £163.08
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,799.99
    Total inc. interest: £1,956.89
    Monthly Payment: £87.89
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,799.99
    Total inc. interest: £2,109.35
    Monthly Payment: £63.03
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,799.99
    Total inc. interest: £2,269.12
    Monthly Payment: £50.76
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £1,799.99
    Total inc. interest: £2,435.88
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £47.83 / month (APR 19.9%)
Product Overview

AMD EPYC™ 7002 Series Processor (Rome) Support

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.


PCIe Gen 4.0 Ready

AMD EPYC Rome is the world's first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD's Radeon MI50 GPGPU.


Higher Memory Speed

AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel).


More M.2 Storage

GIGABYTE's AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage - both on-board M.2 slots and extra capacity via optional riser cards.


Max TDP Support

GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (TDP).


TPM 2.0 Module

GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).


Design Features for Easy Maintenance

GIGABYTE's AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal - never worry about forgetting your toolbox or losing a screw again!


Efficient, Reliable Power Supply

GIGABYTE's AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus 'Titanium' or 'Platinum' PSUs, combined with GIGABYTE's precision engineering, translates to super-efficient power usage which maximizes the system's power : performance ratio and reduces OPEX for the user.


Cold Redundancy

To take advantage of the fact that a PSU will run at greater power efficiency with a higher loading, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with dual PSU. When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.


SCMP (Smart Crises Management / Protection)

SCMP is a GIGABYTE patented feature that will automatically force the system's CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.


Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system's current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user's custom requirements.


VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Features


• Single AMD EPYC™ 7002 series processor family.
• 8-Channel RDIMM/LRDIMM DDR4, 16x DIMMs.
• 2x 1Gb/s LAN ports (Intel® I350-AM2).
• 1x Dedicated management port.
• 12x 3.5" and 2x 2.5" SATA hot-swappable HDD/SSD bays.
• Ultra-Fast M.2 with PCIe Gen3 x4 interface.
• 6x PCIe Gen4 / Gen3 expansion slots.
• 1x OCP 2.0 Gen3 x16 mezzanine slot.
• Aspeed® AST2500 remote management controller.
• 800W 80 PLUS Platinum redundant power supply.

Specifications
Edition R272-Z30-AT
Form Factor 2U Rackmount
CPU Included No
CPU Type AMD EPYC™ 7002 Series
CPU Model
Architecture Infinity / Zen 2
Manufacturing Process 7 nm
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler Passive Heatsink
TDP 225 W
CPU Socket SP3
Chipset System-on-Chip
Motherboard Form Factor Proprietary
Motherboard Model MZ32-AR0
Memory Type DDR4
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Octa (8)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 2048GB (16x128GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Aspeed AST2500 Integrated
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 1920x1200 (WUXGA)
Graphics Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Expansion Slots
  • 2 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x PCIe 3.0 x16 (x16/x8 Shared Bandwidth), LP/HH
  • 1 x PCIe 3.0 x16 OCP 2.0 Mezz. (Type1, P1~P4; Type2 P5
  • 1 x PCIe 3.0 x8 (x0/x8 Shared Bandwidth), LP/HH
  • 1 x PCIe 4.0 x16 (x8 Bandwidth), LP/HH
  • 3 x PCIe 4.0 x16, LP/HH
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive N/A
Drive Bays
  • 2 x 2.5" SATA/SAS Hot-Swap (External, Rear)
  • 12 x 3.5" SATA/SAS Hot-Swap (External, Front)
Backplane I/O
  • 12 x SAS-3 (12Gb/s)/SATA3 (6Gb/s) Ports (Front)
  • 2 x SAS-3 (12Gb/s)/SATA3 (6Gb/s) Ports (Rear)
RAID Support Depends on SAS HBA (Not Included)
Internal I/O
  • 1 x BIOS Recovery Jumper
  • 1 x Buzzer
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Connector
  • 1 x HDD Back Plane Board Header
  • 1 x IPMB Connector/Header
  • 1 x PMBus Connector
  • 1 x Serial (COM) Header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
Network Interface Type Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN
Network Chip/Modules
  • 1 x Intel® i350-AM2 Dual Port (GbE)
  • 1 x Mgmt LAN (10/100/1000)
Front Panel
  • 1 x HDD Activity LED
  • 1 x ID button with LED
  • 2 x LAN Activity LEDs
  • 1 x NMI button
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 1 x System Status LED
  • 2 x USB 3.0

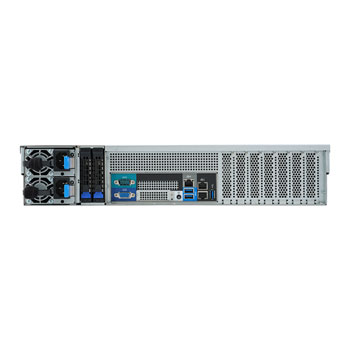

Back Panel
  • 1 x D-Sub (VGA) Out
  • 1 x ID Button with LED
  • 2 x RJ-45
  • 1 x RJ-45 Mgmt LAN
  • 1 x Serial (COM)
  • 3 x USB 3.0
Cooling Fans 4 x 80mm
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 800 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy 1+1
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 438 x 87.5 x 660 (mm WxHxD)
Weight TBA kg
Includes
  • 1 x Barebone Server
  • 1 x CPU Heatsink/s
  • 1 x Rail Kit
Notes Bays connected via on-board ports. SAS card required for SAS device support. 4x Front SATA + 2x Rear SATA are default config. Extra drives may require additional hardware. Memory: 3200 MHz (1DPC), 2933 MHz (2DPC). Compatible with AMD EPYC 7001 Series CPUs.
