Gigabyte NVIDIA GeForce RTX 3060 Ti 8GB GAMING OC Rev. 2.0 LHR Ampere Graphics Card

Gigabyte NVIDIA GeForce RTX 3060 Ti GAMING OC R2 LHR 8GB GDDR6 Ray-Tracing Graphics Card, 4864 Core, 1770MHz GPU

Thumbnail 1 : Gigabyte NVIDIA GeForce RTX 3060 Ti 8GB GAMING OC Rev. 2.0 LHR Ampere Graphics Card Thumbnail 2 : Gigabyte NVIDIA GeForce RTX 3060 Ti 8GB GAMING OC Rev. 2.0 LHR Ampere Graphics Card Thumbnail 3 : Gigabyte NVIDIA GeForce RTX 3060 Ti 8GB GAMING OC Rev. 2.0 LHR Ampere Graphics Card Thumbnail 4 : Gigabyte NVIDIA GeForce RTX 3060 Ti 8GB GAMING OC Rev. 2.0 LHR Ampere Graphics Card
Scan code: LN118962 Manufacturer code: GV-N306TGAMING OC-8GD V2
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

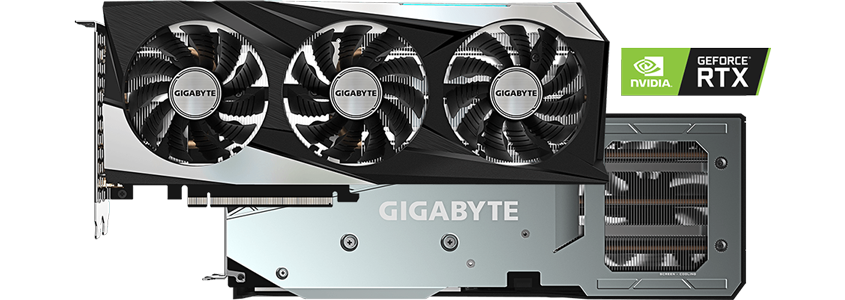

WINDFORCE 3X Cooling System

The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.


Alternate Spinning

Reduce the turbulence of adjacent fans and increase air pressure.


Smooth Airflow

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.


3D Active Fan

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


Unique Blade Fan

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.


Graphene Nano Lubricant

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.


Screen Cooling

Extended heatsink design allows air flow to pass through, providing better heat dissipation.


Heat Pipes Direct Touch

The shape of the pure copper heat pipe maximises the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

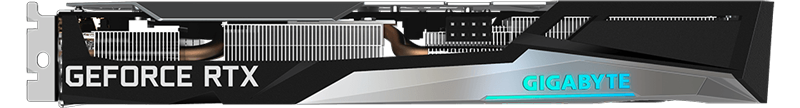

RGB Fusion 2.0

With 16.7M customisable colour options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.

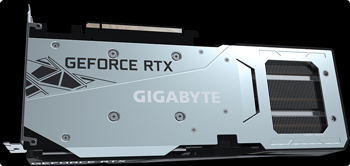

Metal Back Plate

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.


Dual BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.


Power Indicator

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.


Friendly PCB Design

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.


Extreme Durability and Overclocking

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.


AORUS Engine

The cutting-edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Features

• NVIDIA Ampere Streaming Multiprocessors.
• 2nd Generation RT Cores.
• 3rd Generation Tensor Cores.
• Powered by GeForce RTX™ 3060 Ti.
• Integrated with 8GB GDDR6 256-bit memory interface.
• WINDFORCE 3X Cooling System with alternate spinning fans.
• RGB Fusion 2.0.
• Protection metal back plate.

Specifications
Key Specifications
Chipset GeForce RTX 3060 Ti
Edition GeForce RTX 3060 Ti GAMING OC PRO (Rev. 2.0)
Manufacturing process 8 nm
Microarchitecture Ampere
Cores & Clocks
Cores 4864
Core Clock 1770 MHz
Boost Clock N/A
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6
Memory Clock 14000 MHz
Memory Bus 256 Bit
Cooling
Cooling Solution Tri Fan (3)
Cooler Design WINDFORCE 3X
Included/Fitted Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 2 x DisplayPort 1.4a
  • 2 x HDMI 2.1
Visuals
GeForce VR Ready Yes
Multi-Way Graphics Support Not Supported
Microsoft DirectX Support 12 API
HDCP Ready Yes
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Ray-Tracing
Real-Time Ray Tracing Yes
NVIDIA RT Cores
NVIDIA Tensor Cores
RTX-OPS
Rays Cast
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 650 W
Maximum GPU Temperature 93 °C
Physical
Width 2.2 Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 281x117x40 mm
Package Type Retail
Additional Information
Scan Code LN118962
Model Number GV-N306TGAMING OC-8GD V2
GTIN 4719331309794
