Gigabyte Intel H470 AORUS PRO AX mITX Motherboard

Gigabyte H470I AORUS PRO AX, Intel H470, S 1200, DDR4, SATA3, 2x M.2, 2.5GbE, WiFi 6, USB 3.2 Gen 1 A+C, MiniITX

Thumbnail 1 : Gigabyte Intel H470 AORUS PRO AX mITX Motherboard Thumbnail 2 : Gigabyte Intel H470 AORUS PRO AX mITX Motherboard Thumbnail 3 : Gigabyte Intel H470 AORUS PRO AX mITX Motherboard Thumbnail 4 : Gigabyte Intel H470 AORUS PRO AX mITX Motherboard
Scan code: LN107977 Manufacturer code: H470I AORUS PRO AX
£179.99Item currently awaiting an ETA
Pre order
From £16.16 / month (APR 14.9%)
Monthly Payment: £31.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £187.40
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

H470I AORUS PRO AX Intel Mini-ITX Motherboard from Gigabyte

Gigabyte H470I AORUS PRO AX Mini-ITX Motherboard

The Best Choice for Small but Powerful PC The H470I AORUS PRO AX Mini-ITX motherboard from Gigabyte is perfect for building a small form factor PC for people who demand higher performance but also care about aesthetics. The compact yet powerful PC delivers amazing performance with the latest 10th generation CPU, dual slots graphics card and blazing fast connectivity. It also is equipped with comprehensive thermal solutions to keep everything cool under heavy workload. Performance is not compromised by its size! This ultra durable AORUS motherboard from Gigabyte offers a range of features with Dual M.2 connectors, PCIe armor and more. Along with expert Smart Fan 5 cooling, onboard Intel® WI-FI 6 and an array of connectivity – all ready for any task you need to conquer. Illuminate your PC with the multi-zone RGB lighting that can be customized via RGB FUSION 2.0, and is fully compatible with additional LEDs and RGB LED strips, so you can add more shine to your build.


Please note: This H470 motherboard supports 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

Intel H470Chipset

LGA 1200CPU Socket

10th Gen IntelCompatible CPUs

Mini-ITXForm Factor

A Compact yet Powerful PC Delivers an Amazing Performance

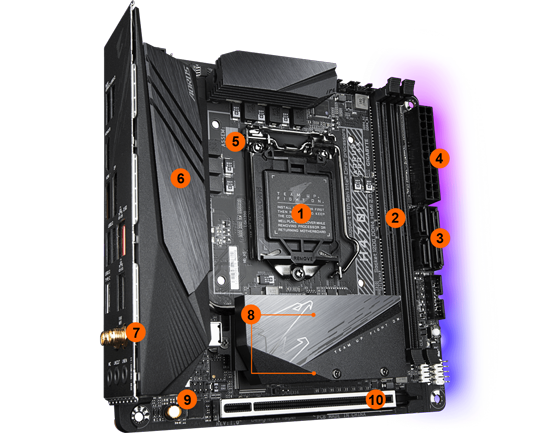

AORUS H470I PRO AX Breakdown

FEATURES OF THE H470I AORUS PRO AX 1. Supports 10th Gen Intel® Core™ CPUs   |   2. Dual Channel DDR4 / Durable Memory Armor   |   3. 4 x SATA 6Gb/s ports
4. Solid Pin Connectors with Metal Shielding   |   5. Direct Digital Power Design / 10 PCB Layers
6. Advanced Thermal Design / Extended Heatsinks, Thermal Backplate & Conductivity Pad
7. Intel® Wi-Fi 6 802.11ax 2T2R & BT5   |   8. Dual NVMe PCIe 3.0 x4 Slot for SSD
9. ALC 1220-VB Audio (114dB Rear, 110dB Front) / SNR in Microphone with WIMA Audio Capacitors
10. Ultra Durable PCIe Armor, Running x16

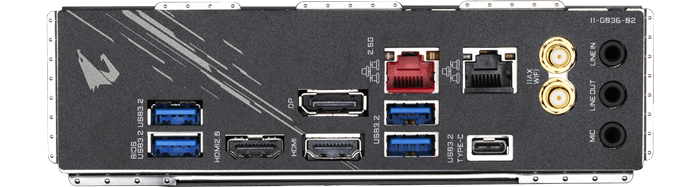

Next Generation Connectivity and Integrated Durable Armor

Connectivity

Intel® Wi-Fi 6 Ready   |   Intel 2.5G LAN Onboard   |   Intel® GbE LAN   |   HDMI 2.0 Gigabyte Motherboards give users a strong foundation to build their Gaming PCs. The H490I AORUS Ultra features the fastest 2.5Gbe WI-FI and Dual Lan that improve the reliability and performance in dense environment. Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. The All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz. better signal strength compared to traditional antenna design. Featuring HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation.

AORUS H470 Performance like no other

Performance

The maximum memory capacity on the H470 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

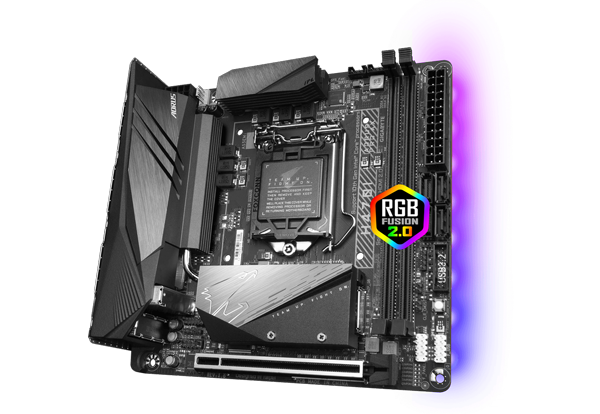

Unleash a Multi-Zone Light Show Design

RGB Lighting

GIGABYTE RGB Fusion mobile app lets you control the lighting Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

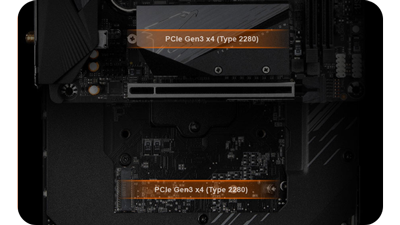

Boost your System with Dual M.2 Slots

Dual M.2 Slots

UP TO 32 GB/S WITH NVME Gigabyte Gaming Motherboards are focused on delivering M.2 technology, Dual PCIe Gen3 x4 M.2 to enthusiasts who want to maximize their system’s potential.

Audio Solution with DTS Immersive Sound Experience

Audio

the best quality with Hi-Res Audio Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

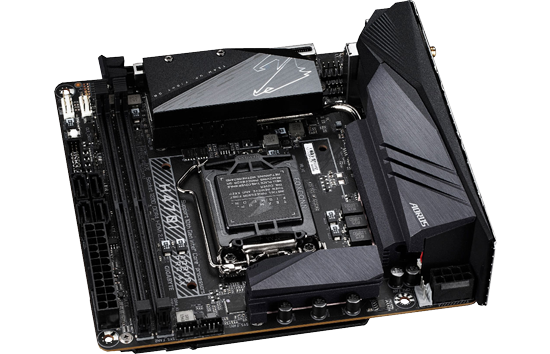

Ultra Durable and High Quality Manufacturing Process

Durable Motherboard Design

Ultra PCIe ArmorStainless Steel Design

Pre-InstalledI/O Shield

Solid Pin PowerPlated Connectors

Q-Flash PlusBIOS Auto Button

Gigabyte is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the H470 AORUS PRO AX motherboard and reinforce every slot to make each of them solid and durable. The innovative one piece stainless steel shielding design from Gigabyte reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. H470I AORUS PRO AX motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. With Gigabyte Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.

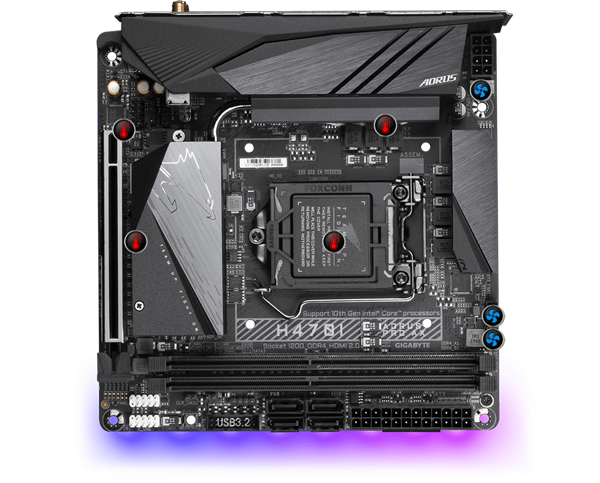

Advanced Thermal Solution with Smart Fan 5 Performance

Smart Fan 5

FOUR TEMPERATURE SENSORS   |   THREE HYBRID FAN HEADERS Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the fan curve to define corresponding fan speeds.

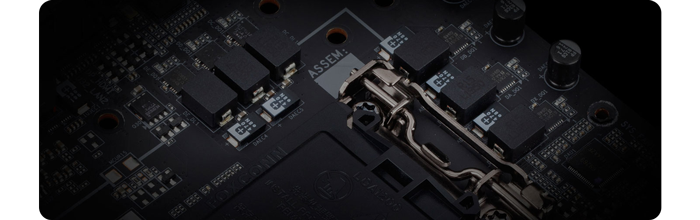

Discover the Ultimate Power Design

Performance and Power Design

5 phasesDigital Power Design

Power ArchitecturePWM Controller

2X Copper PCBBetter Power Efficiency

10 Layers PCBfor Power Solution Delivery

This motherboard uses 5+1 phases digital PWM Controller and DrMOS. This 100% digital controller, new Tantalum Polymer Capacitors array, and Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry components, allowing professional worker and gamer to get the incredible high performance from the latest 10 core 10th Gen, Intel® Core™ processors. Gigabyte's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. For richer feature and powerful performance on Mini-ITX board H470I AORUS PRO AX, ten layers mid-loss PCB was adopted to make it work. Furthermore, a complete ground layer improves the signal integrity and helps PCB to dissipate heat.

Control every Aspect of your Motherboard

Gigabyte BIOS & APP CENTERGood software goes hand in hand with perfect hardware. H470 AORUS PRO AX bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

User InterfaceAll new EASY MODE shows important hardware information all on one page.

FavouritesAdd constantly used items into the My Favorites menu for quick access.

StorageShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive LoadlineClearly show each load line calibration setting in a innovative curve graph.

app

APP CENTERGigabyte's APP Center is a useful portal of all Gigabyte Motherboards utilities and drivers, you can choose any utility you want to install from APP Center and keep updated with the latest utilities and drivers version.

easytune

EasyTune™Gigabyte's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGigabyte's System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour.

Specifications
Core Specifications
Edition H470I AORUS PRO AX
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen3
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Q-Flash Plus Button
  • 1 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 2 x System Fan header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
Rear I/O Connectors
  • 1 x DisplayPort
  • 2 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 2 x SMA antenna connectors
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN107977
Model Number H470I AORUS PRO AX
GTIN 4719331808815
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
