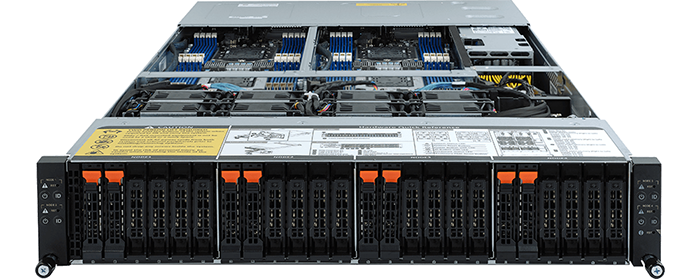

Gigabyte H262-Z63 Dual 2nd Gen EPYC Rome CPU 2U 4 Node Barebone Server
Gigabyte H262-Z63 AMD EPYC™ 7002 Dual Processor Hyper-Converged Server System, 2U Rackmount, 4x Rear Nodes, 8x NVMe Bays
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Gigabyte H262-Z63 EPYC Server
Welcoming the Next Generation of AMD EPYC ProcessorsThe next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing. Built on 7nm advanced process technology – the best the industry has to offer, allowing for denser compute capabilities with lower power consumption. Capable of Support for the world’s first 64 core data center CPU and its family of processors, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture. The world’s first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0. Embedded security protection to help defend your CPU, applications, and data.

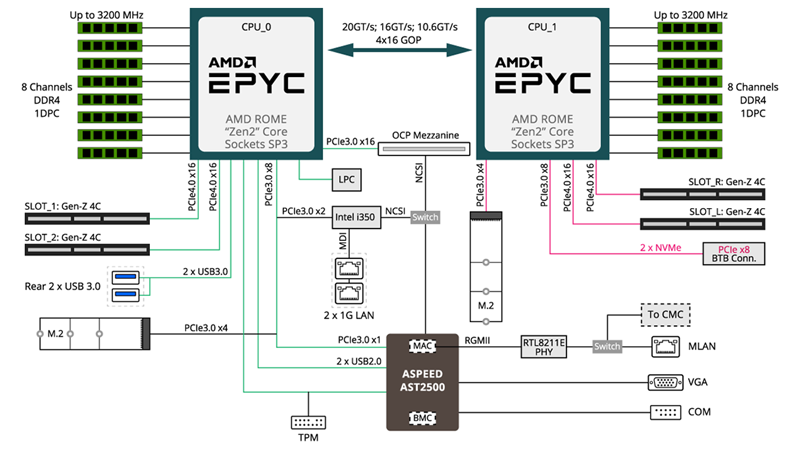

H262-Z63 System Block Diagram
Full Support for PCIe 4.0 Technology
Double the bandwidth for faster connections AMD EPYC Rome is the world’s first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices.
Featuring Higher Memory Speed
Supports speeds up to 3200Mhz AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel).
Utilise Ultra-Fast NVMe and Obtain More Storage
Now featuring higher capacity storage optionsGIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.
Max TDP Support for Server Platforms
support the full list of AMD EPYC Rome GIGABYTE’s AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP)
Data Security TPM 2.0 Module
designed to support Trusted Platform Modules GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Design Features for Easy Maintenance
Tool-less Rail KitsRail kits attach to the side of the server chassis via clipping mechanism.
Tool-less 2.5” & 3.5” Drive BaysClipping mechanism secures the drive in place. Install or replace a new drive in seconds.
GIGABYTE’s AMD EPYC 7002 Series server platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again.
GIGABYTE Server Management
easy to use browser-based GUI GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
global remote monitoring and management GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
retrieves additional node information GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI. *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
remote server management mobile APP GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
manage and monitor GIGABYTE server nodes GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.
Efficient, Reliable Power Supply
guarantee high conversion efficiency GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
GIGABYTE BMC Interface
allows users to update the BIOS of motherboards GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller: •No need to install core components such as CPUs, memory, drives and OS. •No need to power on the system (NB. PSU must be connected). •Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line).
Gigabyte H262-Z63 Principle Features
- 2U - 4 nodes rear access server system
- Dual AMD EPYC™ 7002 series processor family
- 8 x LGA 4094 sockets
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x Dedicated management ports
- 1 x CMC global management port
- 8 x 2.5" NVMe hot-swappable SSD bays
- 8 x M.2 with PCIe Gen3 x4 interface
- 8 x Low profile PCIe Gen4 x16 expansion slots
- 4 x OCP 2.0 Gen3 x16 mezzanine slots
- Aspeed® AST2500 remote management controller
- 2200W 80 PLUS Platinum redundant PSU
|Edition||H262-Z63 AMD EPYC™ 7002 DP Hyper-Converged Server System - 2U 4 Nodes|
|Form Factor||2U Rackmount with 4 Nodes|
|CPU Type||8x AMD EPYC™ 7002 Series - Total [2x Per Node]|
|Architecture||Infinity / Zen 2|
|Manufacturing Process||7 nm|
|No. of Threads||N/A|
|CPU Cooler||Passive Heatsink|
|Max. TDP||225 W|
|CPU Socket||SP3 x8 - Total [x2 Per Node]|
|Motherboard Form Factor||Proprietary|
|Memory Capacity Included||N/A|
|Memory Channels||Octa (8) per CPU/Socket|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||RDIMM / LRDIMM|
|Memory Speed (Mhz)||DDR4 - 3200|
|Max. Memory Capacity||8TB (64x128GB) - Total [2TB (16x128GB) per Node]|
|Processor/Motherboard Graphics Chip||Aspeed AST2500 Integrated|
|Discrete GPU Chipset|
|GPU Manufacturing Process|
|GPU Cores/Streams/Execution Units|
|GPU Tensor Cores||N/A|
|Base GPU Speed||N/A|
|Max. GPU Speed||N/A|
|GPU Memory Size|
|GPU Memory Type|
|GPU Memory Clock|
|GPU Memory Bus|
|Discrete GPU Cooler|
|Max. GPU Resolution||1920x1200 (WUXGA)|
|Graphics Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|HDD Storage Included||No|
|HDD Storage Type|
|HDD Storage Capacity||N/A|
|Drive Bays||8 x 2.5" NVMe Hot-Swap (External, Front)|
|Backplane I/O||8 x NVMe (PCIe 3.0 x4) Ports (Front)|
|Network Interface Type||8x Wired GbE, 4x Mgmt, 1x CMC - Total|
|Cooling Fans||8 x 80mm|
|Keyboard / Mouse Included||No|
|Remote Control Included||No|
|PSU Wattage||2200 W|
|PSU Efficiency Rating||80 PLUS Platinum|
|Operating System Included||No|
|Operating System||O/S Not Included - Please Buy Separately|
|Dimensions||440 x 87.5 x 840 (mm WxHxD)|
|Notes||Specifications are for Total System, not per Node, unless otherwise stated. All storage bays are compatible with SATA devices. Compatible with AMD EPYC 7001 Series CPUs. If only 1 CPU is installed per Node, some PCIe or memory functions might be unavailable.|
|SSD Storage Included||No|
|SSD Storage Type|
|SSD Storage Capacity|
