Gigabyte NVIDIA GeForce GTX 1080 Ti 11GB GAMING OC
Gigabyte GeForce GTX 1080 Ti GAMING OC 11GB GDDR5X VR Ready Graphics Card, 3584 Core, 1518MHz GPU, 1632MHz Boost
Geforce GTX 1080 Ti Gaming OC from Gigabyte

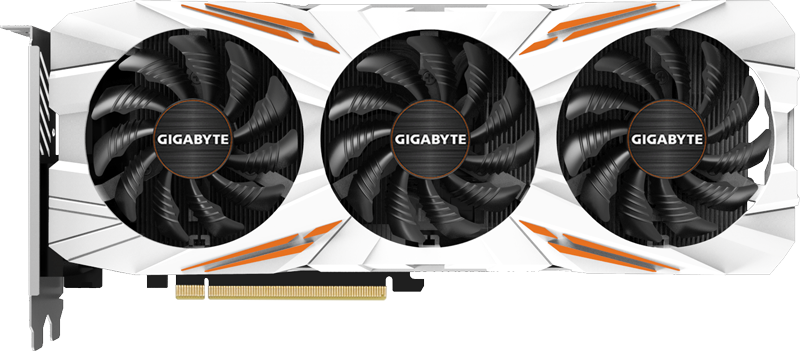

Gigabyte GTX 1080 Ti Gaming OC Card
Dare to stand out with a clean, white build in style. Crafted in elegant white finish with orange accent, the GTX 1080 Ti Gaming OC is a perfect match for those who are building not just a gaming rig, but rather a stunning masterpiece.
Base Clock (OC Mode)
Boost Clock (OC Mode)
Gigabyte All-Round Cooling Solution

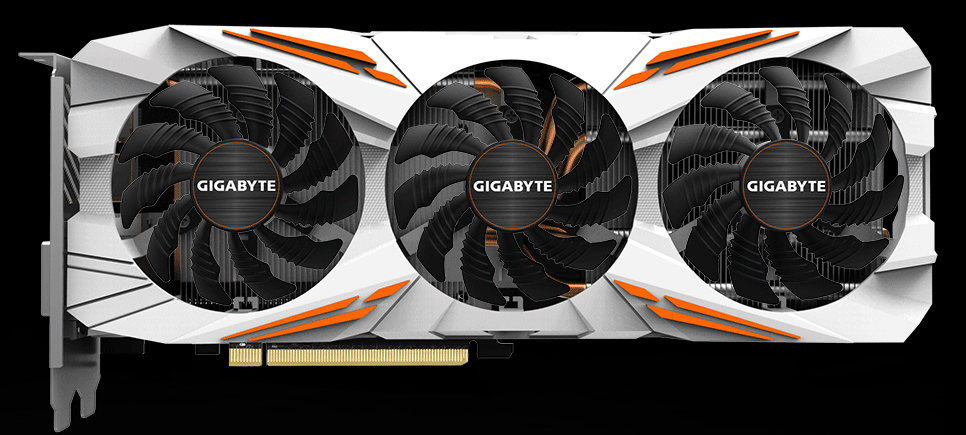

1080 Ti Windforce Cooling System
The WINDFORCE 3X cooling system features 3 unique blade fans, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Advanced Aorus Fan Cooling
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Unique Blade Fans
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.
3D Active Fans
The 3D Active Fan provides semi-passive cooling, the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

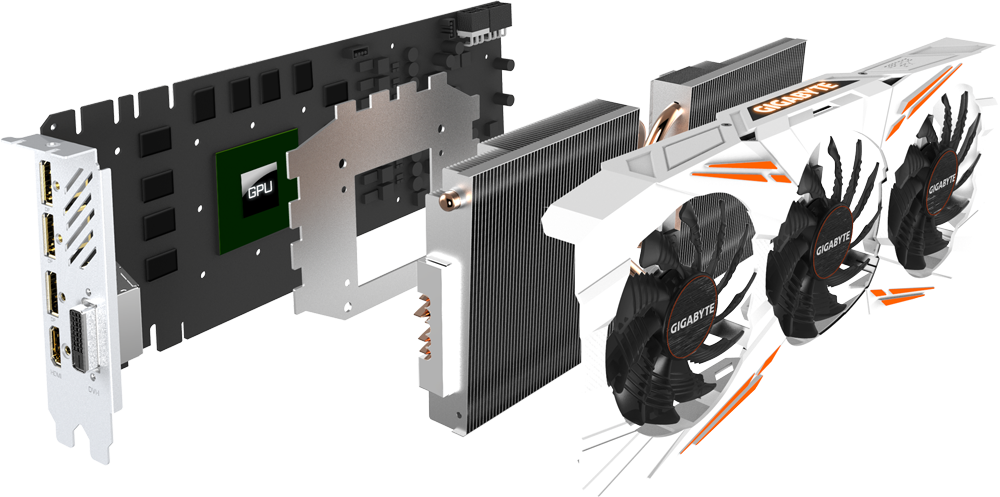

Heat Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU for enhanced thermal transfer. The heat pipes also touch a large metal base plate covering the VRAM module via thermal pads to ensure the cores are properly cooled.

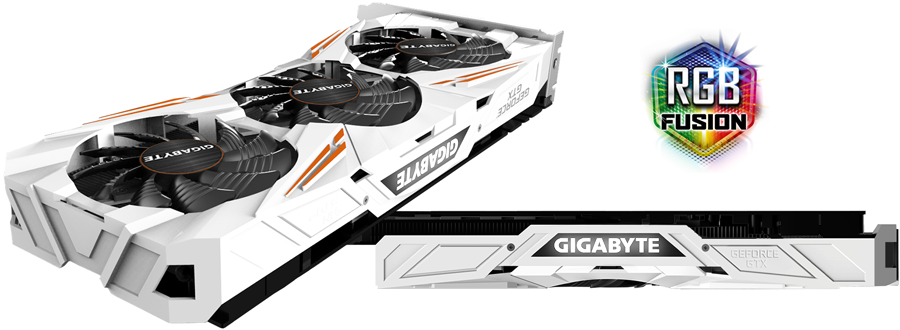

RGB Lighting Effects
Gigabyte RGB FUSION
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine.
Components Built Strong
Titan X-grade Components
Engineered with the same highest-grade chokes and capacitors as those of Titan X,the graphics card delivers outstanding performance and longer system lifespan. Compared to the founders edition, the 8+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. Over temperature protection and load balance to each MOSFET can effectively extend the card life.
Overclock Your Gigabyte 1080 Ti
Gigabyte Graphics Engine
With the Gigabyte Graphics Engine you can monitor and fine tune in real-time your Clock Speeds, Voltage, fan performance and power target. You can tune them to your own gaming preference using the intuitive user interface.

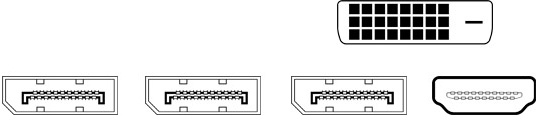

GTX 1080 Ti CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
To experience and enjoy the impressive world of Virtual Reality, high-performance hardware is required. MSI, world leading brand in high-end gaming and eSports, provides the right advice to make sure your system is VR Ready. Integrating the very best of cutting edge technologies in recommended MSI VR gaming hardware for smooth performance. Together with our VR partners, MSI brings gamers an extremely realistic VR experience where games come alive.
|Chipset||GeForce GTX 1080 Ti|
|Manufacturing process||16 nm|
|Core Clock||1518 (1544 in OC Mode) MHz|
|Boost Clock||1632 (1657 in OC Mode) MHz|
|Memory Clock||11010 MHz|
|Memory Bus||352 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||
|Minimum Recommended PSU||600 W|
|Maximum GPU Temperature||91 °C|
|Dimensions||114 x 41 x 280 mm|
