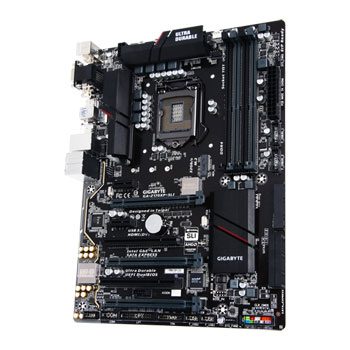

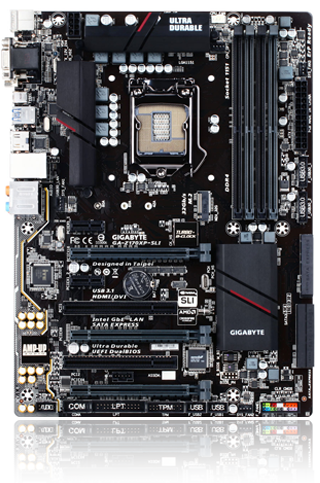

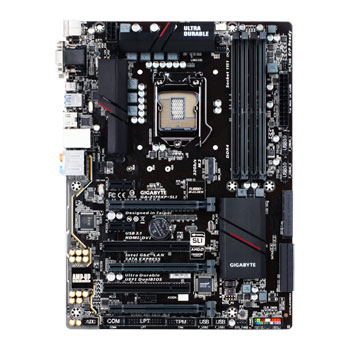

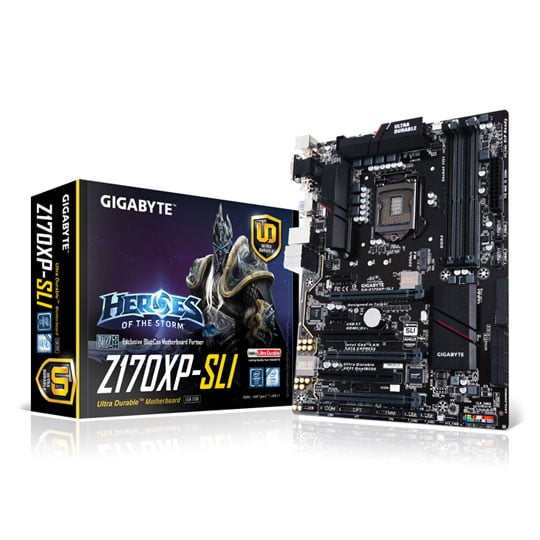

Gigabyte Z170XP-SLI Intel Skylake ATX Motherboard

Gigabyte GA-Z170XP-SLI, Intel Z170, S 1151, DDR4, SATAe/SATA3 6Gb/s, PCIe 3.0, SLi/CrossFire, DVI/HDMI, ATX Motherboard

Gigabyte
Scan code: LN66200 Manufacturer code: GA-Z170XP-SLI Request call
£119.48
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

GIGABYTE XP-SLI Motherboard - Z170 Skylake

Gigabyte Z170 Chipset Motherboard

As part of GIGABYTE’s UD (Ultra Durable) series the Z170X-SLI supports the latest 6th generation Core processors from Intel and feature a 14nm desktop CPU that brings improved performance and power efficiency. The cutting edge technology embedded is capable of running multiple GPUs, utilising next-gen SATA Express and has a bundle of useful tools – GIGABYTE’s App Center and a DualBIOS are just the beginning.

Intel Z170
Chipset

1151
CPU Socket

ATX
Form Factor

USB 3.1 Capabilities

Top Motherboard Connection Speeds

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

GIGABYTE App Center

Take Control of GIGABYTE Motherboards

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

*Image for reference only. App version varies dependant on motherboard.

Easy Tune

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station

GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

SATA Express Speeds

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Dual onboard M.2 Slots

Rapid Speed Storage

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

*Number of M.2 slots depends on motherboard

2-Way CrossFire

SLI and CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

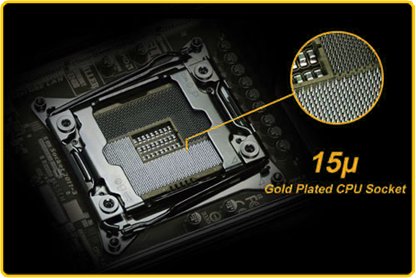

CPU Socket Design

15μ Gold Plated CPU Socket

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

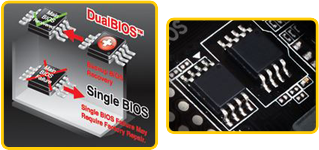

DualBIOS Design

GIGABYTE Patented DualBIOS (UEFI)

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Internet Accelerator Software

Realtek Green Motherboard Speed

Realtek Green GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek Green GbE consumes significant less power when it’s in idle state in comparison.

Motherboard Audio Capacitors

High End Audio Capacitors

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

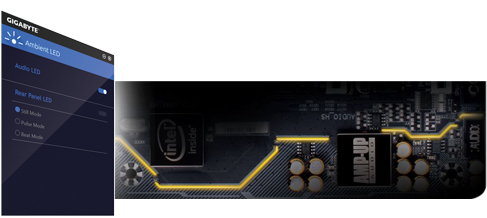

Ambient LED Design

Stylish Motherboard LED

GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

Turbo B-Clock Performance

Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU capabilities

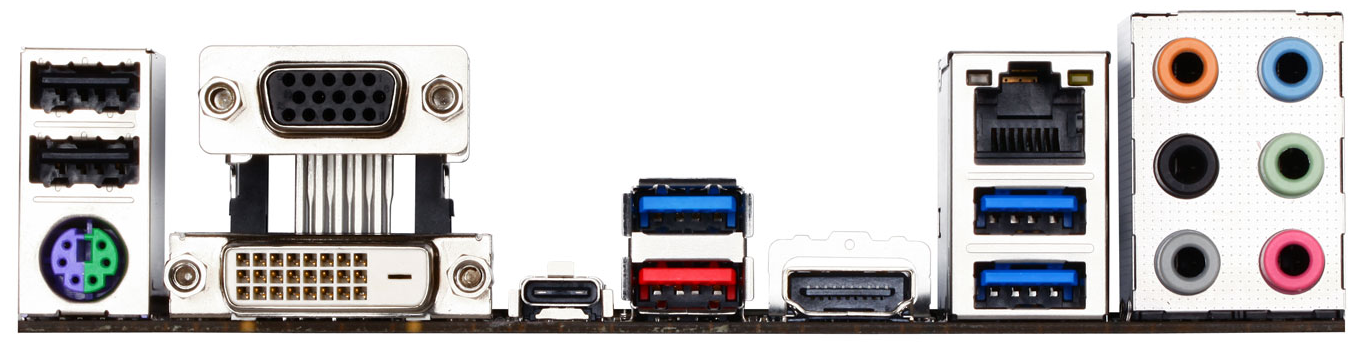

GIGABYTE XP SLI Ports

Specifications
Specifications
Form Factor ATX
CPU Socket 1151
QPI Speed N/A
Chipset Intel Z170
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz) DDR4 - 2133
Maximum Memory Capacity 64GB (4x16GB)
Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Graphics Interface PCIe 3.0 (x16)
SLI Support 2 Way SLi
Crossfire Support 3 Way CrossFireX
Audio
Network Interface Type
Network Interface Chip/Modules
SATA SATA Express/SATA3 6Gb/s
RAID Support via SATA
Storage Mode Support
Water Cooled No
Expansion Slots
  • 1 x M.2, S3, 32 Gb/s, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
Internal I/O
  • 1 x 24pin (V)
  • 1 x 8pin (V)
  • 1 x Clear CMOS jumper
  • 1 x CPU fan header
  • 1 x CPU OPT Fan Connector
  • 1 x FP Audio Header
  • 1 x Front panel header
  • 1 x Parallel Port (LPT) Header
  • 3 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 3 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header

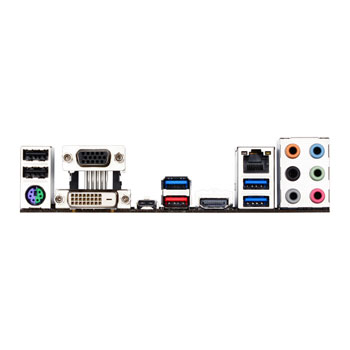

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 3 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Questions & Answers
(2 Questions : 1 Answer)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

Which processor is best for this board

7 months ago
Customer avatar
by
Waterlooville, Hampshire, UK
Read all my Q&A

Please wait while more information about Kczax is loaded.
Additional information about Kczax could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

The best processor available for this board is the Intel i7 6700K

Thanks,
7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

0 answers

header cable

I HAVE THE ABOVE MOTHERBOARD AND A CORSAIR CARBBIDE SERIES 200R CASE.I AM UNCERTAIN WHERE THE CASE HEADER FITS IN SLOT ON MOTHERBOARD.DOES NOT FIT ANY SLOTS,DO I NEED AN ADAPTER ??
THANK YOU
LES
3 months, 3 weeks ago
