Gigabyte Intel Z170X Gaming 7 Skylake LED ATX Motherboard

Gigabyte GA-Z170X-Gaming7, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), SLi/CrossFire, Dual GbE, USB 3.1 A+C, ATX

Gigabyte
Scan code: LN72187 Manufacturer code: GA-Z170X-Gaming 7 Request call
£209.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

GIGABYTE Gaming-7 Motherboard - Z170 Skylake

Gigabyte Z170 Chipset Motherboard

The Gaming 7 is a motherboard that has been designed by GIGABYTE for the gamer within us all, and as such is part of their G1 Gaming line. This means it has been embedded with tech that will help enhance gaming experiences, Creative SBX Pro Studio Suite, Killer E2200 Gaming Network and Intel GIGABYTE LAN are just a few. Plus, the Gaming 7 comes with an ambient LED that can be customised and brings style to both the motherboard and its rear panel.

Intel Z170
Chipset

1151
CPU Socket

ATX
Form Factor

Best Transfer Speed Ports

Intel Thunderbolt 3 Certified Motherboard

Powered by Intel's own Thunderbolt controller the new Thunderbolt 3 protocol, which is available over a USB Type-C connector on the back I/O of the GIGABYTE Z170X-Designare, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

USB 3.1 Capabilities

Top Motherboard Connection Speeds

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

USB 3.1 Controller

Exclusively on Gigabyte Powered Motherboards

The Intel USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

GIGABYTE App Center

Take Control of GIGABYTE Motherboards

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

*Image for reference only. App version varies dependant on motherboard.

Easy Tune

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station

GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

SATA Express Speeds

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Dual onboard M.2 Slots

Rapid Speed Storage

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

*Number of M.2 slots depends on motherboard

2-Way CrossFire

SLI and CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

CPU Socket Design

15μ Gold Plated CPU Socket

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

Motherboard Audio Capacitors

High End Audio Capacitors

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Ambient LED Design

Stylish Motherboard LED

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the LED trace path lighting. A total of 7 colors are available to make your system appearance unique!

Turbo B-Clock Performance

Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU capabilities

Solid State Capacitors

Long Lifespan Durable Black Solid Caps

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

*Testing result for reference only. Results may differ according to system configuration

Thunderbolt 3 Capabilities

Daisy-chain Multiple Devices

Support for DisplayPort 1.2 makes Thunderbolt 3 a must have for any enthusiast. The Z170X-Gaming 7 is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt 3 over USB Type-C has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z170X-Gaming 7’s USB Type-C port.

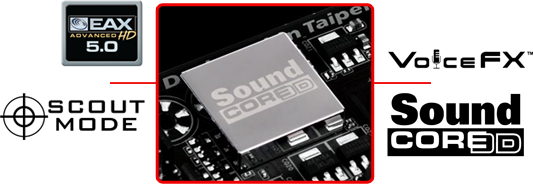

Motherboard Audio Processor

Creative Sound Core3D Quad-Core Audio Processor

Combining world's first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.

+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware +Software)
+ Richer overall audio experience

Top-Class Audio Suite

Creative SBX Pro Studio Audio Suite

SBX Pro Studio suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.

Advanced Audio Capacitiors

High End Audio Capacitors

GIGABYTE G1 Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

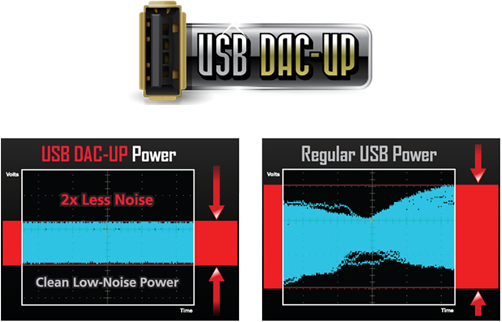

USB DAC-UP Technology

Clean, Low-Noise Digital-to-Analog Audio Converter

GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

E2400 Gaming Network

Gaming Network + Intel Gigabit LAN

Killer E2400 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Intel Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Ultra Durable PCIe

PCIe Metal Shielding

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

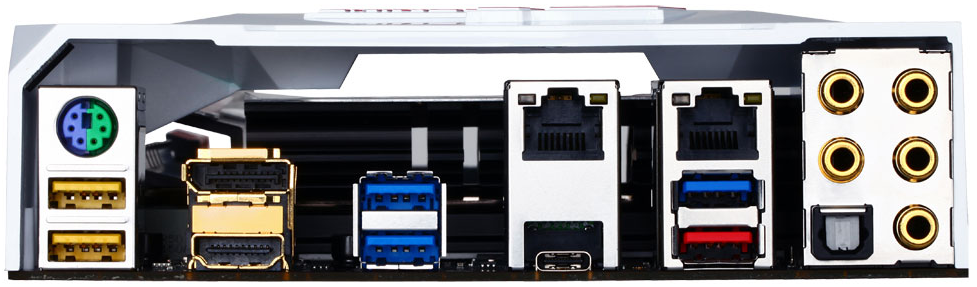

GIGABYTE Gaming-7 Ports

Specifications
Specifications
Form Factor ATX
CPU Socket 1151
QPI Speed N/A
Chipset Intel Z170
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
Maximum Memory Capacity 64GB (4x16GB)
Graphics Connectors
  • Display Port 1.2
  • HDMI 2.0
Graphics Interface PCIe 3.0 (x16)
SLI Support 2 Way SLi
Crossfire Support 3 Way CrossFireX
Audio Creative® Sound Core 3D 5.1 Audio
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Killer E2400 (Gigabit LAN)
SATA SATA Express/SATA3 6Gb/s
RAID Support via SATA3 0~5 / M.2
Storage Mode Support
  • AHCI
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Water Cooled No
Expansion Slots
  • 2 x M.2, S3, 32 Gb/s, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
Internal I/O
  • 1 x 24pin (V)
  • 1 x 8pin (V)
  • 1 x Audio gain control switch
  • 1 x BIOS switches
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x CPU fan header
  • 1 x ECO button
  • 1 x FP Audio Header
  • 1 x Front panel header
  • 1 x I/O shield audio LED power connector
  • 1 x OC button
  • 1 x Power button
  • 1 x Reset Button
  • 3 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 2 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
  • 1 x Voltage Measurement Points
  • 1 x Water Cooling Fan Header (CPU_OPT)
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0
  • 1 x Headphone-Out
  • 1 x Line In/Mic In
  • 1 x Line Out
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 5 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
48 months
Type:
Direct
DOA Period:
7 days
RTB Period:
48 months
