Gigabyte F2A88XN-WIFI FM2+ Mini-ITX WiFi Motherboard with Dual HDMI/USB 3.0

Gigabyte GA-F2A88XN-WIFI, AMD A88X, FM2+, DDR3, SATA III 6Gb/s, RAID, PCIe 3.0 (x16), Dual WiFi + BT 4.0, HDMI/DVI, mITX

Gigabyte
Scan code: LN54458 Manufacturer code: GA-F2A88XN-WIFI Request call
£89.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview GIGABYTE FM2+ Series Motherboards
GIGABYTE FM2+ series motherboards based on AMD A88X chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
Note: To enable AMD FM2+ APU support, please update your motherboard with latest version of specific BIOS and driver in Motherboard's Download section once available.

GIGABYTE Ultra Durable™ 4 Plus.
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.


Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.


GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.


802.11ac, Dual Band, 80MHz, 2Tx2R
Delivers dramatically faster Wi-Fi speeds(up to 867 Mbps)than 802.11n, with more bandwidth per stream (433 Mbps),more capacity for more users (extended channel bonding 80MHz).

AMD Dual Graphics Technology
The AMD FM2+ series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card* to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
* Please use AMD Dual Graphics certified DX11 VGA card (i.e., Radeon HD 6670/6570/6450 etc.) and AMD Dual Graphics supported APU, detail information please refer to AMD official website

AMD Eyefinity Technology
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.

Multi-display support with AMD CrossFire
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Dual-link DVI port
Designed to leverage the awesome potential of the latest AMD Fusion A-series APUs, GIGABYTE motherboards deliver an enhanced visual experience that includes advanced DX11® gaming, incredibly smooth HD multimedia playback and support for high resolution displays of up to 2560 x 1600 pixels by Dual-link DVI port.

HDMI Interface
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.

High ESD protection for USB and LAN (USB3.0 only)
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

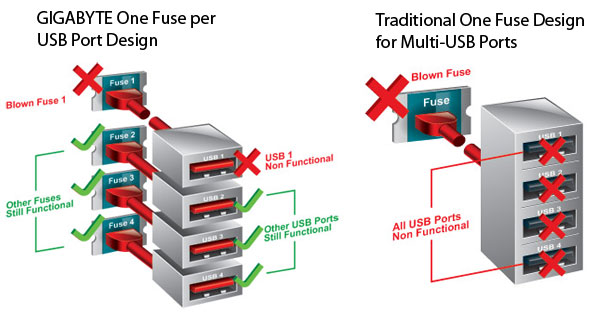

One fuse per USB port (USB3.0 only)
On GIGABYTE motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer.


ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Features • Socket FM2+ supports AMD FM2+/FM2 A-series APU
• GIGABYTE Ultra Durable™ 4 Plus Technology
• IR Digital 4+2 phase APU power design
• GIGABYTE UEFI DualBIOS™
• Features dual HDMI/ Dual-link DVI ports for Full HD 1080 and HDCP support
• Features Dual Band 802.11ac 867Mbps + Bluetooth 4.0 wireless solution
• 4x USB 3.0 ports with transfer rates of up to 5Gbps
• 4x SATA3 ports with up to 6Gbps link speed and RAID 0,1,5,10 support
• GIGABYTE On/Off Charge technology with 3x USB power design
Specifications
Core Specifications
Form Factor Mini-ITX
CPU Socket FM2+
Chipset AMD A88X
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 2133
Max. Memory Capacity 64GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x Mini PCIe
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DVI-D
  • 2 x HDMI
  • 1 x Line In
  • 3 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.0
  • 2 x Wireless LAN antenna jack
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
gigabyte
Telephone:
08442449999
Customers also bought
Reviews
Questions & Answers

Does the board still need to flashed with a seperate FM2 processor

While researching BIOS update procedures for this board I found a forum hit dated January 2014 saying the bios has to be flashed using an FM2 processor before you can update the board to boot with the FM2+ Kaveri processor - is this true?
Asked by: Kane856
Just a CPU that the motherboard supports with the current BIOS version can be used to then update the BIOS.
Answered by: ChrisP
Date published: 2015-07-17

Help please with power supply

I need some advice Will the power supply be sufficient for the combination below and if not could you recommend something suitable http://www.scan.co.uk/products/antec-isk-110-vesa-uk-mini-itx-case-with-90w-psu http://www.scan.co.uk/products/amd-a10-7850k-black-edition-s-fm2plus-kaveri-core-quad-core-40ghz-amd-radeon-r7-95w-retail
Asked by: bugdog
You want to know if a 90W power supply can run a 95W CPU (and everything else)? I'll let you work that out. My advice is that it would be extremely difficult/impossible to run that CPU in that case, even if you could chose another power supply, as you'll need a good size heat sink. If you want that CPU look at a larger case. You can probably find another SFF case that should be ok, if you are set on a small pc, something like the Silverstone SG13B (http://www.scan.co.uk/products/silverstone-sugo-sst-sg13b-q-black-sff-mini-itx-case).
Answered by: andye123
Date published: 2016-09-03

Wireless card

Can i install my Intel AC 7260? I'm assuming it is better than the one already on this motherboard.
Asked by: Random
