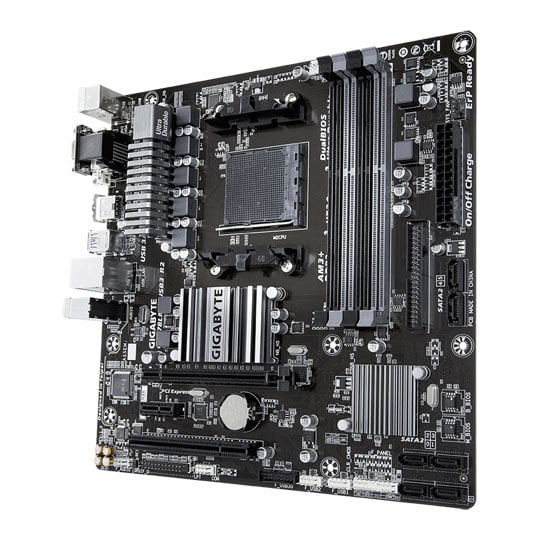

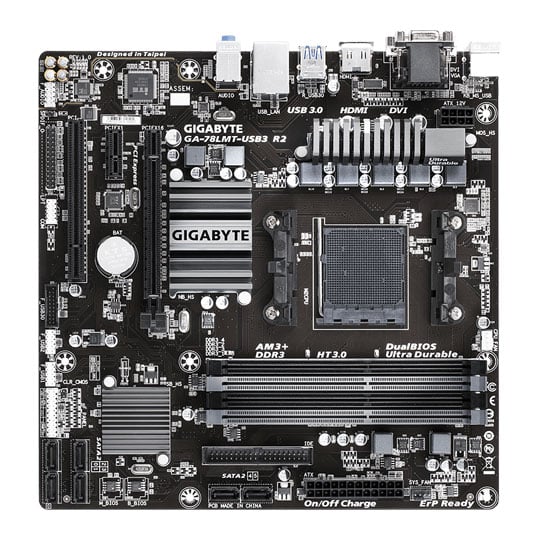

Gigabyte GA-78LMT-USB3 R2 Micro-ATX AMD AM3+ Motherboard

Gigabyte GA-78LMT-USB3.0 R2, AMD 760G, AM3+, DDR3, SATA II 3Gb/s, RAID, PCIe 2.0 (x16), D-Sub/DVI-D/HDMI, MATX

Thumbnail 1 : Gigabyte GA-78LMT-USB3 R2 Micro-ATX AMD AM3+ Motherboard Thumbnail 2 : Gigabyte GA-78LMT-USB3 R2 Micro-ATX AMD AM3+ Motherboard Thumbnail 3 : Gigabyte GA-78LMT-USB3 R2 Micro-ATX AMD AM3+ Motherboard Thumbnail 4 : Gigabyte GA-78LMT-USB3 R2 Micro-ATX AMD AM3+ Motherboard
Scan code: LN47307 Manufacturer code: GA-78LMT-USB3.0 R2
3xs Approved
£54.98Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The 78LMT-USB3 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via revolutionary GIGABYTE Ultra Durable technology. Based on AMD 760G chipset, the 78LMT-USB3 supports the latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and PCI Express 2.0 graphics interfaces for ATI Hybrid CrossFireX support. The 78LMT-USB3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Features • Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors.
• 4+1 Phase Power Design for AMD 125W CPU support.
• Dual Channel Non-ECC Unbuffered DDR3, 2 DIMMs.
• Integrated ATI Radeon HD 3000 graphics (DirectX10).
• HDMI, DVI, D-sub Ports for Multi-display support.
• 4 USB 3.1 Gen1 with Superspeed Transfer Rates of Up to 5 Gbps.
• Audio Noise Guard with High Quality Audio Capacitors.
• Hybrid EFI technology with GIGABYTE DualBIOS™.
Core Specifications
Form Factor MicroATX
CPU Socket AM3+
Chipset AMD 760G
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333(OC)
Max. Memory Capacity 32GB
Graphics Support
Primary GPU Interface PCIe 2.0 (x16)
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x PCI (32 bit)
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
SATA Support SATA2
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Front Panel Audio Header
  • 1 x IDE
  • 1 x S/PDIF-Out Header
  • 6 x SATA II - 3Gb/s
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 2 x USB 3.0
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Additional Information
Scan Code LN47307
Model Number GA-78LMT-USB3.0 R2
GTIN 4719331831134

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Loading Please Wait

Please wait . . .

Gigabyte GA-78LMT-USB3.0 R2, AMD 760G, AM3+, DDR3, SATA II 3Gb/s, RAID, PCIe 2.0 (x16), D-Sub/DVI-D/HDMI, MATX is rated 4.8 out of 5 by 12.
Rated 5 out of 5 by from Gigabyte GA-78LMT-USB3 R2, AMD 760G, AM3+, DDR3, SATA II 3Gb/s, RAID, PCIe 2.0 (x16), D-Sub/DVI-D/HDMI, MATX Really pleased with this product. So easy to order,delivery very fast and happy with the performance.
Date published: 2018-04-11
Rated 5 out of 5 by from I love it when they work first time. I replaced an ATX board with this micro. Bit of a fan of Gigabyte kit because of the quality and reliable long term support. I was delighted it all worked first go including my swapped out raid array from the other board. God bless you Gigabyte. Quality is good with nothing in a strange position. Plenty of headers too.
Date published: 2016-10-24
Rated 5 out of 5 by from Great little motherboard I bought this motherboard to build a home server so I wanted a board that had enough sata connections. Also I like AMD cpus. This board runs well with both windows or linux (although Debian doesn't like the on-board network circuit). The board is now running with 4 2TB HHDs and a 32GB SSD for the operating system. Fitting the board is simplicity itself. With the right AMD cpu and enough memory it could even be the basis of a gamiing machine. Its worth the money. I can recommend this board.
Date published: 2016-08-31
Rated 5 out of 5 by from this product has hdmi i was happy when i got the motherboard but the service was not very good it was supposed to arrive on the sunday but never arrived until the monday spent an extra £15.00 on the phone thinking i was going to get it on sunday so in all it cost me £65.00 when the motherboard was only £45.00.
Date published: 2015-12-25
Rated 5 out of 5 by from Affordable and surprisingly adaptable I've always been a fan of Gigabyte motherboards for their energy efficiency options and no fuss installation, but this motherboard really took me by surprise. I currently have memory clocked on the board at 1866Mhz, well over what has been tested (1333Mhz advertised) and certainly higher than what I thought possible at standard timings. It has also been more than sufficient for pumping extra voltage to the CPU for over-clocking. The motherboard has plenty of room for components with the only drawback being the positioning of the PCI slot between its dual PCIe slots, which makes it unsuitable for some components. A very solid board for a very good price, making this a strong mid range product with few compromises.
Date published: 2015-09-27
Rated 5 out of 5 by from Super AMD FX cpu Motherboard for a Micro Atx Build In my opion this is the best feature set Motherboard for an AMD FX cpu motherboard build i used the FX4350 cpu in my PC which combined with the Thermalright AXP 200 low Height cpu cooler and crucial low profile ballistix memory has proved to be a powerfull gaming machine at a very reasonable cost all installed in The Thermaltake Armour Case in total i have used 3 of these motherboards and have had no failures of any kind and they have played for many hours with no problems so when you consider the cost of £40 pounds its a very good Buy Arthur.
Date published: 2015-02-18
Rated 5 out of 5 by from Excellent Excellent product Brilliant service - 5 STARS- highly recommended
Date published: 2014-07-18
Rated 3 out of 5 by from you get what you pay for granted this is insanely cheap, and I'm not marking it down for lack of features such as fan headers and SATA 3 support. However both the Scan page and Gigabyte's own product page claim full 125W AM3+ support including the 8 core models. I would dispute this as my FX 8320 cannot maintain its base clock speed of 3.5 Ghz under prime 95 stress test, and I believe this to be due to lack of sufficient power from the motherboard's VRMs, as tempertaures were very low using a Corsair H55. I would recommend only using 6 core or under CPUs, as the 8320 has no trouble maintaining clock speed in 6 core mode. I also couln't get the system to boot stably with 4 RAM modules installed even at 1333mhz (chipset frequency limit).
Date published: 2014-03-14
  • y_2019, m_12, d_7, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_GB, sid_47307, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does this motherboard support the FX6300 out of the box?

Have heard that earlier revisions of this board required a bios update prior to the FX series of CPUs being compatible. Just wondering what BIOS version this board ships with as I have no other AM3 CPU to perform a bios update with. Thanks :-)
Asked by: D41BY
yes it does because i bought a fx8350 and put it straight onto the motherboard and i did not need a bios flash if you go on the gigabyte site you can view the cpu list telling you which cpu will run on this motherboard
Answered by: verbatim889
Date published: 2016-02-28

Has anyone had problems with the FX8350 on this board?

I've bought one of these boards (the rev 5.0) to be used in my current rig which houses a Phenom II 955 BE looking at the CPU support list the FX8350 looks to be the most powerful that I can upgrade. I was just wondering, has anyone had any problems/stability with the 8350 (no OC) on this board? Thanks
Asked by: kingarthur83rd
i have just bought a fx8350 and 32gb of ddr3 ram and it works like a dream i also have windows 10 running as well and no problems here
Answered by: verbatim889
Date published: 2016-02-28

Does HyperX FURY Series 8GB DDR3 1866MHz is compatible

Hello, I have a question about memory ram compatible. I will use AMD FX6300 Black Edition 6 Core (3.5/4.1GHz, 8MB Level 3 Cache, 6MB Level 2 Cache, Socket AM3+ with this motherboard. This AMD FX6300 chip support memory ram up to 1866MHZ But this motherboard speed is only DDR3 - 1333 Mhz Would this work if HyperX FURY Series 8GB DDR3 1866MHz works on this motherboard ? Thank you so much for your help. Kit
Asked by: Returning
Yes it does, at least on my board. You will have to input all the memory times manually but it is certainly capable. Just be sure to increase the clock speed one stage at a time to be sure of a stable launch. Your mileage may vary as with all over-clocking but there is a fairly good chance of success with this board.
Answered by: AegisKay
Date published: 2015-11-29

Which revision is this?

I have seen rev 4.1 and 5 and even 6 around different shops. What revision is this one? Thanks
Asked by: EscG
if you buy it from scan it will be a rev 6
Answered by: verbatim889
Date published: 2016-03-19

can you run 3 monitors on this board? 1 dvi, 1 hdmi and 1 vga?

Asked by: quizzer
Hello, This would not work according to Gigabyte who state the following regarding this board: (Note 3) Simultaneous output for DVI-D and HDMI is not supported. Regards,
Answered by: LizN
Date published: 2017-02-07
