Scan code: LN122708 Manufacturer code: B660 AORUS MASTER DDR4

Gigabyte Intel B660 AORUS MASTER DDR4 PCIe 4.0 ATX Motherboard

Gigabyte B660 AORUS MASTER DDR4, Intel B660, S 1700, DDR4, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, Wi-Fi 6/BT5.2, USB 3.2 Gen2

Thumbnail 1 : Gigabyte Intel B660 AORUS MASTER DDR4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte Intel B660 AORUS MASTER DDR4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte Intel B660 AORUS MASTER DDR4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte Intel B660 AORUS MASTER DDR4 PCIe 4.0 ATX Motherboard
Scan code: LN122708 Manufacturer code: B660 AORUS MASTER DDR4
Order now and get it tomorrow, Fri 1st Jul
£219.98
Get it Tomorrow, 01 JulIn stock
From £9.73 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £18.91
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £226.89
Monthly Payment: £9.73
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £219.98
Total inc. interest: £233.38
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 1st Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

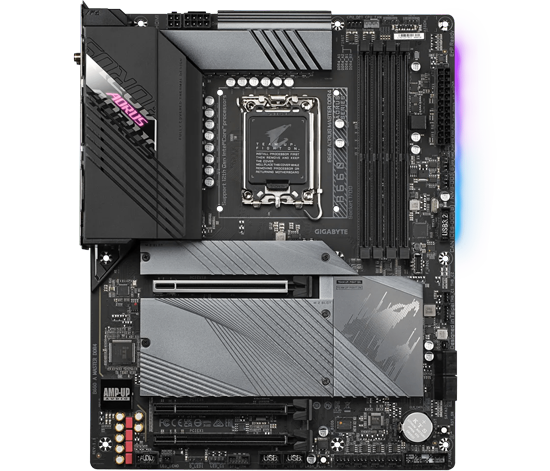

B660 AORUS MASTER DDR4 12th Generation Intel ATX Motherboard

GIGABYTE B660 AORUS MASTER DDR4 Motherboard

PERFORMANCE UNLEASHED Rule supreme with the B660 AORUS gaming motherboards from GIGABYTE. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

* Please note: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors.

Intel B660Chipset

LGA 1700CPU Socket

12th GenerationIntel® Processors

ATXForm Factor

Deliver Maximum Power to Power Hungry Components

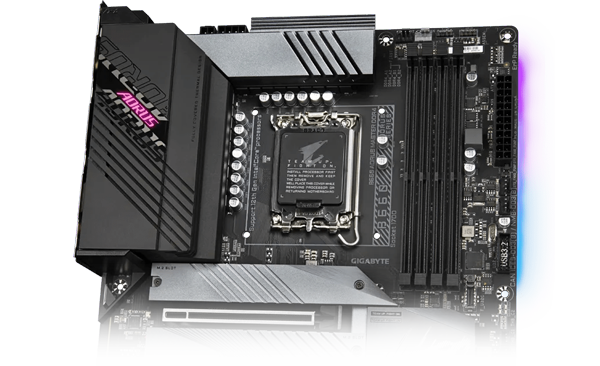

VRM Design

Twin Hybrid Phases16+1+1 Digital Power Design

Solid Pin Connectors8+4 pin CPU Power Connector

12th Gen Intel CoreProcessor Support

Premium choke and capacitor designThis B660 AORUS motherboard uses an 16+1+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the latest Intel® Core™ 12th Generation processors.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

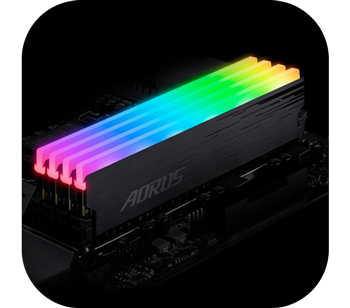

Superior Support for DDR4 XMP

Shielded layer protects from external interferenceThe maximum memory capacity on the B660 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

DDR4

Up to 5600MHz and Beyond*AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.

PCIe

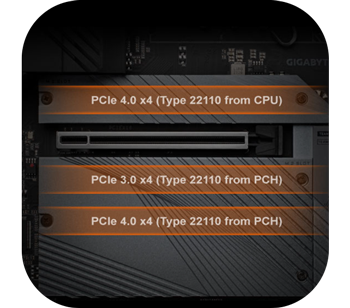

3 x PCIe 4.0 / 3.0 x4 M.2AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential. Triple PCIe 4.0/3.0 x4 M.2 Connectors with Thermal Guard. With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

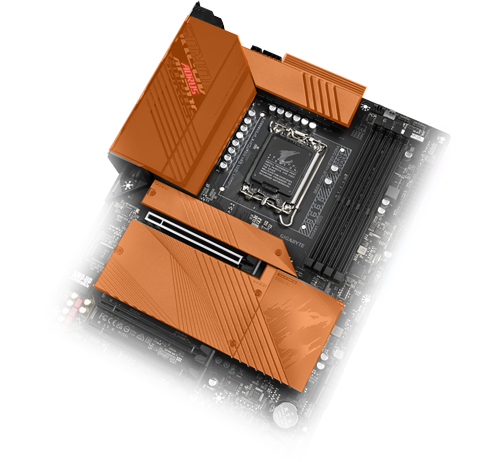

Advanced Thermal Design with M.2 Thermal Guard

Cooling

Shielded layer protects from external interferenceGIGABYTE B660 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance. It also offers 3% Cooler by implementing 2X copper PCB Design.

A Fully Comprehensive Cooling Solution

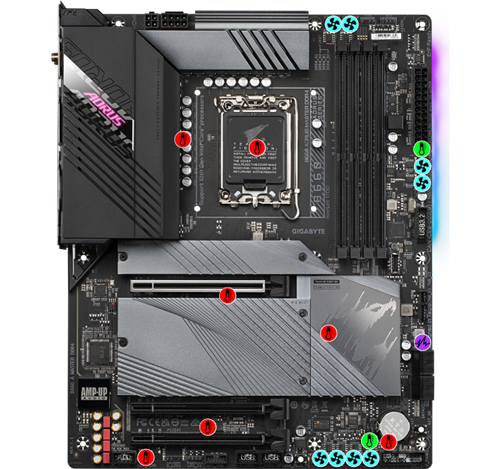

Smart Fan 6

Intelligent Fan Control DesignSmart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

features

8 PWM/DC Fan Headers

features

7 Internal Temperature Sensors

features

2 External Temperature Sensor Cables

features

1 Noise Detection Cable

Future-Proof Connectivity

Ports

Intel® WiFi 6 802.11ax + 2.5 GBe LAN onboardGIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Connecting the Future - USB 3.2 Gen 2x2 Type-C®Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Illuminate your PC with RGB Fusion 2.0

rgb

Multi-Zone Light Show DesignWith this GIGABYTE motherboard, RGB Fusion 2.0 is even better. Users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned application, gamers have complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24-pin & 8-pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

pins

Solid Pin Power ConnectorsB560 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. GIGABYTE bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favourites
Add constantly used items into the favourite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition B660 AUROS MASTER DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel B660
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 2 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2
  • 1 x Noise Detection Header
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN122708
Model Number B660 AORUS MASTER DDR4
GTIN 4719331829988
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
