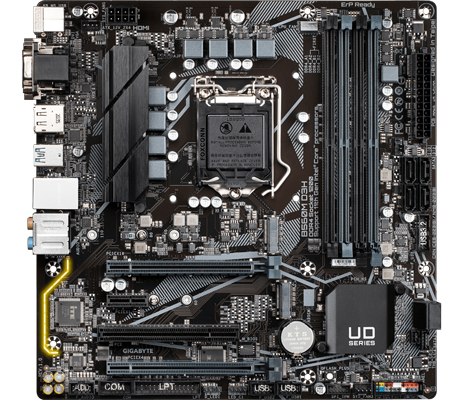

Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard

Gigabyte B560M D3H, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, Intel GbE, USB 3.2, Micro-ATX

Thumbnail 1 : Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard Thumbnail 2 : Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard Thumbnail 3 : Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard Thumbnail 4 : Gigabyte Intel B560M D3H PCIe 4.0 mATX Motherboard
Scan code: LN115458 Manufacturer code: B560M D3H
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Suggested alternatives

Gigabyte B560M D3H 11th Generation Intel M-ATX Motherboard

B560m Motherboard

A Solid Foundation for Your System Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte B650m D3H Motherboard, an ulta durable motherboard in a small form factor ready to support intel 11th and 10th generation processors, this Micro-ATX motherboard boasts a direct 6+2 phase digital vrm solution, dual ultra fast NVMe m.2 slots, full PCIe 4.0 design, Intel GbE LAN and a fully comprehensive I/O that includes type-C connectivity. Gigabyte keep product longevity at the forefront of their product design and this ultra-durable motherboard is no exception; with solid pin connectors and smart fan6 technologies to keep your system running smoothly and ensure you receive the performance you deserve. If your a fan of customisation; the B560m D3H also boasts RGB Fusion 2.0 support giving you the option to install ARGB and RGB LED strips to add your own personal style. The B560M D3H is the perfect motherboard for daily enthusiasts and gamers alike.

Intel B560Chipset

LGA 1200CPU Socket

10th & 11th GenIntel Processors

M-ATXForm Factor

Deliver Maximum Power To Power Hungry Components

Digital PWM Controller

6 + 2 Phase Power Stages

4K Recording

All-Solid Capacitor

8 Solid Pin Connector

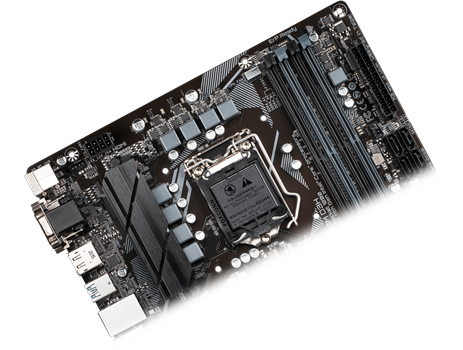

Pure Digital Power DesignB560M Gigabyte motherboards uses an 6+2 phases digital CPU power design which includes a digital PWM Controller to deliver cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Maximum Performance with PCIe 4.0


SUPPORT FOR DDR4 XMP UP TO 4600MHZ AND BEYONDGIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

PCIe 4.0

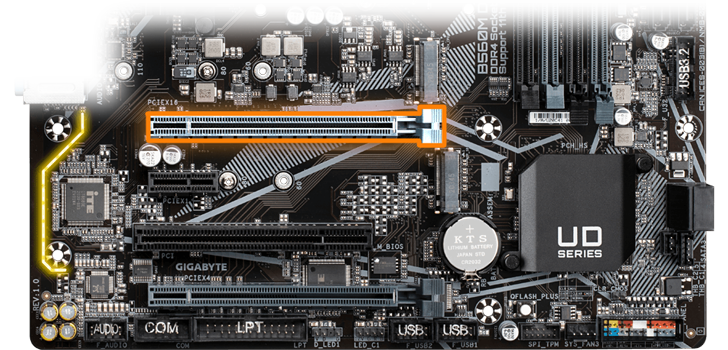

PCIe 4.0 Hardware ReadyThe B560M D3H motherboard is fitted with a single PCIe 4.0 x16 for your GPU giving you access to the latest generation of transfer speeds.

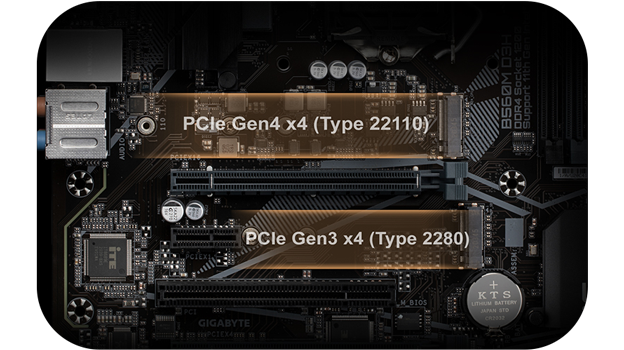

Dual PCIe 4.0/3.0 x4 M.2GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

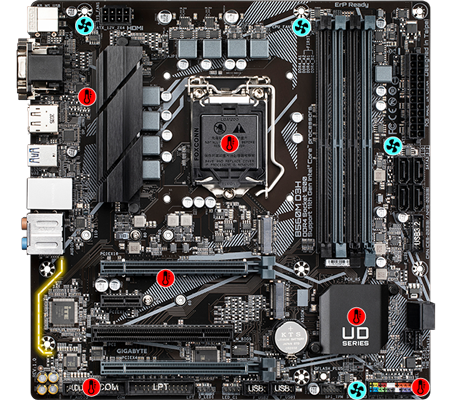

Smart Fan 6 Cooling Control


4x PWM/DC Fan Headers


6x Internal Temperature Sensors

4K Recording

Unprecedented Cooling PerformanceB560M D3H uses Smart Fan 6 technology which contains several unique cooling features that ensure gaming PCs maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface.

Illuminate your PC with RGB Fusion 2.0


RGB FUSION 2.0With B560 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

Please Note

Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with this motherboard and must be purchased separately.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.


GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come


Solid Pin Power ConnectorsB560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!


STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.


STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.


STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The A520 AORUS Elite has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.


New User InterfaceAll new EASY MODE shows important hardware information all on one page.

Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.


APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.


EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
