Gigabyte AMD B550M AORUS PRO AM4 PCIe 4.0 mATX Motherboard
Gigabyte B550M AORUS PRO, AMD B550, AM4, DDR4, PCIe 4.0, Dual M.2, GbE, USB 3.2 Gen 2 A+C, MicroATX
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£121.49|
|Total inc. interest:||£130.85|
Purchase Rate: 19.9% p.a. (variable)
Representative: 19.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 21st Sep
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

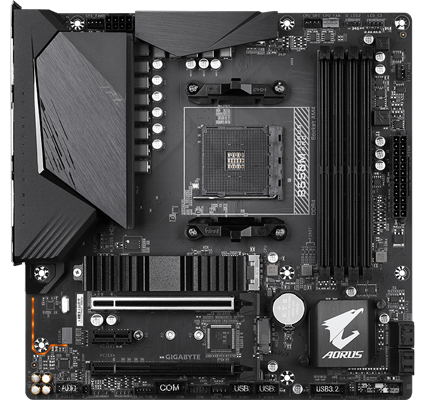

AORUS PRO B550M 3rd Generation AMD Ryzen M-ATX Motherboard from Gigabyte
Rise From the Darkness Introducing the all-new AORUS PRO B550M Motherboard from Gigabyte. Perfect performance for those who prefer a smaller form factor. Filled with the latest technologies to take your gaming experience to the next level such as PCI-E 4.0 technology to give you better performance, bandwidth and eye-watering speeds, Gigabyte Gaming GbE LAN, 2x M.2 slots, USB 3.2 Gen2 Type-C connectivity and a high-quality audio system. Illuminate your system in your own style with Gigabytes RGB Fusion software or even have supported devices be interactive with the new gaming mode to give yourself that additional immersive gaming experience. The AORUS B550M PRO is designed to unleash the full potential of the 3rd Generation Ryzen CPUs, give your system the strongest foundations and make your friends and enemies envious of the power you now hold.

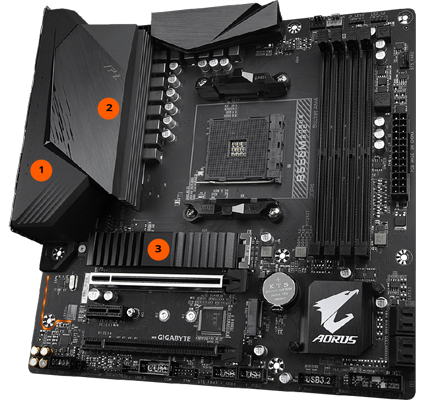

Advanced Cooling for High-End Systems
Keep Your Components Cool In order to guarantee un-throttled performance AORUS have opted for an advanced thermal solution, including Pre-installed IO Armour, an enlarged MOSFET heatsink and thermal guards for your M.2 slots meaning the B550M PRO is capable of keeping the MOSFETs and M.2 SSDs cool and comfortable even under maximum load. Whether you're a gamer, builder or just an enthusiast you can expect lower temperatures and higher performance from the B550M PRO.
1. Pre-Installed IO Armor
2. Enlarged MOSFET Heatsink
3. Thermal Guard for M.2
AORUS M.2 THERMAL GUARD With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
SmartWith Smart Fan 5 you can ensure that your gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Intricate Design for Expert Performance
13 Phase Digital Power DesignIn order to fully support 3rd Generation AMD Ryzen CPUs, the AORUS B550M PRO comes equipped with the most complete power solution yet, with true direct, digital and multiple power phases, birthed from countless experiments, testing and tinkering the B550M AORUS PRO uses a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
4.CPU Power Connector
Excel your Memory for Strong Performance

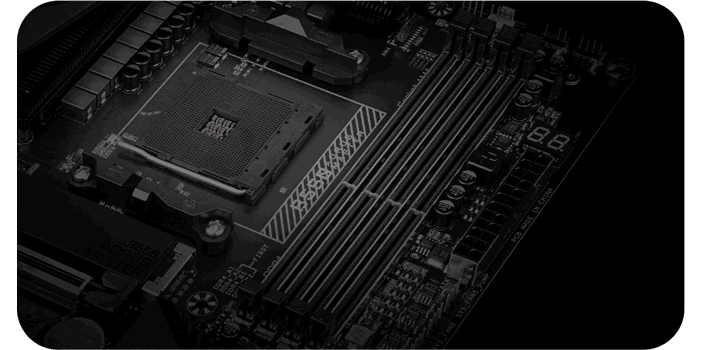

Optimised Daisy Chain DesignThe AORUS B550M PRO motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimised daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers or enthusiasts a denser and faster system memory experience.
* Performance may vary in circumstances. Please refer to the QVL list for detail support information.

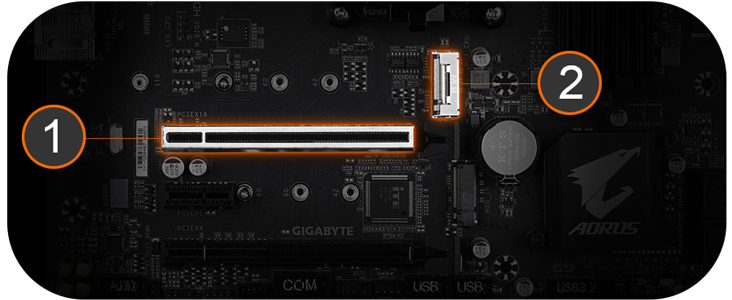

PCIE 4.0 HARDWARE DESIGN
1. PCIe 4.0 Slot Reinforces PCIe 4.0 x16/x8 bandwidth with lower impedance.
2. M.2 PCIe 4.0 SlotM.2 PCIe 4.0 x4 slot with Lower impedance.
Next Generation Connectivity
Exclusive Realtek GbE LANRealtek 8118 LAN is a high performance and user friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. with it's intelligent default automode the program with the highest priority receives the highest amount of bandwidth and with intuitive real time network monitoring you can keep a close eye on your connection at all times.

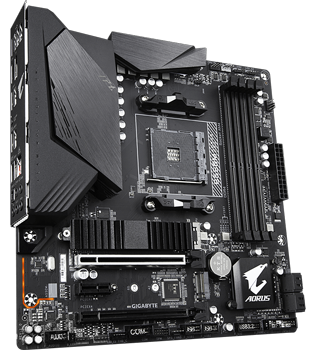

Illuminate your PC with Beautiful Colour
RGB FUSION 2.0Now offering more LED customizations than ever before, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, you have complete control over the LEDs which surround the motherboard.
RGB FUSION SOFTWAREWith an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Durability for Years to Come
Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Solid Pin Power ConnectorsB550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.
Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.
STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.
STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Take Control of your Motherboard
GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The B550M AORUS PRO has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.
New User InterfaceAll new EASY MODE shows important hardware information all on one page.
FavoritesAdd constantly used items into the favorite menu for quick access.
Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.
ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.
APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
|Edition||B550M AORUS PRO|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC1200 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||None|
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||B550M AORUS PRO|
