Scan code: LN107967 Manufacturer code: B460M DS3H AC

Gigabyte Intel B460 DS3H AC Micro-ATX Motherboard

Gigabyte B460M DS3H AC, Intel B460, S 1200, DDR4, SATA3, M.2, GbE, ac WiFi/BT4.2, USB 3.2 Gen1, Micro-ATX

Thumbnail 1 : Gigabyte Intel B460 DS3H AC Micro-ATX Motherboard Thumbnail 2 : Gigabyte Intel B460 DS3H AC Micro-ATX Motherboard Thumbnail 3 : Gigabyte Intel B460 DS3H AC Micro-ATX Motherboard Thumbnail 4 : Gigabyte Intel B460 DS3H AC Micro-ATX Motherboard
Scan code: LN107967 Manufacturer code: B460M DS3H AC
£99.98Item currently awaiting an ETA
Pre order
From £8.34 / month (APR 0%)
Monthly Payment: £8.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £99.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

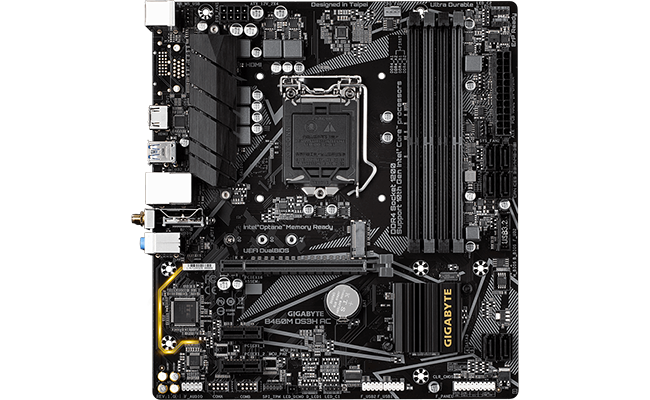

Ultra Durable B460M DS3H AC Micro-ATX Motherboard from Gigabyte

B490 micro ATX Motherboard Gigabyte

DESIGNED WITH DURABILITY AND POWER Create the ultimate powerhouse machine with the GIGABYTE B460M DS3H AC motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with Intel's latest 10th Generation CPUs (with an LGA 1200 socket). It provides support for 10th Gen Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors and Intel® Celeron® processors. This motherboard is perfect for PC enthusiasts who desire high-end performance but also care about aesthetics and durability. This powerful design delivers impeccable dual Ultra-Fast M.2 support and a comprehensive cooling solution to stay cool under heavy workloads. Performance is never compromised, and aesthetics are greater than ever.

Intel® B460Express Chipset

10th Generation Intel®Compatible CPUs

LGA 1200CPU Socket

Micro-ATXForm Factor

Power Delivery that's Precise and Efficient

12 phase with drMos

4+2 Hybrid Digital VRM with Low RDS(on) MOSFETGIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.

Maximise your Speeds with NVMe M.2

back

NVMe PCIe Gen3 x4 M.2 SlotGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Versatile Connectivity Options

I/O Ports | Intel Dual Band 802.11ac WIFI | Realtek 8118 Gaming LANWith integrated I/O ports, building a GIGABYTE PC is even easier. The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also supports BLUETOOTH 4.2. Realtek 8118 LAN is an impressive network chip for gamers with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

intel LAN

Stay Cool under Demanding Loads

intel LAN

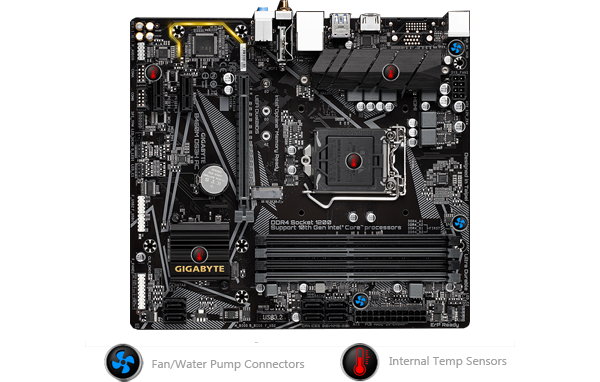

Smart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. With Smart Fan 5 choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enter the Gaming World with Incredible Audio

audio

HIGH-END AUDIO CAPACITORSGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio and offer the most realistic sound effects for gamers.

AUDIO NOISE GUARDThe audio noise guard essentially separates the board's sensitive analog audio components from the potential noise pollution at the PCB level.

Made with Longevity in Mind

GIGABYTE Patented Double Locking Bracket

audio

Made to Stand the Test of Time

pcie armor

GIGABYTE Patented DualBIOS™ DesignGIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

anti sulfur design

START SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Stand out with Stunning Illumination

bios

Supports RGB Light Strips in 7 ColorsPersonalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your systems appearance unique!

* LED strips not included. - Lighting effects may vary by model.

app center

RGB Fusion (Advanced mode) 1: RGB Calibration Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.

2: Lighting Profile Save, export and import profiles to quickly change effects based on you preferences and to share with others.

app center

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC via a smartphone.

Enjoy the Finest Quality Visuals

4k

4K Ultra HD Support4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

hdmi

HDMI™ - Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Customise all your Settings to your Needs

bios

Refreshed BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

app center

APP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

easytune

EASYTUNE™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most..

@bios

@BIOS APPThe GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

system info view

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition B460M DS3H AC
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Realtek (Gigabit LAN)

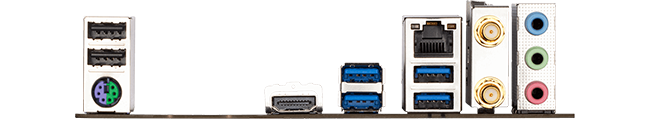

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 225 mm
Note
Additional Information
Scan Code LN107967
Model Number B460M DS3H AC
GTIN 4719331809171
