Scan code: LN107962 Manufacturer code: B460 AORUS PRO AC

Gigabyte Intel B460 AORUS PRO AC ATX Motherboard

Gigabyte B460 AORUS PRO AC, Intel B460, S 1200, DDR4, SATA3, Dual M.2, 2.5GbE, ac WiFi/BT5, USB 3.2 Gen1, ATX

Thumbnail 1 : Gigabyte Intel B460 AORUS PRO AC ATX Motherboard Thumbnail 2 : Gigabyte Intel B460 AORUS PRO AC ATX Motherboard Thumbnail 3 : Gigabyte Intel B460 AORUS PRO AC ATX Motherboard Thumbnail 4 : Gigabyte Intel B460 AORUS PRO AC ATX Motherboard
Scan code: LN107962 Manufacturer code: B460 AORUS PRO AC
Was: £145.99
£139.99
Order now and get it tomorrow, Fri 2nd Oct
From £11.67 / month (APR 0%)
Monthly Payment: £11.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £139.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 2nd Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

B460 AORUS PRO AC Intel ATX Motherboard from Gigabyte

Gigabyte B460 AORUS PRO AC ATX Motherboard

a multi-dimensional design that cuts through space and time Boost your system's performance significantly with the B460 AORUS PRO AC ATX motherboard from Gigabyte. This all-new piece of kit provides the power and connectivity you need to power up your system with Intel's latest 10th Generation Processors with an LGA 1200 socket. Any PC build is possible with this ultra durable motherboard and the wealth of features it offers to enthusiasts and gamers alike. With Dual M.2 Slots and heatsink thermal guard solutions, you'll be assured your M.2 SSD devices won't bottleneck from high speeds. Utilise the memory power of DDR4 RAM and Intel® Optane™ memory, along with expert Smart Fan 5 cooling, onboard Intel Next-Gen Wireless and an array of I/O ports that are ready for any task you need to conquer. Illuminate your build with the multi-zone RGB lighting that can be customized via RGB FUSION 2.0, and is fully compatible with additional LEDs and RGB LED strips, so you can make your PC truly your own.


Please note: This B460 motherboard supports Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors, and Intel® Celeron® processors in the LGA 1200 package.

Intel B460Chipset

LGA 1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

Enhanced System Performance and Ultimate Hardware Scalability

AORUS B460 Breakdown

FEATURES OF THE B460 AORUS PRO AC 1. Supports 10th Gen Intel® Core™ CPUs   |   2. Dual Channel DDR4, 4 DIMMs   |   3. 24Pin ATX / 8Pin CPU Power Connectors
4. 8 Phases Digital VRM Solution   |   5. Advanced Thermal Design, Enlarged Heatsink & Thermal Conductivity Pad
6. Ultra Durable PCIe Armor, Running 1x16   |   7. Two M.2 Connectors with Thermal Guards, NVMe PCIe Gen3 X4 & X2 M.2 Slots
8. AMP-UP Audio / ALC 1220 Audio Codec / High-End Audio, WIMA & Nichicon MW Capacitors   |   9. Q-FLASH Onboard Button

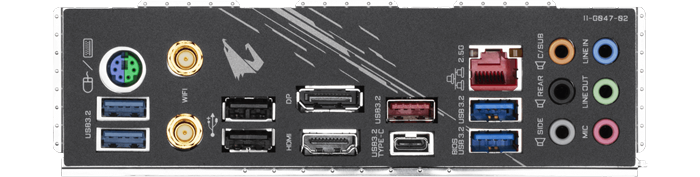

Next Gen Connectivity with Pre-installed I/O Shield Armor

Connectivity

Intel® Dual Band WI-FI   |   USB 3.2 Gen2 Type-C   |   Intel® 2.5GbE LAN   |   Q-Flash Plus USB Port With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. Featuring Intel's native USB 3.2 Gen2 host controller provides USB 3.2 Gen2 ports with speeds up to 10Gbps. Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4X range over BT4.2 and with faster transmission.

AORUS B460 Performance like no other

Performance

This innovative motherboard provides gamer's with the best quality components and GIGABYTE R&D design capability, the B460 AORUS is a true beast among motherboards. The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

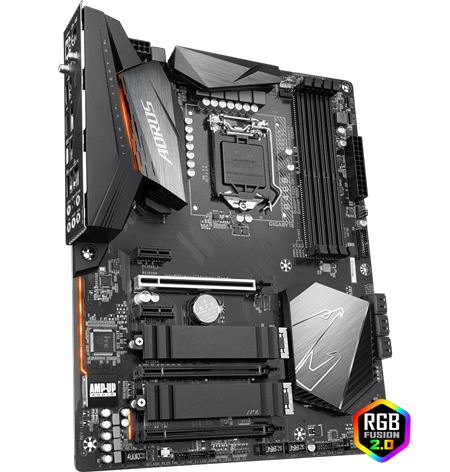

Unleash a Multi-Zone Light Show Design

RGB Lighting

CUSTOMIZE LIGHTING ACROSS ALL SUPPORTED DEVICES Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

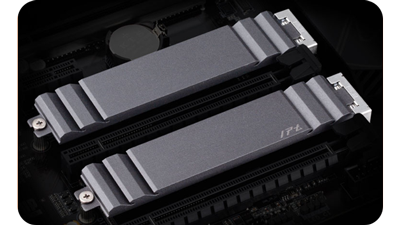

Boost your System with Dual M.2 Slots

Dual M.2 Slots

UP TO 32 GB/S WITH NVME Gigabyte motherboards are focused on delivering M.2 technology, Dual NVMe PCIe Gen3 M.2 Slots (x4,x2) to enthusiasts who want to maximize their system’s potential.

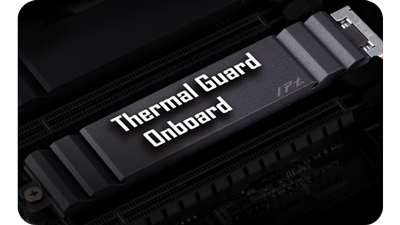

AORUS M.2 Thermal Guard

Thermal Guard

Don't let temperatures rise! The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Two built-in M.2 heatsinks prevent high-speed, large capacity PCIe 3.0 SSDs from throttling due to overheating.

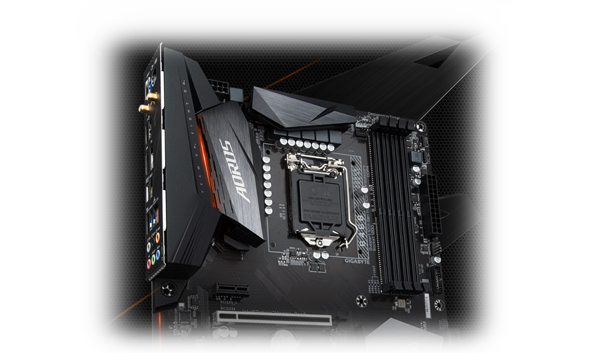

Ultra Durable and High Quality Manufacturing Process

Durable Motherboard Design

Ultra PCIe ArmorStainless Steel Design

Double LockingPatented Design Bracket

Solid Pin PowerPlated Connectors

Q-Flash PlusBIOS Auto Button

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B460 AORUS motherboard and reinforce every slot to make each of them solid and durable. The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. B460 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.

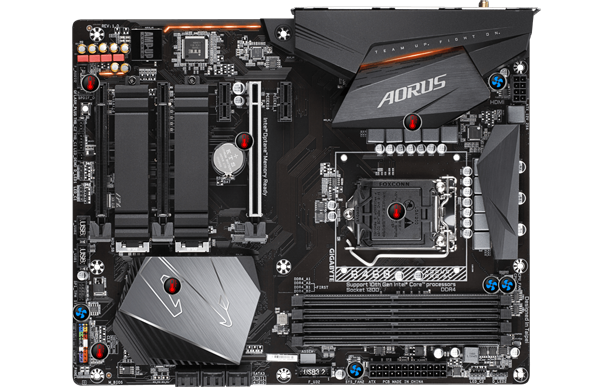

Advanced Thermal Solution with Smart Fan 5 Performance

Smart Fan 5

SIX TEMPERATURE SENSORS   |   FIVE HYBRID FAN HEADERS Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the fan curve to define corresponding fan speeds.

Control every Aspect of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. B460 AORUS bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

User InterfaceAll new EASY MODE shows important hardware information all on one page.

FavouritesAdd constantly used items into the My Favorites menu for quick access.

StorageShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive LoadlineClearly show each load line calibration setting in a innovative curve graph.

app

APP CENTERGigabyte's APP Center is a useful portal of all Gigabyte Motherboards utilities and drivers, you can choose any utility you want to install from APP Center and keep updated with the latest utilities and drivers version.

easytune

EasyTune™Gigabyte's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGigabyte's System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour.

Specifications
Core Specifications
Edition B460 Aorus Pro AC
Form Factor ATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT5
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107962
Model Number B460 AORUS PRO AC
GTIN 4719331808907
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
