Scan code: LN91354 Manufacturer code: B450M DS3H

Gigabyte B450M DS3H AMD Ryzen micro-ATX AM4 Motherboard

Gigabyte B450M DS3H, AMD B450, AM4, DDR4, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1, MicroATX

Thumbnail 1 : Gigabyte B450M DS3H AMD Ryzen micro-ATX AM4 Motherboard Thumbnail 2 : Gigabyte B450M DS3H AMD Ryzen micro-ATX AM4 Motherboard Thumbnail 3 : Gigabyte B450M DS3H AMD Ryzen micro-ATX AM4 Motherboard Thumbnail 4 : Gigabyte B450M DS3H AMD Ryzen micro-ATX AM4 Motherboard
Scan code: LN91354 Manufacturer code: B450M DS3H
Order now and receive it between 2nd Nov and 3rd Nov
Delivery Options
  • By DPD On 2nd Nov To 3rd Nov to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

B450M DS3H Gigabyte MicroATX Gaming Motherboard


HIGH PERFORMANCE FOR PROFESSIONAL GAMERSThe ultra-durable B450M DS3H from GIGABYTE is a Micro ATX board, constructed to slot into smaller gaming PC’s. Regardless of the size, it boasts a range of features that reflect gamer’s needs. The B450M utilises the GIGABYTE app centre to make all your operating and controlling much easier. The audio is improved through high-quality components, while its speed is backed by USB 3.1 Gen 1 ports and Realtek® GbE LAN, users can ultimately enjoy the performance and benefits brought by AMD Ryzen™ 2000 series processors.

AMD B450Chipset

AM4CPU Socket

Micro ATXForm Factor

Excellent Performance with Smart Fan 5 Software


Efficient Cooling with Fan Control Uphold performance while staying cool with Smart Fan 5, users are assured that their PC will stay cool whilst gaming. Smart Fan 5 enables users to interchange their fan headers to imitate different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence with Fan Stop, ensuring the most customisable fan control based on accurate temperature readings.

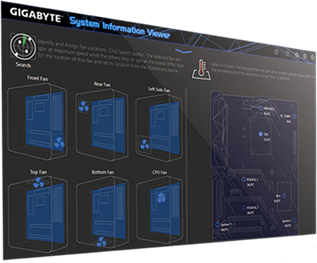

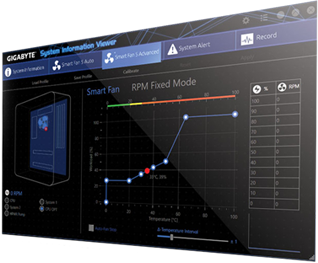

system information viewer

GIGABYTE SYSTEM INFORMATIONCustomise fan curves based on specific temperatures with the intuitive graphical UI. Access to your current system status with GIGABYTE System Information Viewer. Monitor components such as the clocks and processor, set your preferred fan speed profile, and generate alerts when temperatures get too high or record your system's performance.

system information viewer

CONTROL FAN PERFORMANCE WITH EASEThis intelligent software allows you to choose from different modes to match your system usage. Whether fan or pump, you can use the intuitive Fan Curve setting to define trigger thresholds and corresponding fan speeds. Each fan can be customised to operate at different speeds according to any defined temperature source input (except the CPU fan).

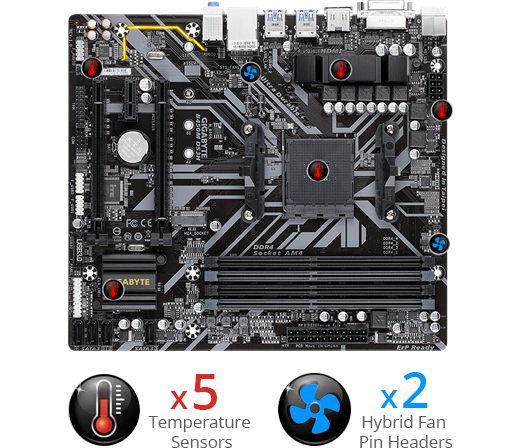

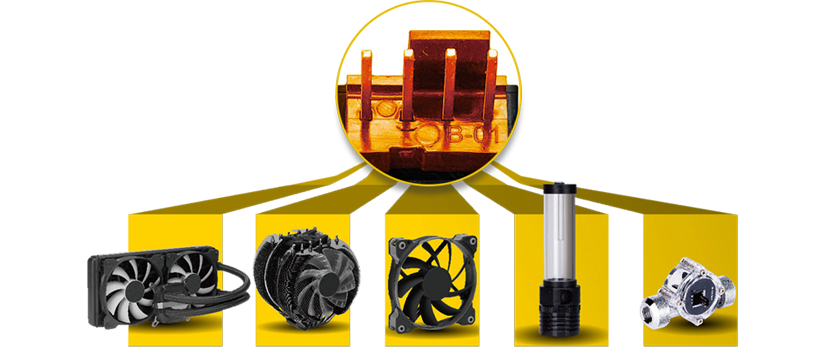

Hybrid Fan Pin Headers

hybrid connectors

BE THE MASTER OF YOUR PC Smart Fan 5 obtains the latest information on flow-rate through the Hybrid Fan Pin Headers, ensuring you absolute control over your PC. All Hybrid Fan Headers can automatically identify the type of cooling device whether it be fan or pump with different PWM or Voltage mode, plus it supports up to 2 amps, with built-in overcurrent protection a must for high-end high current fans.

Excellent Temperature Protection

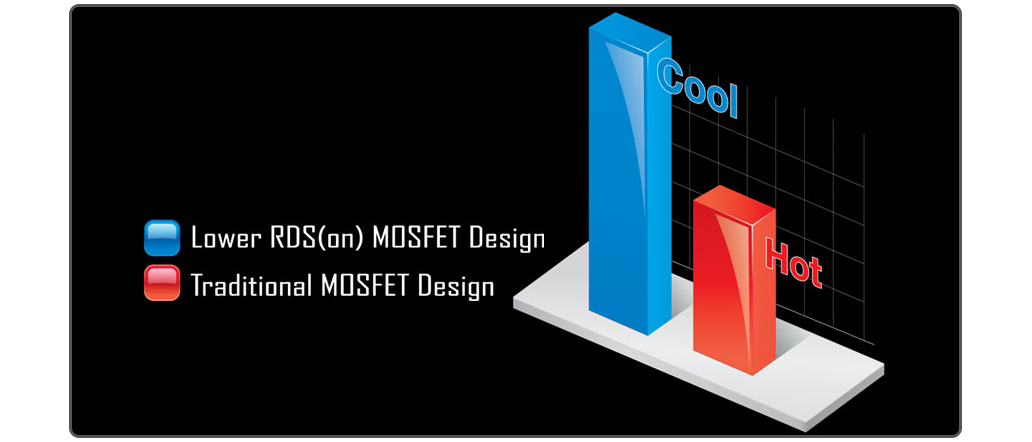

Outstanding GIGABYTE Performance GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

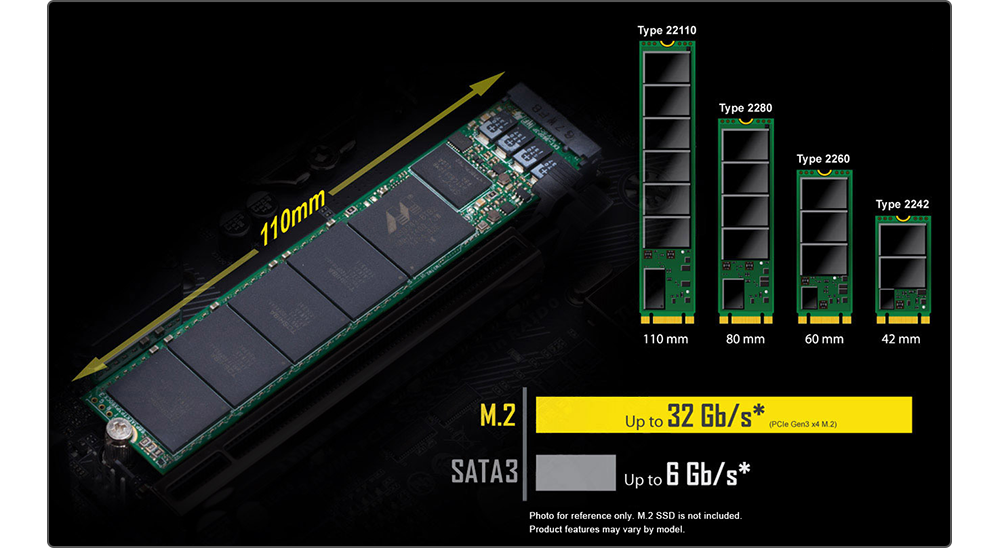

Fast Onboard Storage with NVMe


PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s) GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

AMD StoreMI Technology


MAXIMISE YOUR PC’S POTENTIAL Experience the benefits of AMD StoreMI, which delivers an incredible SSD performance with HDD capacity affordable cost. With GIGABYTE 400-series motherboards make your PC fast and easy to optimise. Efficient computer responsiveness from system boot to application launch. StoreMI quickly automatically learns users' computing behaviours enabling quick access to key files.

Immersive VR Gaming


DELVE INTO A NEW UNIVERSE Gaming PCs deliver the best VR experience, enjoy a virtual world with VR technology as this requires more performance than Full HD graphics for a steady 90FPS or greater.

Computing Power for Gamer’s Needs


AMD RYZEN SERIES PROCESSORS GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. You can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

Intel GbE Lan with cFosSpeed


improve network latency Realtek® Gigabit LAN features cFosSpeed Internet Accelerator Software, the network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. GIGABYTE motherboards feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur.

High Quality On-board Audio Design


PREMIUM SOUND RESOLUTION Experience high quality sound resolution and sound expansion which creates the most realistic sound effects for professional gamers. Featuring Audio Noise Guard with LED trace path lighting and high-end audio components for the best sound imaginable.

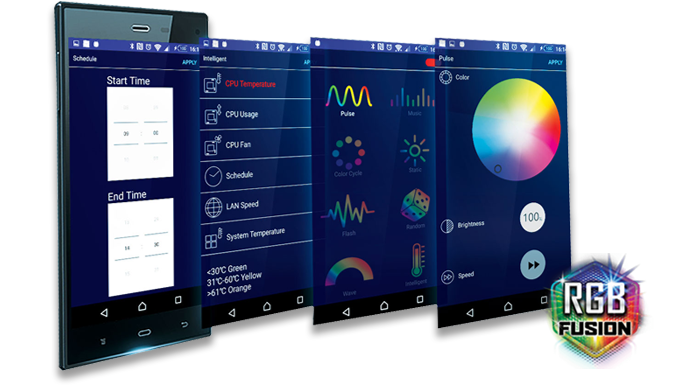

Personalise Your System with RGB Fusion Software


SET THE COLOUR THAT MATCHES YOUR STYLE Personalise your PC rig with ease by simply choosing between seven integrated colours to instantly illuminate the external RGB light strip. RGB Fusion is not only smart software but also now a mobile app with the GIGABYTE RGB Fusion App, enabling you to remotely access and control settings through your device. With Advanced Mode, you can create lighting profiles that will switch instantly to your preferred effects. Different light strips sometimes have different RGB pin definitions, RGB Fusion software can intelligently relocate each pin location with RGB Calibration for the best compatibility.

Ultra-Durable GIGABYTE Features

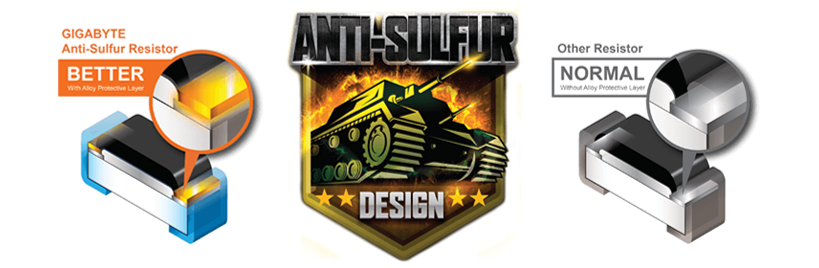

DURABLE AND BUILT TO LAST Sulfur compounds in the air can penetrate tiny on-board resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design, GIGABYTE gives ultra-durable motherboards a whole new meaning.

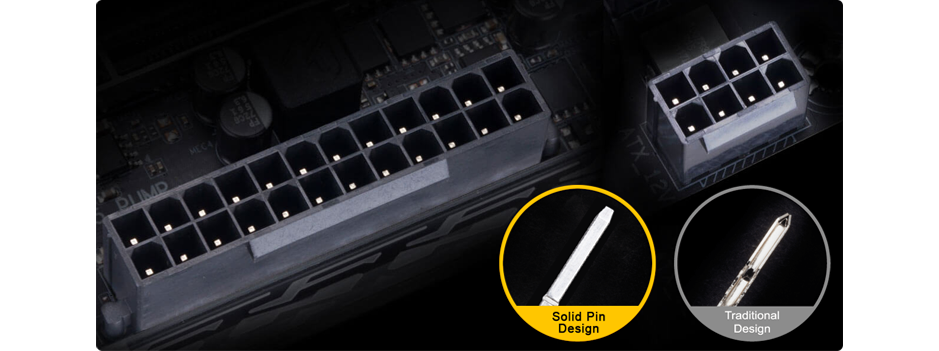

Make Good Connection and Significantly Lower the Wires Capacity GIGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading. With a larger contact area for electricity you get a longer lifespan and is ultra-durable with more metal quanity to sustain higher power and generated heat.

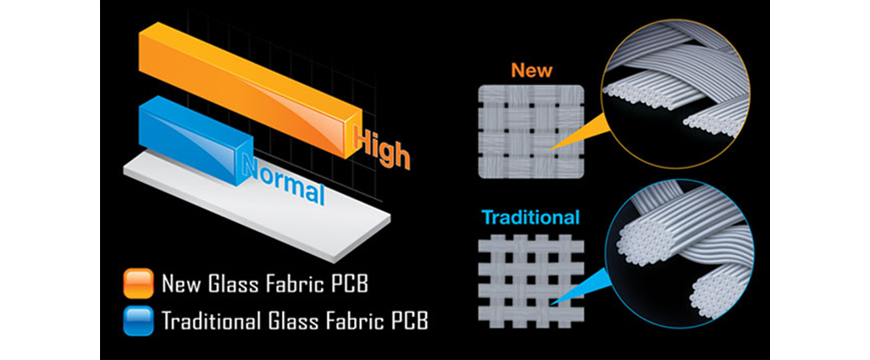

HUMIDITY PROTECTION GLASS FABRIC PCB There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

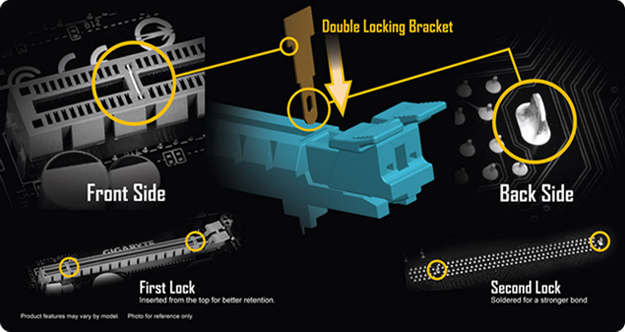

EXTRA STRENGTH WHEN YOU NEED IT MOST Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

GIGABYTE BIOS and Applications

REFRESHED BIOS GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

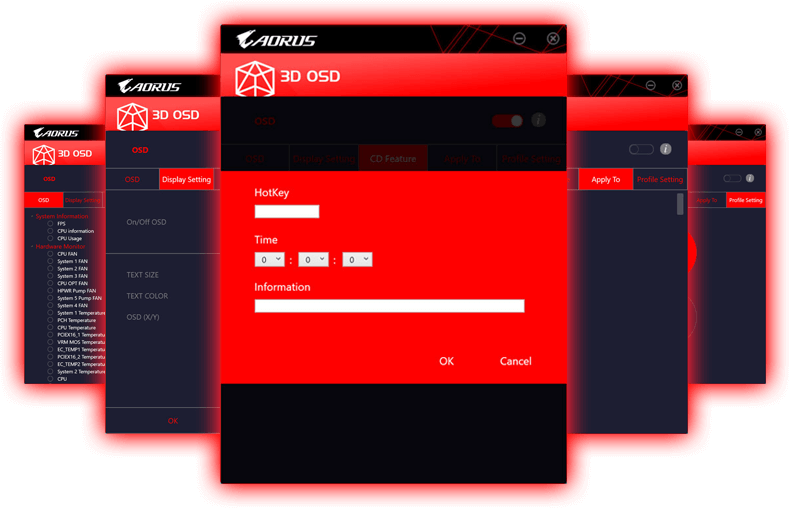

3D OSD 3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

Innovative Technology

GIGABYTE EXCELLENCE Each AORUS motherboard includes TriDef SmartCam software, remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background. Optimise and improve your connection with WTFast the Gamers Private Network (GPN). Cast your game anywhere and experience the greatest gaming moments with XSplit Gamecaster + Broadcaster. Host your game like a pro and with just one click stream your gameplay to Twitch, chat to fellow gamers and interact with social media integration.

Save power with one simple click with CEC Energy Saving technology. GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 power consumption requirement.


TRIDEF® SMARTCAMUsing SmartCam you can now apply live filters, remove backgrounds, not only whilst streaming but also through other video applications.


WTFAST (GPN)Enhance your online game performance with WTFast, the Gamers Private Network (GPN); which optimises your connection.


XSPLIT GAMECASTER + BROADCASTERCast your game anytime, anywhere with only one click. The fully optimised social media integration allows you to instantly connect for real-time chats.

Core Specifications
Edition B450M DS3H
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 215 mm
Additional Information
Scan Code LN91354
Model Number B450M DS3H
GTIN 4719331803827

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Gigabyte Uk
Loading Please Wait

Please wait . . .

Gigabyte B450M DS3H, AMD B450, AM4, DDR4, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1, MicroATX is rated 3.0 out of 5 by 3.
Rated 2 out of 5 by from RGB Fusion doesn't really work The board works mostly as described, I've had no issues with it apart from the RGB Fusion. All it is capable of doing is displaying a static colour, you can choose the colour but that's it, it can;t do any effects such as colour fade. I think this is due to the RGB Fusion software itself which is terrible. So if you're not bothered about RGB then this board is fine, otherwise avoid it.
Date published: 2020-02-07
Rated 5 out of 5 by from Great This has been bought for my grandson who I have have bought from you before and will do again as he is building his own computer which will take a while as he is only 16 so money is limited but I am very pleased with your service totally
Date published: 2019-12-28
Rated 2 out of 5 by from Good, except the M.2. interface very shonky I've had this board for around 2 months and my PC is still not fully operational. I've been experiencing freezes to the system and the occasional unexplained reboot. It's taken me most of this time to fault find as all components were brand new. It turns out that the M.2 interface is at fault. If I use my m.2 card in a PCIe expansion card the board runs flawlessly. With the m.2 in the on-board slot I get the constant crashing and freezing. Reading around, there are many people with the same issues with Gigabyte boards. If using standard SATA drives, or and M.2 drive on a PCIe card, this board runs well - the M.2. port issue really let the board down. Unfortunately, because of this, I wouldn't recommend this board.
Date published: 2018-12-20
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_91354, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

does it support amd ryzen 3

Asked by: mrsavager
Hello, This board would be compatible with a Ryzen 3 CPU. Regards,
Answered by: JackB
Date published: 2018-10-31

RGB Header

I see it says that there is a RGB LED Strip Extension Header in the specifications but i cant see it anywhere when i look at the pictures. Any help in pointing out where it is located would be appreciated. Thanks.
Asked by: DS773
I've included an image with a great big arrow on :)
Answered by: Chinnery
Date published: 2019-02-24

What happened to 'Dual BIOS'?

Do these boards only have one ROM BIOS chip? What happens if your only BIOS chip gets corrupted? I thought that 'Dual BIOS' was a signature feature of all Gigabyte's UltraDurable motherboards. I have always used Gigabyte motherboards, and I will be very disappointed if they have dropped this feature on their mid-range or lower-end motherboards.
Asked by: Richie66
Hello, This board does not have a dual BIOS feature. Regards,
Answered by: JackB
Date published: 2018-08-02

Hi is this motherboard wifi ready or do I need to buy an adapter

Asked by: Midnighthawk
Hi, this board is not Wi-Fi ready. You would need to purchase an adapter. Regards,
Answered by: LukeW
Date published: 2019-02-25
