Scan code: LN91353 Manufacturer code: B450 AORUS M

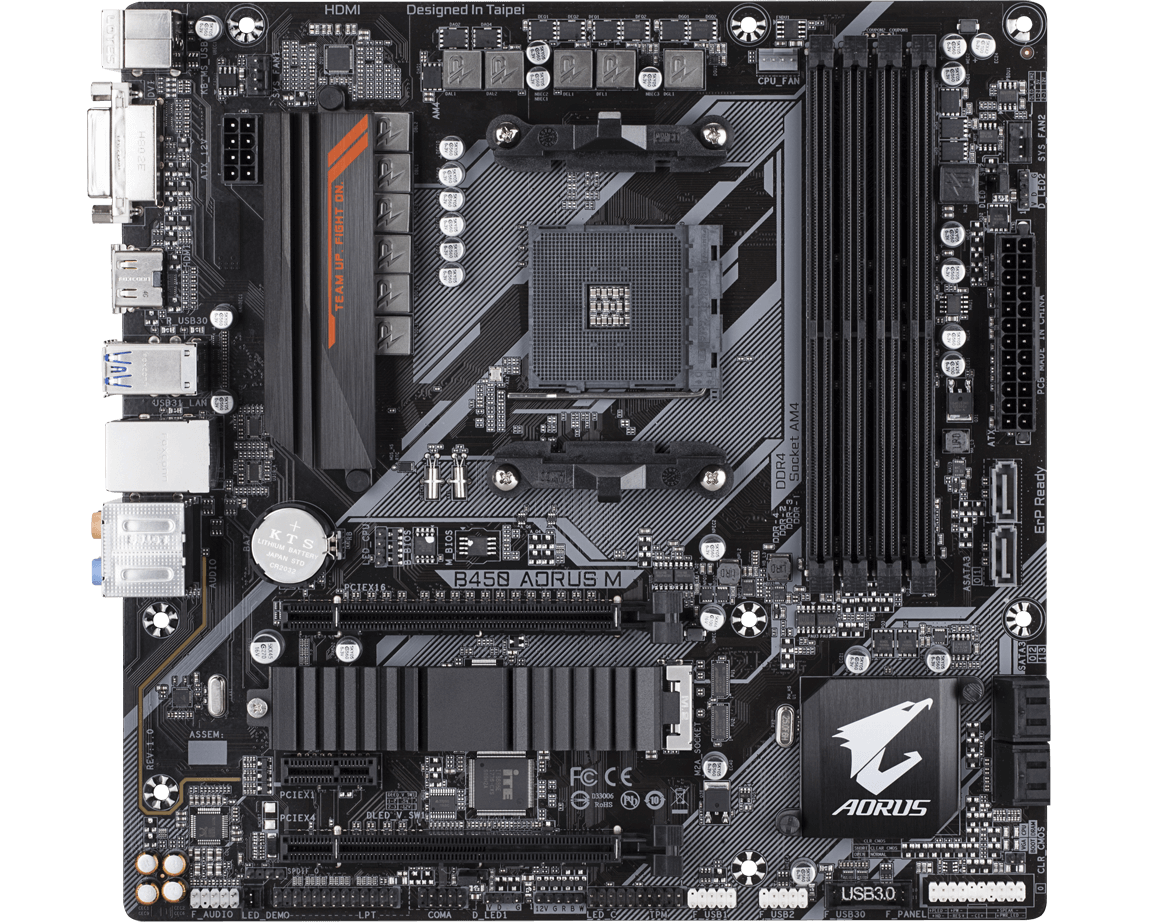

Gigabyte AMD B450 AORUS M Ryzen MicroATX Motherboard

Gigabyte B450 AORUS M, AMD B450, AM4, DDR4, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen2 Type-A, MicroATX

Thumbnail 1 : Gigabyte AMD B450 AORUS M Ryzen MicroATX Motherboard Thumbnail 2 : Gigabyte AMD B450 AORUS M Ryzen MicroATX Motherboard Thumbnail 3 : Gigabyte AMD B450 AORUS M Ryzen MicroATX Motherboard Thumbnail 4 : Gigabyte AMD B450 AORUS M Ryzen MicroATX Motherboard
Scan code: LN91353 Manufacturer code: B450 AORUS M
£83.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

B450 AORUS M - Ryzen MicroATX Gaming Motherboard

b450

GAME WITHOUT COMPRISE WITH B450 AORUS MThe Gigabyte B450 AORUS M motherboard is optimised for AMD Ryzen™ 2000 series processors, boasts an overall high-quality performance which is perfect for gamers. Experience extreme performance featuring Dual M.2s, this means configuring RAID Arrays has never been simpler. AORUS M.2 Thermal Guard prevents rising heat damage, allowing users to enjoy the utmost reliable system performance. The B450 AORUS M is the ultimate foundation for any gaming rig.

AMD B450Chipset

AM4CPU Socket

Micro ATXForm Factor

Outstanding AORUS Performance

hybrid

Hybrid digital power design AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Fast Onboard Storage with NVMe

m2

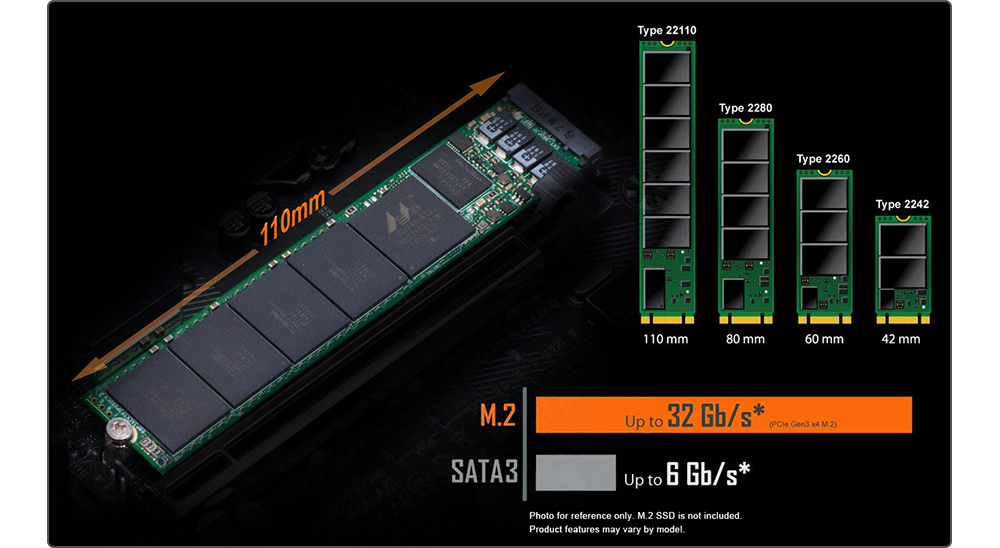

AORUS M.2 Thermal Guard GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices. With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

AMD StoreMI Technology

storemi

MAXIMISE YOUR PC’S POTENTIAL Experience the benefits of AMD StoreMI, which delivers an incredible SSD performance with HDD capacity affordable cost. With GIGABYTE 400-series motherboards make your PC fast and easy to optimise. Efficient computer responsiveness from system boot to application launch. StoreMI quickly automatically learns users' computing behaviours enabling quick access to key files.

Immersive VR Gaming

vr

DELVE INTO A NEW UNIVERSE Gaming PCs deliver the best VR experience, enjoy a virtual world with VR technology as this requires more performance than Full HD graphics for a steady 90FPS or greater.

Computing Power for Gamer’s Needs

CPU

AMD RYZEN SERIES PROCESSORS GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. You can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

Exclusive Realtek 8118 Gaming LAN

nolag

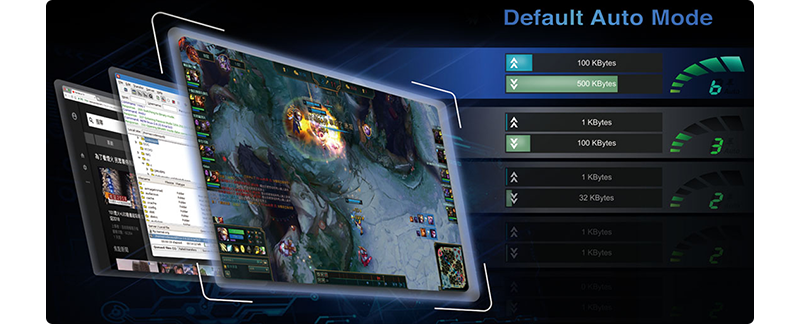

INTERNET ACCELERATOR SOFTWARE with Real-Time Network Monitoring Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Speed Up with Reliable Connectivity

usb speed

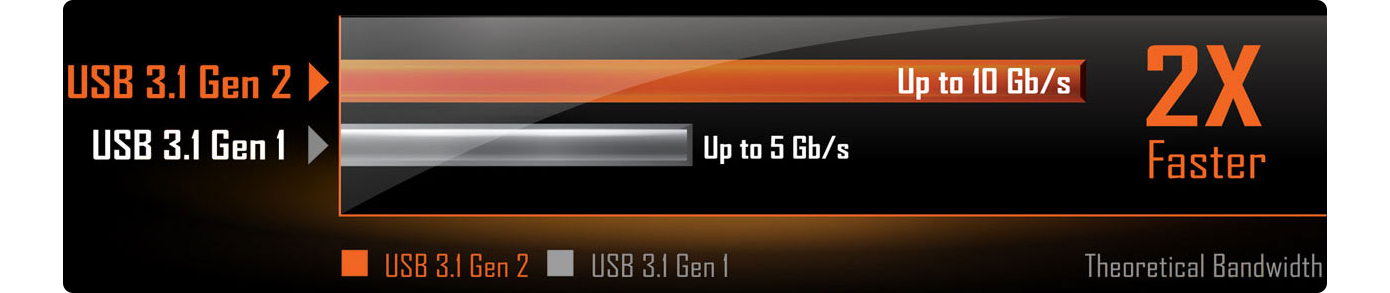

Native USB 3.1 Gen2 AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1.

Impressive AORUS Audio

audio

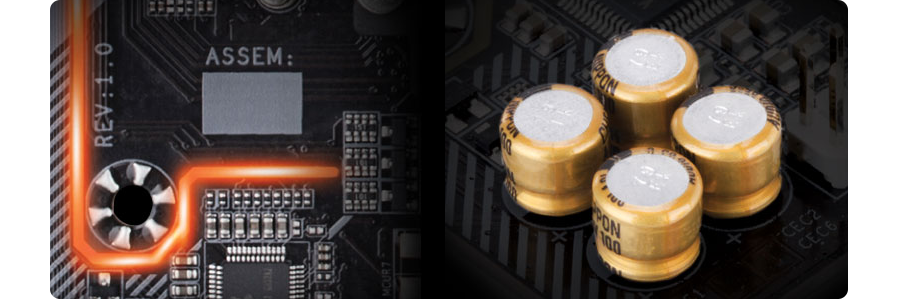

PREMIUM SOUND RESOLUTION Experience high quality sound resolution and sound expansion which creates the most realistic sound effects for professional gamers. Featuring Audio Noise Guard with LED trace path lighting and high-end audio components for the best sound imaginable.

Personalise LEDs with RGB Fusion

rgb

multi-zone light show design RGB Fusion allows more LED customisations than ever before, users can truly adjust their PC to embody their style. The redesigned RGB Fusion application enables you to completely control the LEDs, which surround the motherboard with even more styles and patterns with the smart mobile app, you can remotely access and control settings through your device. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. AORUS gaming motherboards supports either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with nine new patterns and various speed settings with more to come.

Supports RGBW and UV Light Strips

Get the GIGABYTE RGB Fusion APP Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colours.

rgbUV

RGB/UV COLOURRGB/UV light strips can illuminate your PC with a fluorescent glow. With UV reactive cables, paint or liquid your PC can radiate with a luminous glow.

truewhite

TRUE WHITE COLOURRGBW light strips can produce a pure white colour instead of mixing R/G/B to produce an inaccurate white.

richer

RICHER COLOURWith dedicated white LEDs, light strips can produce a richer and brighter colour on the colour scale.

rgbport

RGB CALIBRATIONDifferent light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.

Excellent Performance with Smart Fan 5 Software

usb

Efficient Cooling with Fan Control Uphold performance while staying cool with Smart Fan 5, users are assured that their PC will stay cool whilst gaming. Smart Fan 5 enables users to interchange their fan headers to imitate different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence with Fan Stop, ensuring the most customisable fan control based on accurate temperature readings.

system information viewer

Interoperable Sensors and FansEach fan can be customised to operate at different speeds according to any defined temperature source input (except the CPU fan).

system information viewer

Ultimate control with fan curveCustomize fan curves based on specific temperatures with the intuitive graphical UI.

Hybrid Fan Pin Headers

hybrid connectors

BE THE MASTER OF YOUR PC Smart Fan 5 obtains the latest information on flow-rate through the Hybrid Fan Pin Headers, ensuring you absolute control over your PC. All Hybrid Fan Headers can automatically identify the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Ultra-Durable AORUS Features

Make Good Connection and Significantly Lower the Wires Capacity AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

GIGABYTE Patented Double Locking Bracket The PCI-E slots utilise Gigabyte’s patented double locking bracket with a soldered back section which creates a strong bond.

Anti-Sulfur Design

usb

DURABLE AND BUILT TO LAST Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives ultra-durable motherboards a whole new meaning.

down

DIAGNOSTIC LEDSOn-board LEDs controlled by the system BIOS specify if a malfunction is occurring, allowing users to promptly take action by quickly diagnosing which major component (CPU/DDR/VGA/HDD) is faulty.

up

DUALBIOS DESIGNGIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

GIGABYTE BIOS and Applications

REFRESHED BIOS GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

3D OSD 3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

Innovative Technology

AORUS EXCELLENCE Each AORUS motherboard includes TriDef SmartCam software, remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background. Optimise and improve your connection with WTFast the Gamers Private Network (GPN). Cast your game anywhere and experience the greatest gaming moments with XSplit Gamecaster + Broadcaster. Host your game like a pro and with just one click stream your gameplay to Twitch, chat to fellow gamers and interact with social media integration.

Save power with one simple click with CEC Energy Saving technology. GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 power consumption requirement.

down

TRIDEF® SMARTCAMUsing SmartCam you can now apply live filters, remove backgrounds, not only whilst streaming but also through other video applications.

up

WTFAST (GPN)Enhance your online game performance with WTFast, the Gamers Private Network (GPN); which optimises your connection.

up

XSPLIT GAMECASTER + BROADCASTERCast your game anytime, anywhere with only one click. The fully optimised social media integration allows you to instantly connect for real-time chats.

Specifications
Core Specifications
Edition B450 AORUS M
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230/2242/2260/2280/22110, PCIe/SATA
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x CPU Fan Connector
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System Fan header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DVI-D
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
