AORUS XTREME WATERFORCE Z490 E-ATX Motherboard from Gigabyte

aorus xtreme waterforce z490

LET YOUR PC SOAR TO NEW HEIGHTS Boost your system's power significantly with the AORUS XTREME WATERFORCE Z490 motherboard. This all-new piece of kit provides the power and connectivity you need to power up your system with Intel's latest 10th Generation CPUs with an LGA 1200 socket. It also offers support for Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors, and Intel® Celeron® processors in the LGA 1200 package. Any PC build is possible with this astounding motherboard and the wealth of features it offers. Utilise the memory power of DDR4 RAM and Intel® Optane™ memory, along with expert cooling and an array of I/O ports that are ready for any task you need to complete. Illuminate your build with the multi-zone RGB lighting that can be used with RGB FUSION 2.0, and is fully compatible with additional LEDs and RGB LED strips, so you can make your PC truly your own.

Intel® Z490Chipset

10th Generation Intel®Compatible CPUs

LGA 1200CPU Socket

E-ATXForm Factor

Made to Handle the most Demanding of Tasks

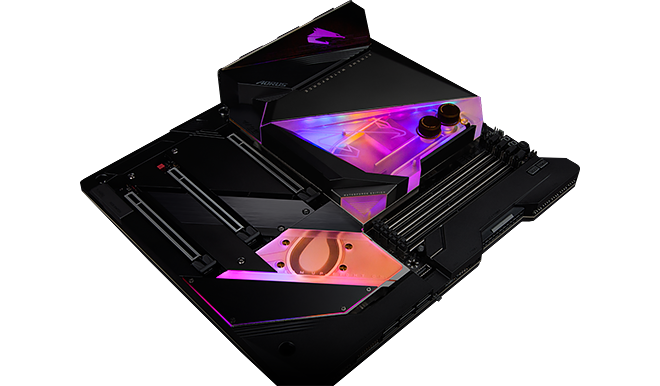

thermal design

EXTREME THERMAL DESIGNShowcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next generation network connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z490 AORUS XTREME WATERFORCE motherboard dominates the competition. This superior motherboard uses exclusive CPU/VRM/PCH watercooling monoblock to ensure stability and low temperatures under full loads and gaming.

Expert Cooling for High-End Rigs

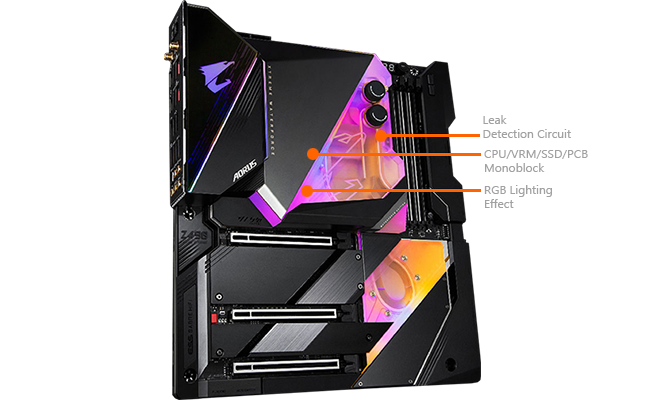

aio monoblock

ALL-IN-ONE MONOBLOCKThe all-in-one monoblock covers the CPU, VRM, SSD and PCH areas, with 60% more skived fins surface area for more efficient heat transfer. This superior motherboard uses high density copper fins for extreme heat dissipation along with a leak detection circuit around the whole monoblock, the leak detection also features emergency shutdown when any leaks occur to protect your PC. Adjust the style with the addressable LED lighting, and enjoy excellent durability with the solid back-plate that prevents motherboard distortion, bending, or damage.

nanocarbon

NANOCARBON BASE PLATEThe baseplate on the Z490 XTREME WATERFORCE motherboard is made of aluminium instead of traditional iron to ensure 3X more thermal conductivity. A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability. Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively. This effectively lowers backside PWM component temperatures by 10%.

connectors

RIGHT-ANGLED CONNECTORSZ490 AORUS XTREME WATERFORCE uses a revolutionary Right-Angled Connector design, 90% of pin headers and connectors on motherboards are right-angled and relocated to one side of the PCB. The never-seen-before design provides easier cable management and better airflow when installing various components.

thermal guard

AORUS M.2 THERMAL GUARD IIWith durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it gets too high.

noise detect

NOISE DETECTIONWith the new Noise Detection function, you can monitor the noise level of all devices including fans, CPU coolers, graphics card, etc, in real time. You can also determine how fast your fan speed needs to be. The included noise detection cable doesn't include any sound recording functions, it simply detects sound pressure while protecting your privacy.

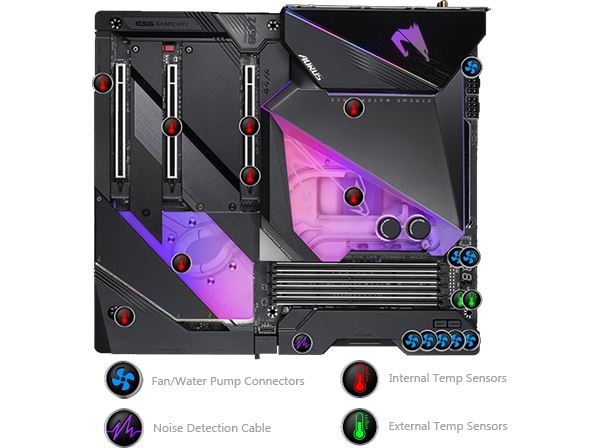

headers

8X Hybrid FAN HEADERWith Smart Fan 5 you can ensure that your gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Unleash the Most Impressive Power

4K Recording

THE ULTIMATE DESIGN FOR POWERTo unleash the full potential of new Intel 10th Gen CPUs, the motherboard requires the finest CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME WATERFORCE is a true beast among motherboards.

The Most Stable and Efficient Power for your System

4K Recording

16 PHASE DIGITAL POWER DESIGNThis innovative motherboard uses a pure digital CPU power design which includes a digital PWM controller with Smart Power Stages, and is capable of providing 90A of power from each phase for a total of 1440A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors provide incredible precision and stability in delivering power to the motherboard's most power-hungry components, allowing you to get the ultimate overclocking performance from the new 10-core 10th Gen Intel® Core™ processors.

True Design for Superior Performance

4K Recording

INTELLIGENT POWER ARCHITECTUREIn order to unleash the full performance of the new high core count CPUs, GIGABYTE uses true power phases, a fully load-balanced VRM design with doublers, and a tantalum polymer capacitor array. By using doublers, the power design ensures that the high power draw of the CPU is fully balanced across all MOSFETs to achieve better efficiency and lower temperatures. In contrast, MOSFETs in competitors' traditional parallel power designs are not as well balanced which leads to lower efficiency and higher temperatures. For sudden changes between idle and high load states from the CPU, GIGABYTE utilizes a tantalum polymer capacitor array directly under the CPU socket as a buffer to improve transient response and stability under high CPU frequencies. By using brand new VRM design and Tantalum Polymer Capacitor Array, Z490 AORUS motherboard transient response and stability is highly improved under overclocking and heavy loading condition.

Handle the Heaviest of Tasks with Ease

2X COPPER PCBGIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

4K Recording

Unparalleled Performance like No Other

Memory Layout - Daisy Chain DesignWith the optimized daisy-chain routing, the Z490 AORUS motherboard provides a proven speed of up to DDR4-4800+ MHz with high-density DESIGNARE Memory 32GB module*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience. Z490 AORUS XTREME WATERFORCE uses revolutionary "XTREME MEMORY" technology, which includes Shielded Memory Routing, SMT DIMM, and Tantalum Polymer Capacitors Array to minimize all noise and electrical interference and reach the highest memory clock.

xmp

Support for DDR4 XMP Up to 4800MHz and BeyondAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module. Please see the complete validated memory support list. Product features may vary by model.

pcie4

PCIE 4.0 HARDWARE DESIGN

pcie3

Triple NVMe M.2 PCIe SSDs in RAID 0 SupportZ490 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

Next Generation Connectivity

10 GBE LAN | THUNDERBOLT 3 | WIFI 6 | AORUS ANTENNA | USB TURBOCHARGERA Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS XTREME WATERFORCE provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

4K Recording

Add Colour to your Rig

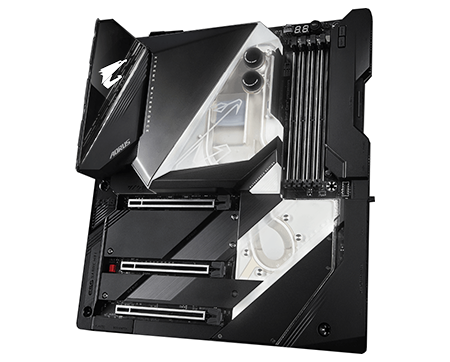

rgb

RGB FUSION 2.0Now offering more LED customizations than ever before, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, you have complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION SOFTWAREWith an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

commander

AORUS RGB FAN COMMANDER • All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain.
• 2x signal strength compared to traditional antenna design.
• Two antenna with smart antenna function for the best WIFI signal transmitting.
• Multiple angle tilt and magnetic base for the best signal strength direction and location.

Immerse yourself in Hi-Fi Audio

audio

ESSENTIAL USB DAC | ESS SABRE HIFI | DTX X ULTRAComplete Digital to Analog Signal processing on the USB Type-C ports gets rid of any possibility of distortions and provides superb sound stage recreation so you can experience the vocal cohesion. Enjoy the depth of music and the immersive sound profile.

• USB Type-C for PC, Laptop and Android Devices.
• Replace Ancient Front Audio Interfaces.
• Powered by ESS SABRE HIFI DAC.
• Premium Power Processing.
• Left/Right Separation Routing.
• Superior Sound Stage by WIMA Capacitors.

Made to Withstand the Test of Time

Industry Leading Ultra Durable™ PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

anti bending

Ultra Durable™ Memory ArmorAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

pins

Solid Pin Power ConnectorsZ490 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Control every Aspect of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. Z490 AORUS XTREME WATERFORCE bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition AORUS XTREME WATERFORCE
Form Factor E-ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 1.4
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x BIOS switches
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Noise Detection Header
  • 1 x OC button
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x Voltage Measurement Points
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 3
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled Yes
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 271 mm
