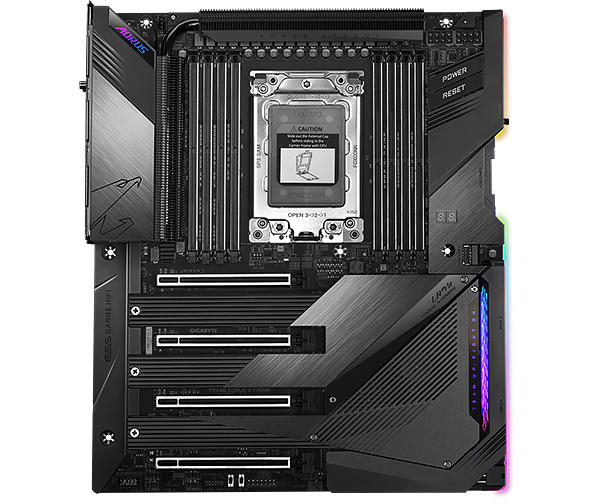

Gigabyte AMD TRX40 AORUS XTREME Threadripper PCIe 4.0 E-ATX Motherboard
Gigabyte AORUS XTREME, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 4x M.2, SLI/CrossFire, 10GbE, ax WiFi, USB 3.2 Gen2 A+C, XL-ATX
- SCANPROTECT Protect against installation damage for 28 days. More info
Gigabyte AMD Ryzen TRX40 AORUS XTREME Motherboard
TAKE YOUR COMPUTING POWER TO NEW HEIGHTS
This unique AORUS XL-ATX motherboard has been brought to you by Gigabyte to deliver the finest Threadripper™ performance. The AORUS XTREME focuses on performance, looks and power to bring you a motherboard that's ready for any task. You can customize the on-board lighting with Gigabyte's RGB Fusion software to add a touch of your personality to the motherboard. It features a wealth of high-end features to keep you ahead of the game, with ultra-fast PCIe 4.0, a USB TurboCharger, Dual Intel® Gigabit LAN, triple thermal protection and comes with an exclusive AORUS GEN4 AIC adaptor for extra 4 NVMe PCIe. Enjoy this intelligent architecture that has been especially designed for efficiency, power, and flawless operation.
Please note: Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors Processors for sTRX4 socket.
AMD TRX40Chipset
sTRX4CPU Socket
AMD 3rd Gen Ryzen ThreadripperCompatible CPUs
XL-ATXForm Factor
Get the Performance your System Deserves
Direct 16 Phase Power Design With the TRX40 AORUS XTREME enjoy perfect loading, efficiency and low voltage ripple with its incredible Direct 16 Phase Power Design which ensures you get flawless motherboard performance.

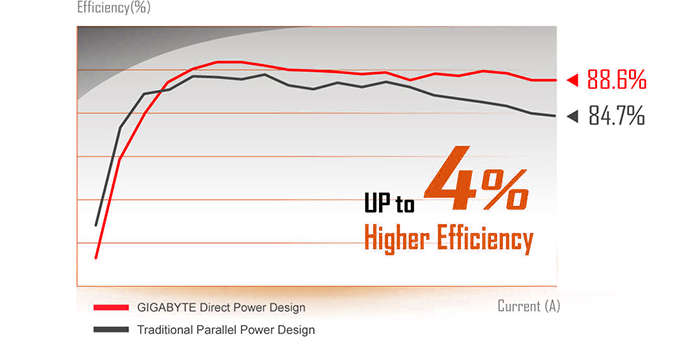

Power Efficiency & Voltage Ripple Graph The TRX40 AORUS XTREME offers up to 4% higher efficiency with it's special Direct Power Design than traditional Parallel Power Designs to give you greater performance that's more efficient.

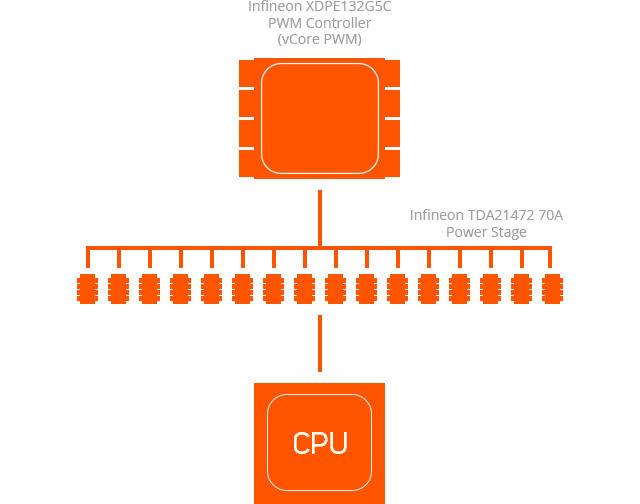

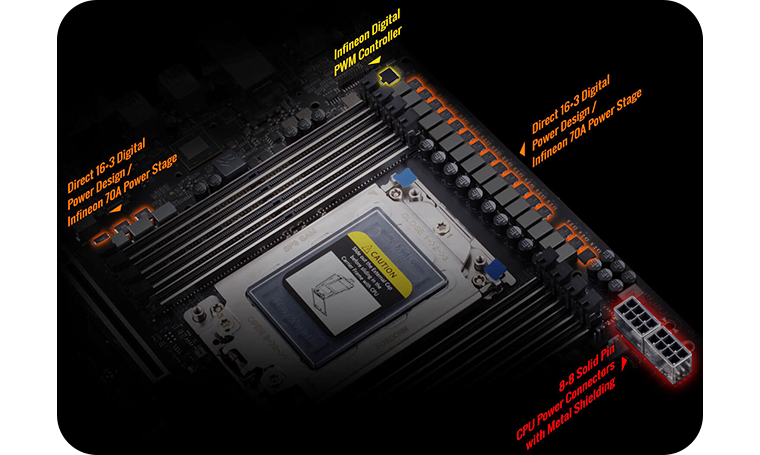

16+3 direct digital power design This intuitive motherboard uses the latest, new generation Infineon multiphase PWM controller. It provides a total 16+3 phase for vCore and SOC, all with the Infineon TDA21472 Power Stage MOSFET which is capable of supplying at least 70A of power from each phase for an amazing total of 1330A. This power design will no longer cause your motherboard to bottleneck.

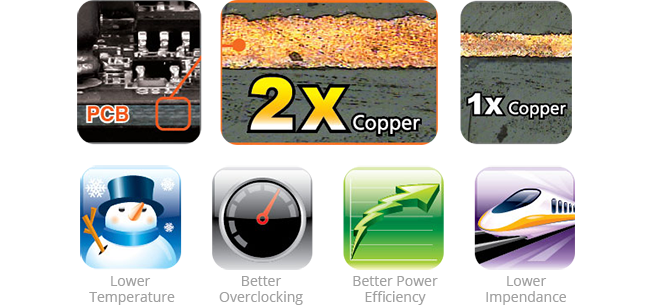

2x copper pcb GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between your components to easily handle demanding power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure your motherboard is able to handle the increased power loading that is necessary when overclocking.
Designed for Superior Thermal Operation

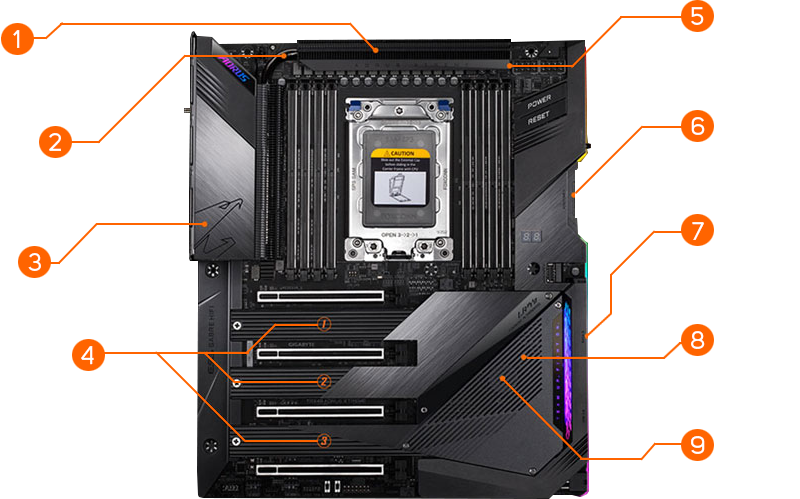

TOOLS TO KEEP YOUR MOTHERBOARD COOL
1. Fins-Array: Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks of the same size.
2. 8mm Mega Heatpipe: 30% more diameter than traditional heatpipes to transfer more heat in the same time.
3. Aluminum Cover VRM Heatsink: I/O cover is connected with Fins Array to help MOSFET heat dissipation.
4. 3 x PCIe 4.0 M.2 Heatsink: Prevents PCIe 4.0 SSD from throttled performance if it ever overheats.
5. LAIRD Thermal Pad: Uses a thicker W/mK thermal conductivity pad to transfer more heat in the same time.
6. NanoCarbon Baseplate: A thin layer of NanoCarbon on the baseplate enhances thermal radiaton capability.
7. Right Angled Connectors: Designed for easy cable management and more effective airflow in cases.
8: TRX40 Chipset Heatsink: Ensures that the TRX40 chipset runs cool and quiet with several layers of CNC-carved aluminium.
9. 5cm Ball Bearing Silent Fan: Cools down the TRX40 chipset at all times, or stops under idle conditions to improve longevity.
Maximize your System's Potential

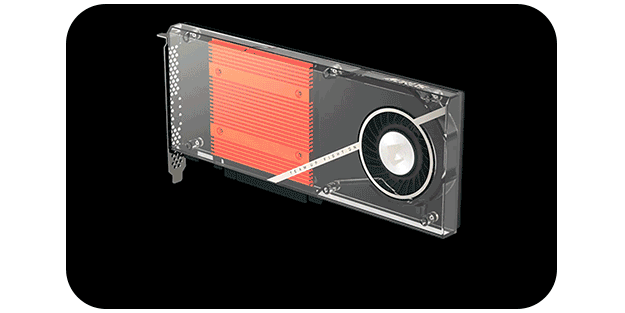

AORUS GEN4 AIC ADAPTOR The included AORUS Gen4 adaptor offers an effective thermal solution. It includes a 5.5mm pure copper heatsink, a 5cm double ball bearing fan, an M.2 SSD baseplate and multiple thermal pads to cool down both sides of the 4 M.2 high performance SSDs. You can choose from three different fan profiles based on your hardware configuration to reach the perfect balance of high storage performance and low noise.

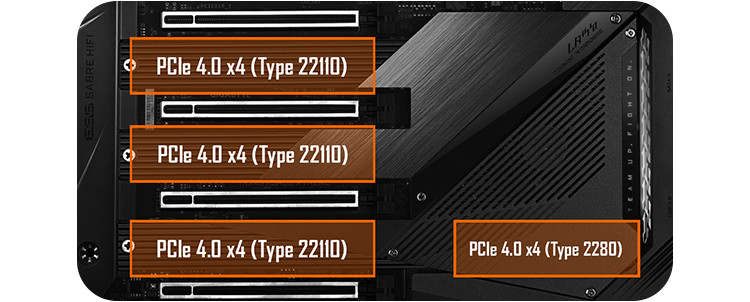

4 X PCIE 4.0 M.2 GIGABYTE motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.
4 WAY DUAL CONFIGURATION The AORUS XTREME uses a full 4 X PCIex16 slot with special locations to support up to 4 Dual Slot wide graphics cards or other add-on cards. This 4-Way wide configuration is ideal for high-end builds that need a large amount of 3D processing and computing power.

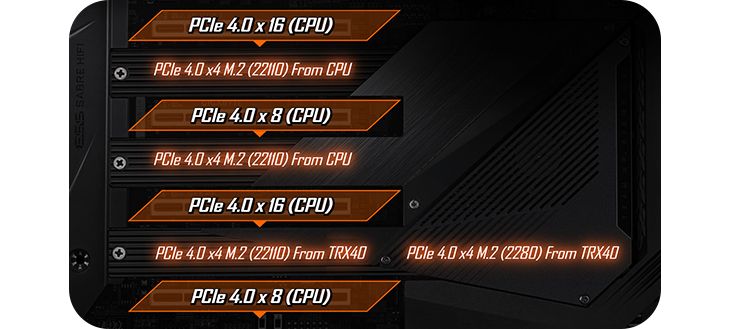

PCIE 4.0 DESIGN This game-changing GIGABYTE motherboard offers several new components to guarantee the finest PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, and switches that are specifically designed for PCIe 4.0. This great performance ensures there will be no compromise.
SUPPORT FOR DDR4 XMP UP TO 4400MHZ AND BEYOND AORUS is offering a tested and proven platform that ensures fantastic compatibility with profiles up to 4400MHz and beyond. All you need to do to attain this performance boost is make sure your memory module is XMP capable and that the XMP function is activated and enabled on your AORUS motherboard.
Next Generation Connectivity

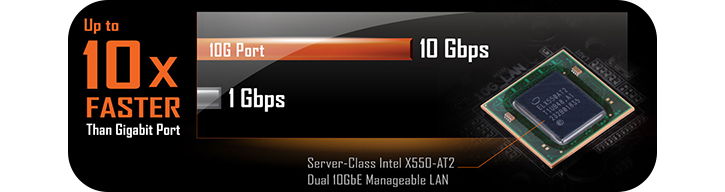

Server-Class Intel® X550-AT2 Dual 10GbE LAN Pre-mounted Server-Class Intel® X550-AT2 provides dual 10 GbE manageable connection for the system and further boosts the communication performance and reliability between clients.
Incredible Intel® Wifi

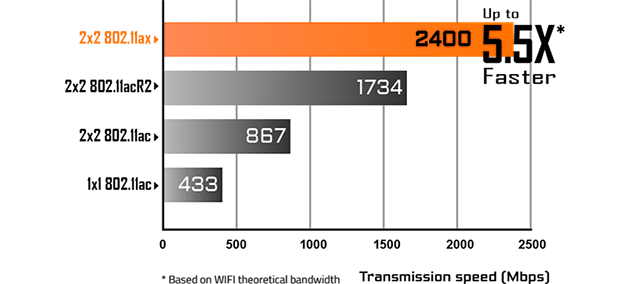

WIFI 6 READY 801.11AX + BT 5 MODULE Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, a better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Keep your Gear Ready for Anything

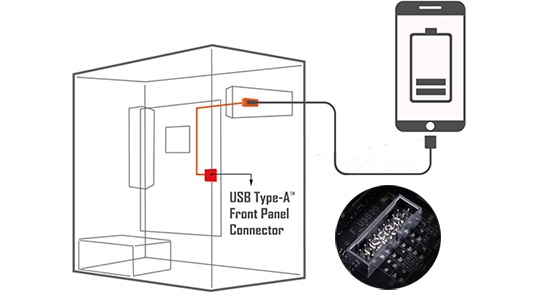

USB TURBOCHARGER
GIGABYTE's patent pending USB TurboCharger technology allows you to recharge your mobile device with unbeatable speeds, up to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen Type-A cable to the ports, the USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.
*Charge time varies with devices' hardware design, battery size, front USB 3.2 Gen1 cable quality and environmental factors.
Experience the Finest Performance Features
Smart Fan 5 With Smart Fan 5 you can ensure that your PC maintains excellent performance whilst staying cool. Smart Fan 5 allows you to interchange your fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5, more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the AORUS XTREME motherboard more liquid cooling friendly.

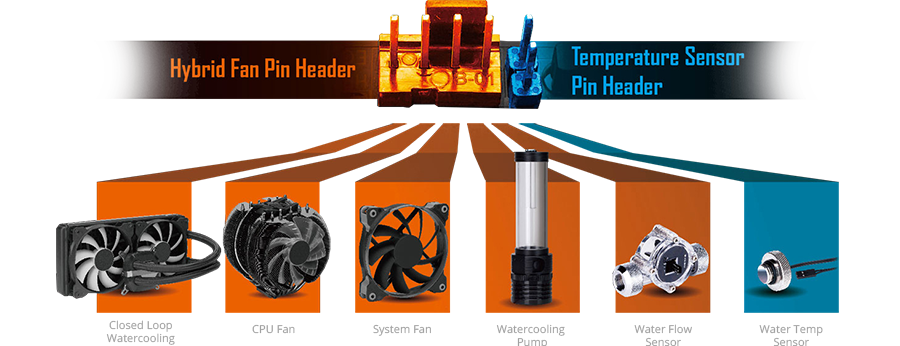

7X Hybrid Fan Header Take complete control over your liquid cooling setup. Smart Fan 5 receives up-to-the-second information on flow rate and water temperature through the Hybrid Fan Pin Headers or the external thermistor sensors. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be a fan or pump with the different PWN or Voltage modes.

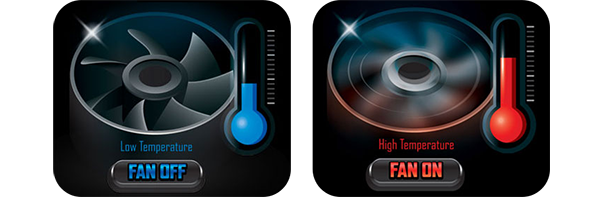

Fan Stop Achieve silent performance with Fan Stop. Map any fan to stop completely when temperatures drop below a specified threshold. The fans stop based on readings from a special sensor, and at certain temperatures that can be customized to your lighting.

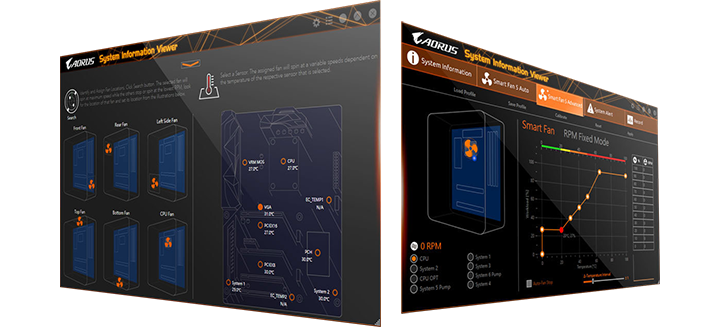

NEW SMART FAN 5 SOFTWARE Choose from a wealth of different modes to enhance your performance. Quiet or Full speed to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Ultra Durability for Years to Come

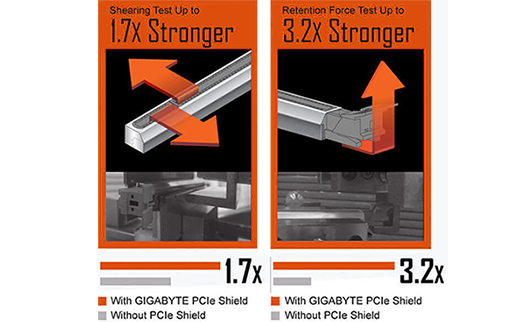

ULTRA DURABLE PCIE ARMOR The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to give your motherboard the extra strength it needs to support heavy graphics cards.

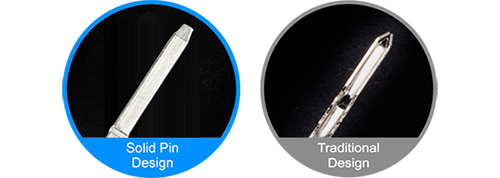

SOLID PIN POWER CONNECTORS The TRX40 DESIGNARE motherboard features solid plated ATX 24pin & ATX 12V +8pin power connectors to offer a flawlessly stable power supply during CPU overloading. They offer a larger contact area for electricity, a higher metal quantity to sustain higher power and generated heat, and are more durable than traditional pins to offer a longer lifespan.

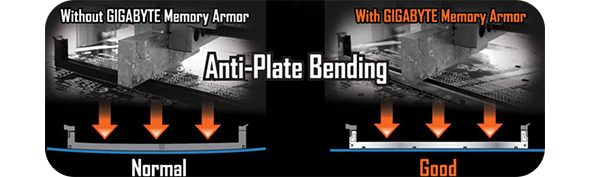

ULTRA DURABLE MEMORY ARMOR AORUS' exclusive one piece stainless steel shielding prevents against PCB distortion/twisting and plate bending. It also helps to prevent any possible ESD interference.
Q-FLASH PLUS Update your BIOS easily without installing the CPU, memory or graphics card. With GIGABYTE Q-Flash Plus, you don't need to install your other components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on a USB flash drive, then press the dedicated Q-Flash Plus button and you're ready to go.
Add Illumination to your Rig

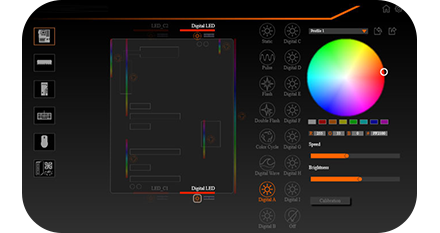

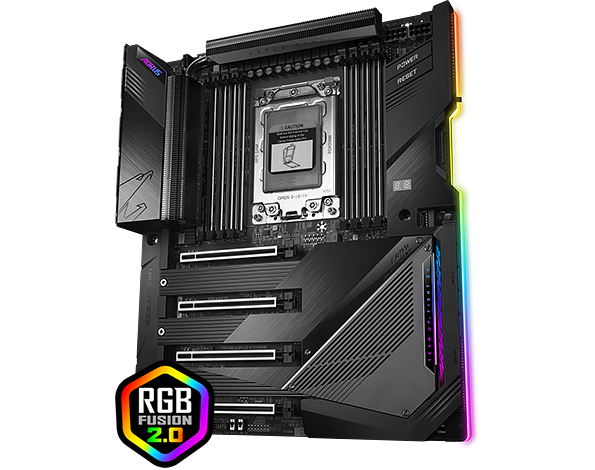

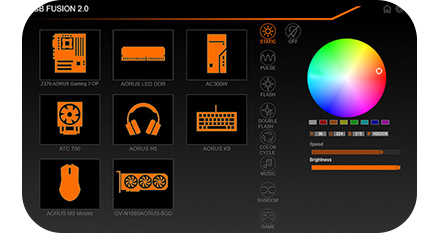

WITH RGB FUSION 2.0 Personalize your rig to your liking by selecting the a colour or effect of your choice, and you can even attach external RGB light strips with RGB LED and Digital Addressable LED headers. With an intuitive interface, the RGB Fusion 2.0 software provides a solution for customizing lighting all across your supported devices. From motherboards, graphics cards, to peripherals, you can personalize your gaming rig with your own style and even create colour profiles that you can share with others. The new gaming mode makes lighting effects interact with selected games to bring you the most immersive gaming experience.
ASSIGN COLOUR TO YOUR COMPONENTSSynchronize the lights of your PC's components from one place.
DIGITAL LED TABIndividually control lighting as you wish.
Excellent Ways to Fine-Tune your System

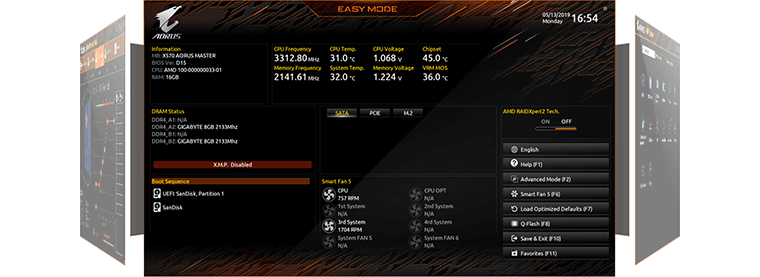

BIOS New User Interface: All new EASY MODE shows important hardware information including CPU clock, Memory, Storage, Fan.
My Favorites: Add constantly used items into the favorite menu for quick access.
Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.

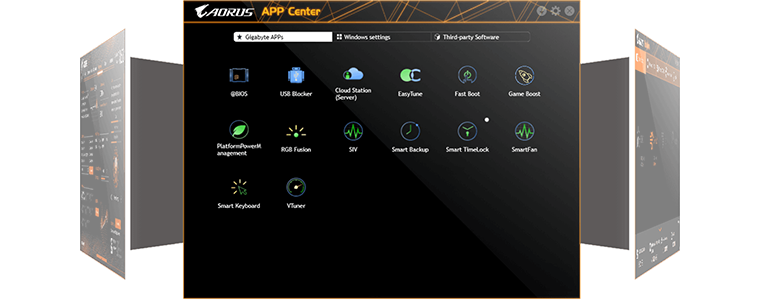

APP CENTER GIGABYTE APP CENTER is a useful portal of all GIGABYTE's motherboard utilities and drivers, you can choose any utility you want you want to install from the APP CENTER and keep updated with the latest utilities and drivers.

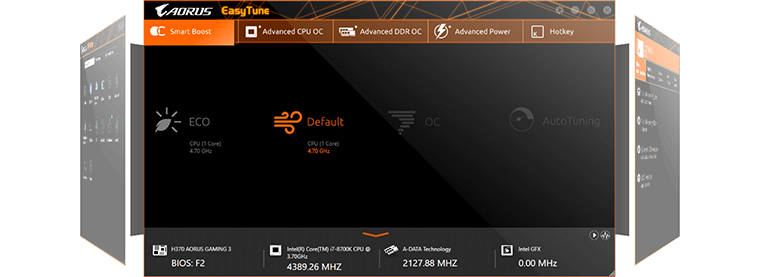

EASYTUNE INTERFACE GIGBYTE's EasyTune™ is a simple and easy-to-use interface that allows you to fine-tune your system settings, adjust system and memory clocks, and adjust voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

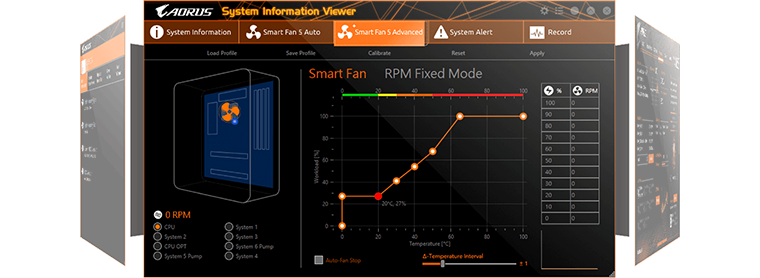

SYSTEM INFORMATION VIEWER GIGABYTE System Information Viewer is an interface that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior. There's plenty of possibilities of the System Information Viewer.
Immerse yourself with a Hi-Fi Audio System
ALC1220-VB Immersive Gaming ViBes ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your headset, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world clearly with both front and rear microphone SNR up to 110/114dB(A).

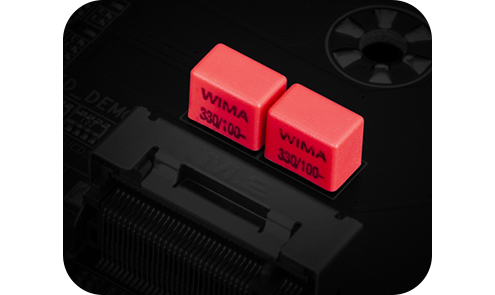

High-End WIMA & Audio Capacitors TRX40 motherboards feature Hi-Fi grade WIMA FKP2 capacitors which process feedback signals to deliver clear and balanced sound. With this comes exclusive AORUS AMP-UP technology which makes for an ideal onboard sound solution with quality that satisfies even the most demanding audiophiles.

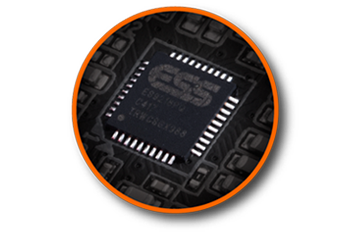

ESS SABRE REFERENCE DAC 9218 ESS 9218 supports QUAD DAC to deliver superb 124dB DNR and 112dB TND+N. True 2vrms outputs are capable of driving professional high impedance headphones and deliver line-level outputs. The analog volume control delivers 130dB SNR at low listening levels by reducing noise as the audio signal decreases, and High-Res music supports up to 32bit 192KHz PCM.
GOLD PLATED AUDIO JACKS The Gold Plated Audio Jacks on this incredible AORUS motherboard offer crystal-clear sound output and offer high resistance to corrosion and oxidation.

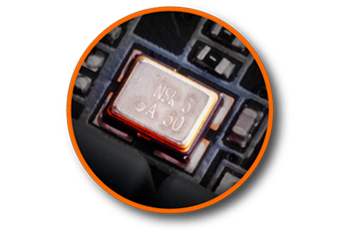

PRECISE TXC OSCILLATOR The TXC Oscillator provides accurate time triggers to Digital-Analog Converters.
DTS :X® Ultra 3D SOUND DTS :X® Ultra works to recreate an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. It supports channel-based, scene based and object-based audio. Enjoy out-of-the-box calibration for a range of headphones and speakers. DTS :X® Ultra provides post-processing enhancements and device level tuning for DTS codecs.
