Gigabyte AORUS AMD Radeon RX 6800 MASTER 16GB Graphics Card
Gigabyte AORUS Radeon RX 6800 MASTER 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 3840 Streams
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Gigabyte AORUS Radeon RX 6800 Master RDNA2 Graphics Card
Power, Performance and Beautiful Aesthetics The AORUS AMD Radeon RX 6800 Master brings max-covered cooling to the latest AMD RDNA2 Powerhouse GPUS, giving you the cooling you need to keep this top-shelf GPU under control. Featuring a digitally constructed lighting design use Gigabyte RGB Fusion 2.0 to customise and synchronize your lighting across other supported products to give your new GPU a personalised feel. Powered by the AMD RDNA2 Architecture, the AMD Radeon™ RX 6800 series graphics cards power a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with powerful enhanced new compute units, AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture. The AMD Radeon 6800 Master is engineered to deliver ultra-high frame rates and serious 4K resolution gaming.

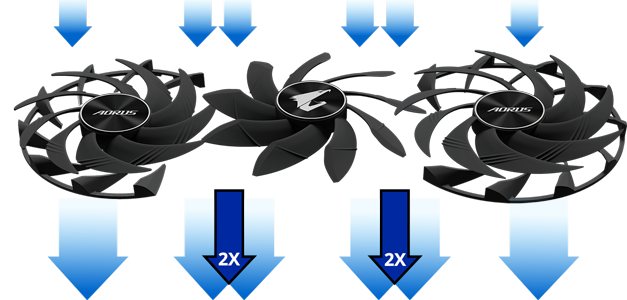

Brilliant Performance Needs Brilliant Cooling The Gigabyte AORUS Radeon RX6800 Master features the max-covered cooling system, featuring 3x 100mm unique bladed stack fans with an updated windclaw design and alternate spinning blades to increase static air pressure and allowing for full heatsink coverage.

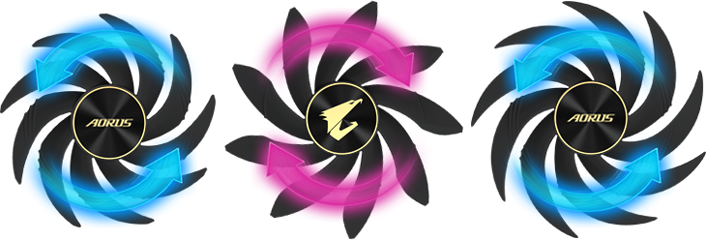

Alternate Spinning Fans By opting to spin the central fan in the opposite direction, the turbulence of adjacent fans is reduced whilst increasing air pressure to give you better throughput.
Wind Claw Design This clever intuitive design, reinforces and channels the airflow downwards to ensure full heatsink coverage.

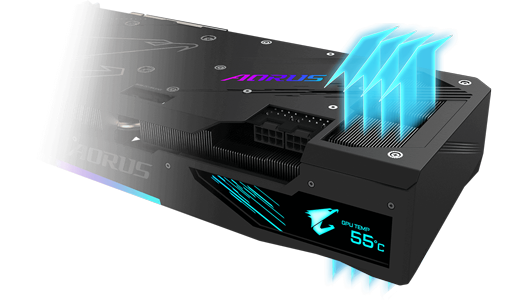

Screen CoolingAorus have implemented an extended heatsink to allow the airflow to pass directly though to provide better overall heat dissipation.

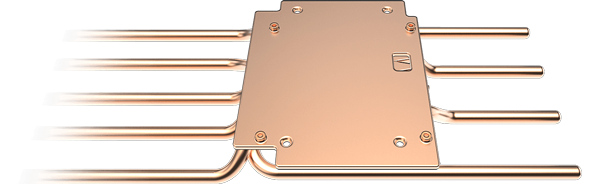

Vapour Chamber & Heatpipe With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
Create Ambience inside your PC

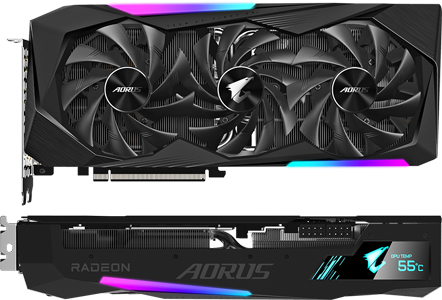

RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.
LED Edge ViewA handy LCD monitor has been added to the edge of the GPU and can display various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring, or even custom images (supports jpg. bmp and png file types) even custom text labels and gifs. You have the opportunity to really make this card your own.
Additional Performance Features

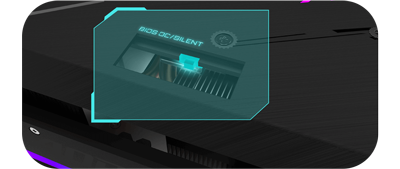

Dual BIOSSwitch between OC and Silent mode, to provide a unique personalised experience.

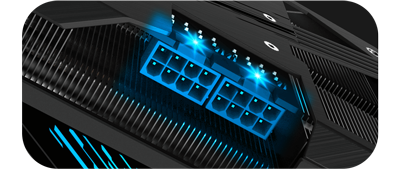

Power IndicatorsFlashing lights above the power connections will let gamers know if there are any issues with the power supply.
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6900 XT||RX 6800 XT||RX 6800||RX 6700 XT||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA2||RDNA||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,015 MHz||2,015 MHz||1,815 MHz||2,321 MHz||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,250MHz||2,250 MHz||2,105 MHz||2,581 MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||12GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6800|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Video Memory (VRAM)|
|Memory Clock||16000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||512 GB/s|
|Memory Data Rate|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE Stack 3X with RGB|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|AMD CrossFire Support|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)|
|Peak Single Precision Compute Performance (FP32)|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||650 W|
|Maximum GPU Temperature|
|Low Profile Support||N/A|
|Model Number||GV-R68AORUS M-16GD|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 7 days
Date Issued: 18th Nov 2020
2020 has been a trying year in more ways than one, yet gaming enthusiasts can take solace in the relentless release schedule of cutting-edge hardware in recent months. It all started with Nvidia setting lofty new standards with hard-hitting Ampere GPUs, Microsoft and Sony have since introduced a wave of eagerly anticipated next-generation games consoles, and if all that wasn't enough, AMD is today chiming in with the Radeon RX 6000 Series.
