Scan code: LN116143 Manufacturer code: GV-R67XTAORUS E-12GD

Gigabyte AORUS AMD Radeon RX 6700 XT ELITE 12GB Graphics Card

Gigabyte AORUS Radeon RX 6700 XT ELITE 12GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 2560 Streams, 2622MHz Boost

Thumbnail 1 : Gigabyte AORUS AMD Radeon RX 6700 XT ELITE 12GB Graphics Card Thumbnail 2 : Gigabyte AORUS AMD Radeon RX 6700 XT ELITE 12GB Graphics Card Thumbnail 3 : Gigabyte AORUS AMD Radeon RX 6700 XT ELITE 12GB Graphics Card Thumbnail 4 : Gigabyte AORUS AMD Radeon RX 6700 XT ELITE 12GB Graphics Card
Scan code: LN116143 Manufacturer code: GV-R67XTAORUS E-12GD
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

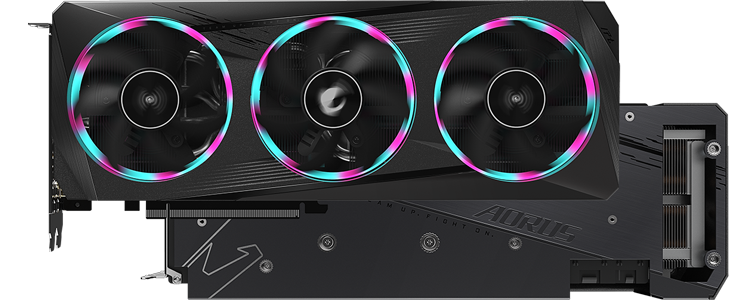

Gigabyte AORUS Radeon RX 6700 XT ELITE RDNA2 Graphics Card

Aorus 6700 XT

Power, Performance and Beautiful Aesthetics The AORUS AMD Radeon RX 6700 XT ELITE brings max-covered cooling to the latest AMD RDNA2 Powerhouse GPUS, giving you the cooling you need to keep this top-shelf GPU under control. This powerhouse GPU emanates a futuristic NeonPunk style and features a digitally constructed lighting design allowing you to use Gigabyte RGB Fusion 2.0 to customise and synchronise your lighting across other supported products to give your new GPU a personalised feel. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, features 40 powerful enhanced Compute Units, the all-new AMD Infinity Cache and 12GB of dedicated super-fast GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse 1440p resolution gaming. Face unprecedented immersion with the RX6700 XT and never look back.

2560Streams

TBCCore Clock

2622 MHzBoost Clock

12GBGDDR6 Memory

Please Note

Speeds and Specifications will be added as they are made available.

WindForce 3X Cooling System

Brilliant Performance Needs Brilliant Cooling The Gigabyte AORUS RX 6700XT Elite features the WindForce 3X cooling system, featuring 3x 80mm unique bladed fans alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

fq

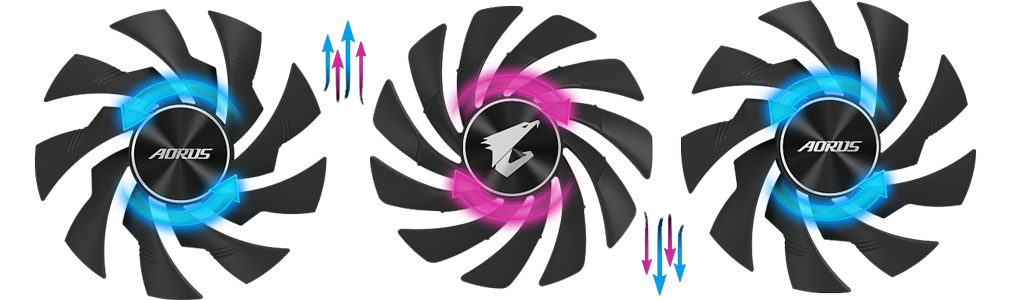

Alternate Spinning Fans By opting to spin the central fan in the opposite direction, the turbulence of adjacent fans is reduced whilst increasing air pressure to give you better throughput.

3DactiveFan

3D Active technology3D active fan technology provides semi-passive cooling; keeping the fans still when the GPU is under low load (demand), once a heavy task is initiated the fans will spin-up to provide maximum cooling performance, letting you work without distraction and play without worry. located on the side of the GPU an LED indicator will always let you know the current fan status.

...

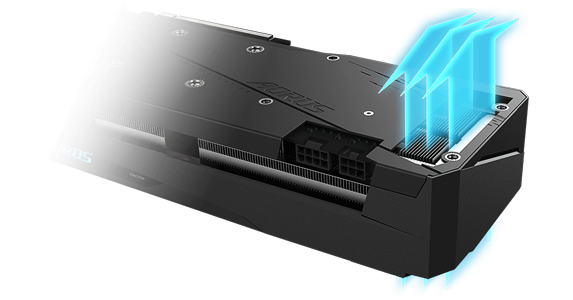

Screen CoolingAorus have opted to implement an extended heatsink to allow the airflow to pass directly though to provide better overall heat dissipation.

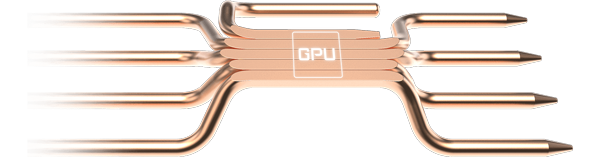

Direct Touch HeatpipesThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

Create Ambience inside your PC

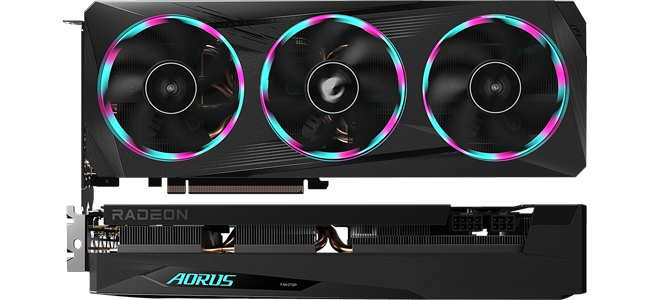

RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.

4K Recording

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6700 XT
Edition AORUS ELITE
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 2560
Core Clock
Boost Clock 2622 MHz
Video Memory (VRAM)
Memory Size 12GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 192 Bit
Memory Bandwidth 384 GB/s
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design WINDFORCE 3X w/ RGB Fusion 2.0 + Alternate Spin
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 2 x DisplayPort 1.4a
  • 2 x HDMI 2.1
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 1 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 650 W
Maximum GPU Temperature
Physical
Width 2.75 Slot
Low Profile Support N/A
Dimensions 296 x 114 x 56 mm
Package Type Retail
Additional Information
Scan Code LN116143
Model Number GV-R67XTAORUS E-12GD
GTIN 4719331308704
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
