Scan code: LN107974 Manufacturer code: H470 AORUS PRO AX

Gigabyte Intel H470 AORUS PRO AX ATX Motherboard

Gigabyte AORUS PRO AX, Intel H470, S 1200, DDR4, SATA3, 2x M.2, CrossFire, WiFi6, 2.5GbE, USB 3.2 A+C, ATX

Thumbnail 1 : Gigabyte Intel H470 AORUS PRO AX ATX Motherboard Thumbnail 2 : Gigabyte Intel H470 AORUS PRO AX ATX Motherboard Thumbnail 3 : Gigabyte Intel H470 AORUS PRO AX ATX Motherboard Thumbnail 4 : Gigabyte Intel H470 AORUS PRO AX ATX Motherboard
Scan code: LN107974 Manufacturer code: H470 AORUS PRO AX
£169.99Item overdue since 21 September 2020
Pre order
From £14.17 / month (APR 0%)
Monthly Payment: £14.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £169.99
Total inc. interest: £169.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

H470 AORUS PRO AX Intel 10th Generation Motherboard from Gigabyte

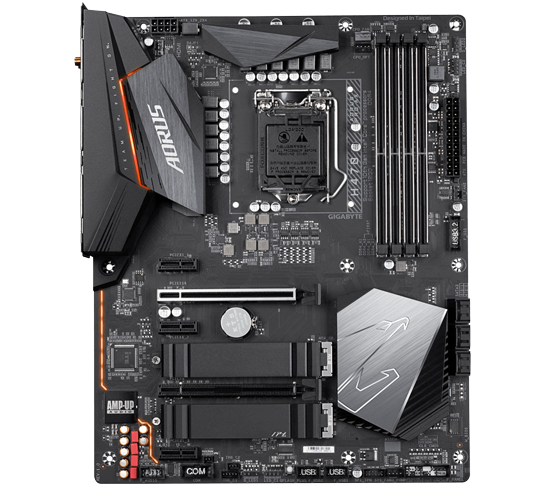

Gigabyte H470 AORUS PRO AX ATX Motherboard

Shards of the Void; Borders Disappear Fusing different materials and surface textures. The H470 AORUS PRO AX motherboard from Gigabyte features a multi-dimensional design that seemingly cuts through space and time. Providing gaming enthusiasts alike with everything they need to power up their system with Intel's latest 10th Generation Processors and an LGA 1200 socket. This ultra durable AORUS motherboard from Gigabyte offers a range of features with Dual M.2 connectors and heatsink thermal guard solutions, you'll be assured your M.2 SSD devices won't bottleneck from high speeds. Along with expert Smart Fan 5 cooling, onboard Intel® Wi-Fi 6 and an array of connectivity – all ready for any task you need to conquer. Illuminate your PC with the multi-zone RGB lighting that can be customized via RGB FUSION 2.0, and is fully compatible with additional LEDs and RGB LED strips, so you can add more shine to your build.


Please note: This H470 motherboard supports 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

Intel H470Chipset

LGA 1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

Enhanced Power-Hungry and Energy-Sensitive Components

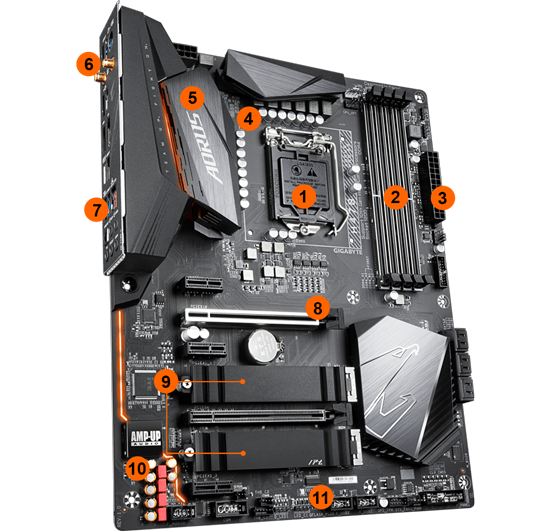

AORUS H470 PRO AX Breakdown

FEATURES OF THE H470 AORUS PRO AX 1. Supports 10th Gen Intel® Core™ CPUs   |   2. Dual Channel DDR4 / Durable Memory Armor   |   3. Solid Pin Connectors
4. Direct 11+1 Phases Digital VRM Solution   |   5. Advanced Thermal Design, Enlarged Heatsink & Thermal Conductivity Pad
6. Intel® WiFi 6 802.11ax 2T2R & BT5   | &emsp 7. Intel® 2.5 GbE LAN   |   8. Ultra Durable PCIe Armor, Running 1x16
9. Two M.2 Connectors with Thermal Guards, NVMe PCIe 3.0 x4 & X2 M.2 Slots
10. AMP-UP Audio / ALC 1220-VB Audio Codec / High-End Audio, WIMA Capacitors   |   11. Q-FLASH Onboard Button

Next Generation Connectivity and Integrated Durable Armor

Connectivity

Intel® Wi-Fi 6 Ready   |   USB 3.2 Gen2 Type-C™   |   Intel® 2.5 GbE LAN   |   Q-Flash Plus USB Port With an integrated base plate, Gigabyte Motherboards give users a strong foundation to build their Gaming PCs. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. H470 AORUS PRO AX provides all next generation network, storage, and WI-FI connectivity to keep you up to speed. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz – better signal strength compared to traditional antenna design.

AORUS H470 PRO AX Performance like no other

Performance

The maximum memory capacity on the H470 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

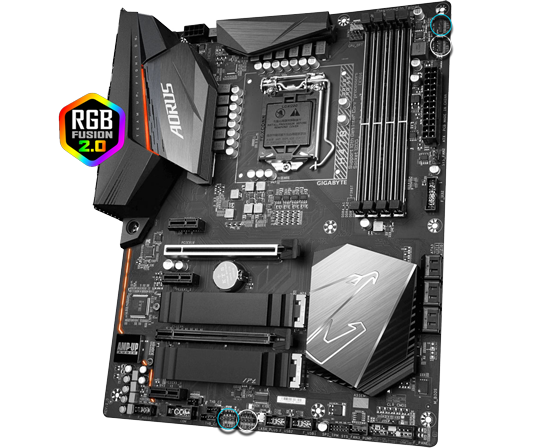

Unleash a Multi-Zone Light Show Design

RGB Lighting

CUSTOMIZE LIGHTING ACROSS ALL SUPPORTED DEVICES Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

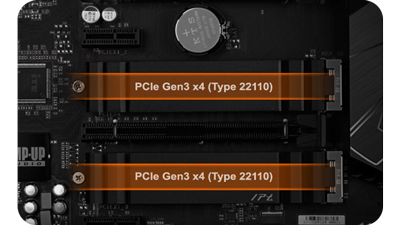

Boost your System with Dual M.2 Slots

Dual M.2 Slots

UP TO 32 GB/S WITH NVME Gigabyte Gaming Motherboards are focused on delivering M.2 technology, Dual PCIe Gen3 x4 M.2 to enthusiasts who want to maximize their system’s potential.

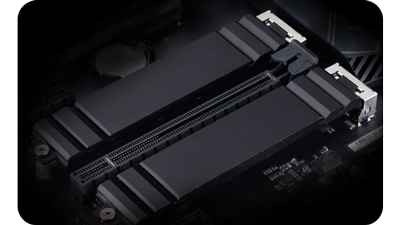

AORUS M.2 Thermal Guard

Thermal Guard

Don't let temperatures rise! With durability in mind, Gigabyte provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

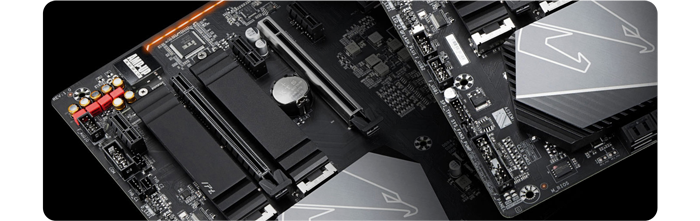

Ultra Durable and High Quality Manufacturing Process

Durable Motherboard Design

Ultra PCIe ArmorStainless Steel Design

Double LockingPatented Design Bracket

Solid Pin PowerPlated Connectors

Q-Flash PlusBIOS Auto Button

Gigabyte is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the H470 AORUS PRO AX motherboard and reinforce every slot to make each of them solid and durable. The innovative one piece stainless steel shielding design from Gigabyte reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. H470 AORUS PRO AX motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. With Gigabyte Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.

Advanced Thermal Solution with Smart Fan 5 Performance

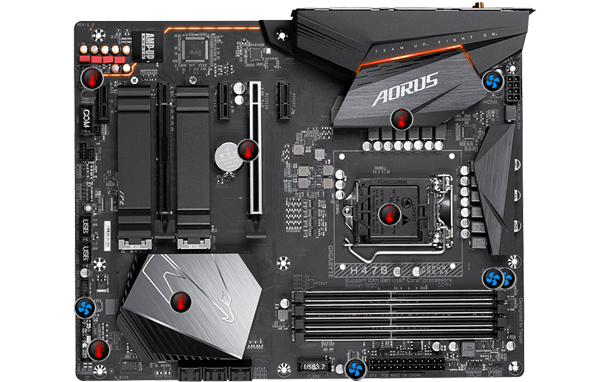

Smart Fan 5

SIX TEMPERATURE SENSORS   |   FIVE HYBRID FAN HEADERS Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the fan curve to define corresponding fan speeds.

Control every Aspect of your Motherboard

Gigabyte BIOS & APP CENTERGood software goes hand in hand with perfect hardware. H470 AORUS PRO AX bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

User InterfaceAll new EASY MODE shows important hardware information all on one page.

FavouritesAdd constantly used items into the My Favorites menu for quick access.

StorageShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive LoadlineClearly show each load line calibration setting in a innovative curve graph.

app

APP CENTERGigabyte's APP Center is a useful portal of all Gigabyte Motherboards utilities and drivers, you can choose any utility you want to install from APP Center and keep updated with the latest utilities and drivers version.

easytune

EasyTune™Gigabyte's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGigabyte's System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour.

Specifications
Core Specifications
Edition AORUS PRO AX
Form Factor ATX
CPU Socket 1200
Chipset Intel H470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB (RGBW) LED Strip Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)

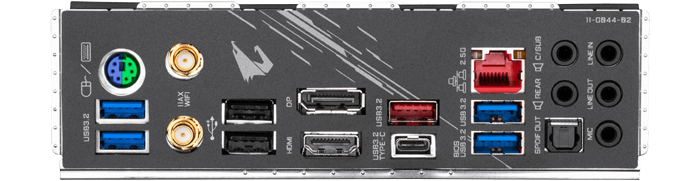

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107974
Model Number H470 AORUS PRO AX
GTIN 4719331808808
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
