Gigabyte AORUS NVIDIA GeForce RTX 3090 24GB XTREME Ampere Graphics Card
Gigabyte AORUS NVIDIA GeForce RTX 3090 XTREME 24GB GDDR6X Ray-Tracing Graphics Card, 10496 Core, 1410MHz, 1860MHz Boost
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

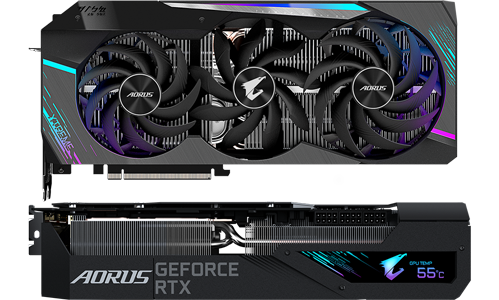

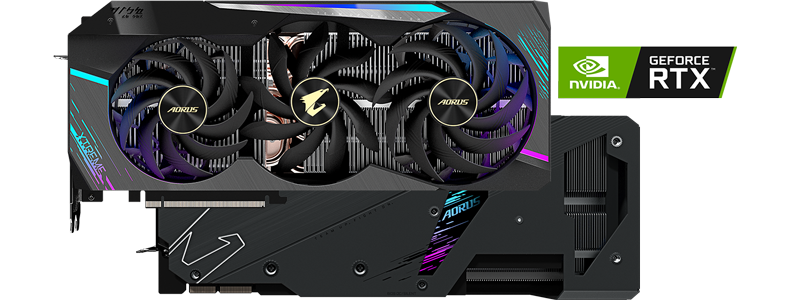

Gigabyte AORUS RTX 3090 Xtreme Ampere Graphics Card
The Next Generation Prepare yourself for an unforgettable gaming experience with the Gigabyte AORUS RTX 3090 Xtreme GPU, powered by the all-new Flagship NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. The RTX 3090 Xtreme features a jaw dropping 24GB of GDDR6X memory, the renowned Max Covered cooling system to keep all that power in check with its alternate spinning unique bladed fans to give you whisper quiet unprecedented high efficiency heat dissipation. A protective metal backplate not only enhances the aesthetics of the card but also enhances the structure to provide full protective coverage and with support for RGB Fusion 2.0 you have access to 6.7M customisable colour options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices. Welcome to the future of gaming with GeForce 3090.
Brilliant Performance Needs Brilliant Cooling The Gigabyte AORUS GeForce RTX 3090 Xtreme features the max-covered cooling system, featuring 2x 115mm and 1x 100mm unique bladed stack fans with an updated windclaw design allowing the air airflow to complete cover the heatsink.

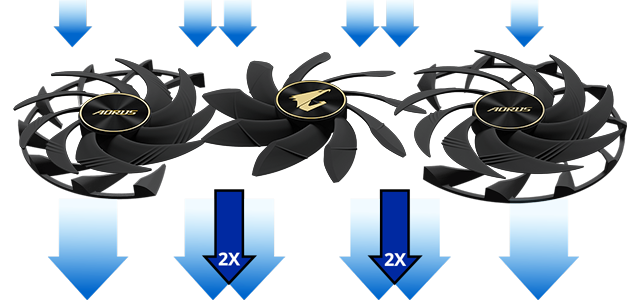

Alternate Spinning Fans by opting to spin the central fan in the opposite direction, the turbulence of adjacent fans is reduced whilst increasing air pressure to give you better throughput.
Wind Claw Design This clever intuitive design, reinforces and channels the airflow downwards to ensure full heatsink coverage.
Screen CoolingAorus have opted to implement an extended heatsink to allow the airflow to pass directly though to provide better overall heat dissipation.
Vapour Chamber & HeatpipeWith direct contact to the GPU and VRAM, the large copper plate combined with the composite heat pipes allows the 30 Series GPUs to efficiently transfer heat generated from the interior cores to the heat sink.
Create Ambience inside your PC
RGB FUSION 2.0With 16.7M customisable color options and numerous lighting effects, you can choose lighting effects or synchronise with other compatible AORUS devices.
LED Edge ViewA handy LCD monitor has been added to the edge of the GPU and can display various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring, or even custom images (supports jpg. bmp and png file types) even custom text labels and gifs. You have the opportunity to really make this card your own.
Go Big or Go Home

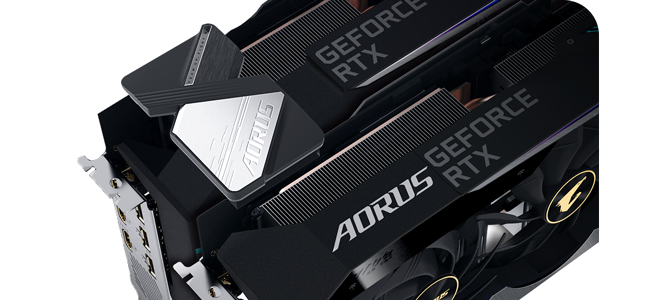

Nvidia NVLink SupportSupport for NVIDIA NVLink™ (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate scalable performance experience in your gaming.
NVIDIA Ampere Architecture
2nd Gen RT Cores2X THROUGHPUT
3rd Gen Tensor CoresUP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
Max FPS. Max Quality. Powered by AI. NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. It’s On.Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
Victory Measured in MillisecondsNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
Up Your Creative GameTake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
Stream Like a Boss Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DirectX 12 Ultimate offers features like ray tracing and variable rate shading
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GamingStep up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Virtual RealityTake your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SyncGet smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
NVIDIA GeForce Graphics Card Specifications
|GeForce RTX 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications|
|Model||RTX 3090||RTX 3080||RTX 3070||RTX 3060 Ti||TITAN RTX||RTX 2080 Ti||RTX 2080 Super||RTX 2080||RTX 2070 Super||RTX 2070||RTX 2060 Super||RTX 2060||GTX 1080 Ti||GTX 1080||GTX 1070 Ti||GTX 1070||GTX 1660 Ti||GTX 1660 Super||GTX 1660||GTX 1650 Super||GTX 1650||GTX 1060 6GB||GTX 1060 3GB||GTX 1050 Ti||GTX 1050|
|Reference Base Clock||1,400MHz||1,440MHz||1,500MHz||1,410MHz||1,350 MHz||1,350 MHz||1,650 MHz||1,515 MHz||1,605 MHz||1,410 MHz||1,470 MHz||1,365 MHz||1,480 MHz||1,607 MHz||1,607 MHz||1,506 MHz||1,500 MHz||1,530 MHz||1,530 MHz||1,530 MHz||1,485 MHz||1,506 MHz||1,506 MHz||1,290 MHz||1,354 MHz|
|Reference Boost Clock||1,700 MHz||1,710 MHz||1,730 MHz||1,665MHz||1,770 MHz||1,545 MHz||1,815 MHz||1,710 MHz||1,770 MHz||1,710 MHz||1,650 MHz||1,680 MHz||1,582 MHz||1,733 MHz||1,683 MHz||1,683 MHz||1,770 MHz||1,785 MHz||1,785 MHz||1,725 MHz||1,665 MHz||1,708 MHz||1,708 MHz||1,392 MHz||1,455 MHz|
|Memory||24GB GDDR6X||10GB GDDR6X||8GB GDDR6||8GB GDDR6||24GB GDDR6||11GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||6GB GDDR6||11GB GDDR5X||8GB GDDR5X||8GB GDDR5||8GB GDDR5||6GB GDDR6||6GB GDDR6||6GB GDDR5||4GB GDDR6||4GB GDDR5||6GB GDDR5||3GB GDDR5||4GB GDDR5||2GB GDDR5|
|Chipset||GeForce RTX 3090|
|Manufacturing process||8 nm|
|Cores & Clocks|
|Core Clock||1410 MHz|
|Boost Clock||1860 MHz|
|Video Memory (VRAM)|
|Memory Clock||19500 MHz|
|Memory Bus||384 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X Stack w/ RGB Fusion 2.0 + Alt. Spin|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16)|
|GeForce VR Ready||Yes|
|Multi-Way Graphics Support||2-Way NVLink|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Real-Time Ray Tracing||Yes|
|NVIDIA RT Cores||82|
|NVIDIA Tensor Cores||328|
|Power & Thermals|
|Graphics Card Power Connectors||3 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||850 W|
|Maximum GPU Temperature||93 °C|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Dimensions||319 x 140 x 70 mm|
|Model Number||GV-N3090AORUS X-24GD|
