Scan code: LN117548 Manufacturer code: GV-N307TAORUS M-8GD

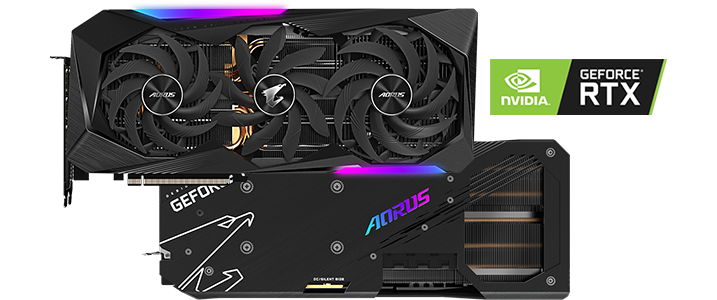

Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti 8GB MASTER Ampere Graphics Card

Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti MASTER 8GB GDDR6X Ray-Tracing Graphics Card, 6144 Core, 1875MHz

Thumbnail 1 : Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti 8GB MASTER Ampere Graphics Card Thumbnail 2 : Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti 8GB MASTER Ampere Graphics Card Thumbnail 3 : Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti 8GB MASTER Ampere Graphics Card Thumbnail 4 : Gigabyte AORUS NVIDIA GeForce RTX 3070 Ti 8GB MASTER Ampere Graphics Card
Scan code: LN117548 Manufacturer code: GV-N307TAORUS M-8GD
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

MAX-Covered Cooling

The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.


Wind Claw Design

Reinforce and channel the airflow to completely cover the heat sink.

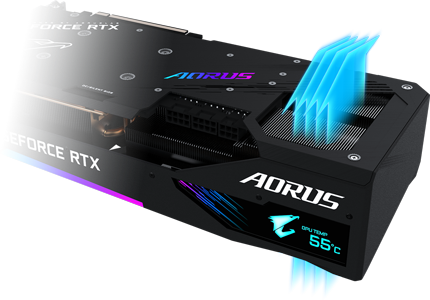

Screen Cooling

Extended heatsink design allows air flow to pass through, providing better heat dissipation.


Angular Fin Design

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.


Alternate Spinning

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.


Vapor Chamber and Heat Pipe

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.


Double Ball Bearing

The double ball bearing structure has better heat endurance and efficiency than sleeve structure.


3D Active Fan

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.


LCD Edge View

The LCD monitor not only display graphics card information, but also various favourite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.

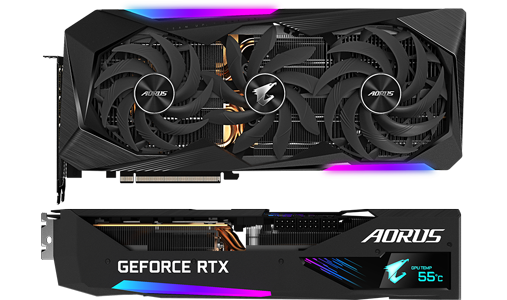

RGB Fusion 2.0

The LCD monitor not only display graphics card information, but also various favourite texts, pictures and GIF. You can also adjust lighting effects through RGB FUSION 2.0 software.


6 Outputs

You can choose three HDMI or three DP 1.4a for your monitors without any adaptors.


Dual BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.


Protective Metal Backplate

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.


Power Indicators

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.


Extreme Durability and Overclocking

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.


Friendly PCB

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.


Sync with One Click

There are various modes you can select from and easily achieve RGB synchronization with just one single click.


Individual Lighting Controls

An easy way to customize the colours and the lighting effects individually just the way you want.

Features
• MAX-Covered cooling.
• LCD edge view.
• 6 video outputs.
• RGB Fusion 2.0.
• Protection metal back plate.
• 4 years warranty.
Specifications
Key Specifications
Chipset GeForce RTX 3070 Ti
Edition AORUS MASTER
Manufacturing process 8 nm
Microarchitecture Ampere
Cores & Clocks
Cores 6144
Core Clock
Boost Clock 1875 MHz
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6X
Memory Clock 19000 MHz
Memory Bus 256 Bit
Cooling
Cooling Solution Tri Fan (3)
Cooler Design
Included/Fitted Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 3 x DisplayPort 1.4a
  • 1 x HDMI 2.0
  • 2 x HDMI 2.1
Visuals
GeForce VR Ready Yes
Multi-Way Graphics Support
Microsoft DirectX Support 12 API
HDCP Ready Yes
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Ray-Tracing
Real-Time Ray Tracing Yes
NVIDIA RT Cores
NVIDIA Tensor Cores
RTX-OPS
Rays Cast
Power & Thermals
Graphics Card Power Connectors
  • 1 x 6-pin PCIe
  • 2 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 850 W
Maximum GPU Temperature 93 °C
Physical
Width 2.9 Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 324 x 142 x 70 mm
Package Type Retail
Additional Information
Scan Code LN117548
Model Number GV-N307TAORUS M-8GD
GTIN 4719331309336
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
Aorus
Telephone:
08442449999
