Scan code: LN107180 Manufacturer code: Z490 AORUS MASTER

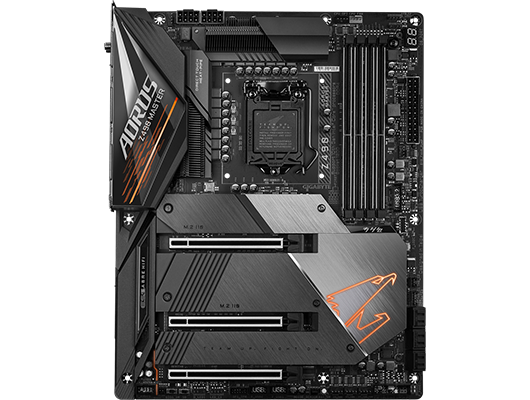

Gigabyte Intel Z490 AORUS MASTER ATX Motherboard

Gigabyte AORUS MASTER, Intel Z490, S 1200, DDR4, SATA3, 3x M.2, SLi/CrossFire, 2.5GbE, ax WiFi/BT5.1, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte Intel Z490 AORUS MASTER ATX Motherboard Thumbnail 2 : Gigabyte Intel Z490 AORUS MASTER ATX Motherboard Thumbnail 3 : Gigabyte Intel Z490 AORUS MASTER ATX Motherboard Thumbnail 4 : Gigabyte Intel Z490 AORUS MASTER ATX Motherboard
Scan code: LN107180 Manufacturer code: Z490 AORUS MASTER
£369.98
Order now and receive it between 1st Dec and 7th Dec
From £17.76 / month (APR 14.9%)
Monthly Payment: £33.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £369.98
Total inc. interest: £398.57
Monthly Payment: £17.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £369.98
Total inc. interest: £426.20
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 1st Dec To 7th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

AORUS MASTER Z490 ATX Motherboard from Gigabyte

aorus master z490

TAKE YOUR PC TO A NEW LEVEL OF GAMING Take on any task with ease with the AORUS MASTER Z490 motherboard. This all-new high-end component offers the power and connectivity your PC deserves so you can upgrade your system with Intel's latest 10th Generation CPUs (with an LGA 1200 socket). It also provides support for Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors and Intel® Celeron® processors. Any PC build is possible with this impressive motherboard and the array of features it has to offer. Utilise the power of DDR4 RAM along with expert cooling and a range of I/O ports that are ready for any task you need to complete. Add style to your rig with the multi-zone RGB lighting that can be customized with RGB FUSION 2.0, and is compatible with LED strips so you can illuminate your PC to impress and stand out.

Intel® Z490Chipset

10th Generation Intel®Compatible CPUs

LGA 1200CPU Socket

ATXForm Factor

Efficient Cooling for High-End Systems

aio monoblock

Fins-Array IIFins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that need compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance. Heat flow that goes through fins will enter from the leading edge of the louver and is then directed by other louvers or fins. This louver directed flow can greatly improve heat transfer performance. Because of pressure difference and flow separation, a circulation zone will be formed between louvered fins. This circulation will cause flow entrain and eject in the vortice form which improves thermal efficiency.

heatpipe ii

Direct-Touch Heatpipe IIWith an extra large 8mm heatpipe and made from a new manufacturing process to narrow the gap between the heatpipe and heatsink, new Direct-Touch Heatpipe II greatly helps transfer heat on MOSFETs.

thermal guard

AORUS M.2 THERMAL GUARD IIWith durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it gets too high.

noise detect

NOISE DETECTIONWith the new Noise Detection function, you can monitor the noise level of all devices including fans, CPU coolers, graphics card, etc, in real time. You can also determine how fast your fan speed needs to be. The included noise detection cable doesn't include any sound recording functions, it simply detects sound pressure while protecting your privacy.

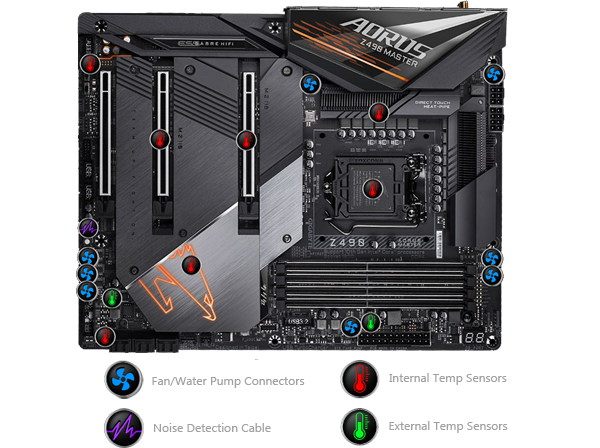

headers

8X Hybrid FAN HEADERWith Smart Fan 5 you can ensure that your gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Harness the Power your PC Deserves

4K Recording

A SUPERIOR DESIGN FOR POWERTo unleash the full potential of new Intel 10th Gen CPUs, the motherboard requires the finest CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS MASTER is a true beast among motherboards.

Stable and Efficient Power for your Rig

4K Recording

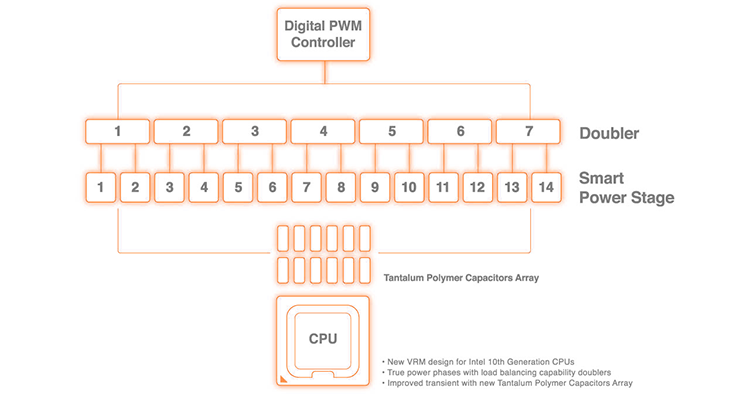

14 PHASE DIGITAL POWER DESIGNThis innovative motherboard uses a pure digital CPU power design which includes a digital PWM controller with Smart Power Stages, and is capable of providing 90A of power from each phase for a total of 1260A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors provide incredible precision and stability in delivering power to the motherboard's most power-hungry components, allowing you to get the ultimate overclocking performance from the new 10-core 10th Gen Intel® Core™ processors.

Intricate Design for Expert Performance

4K Recording

INTELLIGENT POWER ARCHITECTUREIn order to unleash the full performance of the new high core count CPUs, GIGABYTE uses true power phases, a fully load-balanced VRM design with doublers, and a tantalum polymer capacitor array. By using doublers, the power design ensures that the high power draw of the CPU is fully balanced across all MOSFETs to achieve better efficiency and lower temperatures. In contrast, MOSFETs in competitors' traditional parallel power designs are not as well balanced which leads to lower efficiency and higher temperatures. For sudden changes between idle and high load states from the CPU, GIGABYTE utilizes a tantalum polymer capacitor array directly under the CPU socket as a buffer to improve transient response and stability under high CPU frequencies. By using brand new VRM design and Tantalum Polymer Capacitor Array, Z490 AORUS motherboard transient response and stability is highly improved under overclocking and heavy loading condition.

Handle Demanding Tasks with Ease

2X COPPER PCBGIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

4K Recording

Excel your Memory for Strong Performance

Support for DDR4 XMP Up to 4800MHz and BeyondAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module. Please see the complete validated memory support list. Product features may vary by model.

pcie4

PCIE 4.0 HARDWARE DESIGN

pcie3

Triple NVMe M.2 PCIe SSDs in RAID 0 SupportZ490 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

Versatile Connectivity Options

INTEL® 2.5G LAN | WIFI 6 802.11AX | AORUS ANTENNAA Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

4K Recording

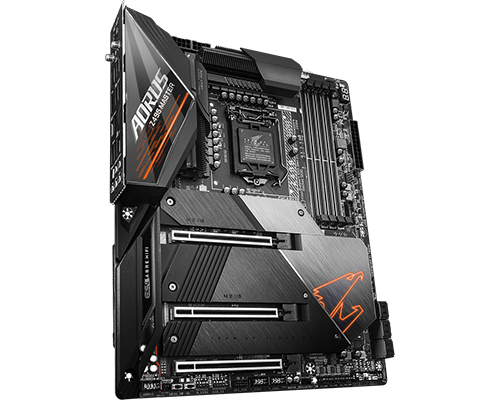

Illuminate your PC with Beautiful Colour

rgb

RGB FUSION 2.0Now offering more LED customizations than ever before, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, you have complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION SOFTWAREWith an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Immerse yourself into any Environment

hi res

Hi-Res AudioThis impressive motherboard is Hi-Res Audio certified, meaning that it is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

ess

ESS SABRE reference DAC ES9118 Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

true High-Fidelity

True High-Fidelity Music (Realtek ALC1220-VB)Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

capacitors

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system.

txc osicllator

Precision Audio Stream (TXC OSCILLATOR)Provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.

Durability for Years to Come

Industry Leading Ultra Durable™ PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

anti bending

Ultra Durable™ Memory ArmorAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

pins

Solid Pin Power ConnectorsZ490 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. Z490 AORUS MASTER bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition AORUS MASTER
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi/NVLink
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3
  • 2 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x BIOS switches
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)

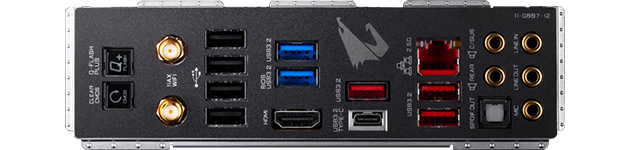

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN107180
Model Number Z490 AORUS MASTER
GTIN 4719331808327
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
