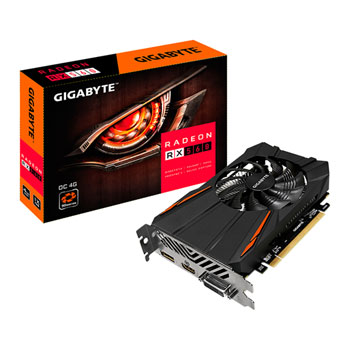

Gigabyte AMD Radeon RX 560 OC 4GB Graphics Card
4GB Gigabyte Radeon RX 560 OC, 14nm Polaris, 1024 Streams, 1189MHz Boost, 7000MHz GDDR5, DP/HDMI/DVI-D DL
The custom-designed cooler introduced a 90mm unique-blade fan along with the aluminium base, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
Ultra Durable Components
Engineered with the high-quality chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Smooth and Crisp Visual
Equipped with one Dual-link DVI-D, one DP, and one HDMI ports, the card can support 3 displays and deliver smooth 4K video playback.
In Total Command
AORUS Graphics Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
With a simple click on AORUS Graphics Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge. Features • Powered by Radeon RX 560.
• Integrated with 4GB GDDR5 128bit memory.
• 90mm Unique Blade Fan Design.
• One-click Super Overclocking.
• Supports HDMI [email protected] and DP [email protected]
• Hardware-accelerated H.265 encode/decode.
|Chipset||Radeon RX 560|
|Manufacturing Process||14 nm|
|Boost Clock||1189 (1199 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||7000 MHz|
|Memory Data Rate|
|Memory Bus||128 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Single Fan (1)|
|Cooler Design||GIGABYTE Custom 90mm Cooler|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||3 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||114.6 x 29.2 x 170 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- Return to base
- DOA Period:
- 14 days
- RTB Period:
- 36 months
- 0871 472 4747
Date Issued: 4th Jul 2017
AMD introduced the RX 500-series family of add-in graphics cards in April and May 2017. These cards are priced between Â£75 and £s;200 and therefore cover a large part of the mainstream graphics market. In this TekSpek we will take a closer look at the RX 560 GPU that retails from just £s;95.
