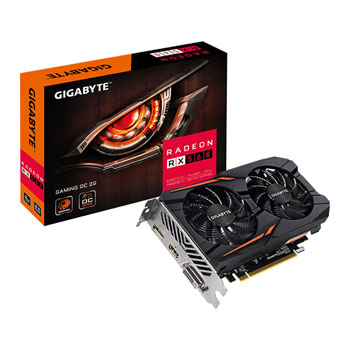

Gigabyte AMD Radeon RX 560 GAMING OC 2GB Graphics Card
2GB Gigabyte Radeon RX 560 Gaming OC, 14nm Polaris, 1024 Streams, 1287MHz Boost, 7000MHz GDDR5, DP/HDMI/DVI-D DL
The WINDFORCE 2X cooling system features two unique blade fans, heat pipe direct touch, 3D active fan functionality, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Combines both thermal conductivity and phase transition for efficiently managing the transfer of heat.
Heat Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU for enhanced thermal transfer.
Ultra Durable Components
Engineered with the high-quality chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Smooth and Crisp Visual
Equipped with one Dual-link DVI-D, one DP, and one HDMI ports, the card can support 3 displays and deliver smooth 4K video playback.
In Total Command
AORUS Graphics Engine
The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.
One-Click Super Overclocking
With a simple click on AORUS Graphics Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge. Features • Powered by Radeon RX 560.
• Integrated with 2GB GDDR5 128bit memory.
• WINDFORCE 2X with Blade Fan Design.
• One-click Super Overclocking.
• Supports HDMI [email protected] and DP [email protected]
• Hardware-accelerated H.265 encode/decode.
|Chipset||Radeon RX 560|
|Manufacturing Process||14 nm|
|Boost Clock||1287 (1300 in OC Mode) MHz|
|Memory Speed (Effective with DDR)||7000 MHz|
|Memory Data Rate|
|Memory Bus||128 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||3 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||111 x 37 x 190 mm|
