Scan code: LN110567 Manufacturer code: A520 Aorus Elite

Gigabyte AMD Ryzen A520 AORUS ELITE AM4 ATX Motherboard

Gigabyte A520 AORUS ELITE, AMD A520, S AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte AMD Ryzen A520 AORUS ELITE AM4 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen A520 AORUS ELITE AM4 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen A520 AORUS ELITE AM4 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen A520 AORUS ELITE AM4 ATX Motherboard
Scan code: LN110567 Manufacturer code: A520 Aorus Elite
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

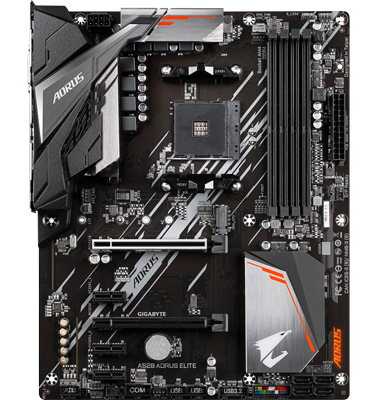

AORUS Elite A520 ATX Motherboard from Gigabyte

Aorus Elite A520

A Solid Foundation for Your System The AORUS Elite A520 Motherboard represents the efficiency, precision of the falcon, qualities that are exemplified in the finer details of AORUS design. Boasting support for the AMD 3rd generation Ryzen CPUs and packed with premium components that will deliver high-end reliability and performance for mainstream daily users and gaming enthusiasts. This feature filled motherboard accommodates 4x DRR4 DIMM slots with dual channel architecture, Ultra-fast NVMe PCIe M.2 Storage, Gigabyte exclusive Gaming LAN, a preinstalled I/O shield with Q-Flash Bios technology and whats more the AORUS Elite A520 houses 2x RGB LED Strip Headers and 2x ARGB LED Strip headers which when combined with Gigabytes powerful RGB Fusion 2.0 software allows you to customise your lighting aesthetics to suit you.

AMD A520Chipset

AM4CPU Socket

ATXForm Factor

Efficient and Effective Power Delivery

Power Phases

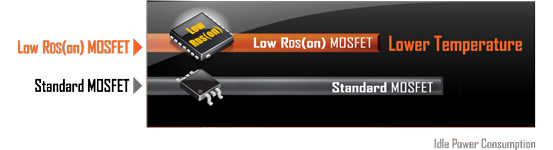

5+3 Pure Digital Power SolutionGIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Ready for High-Speed Storage?

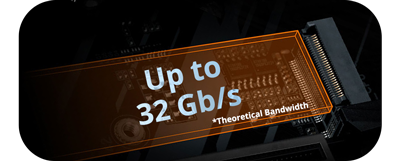

High Speed M.2

NVMe PCIe 3.0 x4 M.2 ConnectorAORUS Gaming motherbords are focused on delivering powerful M.2 Technology to enthusiasts who want to maximise their systems performance and potential.

Industry-Leading LAN Protection

Protection

Static Electricity and Surge ProtectionThe ICs used in Gigabyte motherboards boast up to 3x the ESD resistance levels than when compared to traditional ICs protecting your components from static electricity. The AORUS Elite also features special anti-surge ICs that keep your motherboard protected from power surges,ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Stay Cool under Demanding Loads

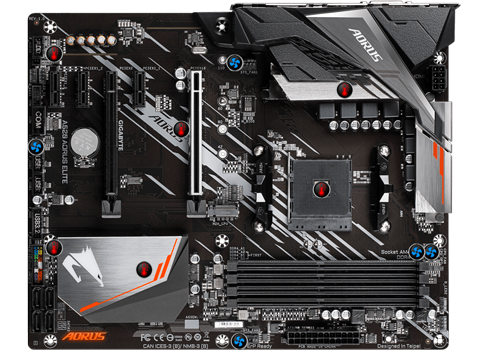

Smart Fan5
down

Fan / Water Pump Connectors

up

Internal Temperature Sensors

Smart Fan 5 TechnologyUsing Smart Fan 5 tech, ensures that consumers can enjoy heightend PC peformance whilst still maintaining those cool ideal temperatures. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Illuminate your PC with RGB Fusion 2.0

rgb

RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come

pcie armor

Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

pins

Solid Pin Power ConnectorsA520 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The A520 AORUS Elite has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

New User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

easytune

EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

fan 5

System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition AORUS ELITE
Form Factor ATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4733(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DVI-D
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN110567
Model Number A520 Aorus Elite
GTIN 4719331809812
