Scan code: LN104795 Manufacturer code: GMX-ABYSSMINI

GameMax Mini Abyss ARGB MicroATX Windowed PC Gaming Case

GameMax Mini Abyss, Black, MicroATX Chassis w/ Tempered Glass Window, 120mm ARGB Fan, USB 3.0, MicroATX/Mini-ITX

MORE INFO
MORE INFO
Thumbnail 1 : GameMax Mini Abyss ARGB MicroATX Windowed PC Gaming Case Thumbnail 2 : GameMax Mini Abyss ARGB MicroATX Windowed PC Gaming Case Thumbnail 3 : GameMax Mini Abyss ARGB MicroATX Windowed PC Gaming Case Thumbnail 4 : GameMax Mini Abyss ARGB MicroATX Windowed PC Gaming Case
Scan code: LN104795 Manufacturer code: GMX-ABYSSMINI
Order now and receive it by Monday, 4th July
£49.99
Add To Basket
Get it Saturday, 02 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Mini Abyss - Tempered Glass Micro-ATX Gaming Case from GameMax

game max mini abyss case

STEP INTO ANOTHER DIMENSION Discover a new level of case design with the GameMax Mini Abyss. This new Micro-ATX edition case offers exceptional looks and striking lighting, perfect for any gaming setup. The unique front panel is made using an infinity mirror with ARGB lighting, along with ventilation on both sides to provide direct airflow. Utilise room for up to six fans, along with a 240mm radiator on the front and top, and a 120mm radiator on the rear. Take control of your lighting with the ARGB hub and enable beautiful lighting effects to personalise your system. Show off your components with the tempered glass side panel, and utilise a wealth of ports on the I/O panel. In line with the GameMax ethos, this unique case offers style, performance, and the ultimate gaming experience.

Show off your High-End Components

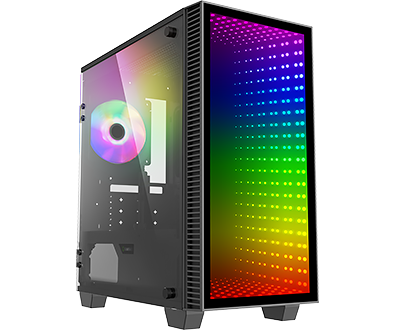

tempered glass side panel

SLEEK TEMPERED GLASS SIDE PANEL On the left side of the Mini Abyss case is a tempered glass side panel with a hinge mechanism. This allows you to show off your building skills and make your components easily accessible for changes or modifications so you'll always have that perfect setup.

Utilize Excellent Airflow Options

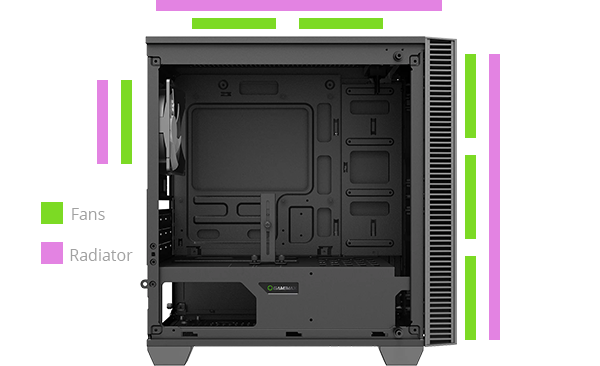

cooling

Exceptional space for fans and radiators With the GameMax Mini Abyss you can create a system with exceptional cooling options. Enjoy room to mount a total of six (120mm) fans, along with space to mount water cooling radiators on the front and top (Up to 240mm) and rear (120mm). Your case will have no problem cooling those high-end components. The Mini Abyss comes with an 120mm ARGB fan included on the rear of the case to kick-start your cooling.

Illuminate your Rig like No Other

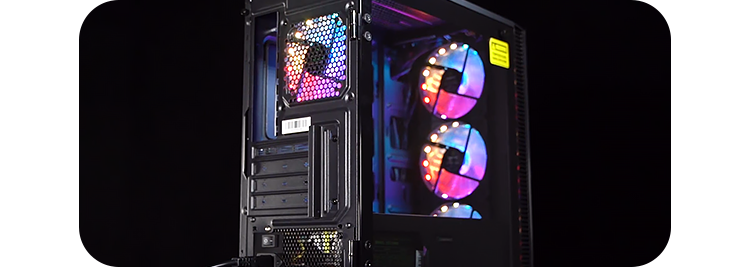

argb hub

INTEGRATED ARGB HUB Included inside the Abyss Mini is an ARGB PWM hub, connect up to five of your fans along with two ARGB strips and access eighteen colour modes manually or even more using your chosen motherboard software. Once it's all connected you can enjoy PWM auto speed which is controlled via the motherboard's PWM signal. Use the two RGB buttons (Mode & Brightness) on the case to adjust lighting and brightness from the case with ease. You can now take your colour control and customization to new levels with the included ARGB motherboard connection on the PWM hub. Simply connect the 3-Pin AURA from your motherboard and use your motherboard's dedicated software to sync your fans and infinity mirror exactly the way you like

Always Get the Greatest Performance

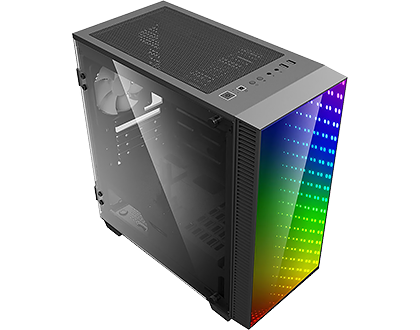

filters and maintenance

SUPER-EASY MAINTENANCELocated on the top of your Abyss Mini case is a magnetic dust filter, along with a full-length filter on the bottom. Easily remove them for easy cleaning and replace them so they can help to prevent dust from getting into your build whilst improving the performance of your PC.

Explore the Revolutionary Features of the Mini Abyss Case

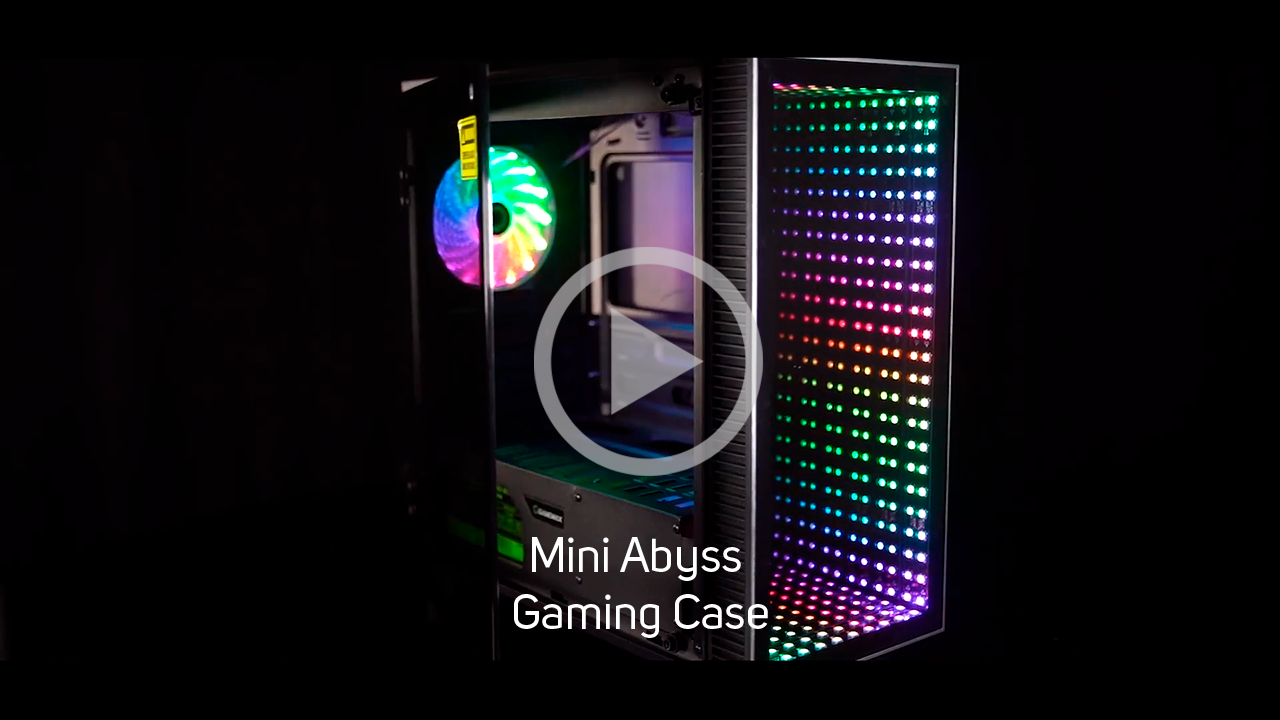

mini abyss video
Specifications
Core Chassis Specifications
Case Edition Mini Abyss
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays 6 x 120mm
Fans Included 1 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub Built-in Fan Controller
Dust Filters
  • Bottom
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/240mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 155 mm
Max GPU Card Length 310 mm
Cable Routing Space 25mm mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass/ABS (Front) + Tempered Glass (Side)
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters
  • Front Panel Accent Lighting
  • Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control Compatible with ASUS AURA Sync
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SPCC
Dimensions 198 x 417 x 398 (WxHxD mm)
Weight 5.9 kg (Approx)
Please Note
Additional Information
Scan Code LN104795
Model Number GMX-ABYSSMINI
GTIN 6931858771146
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
GameMax
GameMax Mini Abyss, Black, MicroATX Chassis w/ Tempered Glass Window, 120mm ARGB Fan, USB 3.0, MicroATX/Mini-ITX is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from GameMax? more like, GameLittle Hi and thank you for reading my review of the GameMax Mini Abyss. I bought this case as a birthday present for my girlfriend to introduce her to gaming which seemed like an amazing idea to do, until i was presented with problems. TL:DR; The case would look nice if the infinity mirror worked, there is little room for cable management and the aRGB hub looks like it's asus only. Pros: - Nice tempered glass side panel. - A great idea of the front panel with the infinity mirror. (if it works) Cons: - aRGB is very cheap and delicate and components may not arrive. - You may need an ASUS motherboard just to change the lightings. - Non-removable HDD cage. - Poor cable management ideas. aRGB Lightings; 1) The GameMax Kamikaze case (The case which i bought a week ago for my cousin) arrived with no aRGB hub controller and when i spoke to SCAN about it, they told me that their supplier wasn't able to supply me with a HUB for two weeks +. This can happen but this was a major component of the case and i was unable to power any of the fans with the RGB functionality. This case, GameMax Mini Abyss actually came with an aRGB hub which was pleasant for me as i could actually power the 1 x 120mm aRGB fan and the and the fancy infinity mirror on the front. When i was plugging in the 3 pin controllers on the aRGB hub, i almost snapped the aura sync connector as it's very poorly designed and the slightest touch would snap it. Once i managed to wire the case and have it up and running, i noticed the front infinity mirror turning on, amazing! but, the fan on the back had no lights on, powered and connected through the same aRGB hub. I loaded up MSI Mystic Light to hopefully manage the RGB's on the RAM, GPU and the infinity mirror. To no prevail, i couldn't change the lights on the infinity mirror to the rainbow setting (which the picture advertises!) and when i changed the colour to blue, it changed to red? then when i changed it to green, it went to dark blue? i don't think this is a mystic light issue as the RAM and GPU was changing colours and that's MSI and Corsair. Build Quality; 2) The build quality of the case is very low but for the value of the case, i'd say it's average. The HDD case is riveted on so you can't cable management nicely, you would require a modular PSU or else you will run into cable management issues. The holes in the case to manage the 24 pin connector and the CPU power are in the wrong places, leading to bending cables in unorthodox positions. The width of the case is slightly too small as the PCI-E connectors for the GPU power actually hits the side of the case. The buttons on the top of the case don't work even when plugged into the right headers. The air vents on the front of the case is no where near enough to have a decent airflow to create a positive air pressure within the case thus leading to stuffy hot temperatures hanging around in the case, you would need extra fans on the top just to give it justice. The tempered glass side panel is a nice addition to the case which feels nice and makes it nice and easy if you was to change anything within the case. Technical Support; 3) I wasn't very happy with the technical support at GameMax as they just told me that the problem i was having, shouldn't be happening and should just either deal with it or return it. I was half expecting them to make me check whether i plugged the headers in correctly, whether i was using updated software and etc. It was very poor of them to just say "contact your supplier and let them deal with it" even though they made the case and should be the 1# supporter.
Date published: 2020-08-05
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_104795, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

How to connect power to the hub? useless instructions!

Yes I know, from sata power but what position? the hub connector is totally flat so doesn't give you a clue regarding the way you have to plug the sata power into the hub!!!
Asked by: noquiero
You do not need to connect any SATA connections to the aRGB hub controller. There is a 3 pin connector that you plug in the AURA SYNC connector and in the JRGB (MSI ONLY) (Or whatever the aRGB header is on your motherboard) and that's what powers it. The fans are powered via the 4 pin HEADERS on the aRGB controller and the RGB functionality is powered by 3 pin on the same controller.
Answered by: Bisto14
Date published: 2020-08-06
