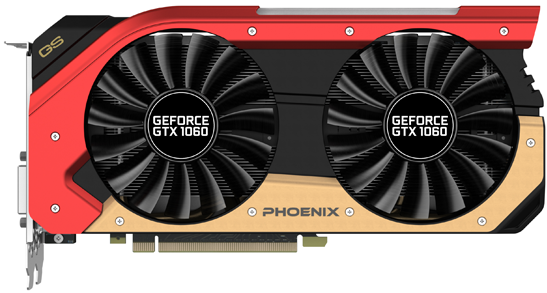

Gainward NVIDIA GeForce GTX 1060 6GB PHOENIX GS Graphics Card
Gainward GeForce GTX 1060 PHOENIX Golden Sample 6GB GDDR5 VR Ready Graphics Card, 1280 Core, 1620MHz GPU, 1847MHz Boost
Gainward - GeForce GTX 1060 - GPU - Graphics Card - Phoenix Golden Sample
GainWard Phoenix GS GeForce GTX 1060 GPU
The Golden Sample 1060 is Gainwards top Phoenix 1060 card. It boasts higher base and boost speeds then previous versions as well as bonus features, and as is standard on Gainward 1060s it is compact with clever game enhancing technologies. Despite this GTX 1060’s speeds being set above prior versions it is still capable of being pushed even further through overclocking. This card is great for users who like to benchmark or simply enjoy seeing every little detail in crisp condition.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady
GAINWARD GTX 1060 UNIQUE FEATURES
Added 1060 GPU Features
Extreme Silent: Extremely silent acoustics when 3D heavy loading. Gainward GeForce GTX 1060 Phoenix gets much quieter than founders edition board under full load operation
Extreme Cool: Extremely cool temperatures in 3D loading. Gainward 1060 Phoenix performs extremely lower GPU temperature than founders edition board under full load operation.
Extreme Power: With the GS version of the Phoenix 1060 the GPU has been pushed further through factory overclocking.

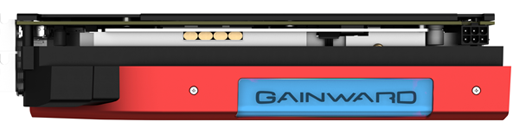

EMBEDDED 1060 GPU LOADING LED
Phoenix 1060 LED-Lighting
Embedded into the Phoenix GS GTX 1060 is an LED. This LED will light up when the gaming graphics card is loading, it also adds style and lighting to the inner of your gaming PC.

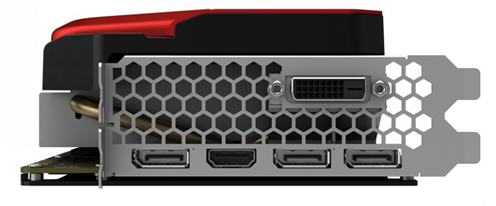

PHOENIX GS 1060 BRACKET DESIGN

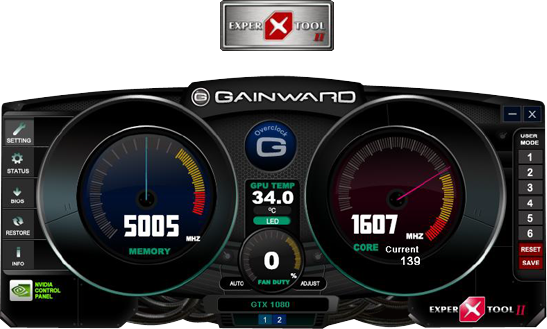

Phoenix GS Control Through Expertool
This is Gainward’s Expertool is a brand new, useful utility tool, allowing you to control various things on the Phoenix GS GTX 1060. Expertool grants flexible fan curve control as well as BIOS saving features for the powerful GeForce GTX 1060.

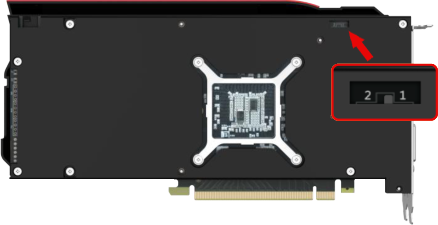

DUAL BIOS 1060 GPU
Game with Confidence in the GTX 1060
Gainward provides two VBIOS for GeForce GTX 1060 Phoenix GS board. Factory over-clocking VBIOS is set on position 1 of the “dual BIOS switch” . Users can over-clock the Phoenix board with confidence thanks to the “standard-clock setting” in the second VBIOS with position 2 of the “dual BIOS switch” whenever you need.
GAINWARD GS GTX 1060 CONTROL
Phoenix Control Through Expertool
This is Gainward’s Expertool is a brand new, useful utility tool, allowing you to control various things on the Phoenix GTX 1060. Expertool grants flexible fan curve control as well as BIOS saving features for the powerful GeForce GTX 1060.
GTX 1060 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Edition||PHOENIX Golden Sample|
|Manufacturing process||16 nm|
|Core Clock||1620 MHz|
|Boost Clock||1847 MHz|
|Memory Clock||8000 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||123 x 248 mm|
