Meshify S2 White Tempered Glass PC Gaming Case

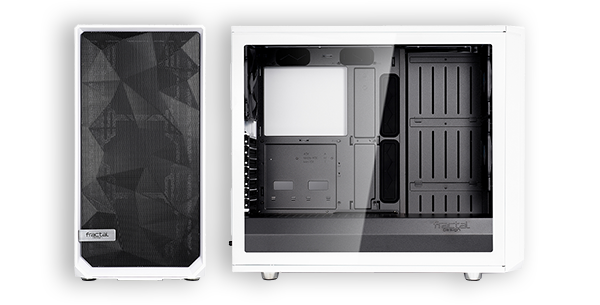

UNMATCHED AESTHETICS & REMARKABLE PERFORMANCE The White Meshify S2 delivers a clean, sleek look with a beautiful white frame to display your components in style along with its distinct aysmmeytical mesh panel on the front. It features crystal-clear tempered glass to show off your build, and you can also display your GPU vertically with the 2.5 slot using the Flex VRC-25 PCIE riser. (Sold separately) The S2 series are the largest Meshify cases to date and have revolutionized modular design with the S2 providing excellent airflow to guarantee you get the best performance. It also comes with a SATA power cable for further expansion and three dynamic fans to always keep your rig cool.

Intense Styling with a Clean Design

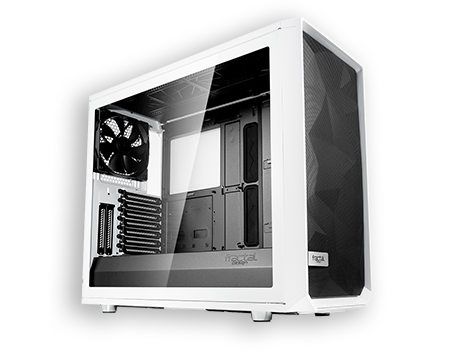

DURABLE AND CLEAR TEMPERED GLASS The Fractal Meshify S2 in White features a durable, crystal clear tempered glass side panel which lets you show off your internal components behind a sleek window, along with a push-to-lock latching mechanic which allows you to remove panels without tools for an easier building experience.

Modular High-Airflow & Radiator Support

THREE PRE-INSTALLED SILENT DYNAMIC FANS Discover a quieter and cooler system with the Meshify S2 in White, with its angular mesh front panel and open interior layout, your air intake will be maximised to its greatest potential. The Meshify S2 also comes pre-installed with Three Dynamic X2 140mm fans and has room for nine fans in total for exceptional cooling support. It also provides support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base.

Versatile Storage for a Tidy System

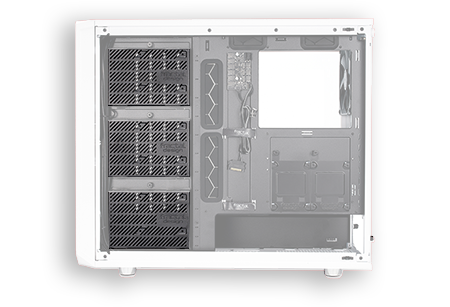

ROOM FOR UP TO 5 STORAGE DRIVES The Meshify S2 comes fitted with dedicated SSD mounting positions that are concealed away to keep your system pleasing to the eye, with room for two SSDs and three HDDs with vibration dampened enclosures.

Keep your Vital Components Secure

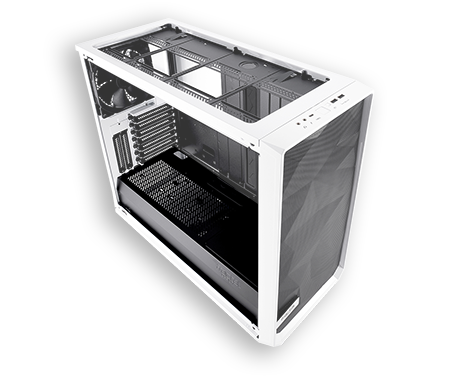

FULL-LENGTH PSU SHROUD The included full-length PSU shroud with removable cover creates a well ventilated place for your components along with alternate SSD mounts and a place to neatly conceal your cables.

Connect all your Devices Easily

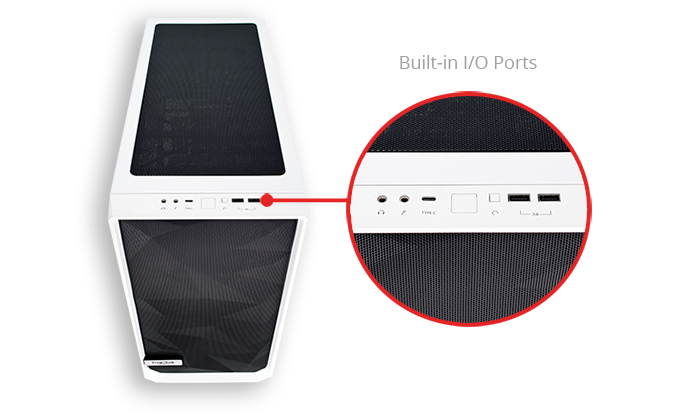

I/O PORTS SPEEDY CONNECTIONS The I/O on the top of the case comes with USB 3.1 Gen 2 Type-C and offers you quick access to ultra-fast charging and spends up to 10Gbps. Easily plug in your peripherals and devices and get to gaming instantly.

Control your System for Greater Performance

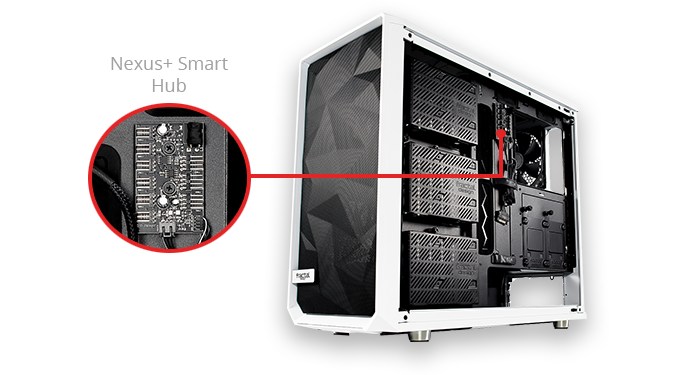

INTUITIVE NEXUS+ SMART HUB Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans, giving you additional control over your system to optimize your cooling and ensure your system stays performing at its best.

Personalize your Cooling to suit your Build

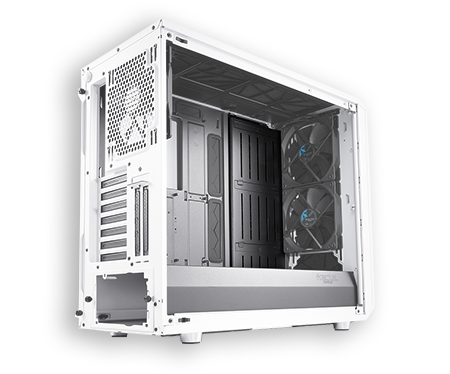

ADAPTABLE SPACE FOR WATER COOLING Build the ultimate custom cooling loop with adjustable reservoir brackets, pre-drilled pump mounts, and an intuitive removable top bracket with a dedicated fill port.

A Clean and Dust-free System

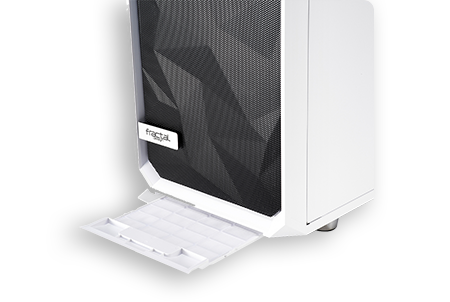

THREE DUST FILTERS INCLUDED The Meshify S2 contains easy to clean front, top, and base filters with full PSU coverage and convenient front access, letting you easily keep your build dust-free.

Learn more about the Fractal Meshify S2 White Gaming Case

Specifications

Core Chassis Specifications
Case Edition	Meshify S2
Case Form Factor	Mid Tower
Motherboard Form Factor	ATX E-ATX (285mm Wide Max.) MicroATX Mini-ITX

I/O, Bays & Expansion
Front/Side/Top Panel I/O	1 x Headphone Out 1 x Mic In 2 x USB 3.0 1 x USB 3.1 Gen2 Type-C
Drive Bays	4 x 2.5" Internal 3 x 2.5"/ 3.5" Internal
Standard Expansion Slots	7
Vertical Expansion Slots	2

Fans & Filters
Fan Bays	9 x 120/140mm
Fans Included	3 x 140mm
Fan Controller/Hub
Dust Filters	Bottom Front PSU Top

Liquid Cooling Support
Front Radiator Compatibility	1 x 120/140/240/280/360mm
Top Radiator Compatibility	1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility	1 x 120/140/240/280mm
Rear Radiator Compatibility	1 x 120mm
Side Radiator Compatibility

Clearances
Max CPU Cooler Height	185 mm
Max GPU Card Length	440 mm
Cable Routing Space	23mm mm

Side Panels
Window/s	Yes
Window Configuration	1 x Main Side
Window Construction	Tempered Glass

LED Lighting Functionality
LED Lighting	No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support	ATX
PSU Mounting Location	Bottom Mount, Rear
Max PSU Length	300 mm

Chassis Physical Specifications
Colour	White
Chassis Contruction Materials
Dimensions	538 x 465 x 233 (WxHxD mm)
Weight	10.04 kg (Approx)
Please Note

Additional Information
Scan Code	LN93100
Model Number	FD-CA-MESH-S2-WT-TGC
GTIN	7340172701477

Reviews

Fractal Design Meshify S2, White, Tempered Glass, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C is rated 5.0 out of 5 by 1.

Rated 5 out of 5 by Boria0 from Elegant and functional I love the esthetics of this case. Top grill is so much better looking than the moduvent they used before. Some people don't like the contrast between the white case and black grill but i'm a big fan. I like how they placed HDD cages vertically and in the space that's not useful for anything else anyway. There are 3 cages all together which is more than enough these days and if you're planning on upgrading your system in the future the likelihood is you won't need ane with all the ssd's and even m.2 nvme drives getting cheaper. By the way I have a dodgy hdd from seagate which was making a lot of whining noise in my previous system despite the rubber standoffs. It's hardly noticable in this case and I'll probably keep and use the drive rather than throwing it away. Can't comment on the fans as the first thing I did was to remove them. I put a 280 mm AIO in the front with vardar evos. Good thing about the evos is than when they get close to minimum rpm in my case 500 they completely switch off. For me it means that 80% of the time they are off which helps with dust in the radiator as they are intakes. Obviously no rpms no noise either. I decided to try out Noiseblocker fans for the airflow. They're 20£ but worth every penny. Build quality as well as the performance is second to none. Best case fans I've ever owned. I purchased 1 all black and 2 black with white blades because I wasn't sure which would look better on display as my back exhaust fan. The answer is white blades look gorgeous reflecting the light from my cable mod led strip(in the top) All 3 case fans are 140s and I put one as already mentioned in the back as the exhaust ans 2 in the bottom as intakes. Their secondary function is to provide extra air through a psu shroud to my vertically mounted gpu. All 3 fans are plugged into the fan controller on the back that's included. Now onto the vertical gpu mount. First of all obvious thing to do when you putting your old components into e new case is to clean them. And it's exactly what I did with a gpu. However once you turn it vertical and switch it on another pound worth of dust will come out from somewhere so my advice is to clean it mount it vertically and then put a stress test on and maybe change fans rpm to max for all the dust to come out at once. Have to purchase a riser cable for 30-40£ from fractal. Obviously there are other cables on the market you can try out but the fractal one can be screwed onto the psu shroud. Sadly the cable is slightly to long so it needs to be bend more than you would want and as a result in my particular case it ended up with a horizontal crease. Luckily is at the bottom close to the gpu therefore hidden behind it. It's a small setback but pretty much my only complaint. In terms of temperatures. Mine increased by 3 degrees after i adjusted my fan profile a bit to make sure the noise levels remained the same. So it went from 69 max temp to 72 in furmark stress test. When gaming I'm anywhere between 58 and 66. My gpu is zotac amp extreme 970. It's a dual slot card and it has 3cm gap from the tempered glass which is plenty. I would be very confident rocking a 2,5 slot card and carefully optimistic about the slot one as long as there is enough fresh air coming into the case and capable exhaust to get rid of the hot air. I don't have any problems with temperatures but if I did there's still 3x140mm fan slots I could use at the top of the case. If you was desperate to use a really thick gpu that would get to hot mounted vertically there are 3rd party solutions on the market to mount it closer to the motherboard. I honestly don't think there is ane need to use them for this case. Vertical mount is a great way to show of your gpu. Only sugestion I have is if you're planning on buying new graphics get a widest one you can possibly find. 970 Amp extreme core isn't exactly small but still gets a little dwarfed with all the space available. You could easily fit triple 130mm gpu with an 30mm rad in push pull at the front. I know such a gpu don't exist but I hope they'll make one :-D . For me this case is 10 out of 10. Highly recommend. All of the dust filters are easily removable from either the feont or the top and the front tessellation grill looks fantastic. 1 minor gripe I have is the reservoir mount. I wish they provided a blanking plate for it as I can see the white labels on my hard drives through the holes. I like the fact that the side glass panel stays safely on without the screws at the back. I'd preferred a hinged door with magnets at the front instead but it would potentially ruin the clean esthetics of the case so it's an understandable choice. Plus this is an evolution of their previous models and they all share the same chassis. I am delighted with my purchase. Fractal Design - top brand. Great service from Scan. My case got delivered to my local currys pc world which is very helpful as most of the time I'm at work.

Date published: 2019-03-12
