Fractal Meshify S2 Black Midi PC Gaming Case

Fractal Design Meshify S2, Black, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C

Thumbnail 1 : Fractal Meshify S2 Black Midi PC Gaming Case Thumbnail 2 : Fractal Meshify S2 Black Midi PC Gaming Case Thumbnail 3 : Fractal Meshify S2 Black Midi PC Gaming Case Thumbnail 4 : Fractal Meshify S2 Black Midi PC Gaming Case
Scan code: LN93096 Manufacturer code: FD-CA-MESH-S2-BKO
From £11.67 / month (APR 14.9%)
Monthly Payment: £22.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £135.33
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £140.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Feb 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Meshify S2 Black PC Case – Engineered for Efficient Airflow

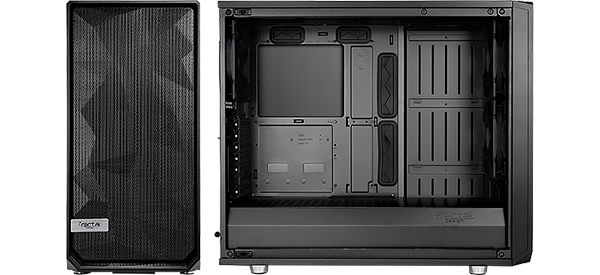

Fractal meshify S2 Solid

Precision cut performance The Meshify S2 Black is the largest Meshify case to date, combining all the assets of its predecessors with Fractal’s most innovative modular design elements. The Meshify S2 features the distinctive angular mesh that offers both a unique look and optimal airflow, giving you the true potential of an open-layout system, along with two solid side panels. It hosts a versatile build and excels when it comes to cooling options, with easy panel removal and concealed storage for even better temperature control. You can also display your GPU vertically with the 2.5 slot using the Flex VRC-25 PCIE riser (Sold separately) and also includes a SATA cable for further power extension.

Stealthy Aesthetics & Distinctive Sharp Styling

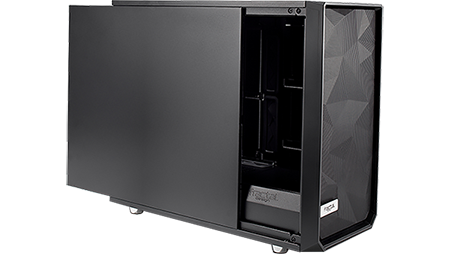

push-to-lock side panels

SOLID AND STURDY DESIGN The Fractal Meshify S2 case boasts its unique asymmetric design and features durable solid side panels on each side which can easily be removed and reattached with push-to-lock latching, so no tools are needed.

Modular High-Airflow Design with Radiator Support

Fractal Meshify Airflow

THREE PRE-INSTALLED SILENT DYNAMIC FANS Discover a quieter and cooler system with the Meshify S2, with its angular mesh front panel and open interior layout, your air intake will be maximised to its greatest potential. The Meshify S2 Black also comes pre-installed with Three Dynamic X2 140mm fans and has room for nine fans in total for exceptional cooling support. It also provides support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base.

Discreet Storage Options

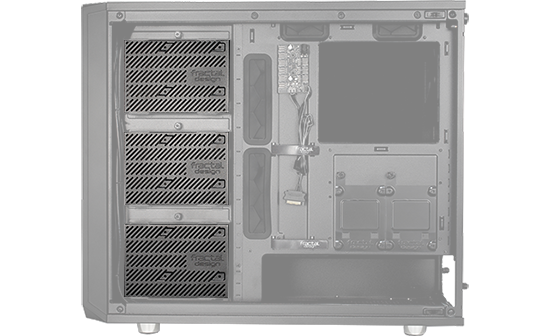

NEATLY STORE UP TO FIVE DRIVES The Meshify S2 comes fitted with dedicated SSD mounting positions that are concealed away to keep your system pleasing to the eye, with room for two SSDs and three HDDs with vibration dampened enclosures.

Keep your Components Secure

psu shroud

FULL-LENGTH SHROUD FOR VITAL PROTECTION The included full-length PSU shroud with removable cover creates a well ventilated place for your components along with alternate SSD mounts and a place to neatly conceal your cables.

Easily Stay Connected

meshify black s2 io

ACCESSIBLE I/O PORTS The I/O on the top of the case comes with USB 3.1 Gen 2 Type-C and offers you quick access to ultra-fast charging and spends up to 10Gbps. Easily plug in your peripherals and devices and get to gaming instantly.

Get the Best out of your System

nexus smart hub

NEXUS+ SMART HUB FOR ADDITIONAL CONTROL Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans, giving you additional control over your system to optimize your cooling and ensure your system stays performing at its best.

Versatile Water Cooling Options


ADVANCED WATER COOLING Build the ultimate custom cooling loop with adjustable reservoir brackets, pre-drilled pump mounts, and an intuitive removable top bracket with a dedicated fill port.

Enjoy the Luxury of a Dust-Free Build

S2 filters

CONVENIENT DUST FILTERS The Black Meshify S2 contains easy to clean front, top, and base filters with full PSU coverage and convenient front access, letting you easily keep your build dust-free.

See all the Features of the Fractal Meshify S2 Black Case

Fractal Meshify S2 Solid
Core Chassis Specifications
Case Edition Meshify S2
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 4 x 2.5" Internal
  • 3 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays 9 x 120/140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • PSU
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360/420mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Max GPU Card Width
Cable Routing Space 23mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 300 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 538 x 465 x 233 (WxHxD mm)
Weight 9.52 kg (Approx)
