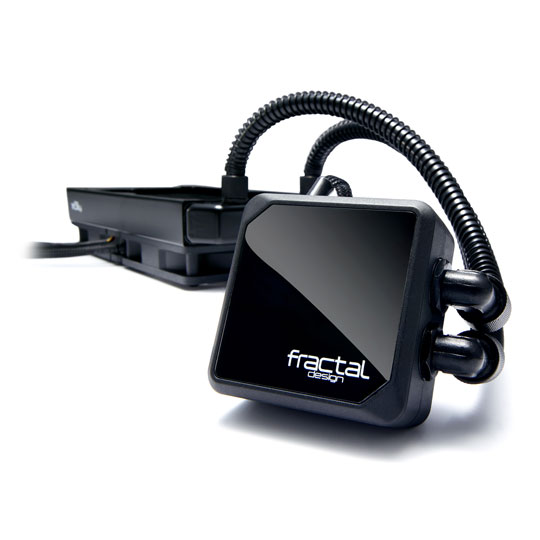

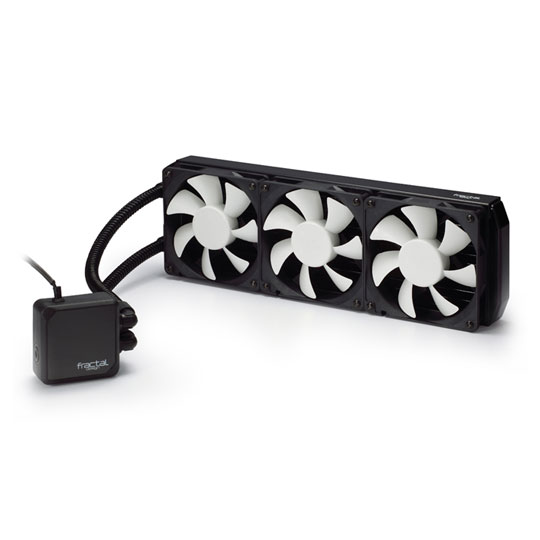

Fractal Design Kelvin S36 All In One Water Cooler

Fractal Design Kelvin Series S36 Water Cooling System with 360mm Radiator, 120mm Fan, 800-1700 RPM

Fractal Design
Scan code: LN64881 Manufacturer code: FD-WCU-KELVIN-S36-BK Request call
£134.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Simple to install, silent operation, powerful performance and easy expandability define the Kelvin Series. The silent high-performance ceramic pump is strong enough to support considerable expansion, should you decide to include GPU blocks and/or additional radiators in the same loop.

The Kelvin Series water cooling systems are constructed from enthusiast class components. Both the CPU block and the radiator are made from pure copper, for maximum performance and an increased product life span with zero maintenance required.

All modern CPU sockets are supported by the versatile, easy-to-use mounting kit.

• Fantastic cooling performance
- The strong pump and the full-copper construction places the Kelvin Series Water Cooling system ahead of the pack in cooling performance.

• Expandable system. Just open it up to get the full benefits of custom water cooling, with the ability to add any components you want to the loop, such as a graphics card cooler.
- High pressure pump allows strong water flow rates even when an additional CPU or GPU water block or an additional radiator has been added to the loop.
- All parts have fully standard G 1/4" thread fittings for compatibility with the vast majority of enthusiast water cooling products.
- The tubes are fastened with two-part brass fittings, providing a secure seal while being easy to open and re-seal with a standard wrench.
- Easy refilling with dedicated fill port

• Made with enthusiast-grade components developed in cooperation with Alphacool
- Highly reliable ceramic bearing pump, with custom tuned maximum RPM for the optimal balance between performance and noise level
- Full copper radiator

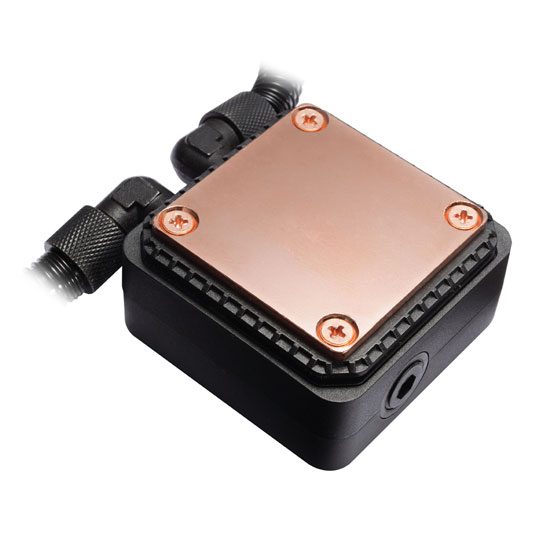

- Full copper CPU Water block design featuring strategic jet plate improvements

• Triple fan radiator, a 30mm thick 360, providing a much larger area than nearly all other pre-filled water cooling units.

• Long lifetime. The performance of most pre-filled water cooling systems degrade quite significantly over time, because of galvanic corrosion and water loss.
- Galvanic corrosion occurs over time when two metals with different galvanic potential (such as aluminum and copper) are in contact. It can be slowed with anti-corrosion additives in the water, but the best way to maintain performance over time is to use metals with similar galvanic potential. The Kelvin Series water cooling system is constructed with pure copper in both the radiator and the water block, along with brass fittings.
- To avoid the common issue of most pre-filled water cooling units (that tend to lose performance over time due to water loss in the tubes), Fractal Design equipped the Kelvin series with a fill dedicated port. Features • Block/pump assembly measurements: 69*69*40 mm
• Tubing Measurements: 320mm long, 11mm outer and 8mm inner diameter
• Fitted with anti-kink coils for worry-free installation
• Kelvin S36 Radiator Measurements: 30*124*397mm
• Thread class for fill port and all tube fittings: G 1/4"
• Supported sockets: Intel: 775,1150, 1151,1155,1156,1366,2011; AMD: AM2,AM2+,AM3,AM3+,FM1,FM2,FM2+
• Fans included: 3 pcs
• Fractal Design Zero™ Thermal Paste ; 1 g syringe, sufficient for multiple mountings
• Colors Available: Black
• Net weight - Base unit only, not including mounting or fans: 1.4 kg
• Net weight - SS-HP fan, per fan: 165 g
• Net weight - Total excluding packaging and manual. Includes fans, mounting kit for all platforms, cooling paste (including packaging for the cooling paste) and adapter cable: 2.2 kg
• Package dimensions - W x H x D: 440*253*151 mm
• Package weight: 3.0 kg

Fan Specification:
• Fractal Design Silent Series HP 120 mm
• 800 - 1700 RPM
• PWM control
• Max air flow: 62.4 CFM
• Max pressure: 2.33 mm H2O
• Acoustical noise: 26.9 dB(A)
• DC 12V, 0.18A

Pump Specification:
• Ceramic bearing
• 2400 RPM
• Voltage control
• Maximum water flow: 72 l/h
• Maximum pressure: 1.0 m H2O
• Acoustical noise: 25.0 dB(A)
• DC 12V, 0.27A

Package contents
• Fractal Design Kelvin S36 pre-assembled Water Cooling Unit
• 3 Fractal Design Silent Series HP PWM controlled fans
• Intel 775,1150,1151,1155,1156,1366 mounting hardware (including back plate)
• Intel 2011 mounting hardware
• AMD AM2,AM2+,AM3,AM3+,FM1,FM2,FM2+ mounting hardware
• PWM splitter cable
• Fractal Design Zero™ Thermal Paste, 1g Syringe
• Long and short radiator mounting screws
• User manual
Specifications
Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • FM1
  • FM2
  • FM2+
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed 800 - 1700 rpm
Adjustable Fan Speed Controller No
Fan Airflow 62.4 CFM
Air Pressure
Sound Level (dB) 26.9 dB
Sound Level (Sone)
Materials
Fan Material
Heatsink Material
Dimensions & Weight
Fan Dimensions 120 mm
Heatsink Dimensions 69 x 69 x 40 mm (WxHxD)
Total Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan Computers
Telephone:
0871 472 4747
Reviews
Rated 3.5 out of 5 by 2 reviewers.
Rated 5 out of 5 by Great cooler. Come mounting issues This cooler is great upgrading from a H100i. Giving me about 20℃ improvement on temps when under full load on my 4790K at 4.6GHz. I would recommend getting this over one of the Corsair equivalents if your case supports it. However I ran in to some issues fitting at the mounts on the radiator were positioned differently to those on my case (Corsair AIR 540). I did however manage to get it mounted securley but only using 4 out of the 12 screws. Unfortunately I couldnt fit two 140 fans in the top of my case because of the mounting issues. Since the photo below was taken I have bought and installed two 120 fans and they fit fine. This may just be a problem with my case though so you might not encounter it. All in all a great cooler. I can't really make a comment on the fans included as I already had 3 Corsair SP 120's ready waiting to go onto it. However the pump is almost inaudible and there isn't any sound coming from the liquid flowing around inside it. I've read some reviews saying that the insructions are difficult to understand but I've had no issues and the reviews mentioning leaks, that's the risk you take when water cooling your PC. I did test the tubes and barbs to make sure they were mounted properly and no issues with that either. 27 September 2015
Rated 2 out of 5 by fractal kelvin s36 when out of the box it looks like a very nice cooler but as they say a but if you buy one of theses just becarefull of the tubeing were it goes in to the fittings as I was carefully fitting mine the tubeing came away from the fittings it was a good job it didn't soak my motherboard and gpu so before fitting check the tubeing 09 June 2015
