Fractal Design Era ITX Carbon TG Compact PC Case

Fractal Design Era ITX, Carbon, Compact Chassis w/ Tempered Glass Top Panel, 80mm Fan, USB 3.1 Gen2 Type-C, Mini-ITX

Thumbnail 1 : Fractal Design Era ITX Carbon TG Compact PC Case Thumbnail 2 : Fractal Design Era ITX Carbon TG Compact PC Case Thumbnail 3 : Fractal Design Era ITX Carbon TG Compact PC Case Thumbnail 4 : Fractal Design Era ITX Carbon TG Compact PC Case Fractal Design Era ITX Carbon TG Compact PC Case : video thumbnail 1
Scan code: LN96839 Manufacturer code: FD-CA-ERA-ITX-BK
Order now and get it tomorrow, Wed 3rd Mar
From £10.78 / month (APR 14.9%)
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 3rd Mar to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Carbon/Tempered Glass ERA ITX Small Form Factor PC Case by Fractal Designs

ERA ITX Case by Fractal Designs in Carbon Black

Small Footprint, Big Impact Imagined with Intel and created by Fractal Design, the ERA ITX is a compact chassis free from restrictions usually associated with small form factors cases, this unique and elegant case has taken design and technical engineering to all new heights.

Built from high-quality aluminum available in 5 different colours and a range of interchangeable top inserts the ERA ITX blends into any environment. Even with a modest 16 liter footprint it can still accomodate dual-slot GPUs, AIO cooling systems up to 240mm, high-end processors and up to four storage devices.

Compact, Sophisticated and stylish, ERA is for those looking to make a design statement with a small form factor system without sacrificing power and functionality of high-end hardware.

Fan Cooling just not enough?

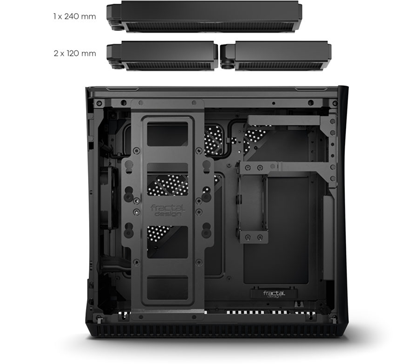

Water Cooling Support

Just Add WaterDue to the size of most AIO cooling systems, they usually aren't considered when comparing small form factor PCs however ERA features a removable radiator bracket that allows for 240mm or dual 120mmm radiators to give you robust liquid cooling.

Worried About Storage Space?

Flexible Storage

Super Flexible Storage The Era ITX includes two storage brackets, each can support 1x 3.5" HDD or 2.5" SSDs

Keeping your System Cool

5 Fan Positions

A new ERA in AirflowThough compact in size the ERA boasts an effective chimney design to optimise the airflow around your system across a total of five fan positions, this case also includes 1x 80mm Fractal Design SSR3 fan to exhaust heat silently but still with a high level of efficiency and to further reinforce the above, the ERA also houses easy-to-clean, high-airflow nylon dust filters at the top, sides and base of the chassis.

Style or Efficiency - It's your Choice

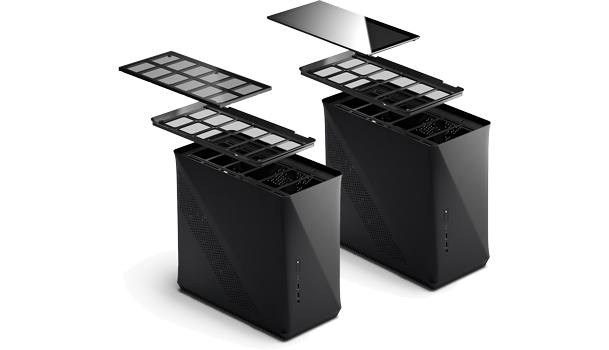

interchangeable Top

interchangeable Top PanelThe expertly colour-coordinated wood and tempered glass top panels can easily be switched out to the included steel-mesh panel to increase the amount of airflow that is available to the ERA.

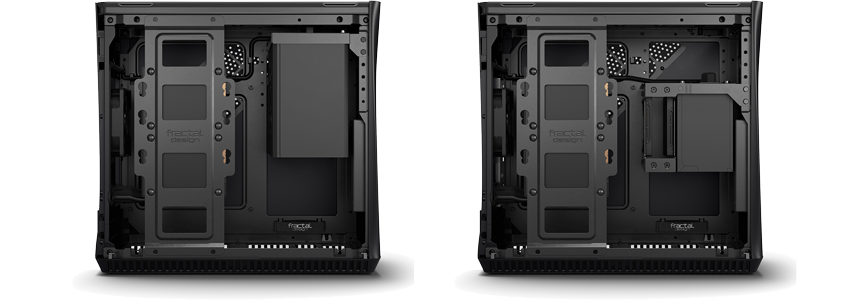

Totally Flexible PSU Mounting Heights

SFX or ATX power supplies

SFX or ATX? YesDue to the innovations Fractal Design have made with their adjustable brackets you have total flexibility with your PSU mounting height in order to maximise the amount of internal space available to you.

Additional Features

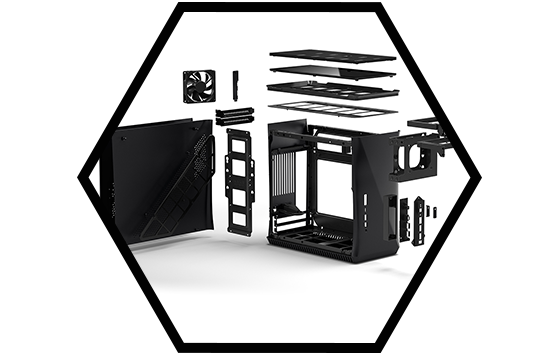

Easy access

Easy AccessMagnetic top panel and tool-less latching side panels make for near effortless maintenance.

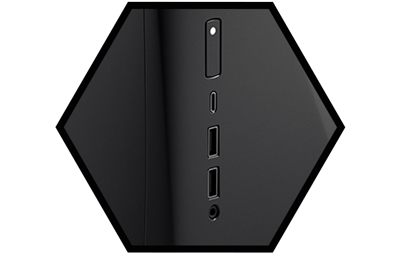

Type-C front panel

Front-Panel Type-CUSB 3.1 Gen2 Type-C with support for superfast charging.

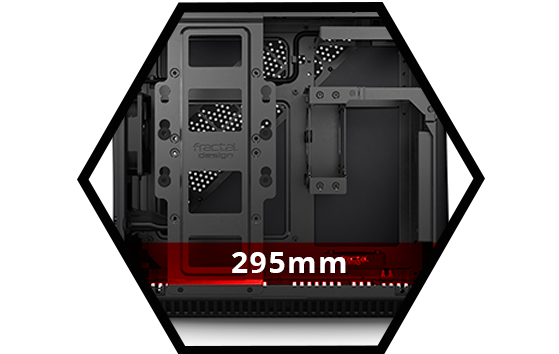

Full Length GPU

Large GPU SupportAllows dual-slot graphics cards up to 295mm in length.

Available in Various Colours

Core Chassis Specifications
Case Edition Era ITX
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays 2 x 3.5" / 4x 2.5" Internal
Standard Expansion Slots 2
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 2 x 140mm
  • 1 x 80mm
Fans Included 1 x 80mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height 120 (70 with Side-Mounted HDD) mm
Max GPU Card Length 295 (210/190 with Low-Mounted PSU) mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Top
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX + SFX-L
PSU Mounting Location Front Mount
Max PSU Length 200 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium / Steel
Dimensions 166 x 310 x 325 (WxHxD mm)
Weight 4.02 kg (Approx)
Please Note
Additional Information
Scan Code LN96839
Model Number FD-CA-ERA-ITX-BK
GTIN 7340172701781

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
