Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case

Fractal Design Define S2 Vision Blackout, Mid Tower PC Case, w/ Tempered Glass Windows, E-ATX~mITX, 4x 140mm Fans, USB-C

Thumbnail 1 : Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case Thumbnail 2 : Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case Thumbnail 3 : Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case Thumbnail 4 : Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case : video thumbnail 1 Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case : video thumbnail 2 Fractal Design Define S2 Vision Tempered Glass Blackout Midi PC Gaming Case : video thumbnail 3
Scan code: LN95659 Manufacturer code: FD-CA-DEF-S2V-BKO-TGD
£179.99
From £16.16 / month (APR 14.9%)
Monthly Payment: £31.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £187.40
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 27th Jun 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Craft the Perfect System with the Define S2 Vision from Fractal Design

Fractal Design Define S2 Vision Blackout

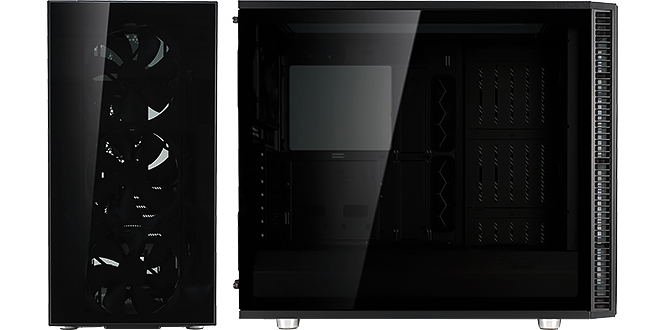

BEAUTY FROM EVERY ANGLE The Define S2 Vision has been engineered with the goal of bringing together beauty and function, and with its full tempered glass exterior, it does just that. Enjoy the radiance of your system from every angle, and put your internal components on display in a whole new way. The Blackout edition offers a more subtle yet eye-catching effect for your PC. Despite the amazing aesthetics, performance is also the best it can be. Discover incredible air and water cooling support, with the Define S2 Vision coming equipped with four PWM fans. It also features an innovative top panel system that allows you to swap a tempered glass panel for additional cooling with the push of a button. Utilize pre-drilled pump mounts, reservoir brackets, optional vertical GPU riser support, and handy bolt-free side panels. The Define S2 Vision also houses a dedicated Nexus 9P fan hub with nine PWM connections to give you complete control over your system and always give it the best cooling, along with dedicated dust filters for pristine cleanliness.

Showcase your Components the way they Deserve

tinted tempered glass

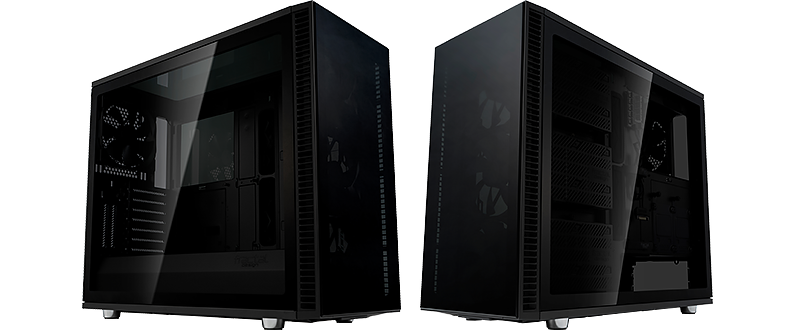

COMPLETE TEMPERED GLASS SIDE PANELS Give your system the attention it deserves with the Define S2 Vision's tinted tempered glass. This stunning case features a fully tempered glass exterior, with panels on both sides and the top of the chassis so everyone can see the incredible components inside your PC. The panels are also bolt-free so you can access the interior of your PC in an instant.

Get a Great Start to your Cooling Solutions

4 included fans

FOUR INCLUDED PWM FANS Four Fractal Design Dynamic X2 GP-14 PWM 140mm fans are pre-installed on the Define S2 Vision Blackout to give you superior cooling and airflow from the get-go. With three installed on the front and one on the rear, they create a perfect airflow path to keep your components cool. Install even more cooling solutions with the Define S2 Vision offering room for up to nine fans, 360mm front and top radiators, and 240mm bottom radiators.

Extend your Cooling Potential

cooling top panel

INTERCHANGEABLE TOP PANEL Swap the tempered glass top panel on the Define S2 Vision with the included cooling bracket to add three more fans to the top of your case to expand your cooling system even further and have up to nine fans.

Take total Control over your Fans

pwm fan hub

BUILT-IN 9P FAN HUB The Nexus 9P fan hub allows you to control up to nine PWM devices via your motherboard, giving you even more control over your systems components.

Make the Most from Incredible Storage

storage

DEDICATED STORAGE SPACE The Define S2 Vision offers extensive space for your storage devices, with three vibration-damped 3.5" HDD mounts to keep drives neatly concealed, and two SSD brackets with five possible locations, either behind the motherboard or PSU shroud. This keeps your interior space clear for larger components whilst still giving you plenty of options for storage.

Keep your Interior Pleasing to the Eye

psu shroud

FULL-LENGTH PSU SHROUD The full-length PSU shroud inside the Define S2 Vision offers a perfect cover for excess cables and your power supply unit. The front cover of the shroud can be removed for larger front radiators, mounting a pump, reservoir or for an additional SSD.

Show off your Graphics Card in all its Glory

back

VERTICAL GPU MOUNTING OPTIONS The Define S2 Vision houses a 2.5 slot with support via a Flex VRC-25 vertical PCIE riser (sold separately) which allows you to vertically mount your graphics card to make your system even more unique.

Define S2 Vision Front I/O Panel

io panel

SUPER-FAST DATA TRANSFER AND PERIPHERAL PORTS Stay connected with the Define S2 Vision's ports. With USB 3.1 Gen 2 Type-C offering lightning-fast charging support and speeds up to 10Gbps, along with two USB 3.0 ports, two USB 2.0 ports and audio ports to for you to easily plug in all your favorite gaming gear.

Specifications
Core Chassis Specifications
Case Edition Define S2 Vision Blackout
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 3 x 2.5" Internal (Optional Brackets, Not Included)
  • 3 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays 9 x 120mm / 9x 140mm
Fans Included 4 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • PSU
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/140/240mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Max GPU Card Width
Cable Routing Space 23mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Alternate Side
  • 1 x Front
  • 1 x Main Side
  • 1 x Top
Window Construction Tempered Glass (Tinted)
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 300 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 233 x 448 x 535 (WxHxD mm)
Weight 12.1 kg (Approx)
Please Note
Additional Information
Scan Code LN95659
Model Number FD-CA-DEF-S2V-BKO-TGD
GTIN 7340172701767
