Scan code: LN64163 Manufacturer code: FD-CA-DEF-S-BK-W

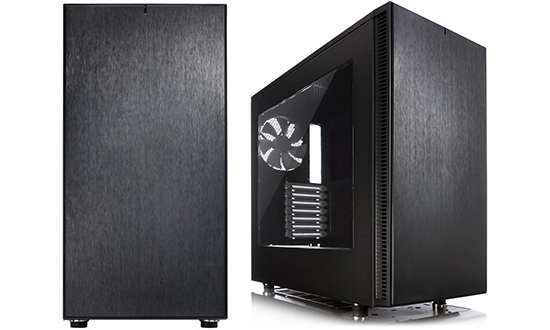

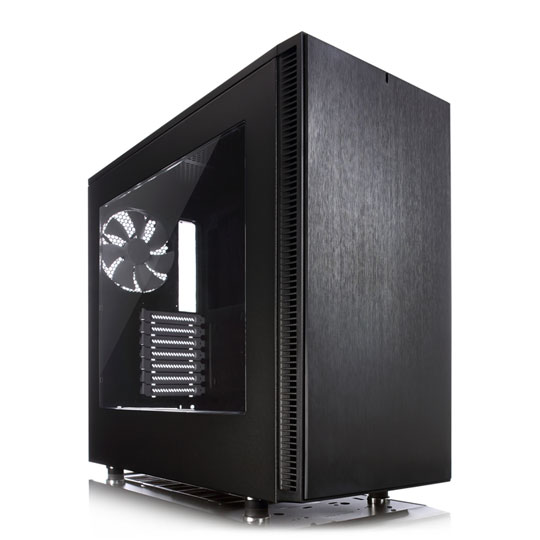

Fractal Design Define S Gaming Case

Fractal Design Define S Window Edition Black Mid Tower ATX/mATX/mini-ITX Computer Chassis with USB 3.0 + Silent Design

MORE INFO
MORE INFO

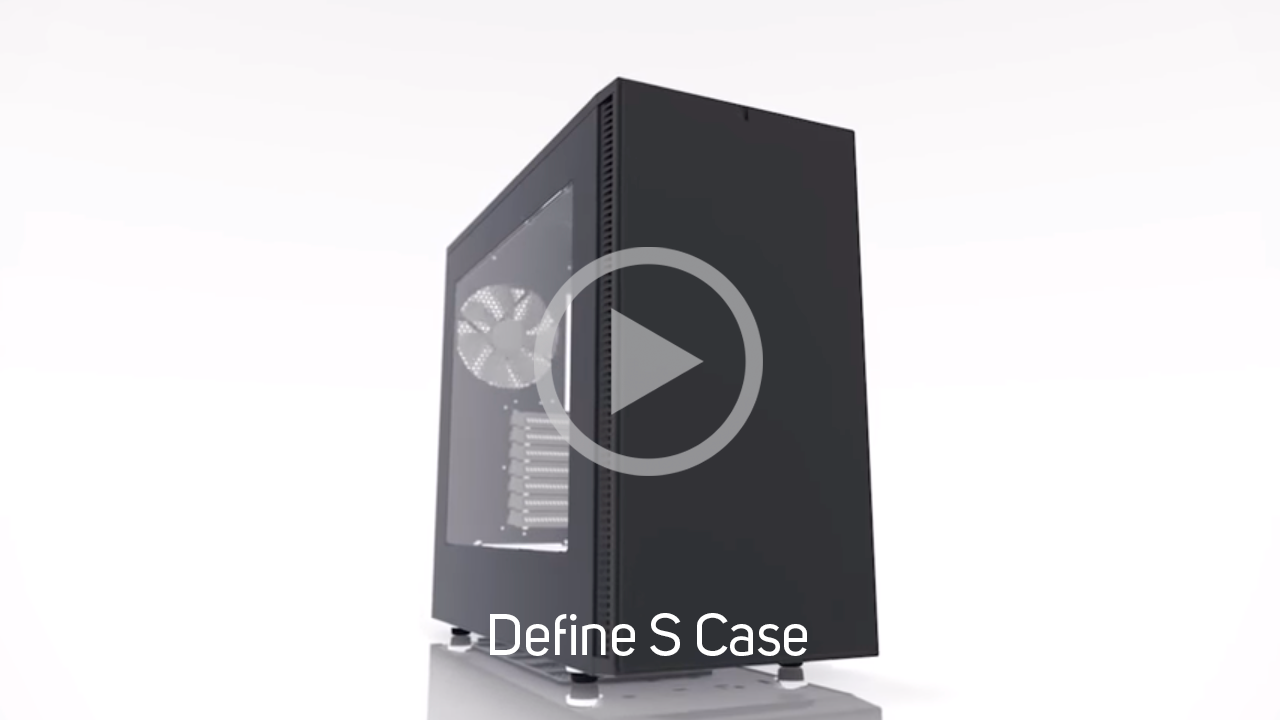

Thumbnail 1 : Fractal Design Define S Gaming Case Thumbnail 2 : Fractal Design Define S Gaming Case Thumbnail 3 : Fractal Design Define S Gaming Case Thumbnail 4 : Fractal Design Define S Gaming Case Fractal Design Define S Gaming Case : video thumbnail 1
Scan code: LN64163 Manufacturer code: FD-CA-DEF-S-BK-W
review 3xs Approved
£82.99
Add To Basket
In stock
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 9th Dec To 11th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview The Fractal Design Define S lends the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout. The Define S case is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The modernized internal layout of the Define S omits the optical drive bays, instead focusing on a clear straight airflow path and uncompromising water cooling support.

The Define S case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, multiple ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

More detailed information can be found in the PDF below:
Data Sheet Features • Optimally designed for silent computing, while not compromising on airflow and cooling capabilities
• Innovative internal layout, providing a perfectly straight airflow path to the CPU heatsink for air cooling set ups or extensive radiator mounting possibilities for water cooling set ups

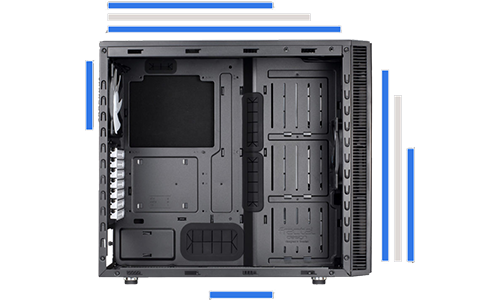

• Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front
• Including smart reservoir brackets; featuring drill-free reservoir mounting on the front of the motherboard tray and pre-drilled pump mounting holes on the bottom panel
• Equipped with ModuVent™ fan slot covers providing the option of additional cooling or maximum sound absorption
• Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
• Maintaining a dust-free interior with dust filters that cover the front and bottom air intakes

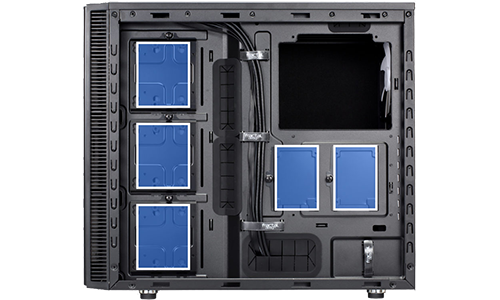

• Introducing newly designed hard drive trays placed vertically behind the front partition of the motherboard tray; Three sturdy steel trays with vibration-dampening grommets allowing for installation of one 3.5" or 2.5" drive on each tray, without disrupting the airflow or interfering with the radiator mounting possibilities
• An additional 2 dedicated steel SSD trays cleanly placed behind the motherboard tray
• Long motherboard tray extending to the front panel contributing to an extremely clean build, hiding both hard drives and cables
• Large window side panel
• Define S available in both Windowed & Non-Windowed Editions
Specifications
Core Chassis Specifications
Case Edition DEFINE S
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button with LED
  • 1 x System Reset button
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 3 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 8 x 120/140mm
Fans Included 2 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 450 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 233 x 451 x 520 (WxHxD mm)
Weight 8.5 kg (Approx)
Please Note
Additional Information
Scan Code LN64163
Model Number FD-CA-DEF-S-BK-W
GTIN 7350041083450
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Fractal Design Define S Window Edition Black Mid Tower ATX/mATX/mini-ITX Computer Chassis with USB 3.0 + Silent Design is rated 4.8 out of 5 by 10.
Rated 4 out of 5 by from Very neat, lots of space, great quality Coming from a Fractal Define R3 the exterior is pretty similar but upon first glance the Define S is a wider by about an inch but still fits snug under my deskdraw, the cable management and having the storage drives mounted on the back hidden wall is really nice although if you plan to use more than 3 hdd's and more than 2 ssd's then you might want to look at more conventional cases with the nasty looking huge drive bay towers in them. I have a 360mm cpu water cooler on the roof and mounted the two included 240mm fractal fans on the front and my gpu water cooled hydbrid has the 120mm rad fan mounted on the back wall, it all fits neatly and plan in the future to convert to a fully custom water loop as this case has plenty of room for it when the current 1080ti can no longer run future games at the settings desired. The case loses a star on quality because the acrylic window is a disappointment and arrived already with some large scratches on the edges straight out the box where the protective packaging film does not even cover all the way to the edges and looks as though this plastic will be very very easy to scratch. Other than that rest of the quality is fantastic and building in it was a pleasure otherwise.
Date published: 2017-12-03
Rated 5 out of 5 by from Excellent Case I really like this case as it is well thought out and the build quality is great. It is not that tall so it fits neatly under my desk draw out of the way. The provision for the SSD's/HDD's is very neat but if you use more than 3 HDDs this case is not for you.
Date published: 2016-07-12
Rated 5 out of 5 by from very easy to build in! this case is fantastic. my old case, the NZXT H230, was fine but what I didn't like about it was how little room there was for cable management and poor quality materials/screws. getting the side panel on behind the motherboard was a nightmare and the screws would easily strip the threading on the case. for example, one of my fan screws i had to rip out in order to remove the fan and the screws to hold the GPU in would keep spinning so the GPU wasn't being held properly. with this case, the Define S, these aren't issues. there is loads of room between the motherboard/side panel for cable management. also this case has velcro straps to hold cables in place. it does come with cable ties but i only used 1 or 2. the material of the case feels much stronger and no screws were stripped. everything feels like it's held in place real firmly. another thing i like about this case is that it has no 5.25 or hdd bays. well, it does have HDD mounting brackets hidden behind the motherboard which gives the case much better airflow. the fans that come with it pretty much silent and you can have a total of 7 fans! there is plenty of room too if you want to use liquid cooling be it an AIO radiator or custom loop. i have nothing bad to say about this case.
Date published: 2016-07-04
Rated 5 out of 5 by from Great Value for Water Cooling Hi, Initially I was worried that the Define S would be too small for my pending water cooling build which was planned to include a PETG loop, seperate reservoir, D5 pump and two Hardware Labs radiators with fans. I was wrong, Everything fitted in without it looking too cramped. Having finished the build I do think you should be aware of a few small points if you plan a similar setup. The fixing thumb screws for both side panels are not brilliant, they work, however, it would have been better if they were bigger and stronger. It's probably me being a bit picky but I am even considering removing the screws and re-threading the holes to a larger size. Radiator thickness is something you need to consider in your planning. I put a 360mm in the roof and a 240mm in the front, both being 35mm thick so add 25mm for fans and your there. You could use 45mm thick rads but in my opinion that was too close to components, especially if you have RAM with high heatsinks. The other issue with the rads is the hole positions in the roof. With the 360mm the fittings were on the left side above the GPU block. When you attach the fittings it is too close to the rear fan for both to be present, therefore I had to remove the rear fan to get the rad and fittings in. Finally, I had to do some small modding to get the reservoir mounted where I want it. The case has a simple mounting method, however, the location did not match up with where I needed it to be so a few extra holes were added to accommodate. I would not normally use a mid-tower case for a water cooling build, however, case size was a main issue as I wanted to keep it smaller than normal. Great case (with the above points in mind) and a sensible price. Nice one Fractal!
Date published: 2016-06-16
Rated 4 out of 5 by from Great Case Great case with good solid cable management, plenty of space in the back for your cable mess and the Velcro tie-downs help a bunch. Included fans are good enough. Side window is the only downfall, the quality of the acrylic seems pretty poor and can scratch really easy, even just wiping a bit of dust of with a soft cloth.
Date published: 2016-06-04
Rated 5 out of 5 by from Great case Lovely case very simple to install into, very clean look inside thanks to the hidden storage.
Date published: 2016-01-30
Rated 5 out of 5 by from Excellent product, Lives up to all expectations. Excellent product, Lives up to all expectations. Loads of room for watercooling.
Date published: 2015-12-29
Rated 5 out of 5 by from Perfect for water cooling, great quality This is a great case, the paint job is very good, the plastic front panel doesn't look out of place and just looks like brushed aluminium. Managed to fit a 360mm long 8cm thick monsta rad in the front with fans on the outside of the front, behind the plastic panel and a set on the inside, push pull. With an EK res also mounted on the metal slits. (Mounting hardware included). I used the included res mounting hardware vertically. Lot of room behind the mobo tray, with velco straps. The window is nice and clear with no tint, it is screwed in.
Date published: 2015-08-21
  • y_2019, m_12, d_5, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_GB, sid_64163, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Can an EK 360mm radiator be mounted in the front of this?

It seems like while there is 360mm of space at the front of this there is the possibility that the additional length, because of the in and out ports on the radiator, will make it too large to fit at the front.
Asked by: eddy264
Hello, The manufacturers site only lists the following for front radiator compatibility: Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses Regards,
Answered by: LizN
Date published: 2017-01-20
