Scan code: LN91811 Manufacturer code: FD-CA-DEF-R6C-GY-TGL

Fractal Define R6 Grey Tempered Glass USB-C Midi PC Gaming Case

Fractal Design Define R6, Gunmetal, Tempered Glass, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C

Thumbnail 1 : Fractal Define R6 Grey Tempered Glass USB-C Midi PC Gaming Case Thumbnail 2 : Fractal Define R6 Grey Tempered Glass USB-C Midi PC Gaming Case Thumbnail 3 : Fractal Define R6 Grey Tempered Glass USB-C Midi PC Gaming Case Thumbnail 4 : Fractal Define R6 Grey Tempered Glass USB-C Midi PC Gaming Case
Scan code: LN91811 Manufacturer code: FD-CA-DEF-R6C-GY-TGL
£146.28
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Limited Only by Your Imagination
Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest and largest step in the legacy of the world-renowned Define Series.

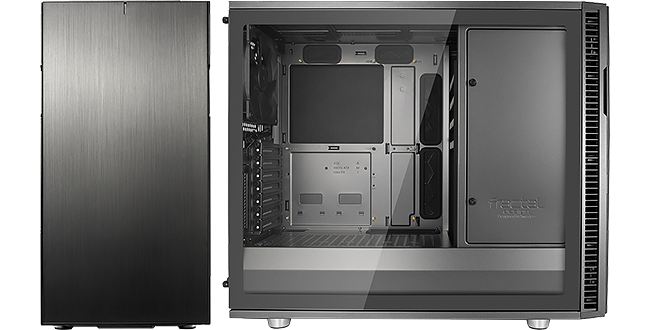

Seamless tempered glass and sound dampened steel panels encase a fully redesigned interior with more storage capability than ever before, and with nine fan mounts, PWM fan hub, and 420mm radiator support, the R6 is the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from metal-clad sound dampened top panel to filtered high airflow multi-fan ventilation.
Expanding on the timeless elegant form and silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation and flexible framework with limitless potential.


Important - Please Note: Images for illustration, only ONE tempered glass side panel included, additional panels depicted available seperately. Features • Full-size seamless scratch-resistant tempered glass side panel (Tempered Glass Version Only).
• Optimized for silence with high-density industrial dampening on side, top and front panels.

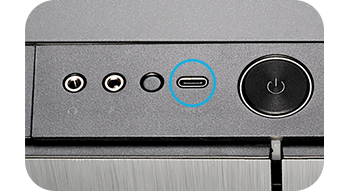

• USB 3.1 Gen 2 Type-C with Fast Charging support and up to 10Gbps transfer speeds.

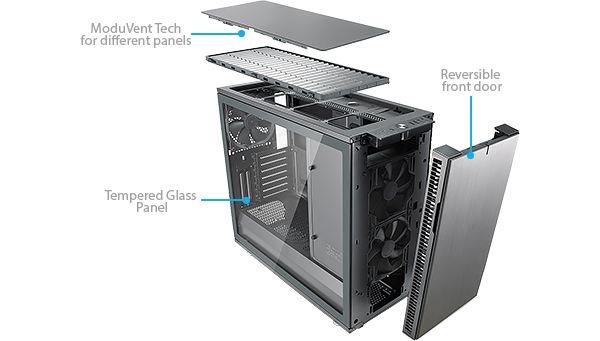

• Reversible front door with anodized aluminium cover and dual-handed mounting system for adaptability with elegance.
• Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity.
• Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard.
• Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust.

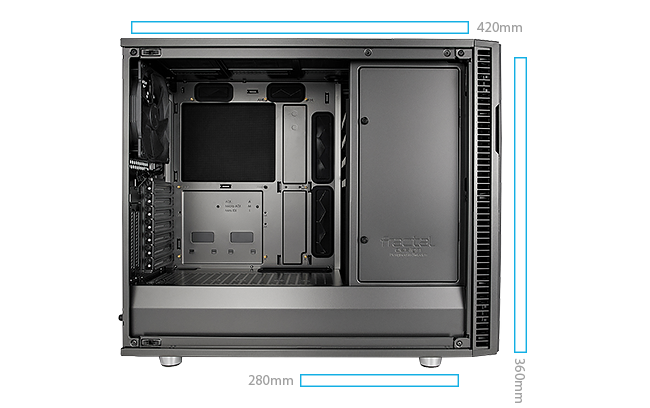

• Extensive water cooling support with room for up to a 420mm radiator in the top, 360mm in the front, and 280mm in the base.
• Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior.
• Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation in the top panel.
• Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience.
• Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths.

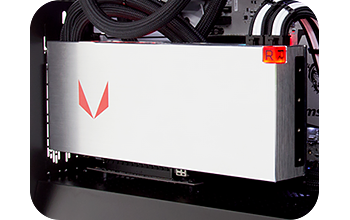

• Vertical 2.5 slot GPU mount showcases your graphics hardware with full visibility (PCIe riser sold separately).

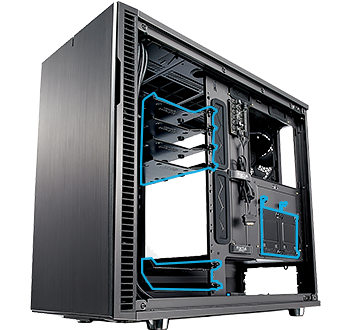

• Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing.
• Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud.
Specifications
Core Chassis Specifications
Case Edition Define R6
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (285mm Wide Max.)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays
  • 3 x 120/140mm
  • 6 x 120mm / 4x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • PSU
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/140/240/280mm
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 185 mm
Max GPU Card Length 440 mm
Max GPU Card Width 155 (Including Power Connectors) mm
Cable Routing Space 23mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 300 mm
Chassis Physical Specifications
Colour Gunmetal
Chassis Contruction Materials
Dimensions 233 x 465 x 543 (WxHxD mm)
Weight 12.4 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
Quiet PC
Telephone:
01653668000
Loading Please Wait

Please wait . . .

Reviews
Fractal Design Define R6, Gunmetal, Tempered Glass, 3x 140mm Fans, E-ATX/ATX/MicroATX/MiniITX, USB 3.1 Gen2 Type-C is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Stylish case with plenty of cooling options I decided to use this case for a Threadripper 2 dev workstation build, as I wanted something that was smart, not too garish and not too massive. My build was probably pushing this case a bit, with a EATX motherboard, large air cooler and plenty of fans (including 2 Noctua 3000rpm fans for exhaust). Nonetheless, it did all fit relatively easily and now looks very nice. Temperatures are very good, CPU at about 60 degrees heavily loaded, below 50 degrees during all usual use. It is not as noisy as I expected either, given the number of fans I fitted. Perfectly tolerable to be with, I usually have music on anyway.
